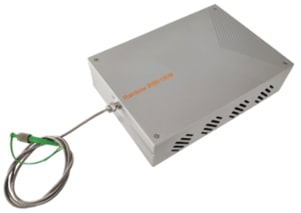

2000nm Picosecond Pulse Laser | SIMTRUM Photonics Store

Features

-Double Wavelength Outputs

-High Peak Power

-Linear Polarization

-Diffraction-Limited Beam

-Turn-Key System

Applications

-Mid-IR Frequency Conversion

-Nonlinear Optics

-Multiphoton Imaging

-Silicon Photonics

Operating Wavelength

Nm

1970±20nm

Spectral Bandwidth

Nm

>100

Pulse Width (FWHM)

Ps

<10 (can be compressed to the fs scale)

Repetition Rate

MHz

80

Average Power

mW

>15

Average Power Stability

% RMS

<0.1 (24h@25°C)

Single Pulse Energy

nJ

>0.18

Polarization Extinction Ratio

dB

>20

Beam Quality

TEM00, M²<1.2

Output Mode

PM1550 Fiber,FC/APC Connector

Electrical, Environmental and Mechanical Parameters

Trigger Signal

V

1 V @50 Ohm

Power Consumption

W

<150

Supply Voltage

VDC

12

Operational Temperature Range

°C

10-45

Operational Humidity Range

%

20~80 (Non-condensing)

Storage Temperature Range

°C

0-50

Storage Humidity Range

%

20~80 (Non-condensing)

Weight Laser Head

Kg

2

Dimensions Laser Head

Mm(LxWxH)

200x140x48

Cooling

Air-cooled
