L Band ASE Broadband Light Source（1567-1603nm）| SIMTRUM

Products / Lasers/Light /Incoherent Light Sources /ASE Light Sources (830-2000nm) /L Band ASE Broadband Light Source（1567-1603nm） /
L Band ASE Broadband Light Source（1567-1603nm）
Overview & Specifications Related Products Order Now!
SIMTRUM's L-Band Broadband ASE Light Source is an incoherent light source, which is the spontaneous radiation generated by the semiconductor laser pumped erbium-doped quartz fiber, and the spectral planarization technology is introduced to achieve the broadband flat spectrum. The wavelength of the light source covers the L-band, the spectral flatness is better than 2.5dB, and it is output through single-mode fiber or bias-preserving fiber, which is suitable for applications such as fiber sensing.


Desktop Model

Characteristics

  • Spectral flatness
  • Power adjustable
  • High stability

Applications

  • Fiber sensing
  • Medical imaging
  • Production test







Product specifications and Brochures

Product Brochure Link:

Optical Parameters Unit Typical Value Remarks

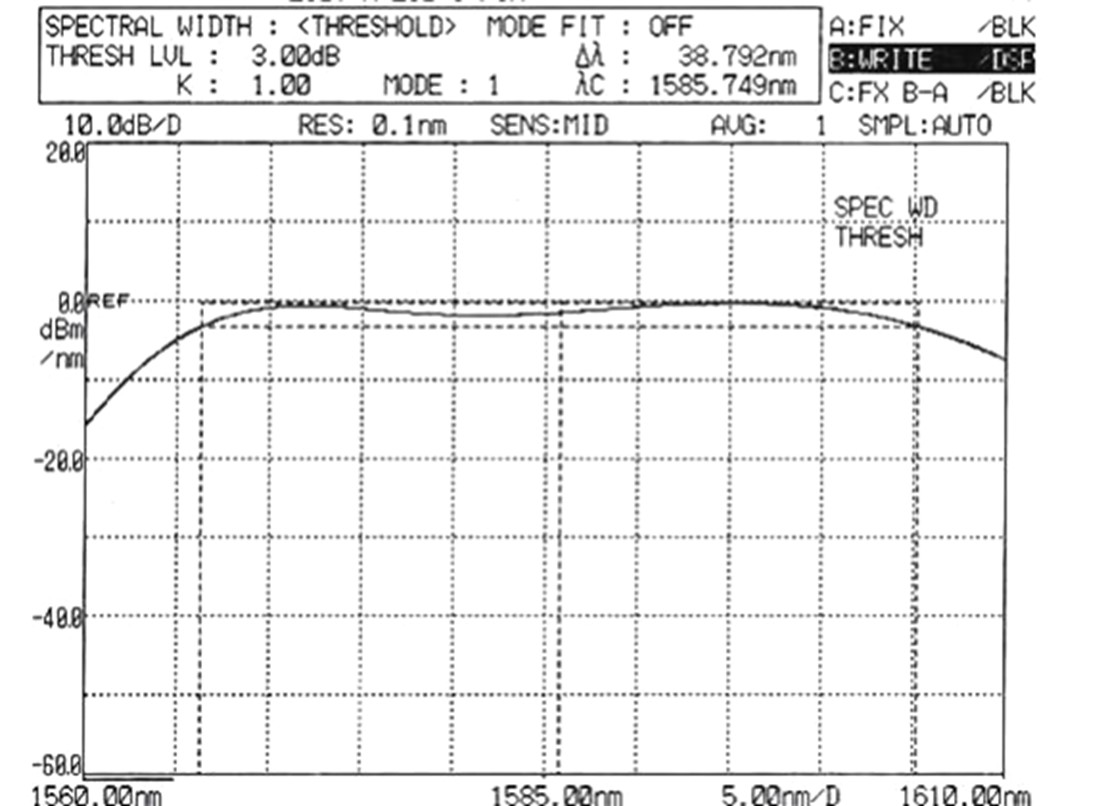

Spectral Range nm 1567~1603@2dB
Optical Output Power mW 10 20 50 100 200
Spectral power density dBm/nm ≥-6 ≥-3 ≥1 ≥4 ≥7
Power Adjustable Range - 10%~100% Adjustable power and flatness
Spectral Flatness dB ≤2.5 (Type),≤ 3(Max)
Output Isolation dB >35
Power Instability(15min) dB ≤ ±0.02  Equivalent≤±0.5%
Power Instability(8h) dB ≤ ±0.05  Equivalent≤±1.2%
Polarization extinction ratio PER dB ≤0.2 ≥23
Fiber connectors - SMF-28 PM1550

General Parameters Desktop Module
Control Function Touch screen/RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply 100~240V AC, <30W 5V DC, <15W
Dimensions 255(W)×285(D)×115(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%

Ordering Information/Product Code
Series Wavelength Output Power(mW) *Power Tunable Fiber Packaging
STASE L=L band 10/20/50/100/200 *T(optional) SM=SMF-28
PM=PM1550		 M - Module
B - Desktop




Type Spectral Range (nm) Output Optical Power(mW)
 980nm ASE Broadband Light Source 973 - 982 10
 Dual-band ASE Broadband Light Source 980 - 1030 50
 1030/1064nm ASE Broadband Light Source 1018 - 1080 10/20/30/50/100/500/1000
 Near-infrared ASE broadband light source 1000 - 1100 20/50/100
 C-Band Broadband ASE Light Source 1528 - 1569 10/20/50/100/200/400/500
 C++ Band Boardband ASE Light Source 1524 - 1572 10/20/50/100/200
 L-Band Broadband ASE Light Source 1567 - 1603 10/20/50/100/200
 C+L Band Boardband ASE Light Source 1524 - 1611 10/20/50/100/200/350
 L+/L++ Band ASE Broadband Light Source 1568 - 1626.5 50/100/200
 Mid-infrared ASE Broadband Light Source 1880 - 1940 10/20/50/100/500/2000




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STASE-L-10-SM-B
L-Band Broadband ASE Light Source (1567-1603nm), wavelength range 1567-1603@2dB, Output power 10mW 		4-6 Weeks $1367.00
STASE-L-20-SM-B
L-Band Broadband ASE Light Source (1567-1603nm), wavelength range 1567-1603@2dB, Output power 20mW 		4-6 Weeks $1402.00
STASE-L-50-SM-B
L-Band Broadband ASE Light Source (1567-1603nm), wavelength range 1567-1603@2dB, Output power 50mW 		4-6 Weeks $2017.00
STASE-L-100-SM-B
L-Band Broadband ASE Light Source (1567-1603nm), wavelength range 1567-1603@2dB, Output power 100mW 		4-6 Weeks $2285.00

STASE-L-100-SM-B - Parameter

STASE-L-50-SM-B - Parameter

STASE-L-20-SM-B - Parameter

STASE-L-10-SM-B - Parameter

STASE-L-100-SM-B - Download

STASE-L-50-SM-B - Download

STASE-L-20-SM-B - Download

STASE-L-10-SM-B - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
