1030/1064 Picosecond Pulse Laser | SIMTRUM Photonics Store

Products / Lasers/Light /Fiber Lasers /Picosecond Pulse Fiber Laser (515nm - 2um) /1030/1064 Picosecond Pulse Laser /
1030/1064 Picosecond Pulse Laser
Overview & Specifications Related Products Order Now!


1030/1064nm Picosecond Pulse Fiber Lasers

The 1030/1064nm Picosecond Pulse Fiber Laser series ultrafast lasers use high-performance rare earth fiber as the working medium, combined with full polarization-maintaining mode-locking technology and active servo control system, to achieve a stable output of picosecond pulsed lasers in the 1030/1064nm band. It can be fully self-started and can work stably for a long time and has the characteristics of the narrow laser pulse and high pulse peak optical power. The light source can be used for scientific research in the fields of high-power laser, supercontinuum, and laser ranging.

* Accept customization of parameters such as pulse width, power, repetition frequency, etc.

1030/1064nm Picosecond Pulse Fiber Laser

Characteristics

-Ultra-short pulses

-Maintenance-free

-Full Polarization-maintaining High Stability

Applications

-Fiber laser pumping

-Super-continuous spectrum

-Seed laser pulse

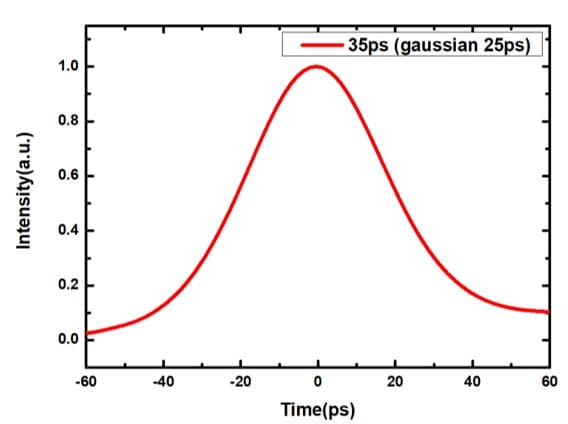

Autocorrelation Curve

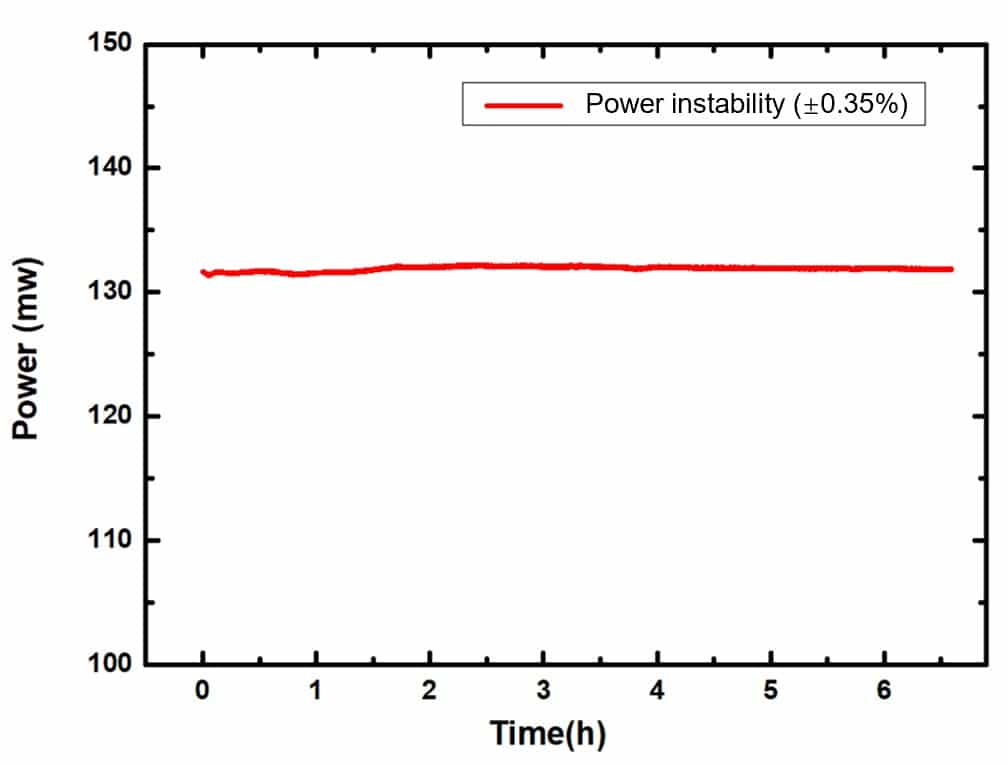

Power Instability

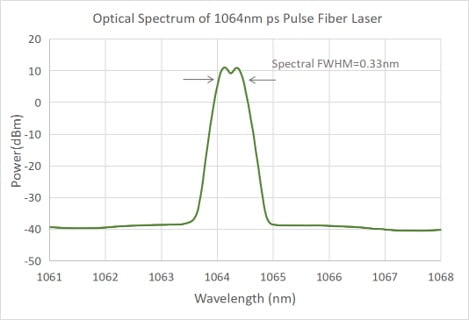

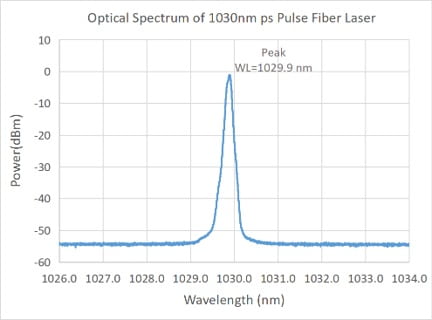

Optical Stectrum of 1030nmOptical Stectrum of 1064nm

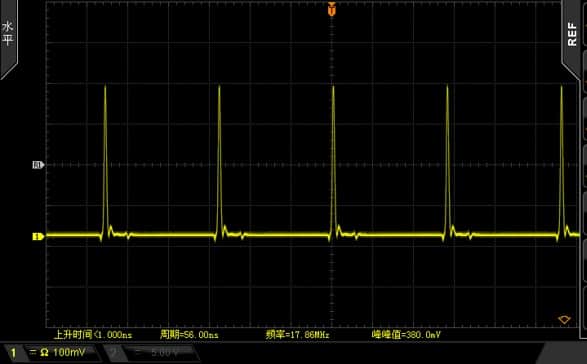

Paule Train


Product specifications and Brochures

Product Brochure Link:


Parameters

Unit

    Typical Value

    Remarks

Center Wavelength

nm

1030/1064

Customizable

Spectrum Width

nm

0.3

Customizable

Pulse Duration

ps

10/20/50/100

Customizable

Average Power

mW

10~2000

Customizable

Power Instability

-

< ±1%


Repetition Rate

MHz

15~100

Fundamental Freq

Repetition Rate turning range

kHz

Repetition Rate/N

by AOM，Low to 1kHz

Pulse Energy

nJ

>1


Polarization


Linear


Fiber Type

-

PM Fiber、Free Space


Worm Up time

min

< 1


* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level


General Parameters

Desktop

Module

Control function

Keystroke

Keystroke

Synchronous electrical signal port

SMA

SMA

Power Supply

AC100~240V, <30W

DC5V, <20W

Dimensions(mm)

260(W)×280(D)×120(H)

200(W)×121(D)×65(H)

Operation Temperature

5 ~ 35°C

Operation Humidity

0~70%



Ordering Information/Model Number

PSPL

WL(nm)

Pulse Duration(fs)

Power(mW)

Freq(MHz)

Fiber

Packaging


1030/

1064

10/20/50/100

10/50/200/

2000

15/50/100

SM

PM

FS

B - Desktop

M - Module



TypeAverage PowerPulse EnergyPulse wdith Rep Rate
515/532nm Picosecond Pulse Laser (<200mW)  1-200mW<20nj10-100ps15-100Mhz
532/1064 Duel Output Picosecond laser (<1W)  <1W
<15ps20-50Mhz
532/1064nm High Power Picosecond Laser (>2W) >2W / >5W>60uJ<10ps1Mhz
1030/1064 Picosecond Pulse Laser (<1W)  10-2000mW>1 nJ10-100ps15-100Mhz
1035nm High Power Picosecond Laser (>10W)  >30W / >10W>375nJ<10ps80Mhz
1550nm High Speed Ps laser (Pulse & CW)  Pulse 1.5mW
CW -48 to -13dBm
30ps1 - 1250Mhz
10Mhz
1560nm Picosecond Pulse Laser  1-120mW>1nJ1-100ps80Mhz
2000nm Picosecond Laser  >15mW>0.18nJ<10ps80Mhz
DFB/FP Picosecond Laser (370-1550nm)  >0.5mW
<50ps0-40Mhz



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
PSPL-1030-10-B
1030 Picosecond Pulse Laser (<1W), Wavelength 1030 nm, Pulse Duration 10 fs 		4-6 Weeks Request for quote
PSPL-1030-20-B
1030 Picosecond Pulse Laser (<1W), Wavelength 1030 nm, Pulse Duration 20 fs 		4-6 Weeks Request for quote
PSPL-1030-50-B
1030 Picosecond Pulse Laser (<1W), Wavelength 1030 nm, Pulse Duration 50 fs 		4-6 Weeks Request for quote
PSPL-1030-100-B
1030 Picosecond Pulse Laser (<1W), Wavelength 1030 nm, Pulse Duration 100 fs 		4-6 Weeks Request for quote
PSPL-1064-10-B
1064 Picosecond Pulse Laser (<1W), Wavelength 1064 nm, Pulse Duration 10 fs 		4-6 Weeks Request for quote
PSPL-1064-20-B
1064 Picosecond Pulse Laser (<1W) , Wavelength 1064 nm, Pulse Duration 20 fs 		4-6 Weeks Request for quote
PSPL-1064-50-B
1064 Picosecond Pulse Laser (<1W), Wavelength 1064 nm, Pulse Duration 50 fs 		4-6 Weeks Request for quote
PSPL-1064-100-B
1064 Picosecond Pulse Laser (<1W), Wavelength 1064 nm, Pulse Duration 100 fs 		4-6 Weeks Request for quote

PSPL-1064-100-B - Parameter

Type
Desktop

Center Wavelength (nm)
1064

Warm-Up Time (min)
< 1

Operating Temperature (°C)
5 to 45

Output Power (mW)
10 to 2000

Pulse Width (fs)
100

Power Instability
< ±1%

Repeat Frequency (MHz)
15 to 100

Single Pulse Energy (nJ)
> 1

Laser Output
Secure fiber optic FC

Electrical Signal Interface
SMA

Wave Spectrum (nm)
0.3

Polarized State
Line Polarization

Lock Mode Stabilization Time (s)
< 20

PSPL-1064-50-B - Parameter

Type
Desktop

Center Wavelength (nm)
1064

Warm-Up Time (min)
< 1

Operating Temperature (°C)
5 to 45

Output Power (mW)
10 to 2000

Pulse Width (fs)
50

Power Instability
< ±1%

Repeat Frequency (MHz)
15 to 100

Single Pulse Energy (nJ)
> 1

Laser Output
Secure fiber optic FC

Electrical Signal Interface
SMA

Wave Spectrum (nm)
0.3

Polarized State
Line Polarization

Lock Mode Stabilization Time (s)
< 20

PSPL-1064-20-B - Parameter

Type
Desktop

Center Wavelength (nm)
1064

Warm-Up Time (min)
< 1

Operating Temperature (°C)
5 to 45

Output Power (mW)
10 to 2000

Pulse Width (fs)
20

Power Instability
< ±1%

Repeat Frequency (MHz)
15 to 100

Single Pulse Energy (nJ)
> 1

Laser Output
Secure fiber optic FC

Electrical Signal Interface
SMA

Wave Spectrum (nm)
0.3

Polarized State
Line Polarization

Lock Mode Stabilization Time (s)
< 20

PSPL-1064-10-B - Parameter

Type
Desktop

Center Wavelength (nm)
1064

Warm-Up Time (min)
< 1

Operating Temperature (°C)
5 to 45

Output Power (mW)
10 to 2000

Pulse Width (fs)
10

Power Instability
< ±1%

Repeat Frequency (MHz)
15 to 100

Single Pulse Energy (nJ)
> 1

Laser Output
Secure fiber optic FC

Electrical Signal Interface
SMA

Wave Spectrum (nm)
0.3

Polarized State
Line Polarization

Lock Mode Stabilization Time (s)
< 20

PSPL-1030-100-B - Parameter

Type
Desktop

Center Wavelength (nm)
1030

Warm-Up Time (min)
< 1

Operating Temperature (°C)
5 to 45

Output Power (mW)
10 to 2000

Pulse Width (fs)
100

Power Instability
< ±1%

Repeat Frequency (MHz)
15 to 100

Single Pulse Energy (nJ)
> 1

Laser Output
Secure fiber optic FC

Electrical Signal Interface
SMA

Wave Spectrum (nm)
0.3

Polarized State
Line Polarization

Lock Mode Stabilization Time (s)
< 20

PSPL-1030-50-B - Parameter

Type
Desktop

Center Wavelength (nm)
1030

Warm-Up Time (min)
< 1

Operating Temperature (°C)
5 to 45

Output Power (mW)
10 to 2000

Pulse Width (fs)
50

Power Instability
< ±1%

Repeat Frequency (MHz)
15 to 100

Single Pulse Energy (nJ)
> 1

Laser Output
Secure fiber optic FC

Electrical Signal Interface
SMA

Wave Spectrum (nm)
0.3

Polarized State
Line Polarization

Lock Mode Stabilization Time (s)
< 20

PSPL-1030-20-B - Parameter

Type
Desktop

Center Wavelength (nm)
1030

Warm-Up Time (min)
< 1

Operating Temperature (°C)
5 to 45

Output Power (mW)
10 to 2000

Pulse Width (fs)
20

Power Instability
< ±1%

Repeat Frequency (MHz)
15 to 100

Single Pulse Energy (nJ)
> 1

Laser Output
Secure fiber optic FC

Electrical Signal Interface
SMA

Wave Spectrum (nm)
0.3

Polarized State
Line Polarization

Lock Mode Stabilization Time (s)
< 20

PSPL-1030-10-B - Parameter

Type
Desktop

Center Wavelength (nm)
1030

Warm-Up Time (min)
< 1

Operating Temperature (°C)
5 to 45

Output Power (mW)
10 to 2000

Pulse Width (fs)
10

Power Instability
< ±1%

Repeat Frequency (MHz)
15 to 100

Single Pulse Energy (nJ)
> 1

Laser Output
Secure fiber optic FC

Electrical Signal Interface
SMA

Wave Spectrum (nm)
0.3

Polarized State
Line Polarization

Lock Mode Stabilization Time (s)
< 20

PSPL-1064-100-B - Download

PSPL-1064-50-B - Download

PSPL-1064-20-B - Download

PSPL-1064-10-B - Download

PSPL-1030-100-B - Download

PSPL-1030-50-B - Download

PSPL-1030-20-B - Download

PSPL-1030-10-B - Download
