Whether in process monitoring, process automation or quality control in fl oat glass and container glass production – the infrared camera PYROVIEW 640G measures temperatures without contact exactly and reliably. Also in very fast processes or at temperature changes the data acquisition happens in realtime. For a high measurement accuracy the spectral range of the camera is optimally adjusted to measurement objects made from glass. In stationary industrial continuous operation measurement data is recorded with high spatial resolution on fi xed or moving measurement objects. In this way production processes are monitored and controlled effi ciently. Therefore the Gigabit Ethernet interface guarantees a data acquisition without loss and with no appreciable time delay up to 50 images per second.

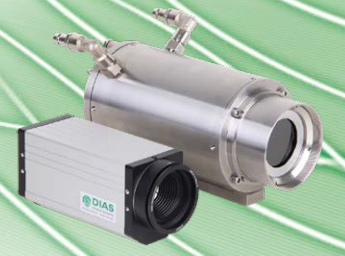

The maximum image frequency of 50 Hz is adjusted optimally to the thermal time constant of the infrared array. Numerous motor focus infrared lenses, including wide angle and telephoto lenses, provide a fl exible adjustment to different measurement object sizes at different measurement distances. The infrared camera is either built in a small aluminium housing „compact+“ or in a stainless steel industry protection housing „protection“ that has a protection window, an air purge unit and an optional watercooling. The camera observes the production in stand-alone operation without any connected computer via two galvanically isolated digital inputs and outputs. All process parameters of the standalone version are programmed once on location via PC connection. The modular Windows software PYROSOFT of the camera can be adjusted and extended to process-related requirements. The free software PYROSOFT Compact is delivered with every PYROVIEW infrared camera.

Features:

- Precise non-contact temperature measurement from 300 °C to 700 °C

- Uncooled microbolometer array with 640 × 480 pixels

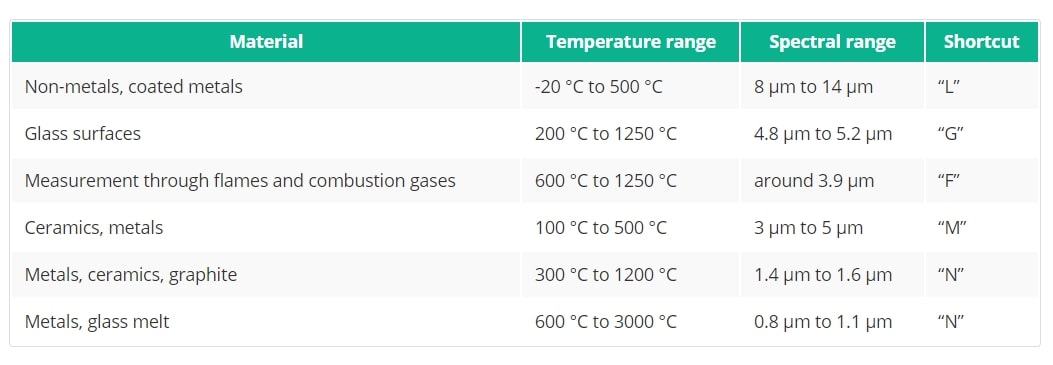

- Spectral range 4.8 µm to 5.2 µm

- Numerous optics with motor focus

- Measurement frequency 50 frames per second

- Gigabit Ethernet interface (1 GBit/s)

- Large dynamic range and 16-Bit analog digital converter

- Camera in small housing „compact+“ (IP54) or industry protection housing "protection" (IP65)

- Integration in customized system solutions including hard- and software adjustment

Housing

Optics variants (optics with motor focus)

HFOV ... Horizontal Field Of View (horizontal aperature angle)

VFOV ... Vertical Field Of View (vertical aperature angle)

IFOV ... Instantaneous Field Of View (spatial resolution)

W ... Image width

H ... Image height

w ... Pixel width

D ... Measurement distance

h ... Pixel height

The application areas of our infrared cameras are very manifold. Everywhere where temperatures in the process play an important role our cameras can be integrated. Due to different housings, optics and complete system solutions complex measurement tasks can be solved. Our infrared cameras PYROVIEW are used in the following application areas for example:
