LA-BY01-H2-2014-D

Products / Light Analysis /Photodetectors /Photomultiplier Tubes (PMT)(160-900nm) /Photomultiplier Tube Head-On (Tube Only)(290-650nm) / LA-BY01-H2-2014-D /

Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:50 ;Dark Current：30nA

MODEL:LA-BY01-H2-2014-D

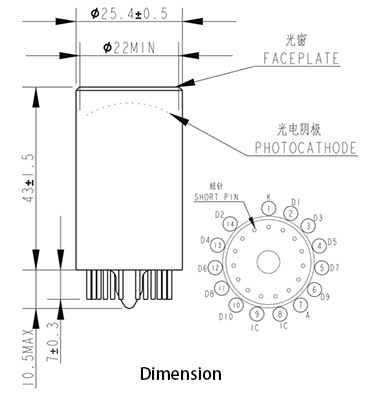

4-6week Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
LA-BY01-H4-2041
Spectral Range：290-650 nm ; QE@410nm：Min:25/Typ:28%;Top Detection Eff.:Min:22%/Typ:24% ；Top Collection Eff.：Typ:90%；ain:Typ:5*10^6 ; Dark Count Rate:Max:1000 Hz 		4-6week Request for quote
LA-BY01-H4-2031
Spectral Range：290-650 nm ; QE@410nm：Typ:28%;QE@450nm:Typ:28%；Gain:Typ:1*10^7 ; Dark Count Rate:Typ:1500/Max:3000 Hz 		4-6week Request for quote
LA-BY01-H3-4031
Spectral Range：290-650 nm ; Peak QE:420 nm ;Blue Sensitivity:Min :10/Typ:11.5μA/lmf；Gain:Typ:2.73*10^5 ; Dark Current ：Typ:2/Max:30nA 		4-6week Request for quote
LA-BY01-H3-4022
Spectral Range：290-650 nm ; Peak QE:420 nm ;Blue Sensitivity:Min :8/Typ:10μA/lmf;Gain:Typ:2.73*10^5 ; Dark Current ：Typ:2/Max:30 		4-6week Request for quote
LA-BY01-H3-4021C
Spectral Range：290-650 nm ; Peak QE:380 nm ;Gain:Typ:1*10^7 ; Dark Current ：Max:100nA 		4-6week Request for quote
LA-BY01-H3-4021B
Spectral Range：290-650 nm ; Peak QE:380 nm ;Gain:Typ:1.6*10^7 ; Dark Current ：Max:50nA 		4-6week Request for quote
LA-BY01-H3-4021A
Spectral Range：290-650 nm ; Peak QE:380 nm ;Gain:Typ:2.5*10^7 ; Dark Current ：Max:30nA 		4-6week Request for quote
LA-BY01-H2-2014-C2
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:100 ;Dark Current：30nA 		4-6week Request for quote
LA-BY01-H2-2014-C1
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:300/Typ:800 ;Dark Current：10nA 		4-6week Request for quote
LA-BY01-H2-2014-B
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:200 ;Dark Count Rate:Max:500 ; Dark Current：5nA 		4-6week Request for quote
LA-BY01-H2-2014-A
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:400；Dark Count Rate:Max:100 ; Dark Current：3nA 		4-6week Request for quote
LA-BY01-H2-2013-C
Spectral Range：290-650 nm ; Peak QE:380 nm；Gain: Min:Typ:7*10^6 ; Dark Count Rate:Max:1000 Hz ; Dark Current：Typ:2/Max:10 		4-6week Request for quote
LA-BY01-H2-2013-B
Spectral Range：290-650 nm ; Peak QE:380 nm ; Gain: Min:Typ:7*10^6 ; Dark Count Rate:Max:140 Hz ; Dark Current：Typ:2/Max:10 nA 		4-6week Request for quote
LA-BY01-H2-2013-A
Spectral Range：290-650 nm ; Peak QE:380 nm；Gain: Min:Typ:7*10^6 ; Dark Count Rate:Max:140 Hz ; Dark Current：Typ:2/Max:10 nA 		4-6week Request for quote
LA-BY01-H1-2021
Spectral Range：290-650 nm ; Peak QE:380 nm；Gain:Typ:1*10^5 ; Dark Current：Typ:5/Max:10 nA 		4-6week Request for quote
LA-BY01-H1-2018
Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain:Typ:5*10^5(@25℃) ; Dark Current：Typ:0.1(@25℃) /Max:10(@25℃)/Max:1000(@175℃)nA 		4-6week Request for quote
LA-BY01-H1-2017
Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain:Typ:7*10^6 ; Dark Current：Typ:3/Max:20 nA 		4-6week Request for quote
LA-BY01-H1-2016
Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain:Typ:4*10^6 ; Dark Current：Typ:2/Max:10 nA 		4-6week Request for quote
LA-BY01-H1-2002
Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain: Min:1*10^6/Typ:5*10^6 ; Dark Current：Min:1/Typ:15 nA 		4-6week Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Parameter LA-BY01-H2-2013-A LA-BY01-H2-2013-B LA-BY01-H2-2013-C LA-BY01-H2-2014-A LA-BY01-H2-2014-B LA-BY01-H2-2014-C1 LA-BY01-H2-2014-C2 LA-BY01-H2-2014-D Unit

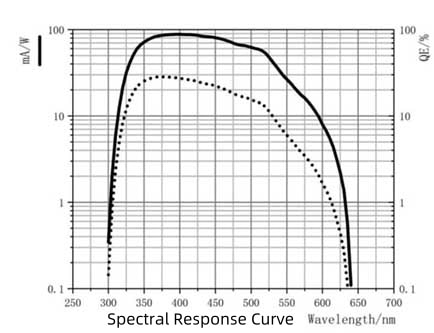

Cathode Spectral range 290-650 290-650 nm
  Cathode effective diameter Min:25 22 mm
  Peak QE 380 380 nm
  Luminous sensitivity Typ:80 / μA/lm
  Blue sensitivity Min:9 10 9 μA/lm
Typ:11
Anode Anode sensitivity Min:30(blue) Min:400 Min:200 Min:300 Min:100 Min:50 A/lmf
Typ:800
  Supply voltage Max:1150 / V

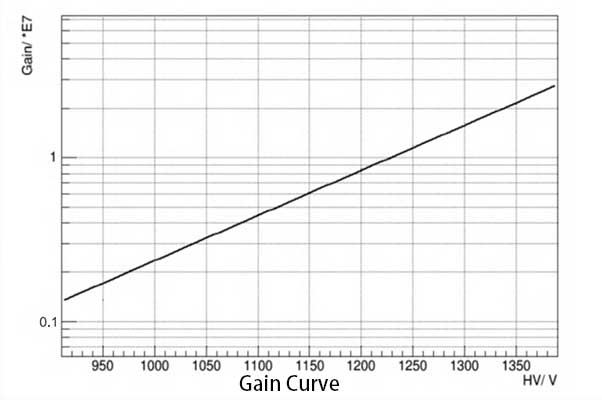

  Gain Typ:7×10⁶ / _
  Dark Count Rate Max:140 Max:300 Max:1000 Max:100 Max:500 / / / Hz
  Dark Current Typ:2 3 5 10 30 30 nA
Max:10
Time Rise time Typ:1.9 Typ:1.5 ns
  TTS Typ:3 Typ:1.5 ns
Link



Other Parameter

Window material Borosilicate glass
Photocathode material Bialkali
Dynode structure Box and Linear focused（2013）
Circular and Linear focused（2014）
Operating temperature -30~+50℃
Storage temperature -50~+50℃





LA-BY01-H4-2041 - Parameter

LA-BY01-H4-2031 - Parameter

LA-BY01-H3-4031 - Parameter

LA-BY01-H3-4022 - Parameter

LA-BY01-H3-4021C - Parameter

LA-BY01-H3-4021B - Parameter

LA-BY01-H3-4021A - Parameter

LA-BY01-H2-2014-D - Parameter

LA-BY01-H2-2014-C2 - Parameter

LA-BY01-H2-2014-C1 - Parameter

LA-BY01-H2-2014-B - Parameter

LA-BY01-H2-2014-A - Parameter

LA-BY01-H2-2013-C - Parameter

LA-BY01-H2-2013-B - Parameter

LA-BY01-H2-2013-A - Parameter

LA-BY01-H1-2021 - Parameter

LA-BY01-H1-2018 - Parameter

LA-BY01-H1-2017 - Parameter

LA-BY01-H1-2016 - Parameter

LA-BY01-H1-2002 - Parameter

LA-BY01-H4-2041 - Download

LA-BY01-H4-2031 - Download

LA-BY01-H3-4031 - Download

LA-BY01-H3-4022 - Download

LA-BY01-H3-4021C - Download

LA-BY01-H3-4021B - Download

LA-BY01-H3-4021A - Download

LA-BY01-H2-2014-D - Download

LA-BY01-H2-2014-C2 - Download

LA-BY01-H2-2014-C1 - Download

LA-BY01-H2-2014-B - Download

LA-BY01-H2-2014-A - Download

LA-BY01-H2-2013-C - Download

LA-BY01-H2-2013-B - Download

LA-BY01-H2-2013-A - Download

LA-BY01-H1-2021 - Download

LA-BY01-H1-2018 - Download

LA-BY01-H1-2017 - Download

LA-BY01-H1-2016 - Download

LA-BY01-H1-2002 - Download
