STPMS-2HT110

Products / Optics /Vision Lens /Telecentric Lens Series /H-Resolution Telecentric Lens / STPMS-2HT110 /

STPMS-2HT110，High Resolution Telecentric Lens 2.0 X, Max. sensor size 2/3"，Resolution 4.53 μm ，Working Distance 110 mm

MODEL:STPMS-2HT110

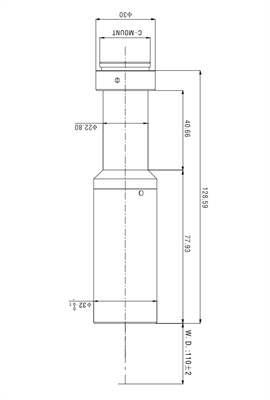

4-6 weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPMS-DTC23180
STPMS-DTC23180，High Resolution Telecentric Lens 0.061X Max. sensor size 2/3"，Resolution 87.99 μm，Working Distance 398 mm 		4-6 weeks Request for quote
STPMS-DTC23100-D
STPMS-DTC23100-D，High Resolution Telecentric Lens 0.088X, Max. sensor size 2/3"，Resolution 45.8 μm，Working Distance 238 mm 		4-6 weeks Request for quote
STPMS-DTC23100-A
STPMS-DTC23100-A，High Resolution Telecentric Lens 0.088X, Max. sensor size 2/3"，Resolution 45.8 μm，Working Distance 120 mm 		4-6 weeks Request for quote
STPMS-2HT110-C
STPMS-2HT110-C，High Resolution Telecentric Lens 2.0X, Max. sensor size 2/3"，Resolution 4.53μm，Working Distance 110 mm,Lighting Coaxial 		4-6 weeks Request for quote
STPMS-2HT65-C-S
STPMS-2HT65-C-S，High Resolution Telecentric Lens 2.0X, Max. sensor size 1/2"，Resolution 2.2μm (Adjustable)，Working Distance 65mm,Lighting Coaxial 		4-6 weeks Request for quote
STPMS-2HT65-S
STPMS-2HT65-S，High Resolution Telecentric Lens 2.0X, Max. sensor size 1/2"，Resolution 2.2μm (Adjustable)，Working Distance 65mm 		4-6 weeks Request for quote
STPMS-1.5HT110-C
STPMS-1.5HT110-C，High Resolution Telecentric Lens1.5X, Max. sensor size 2/3"，Resolution 5.59 μm，Working Distance 110 mm,Lighting Coaxial 		4-6 weeks Request for quote
STPMS-1.5HT110
STPMS-1.5HT110，High Resolution Telecentric Lens 1.5X, Max. sensor size 2/3"，Resolution 5.59 μm，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-1.2HT110-C
STPMS-1.2HT110-C，High Resolution Telecentric Lens 1.2X, Max. sensor size 2/3"，Resolution 6.71 μm，Working Distance 110 mm,Lighting Coaxial 		4-6 weeks Request for quote
STPMS-1.2HT110
STPMS-1.2HT110，High Resolution Telecentric Lens 1.2X, Max. sensor size 2/3"，Resolution 6.71 μm，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-1HT-110-C
STPMS-1HT-110-C，High Resolution Telecentric Lens 1X, Max. sensor size 2/3"，Resolution 7.46 μm，Working Distance 110 mm,Lighting Coaxial 		4-6 weeks Request for quote
STPMS-1HT-110
STPMS-1HT-110，High Resolution Telecentric Lens 1X, Max. sensor size 2/3"，Resolution 7.46 μm，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-05HT150-C
STPMS-05HT150-C，High Resolution Telecentric Lens 0.5X, Max. sensor size 2/3"，Resolution 12.43 μm，Working Distance 150 mm 		4-6 weeks Request for quote
STPMS-05HT150
STPMS-05HT150，High Resolution Telecentric Lens 0.5X, Max. sensor size 2/3"，Resolution 17.66 μm，Working Distance 150 mm 		4-6 weeks Request for quote
STPMS-05HT110-C
STPMS-05HT110-C，High Resolution Telecentric Lens 0.5X, Max. sensor size 2/3"，Resolution 12.43 μm，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-05HT110
STPMS-05HT110，High Resolution Telecentric Lens 0.5X, Max. sensor size 2/3"，Resolution 17.66 μm，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-03HT110-C
STPMS-03HT110-C，High Resolution Telecentric Lens 0.3X, Max. sensor size 2/3"，Resolution 11.18μm，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-03HT110
STPMS-03HT110，High Resolution Telecentric Lens 0.3X, Max. sensor size 2/3"，Resolution 11.18μm ，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-037LHD150-C
STPMS-037LHD150-C，High Resolution Telecentric Lens 0.37X, Max. sensor size 1.1，Resolution 11.18μm (Adjustable)，Working Distance 150 mm 		4-6 weeks Request for quote
STPMS-037LHD150
STPMS-037LHD150，High Resolution Telecentric Lens 0.372X, Max. sensor size 1.1，Resolution 11.18 μm，Working Distance 150 mm 		4-6 weeks Request for quote
STPMS-02HT180-S
STPMS-02HT180-S，High Resolution Telecentric Lens 0.2X, Max. sensor size 1"，Resolution 20.14μm (Adjustable)，Working Distance 180 mm 		4-6 weeks Request for quote
STPMS-02HT180
STPMS-02HT180，High Resolution Telecentric Lens 0.2X, Max. sensor size 1"，Resolution 20.14 μm，Working Distance 180 mm 		4-6 weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Product specifications

Model STPMS-2HT65-S STPMS-2HT65-C-S STPMS-2HT110 STPMS-2HT110-C
Magnification 2.0X
Field of View (1/2") 3.2mm x 2.4mm 3.2mm x 2.4mm
Field of View (1/1.8") --- 3.6mm x 2.7mm
Field of View (2/3") --- 4.4mm x 3.3mm
Working Distance 65mm 110mm
Resolution (μm) 2.2 (Adjustable) 4.53
F.No F6.6 (Adjustable) 13.5
TV Distortion 0.0005 0.0003
DOF 0.13mm (Adjustable) 0.27mm
N.A. 0.152 (Adjustable) 0.0074
Max. Sensor Size 1/2" 2/3"
Mount C-Mount C-Mount
Lighting   Coaxial   Coaxial
Working Temperature -10°C~+50°C -10°C~+50°C
