STPM-45JC10M

STPM-45JC10M,Sensor Size 1.8" (9mm),Focal Length 4.5 mm,Iris F2.8-16,Interface C-Mount

MODEL:STPM-45JC10M

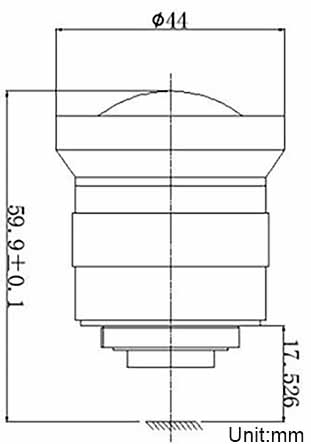

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Compare Model Drawings & Specs Availability Reference Price
STPM-35JC10M(H)
STPM-35JC10M(H),Sensor Size 1.8" (9mm),Focal Length 35 mm,Iris F2.8-16,Interface C-Mount
4-6 Weeks Request for quote
STPM-25JC10M(H)
STPM-25JC10M(H),Sensor Size 1.8" (9mm),Focal Length 25 mm,Iris F2.8-16,Interface C-Mount
4-6 Weeks Request for quote
STPM-16JC10M(H)
STPM-16JC10M(H),Sensor Size 1.8" (9mm),Focal Length 16mm,Iris F2.8-16,Interface C-Mount
4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price



Product specifications and Brochures

Product Brochure Link:



Model STPM-16JC10M(H) STPM-25JC10M(H) STPM-35JC10M(H) STPM-45JC10M
Sensor Size 1.8"(9mm)
Focal Length 16mm 25mm 35mm 4.5mm
Interface C-Mount
Iris F2.8-16
FOV  (Diagonal,Horizontal, Vertical) 1/1.8" 31.0°x27.5°x15.7° 20.4°x17.8°x10.0° 14.7°x12.6°x7.29 89.0°x81.9°x52.39
1/2” 28.3°x24.7x14.0° 18.1°x15.9°x8.9° 13°x11.4x6.4° 89°x81.9x52.3°
Back Focal Length (In Air) 13mm 12.2mm 11mm 8.4mm
Operation Mode Focus Manual
lris Manual
Distortion 1/1.8" -0.5%@y=4.5mm -0.1%@y=4.5mm -0.09%@y=4.5mm -1.2%@y=4.5mm
1/2” -0.48%@y=4.0mm -0.08%@y=4.0mm -0.08%@y=4.0mm 1.08%@y=4.0mm
Focus Range 0.1m~ 0.2m~ 0.2m~ 0.1m~
Filter Thread Diameter M25.5xP0.5 -
Working Temperature -20°C~+60°C

STPM-45JC10M - Parameter

STPM-35JC10M(H) - Parameter

STPM-25JC10M(H) - Parameter

STPM-16JC10M(H) - Parameter

STPM-45JC10M - Download

STPM-35JC10M(H) - Download

STPM-25JC10M(H) - Download

STPM-16JC10M(H) - Download
