Products / Optics /Vision Lens /FA Lens /1/1.8" Machine Vision FA Lens / STPM-35JC10M(H) /

STPM-35JC10M(H),Sensor Size 1.8" (9mm),Focal Length 35 mm,Iris F2.8-16,Interface C-Mount

MODEL:STPM-35JC10M(H)

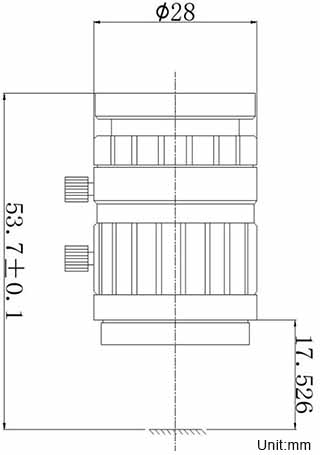

4-6 Weeks Drawings

Compare

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page

Compatible

Compare	Model		Drawings & Specs	Availability	Reference Price

Product specifications and Brochures

Product Brochure Link:

Model		STPM-16JC10M(H)	STPM-25JC10M(H)	STPM-35JC10M(H)	STPM-45JC10M
Sensor Size		1.8"(9mm)
Focal Length		16mm	25mm	35mm	4.5mm
Interface		C-Mount
Iris		F2.8-16
FOV (Diagonal,Horizontal, Vertical)	1/1.8"	31.0°x27.5°x15.7°	20.4°x17.8°x10.0°	14.7°x12.6°x7.29	89.0°x81.9°x52.39
	1/2”	28.3°x24.7x14.0°	18.1°x15.9°x8.9°	13°x11.4x6.4°	89°x81.9x52.3°
Back Focal Length (In Air)		13mm	12.2mm	11mm	8.4mm
Operation Mode	Focus	Manual
	lris	Manual
Distortion	1/1.8"	-0.5%@y=4.5mm	-0.1%@y=4.5mm	-0.09%@y=4.5mm	-1.2%@y=4.5mm
	1/2”	-0.48%@y=4.0mm	-0.08%@y=4.0mm	-0.08%@y=4.0mm	1.08%@y=4.0mm
Focus Range		0.1m~∞	0.2m~∞	0.2m~∞	0.1m~∞
Filter Thread Diameter		M25.5xP0.5			-
Working Temperature		-20°C~+60°C

STPM-45JC10M - Parameter

STPM-35JC10M(H) - Parameter

STPM-25JC10M(H) - Parameter

STPM-16JC10M(H) - Parameter

STPM-45JC10M - Download

STPM-35JC10M(H) - Download

STPM-25JC10M(H) - Download

STPM-16JC10M(H) - Download
