STPM-12XC12M

Products / Optics /Vision Lens /FA Lens /4/3" Machine Vision FA Lens / STPM-12XC12M /

STPM-12XC12M,Resolution 12 MP,Focal Length 12 mm,Wavelength 420-1000nm,lris Range F2.0-F22,Sensor Size 4/3"(23mm)

MODEL:STPM-12XC12M

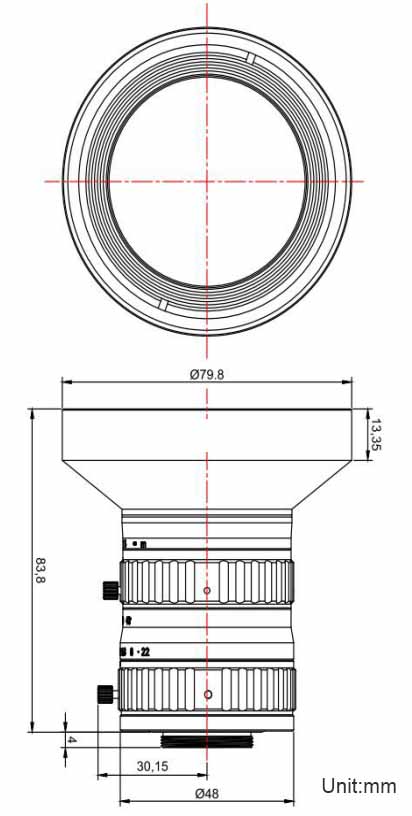

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPM-50XC12M
STPM-50XC12M,Resolution 12 MP,Focal Length 50 mm,Wavelength 420-1000nm,lris Range F2.0-F22,Sensor Size 4/3"(23mm) 		4-6 Weeks Request for quote
STPM-35XC12M
STPM-35XC12M,Resolution 12 MP,Focal Length 35 mm,Wavelength 420-1000nm,lris Range F2.0-F22,Sensor Size 4/3"(23mm) 		4-6 Weeks Request for quote
STPM-25XC12M
STPM-25XC12M,Resolution 12 MP,Focal Length 25 mm,Wavelength 420-1000nm,lris Range F2.0-F22,Sensor Size 4/3"(23mm) 		4-6 Weeks Request for quote
STPM-16XC12M
STPM-16XC12M,Resolution 12 MP,Focal Length 16 mm,Wavelength 420-1000nm,lris Range F2.0-F22,Sensor Size 4/3"(23mm) 		4-6 Weeks Request for quote
STPM-50XC10M
STPM-50XC10M,Resolution 10 MP;160lp/mm (center) 100lp/mm (corner),Focal Length 35 mm,lris Range F2.0-F22,Sensor Size 4/3"(17.6mmX13.2mm Ø22mm) 		4-6 Weeks Request for quote
STPM-35XC10M
STPM-35XC10M,Resolution 10 MP;160lp/mm (center) 100lp/mm (corner),Focal Length 35 mm,lris Range F2.0-F22,Sensor Size 4/3"(17.6mmX13.2mm Ø22mm) 		4-6 Weeks Request for quote
STPM-25XC10M
STPM-25XC10M,Resolution 10 MP;160lp/mm (center) 100lp/mm (corner),Focal Length 25 mm,lris Range F2.0-F22,Sensor Size 4/3"(17.6mmX13.2mm Ø22mm) 		4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price



Product specifications and Brochures

Product Brochure Link:



Parameter STPM-12XC12M STPM-16XC12M STPM-25XC12M STPM-35XC12M STPM-50XC12M
Resolution 12MP
Wavelength 420-1000nm
Focal Length (mm) 12 16 25 35 50
lris Range F2.0-F22
Max.Sensor Size 4/3"(23mm)
Field of View ( Diagonal X Horizontal X Verticle) 4/3" 89.1°x75.6°x61.2° 73.0°x61.0°x47.3° 49.8°x40.6°x31.1 36.8°x29.7°x22.5 26.0°x21.0°x15.8
1” 69.0°x57.36°x44.3° 54.2°x44.3°x33.6° 35.8°x28.9°x21.8 26.0°x20.8°x15.8 18.3°x14.7°x11.1°
2/3" 　 　 　 　 　
1/2" 37.4°x30.2°x22.7° 28.3°x22.7°x17.1° 18.3°x14.6°x11.1° 13.2°x10.6°x7.9 9.2°x7.3°x5.6
Control FocuS Manual
lris Manual

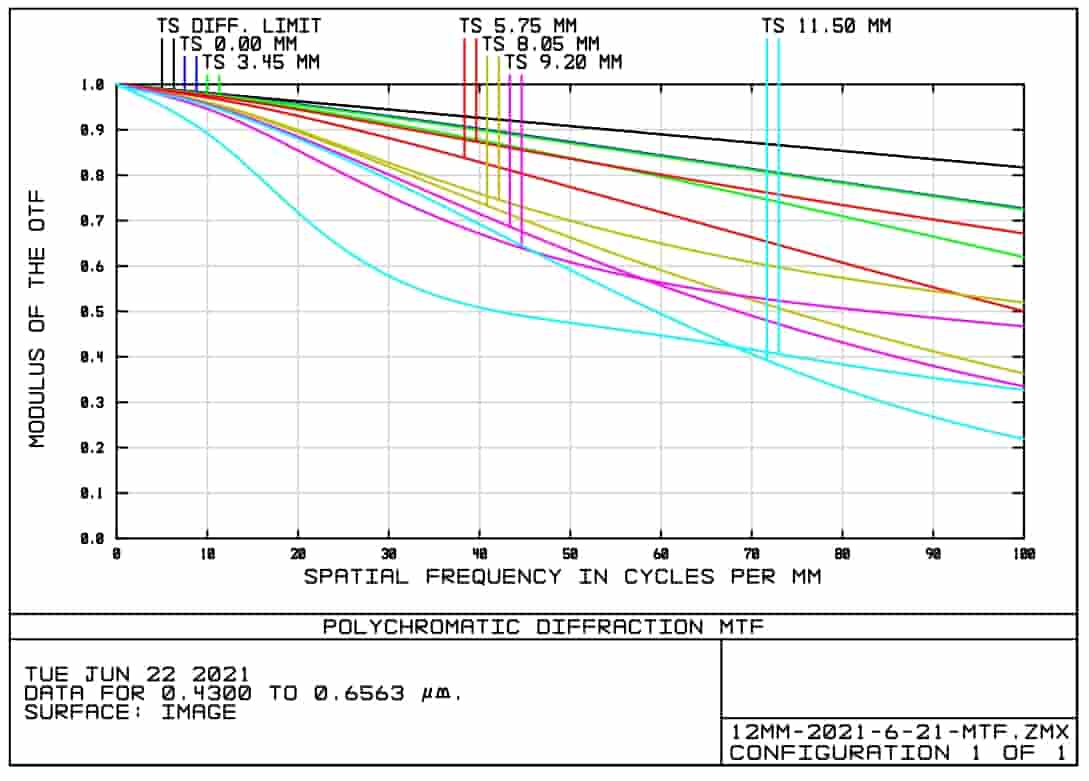

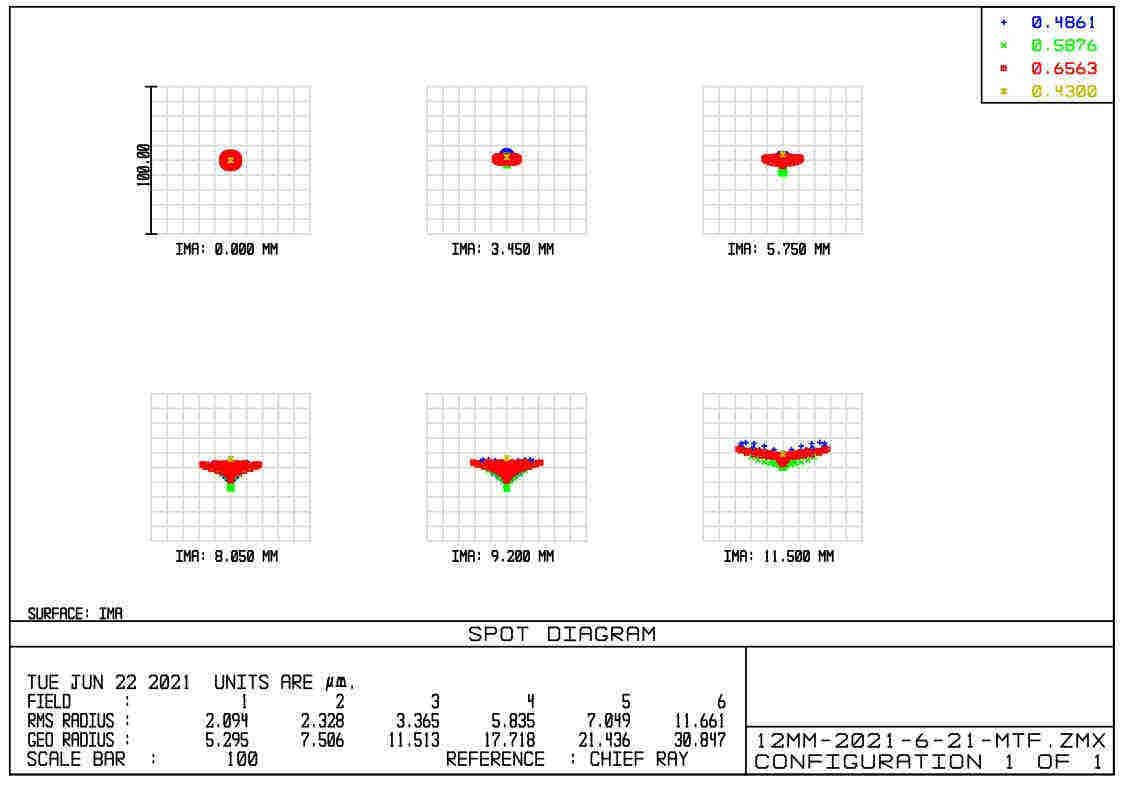

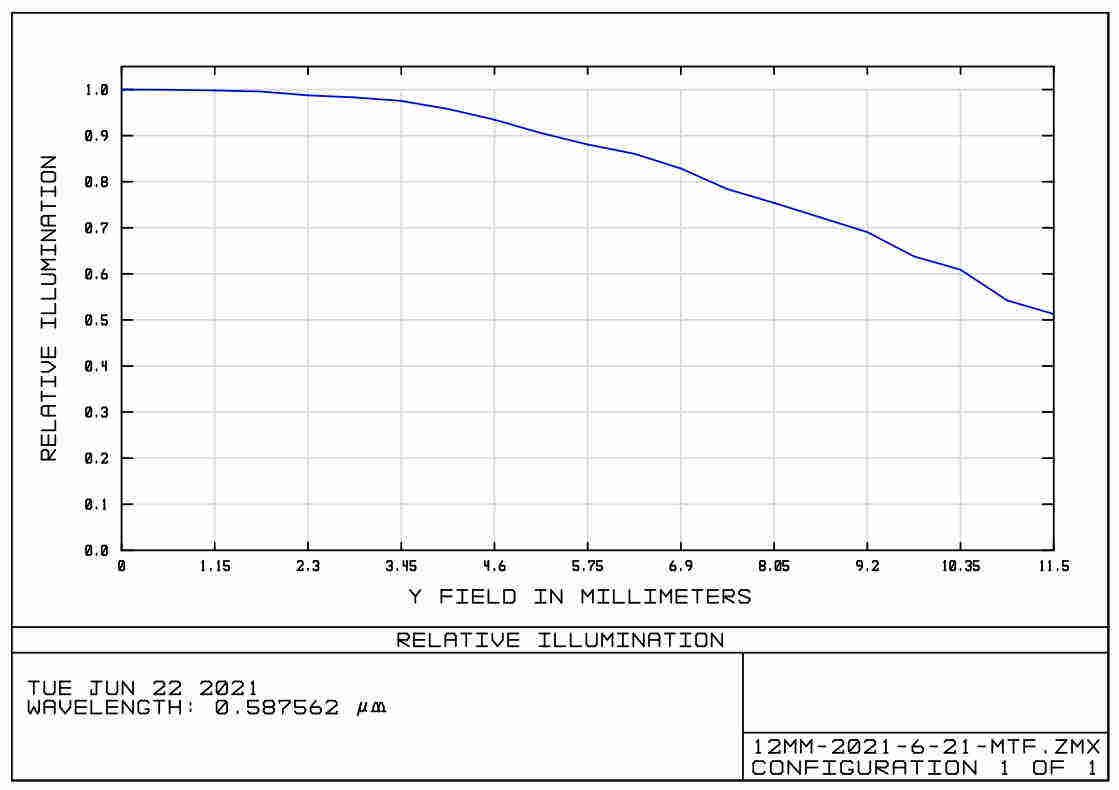

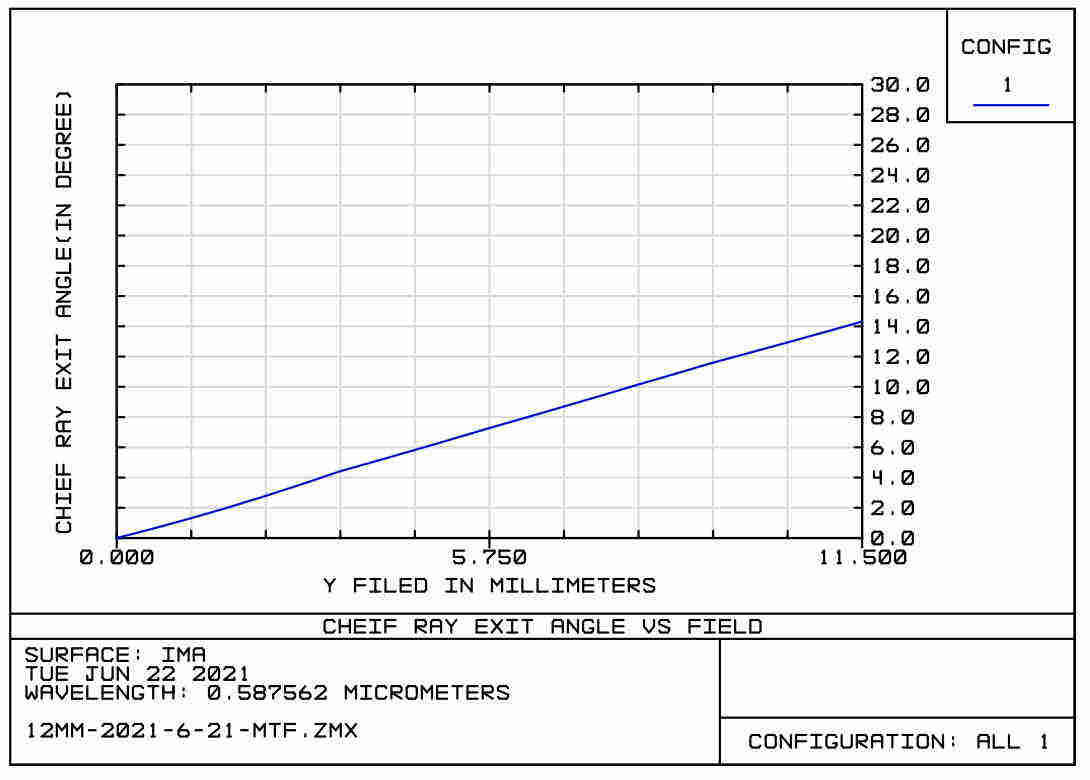

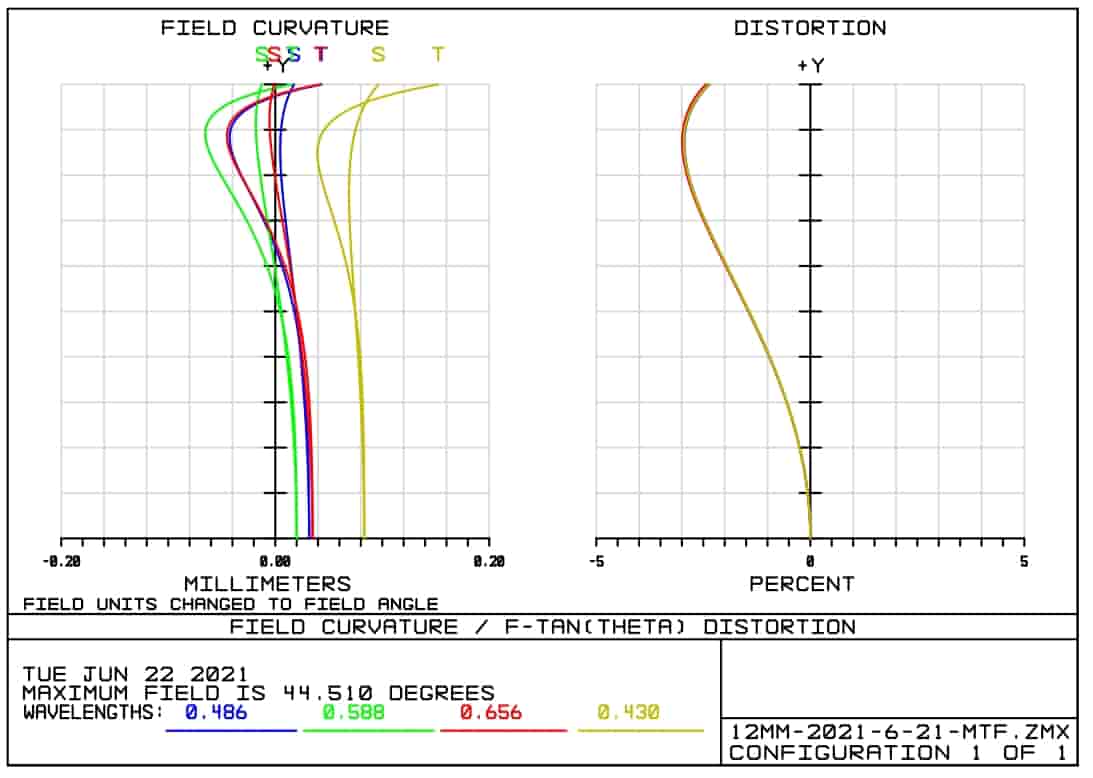

Distortion (mm) 4/3" -2.05%@y=11.5  -1.93%@y=11.5  -0.64%@y=11.5  -0.52%@y=11.5  -0.13%@y=11.5
1” -1.73%@y=8.0  -1.82%@y=8.0  -0.48%@y=8.0  -0.42%@y=8.0  -0.05%@y=8.0
1/2" -1.01%@y=4.0  -0.55%@y=4.0  -0.15%@y=4.0  -0.12%@y=4.0  -0.01%@y=4.0
Object Size(At theclosest focusingdistance) 4/3" 319.4x262.7x204.4  195.5x145.5x107.3  157.8x125.7x94.0  121.0x96.7x72.4  118.9x95.1x71.3
1” 235.5x189.9x143.2  125.5x99.3x73.9  109.2x87.2x65.3  84.0x67.2x50.3  82.7x66.1x49.6
1/2" 119.8x95.9x72.0  61.3x48.9x36.6  54.4x43.5x32.6  42.0x33.5x25.1  41.4x33.1x24.9
Focus Range 0.15m~∞ 0.1m~∞ 0.15m~∞ 0.2m~∞ 0.3m~∞
Back Focal length(in air)mm 18.8 21 22 18 20
Mount C-mount
Filter Thread M77.0xP0.75 M58.0xP0.75 M46.0xP0.75 M46.0xP0.75 M46.0xP0.75
Working Temperature -20℃-+60°C
Weight 438g 339g 248g 207g 219g



Model WorkingDistance Magnification FOV Model WorkingDistance Magnification FOV
4/3" 1" 2/3" 4/3" 1" 2/3"
   H    (18mm) V (13.5mm) H (8.8mm) V (6.6mm) H (6.4mm) V (4.8mm) H (18mm) V (13.5mm) H (8.8mm) V (6.6mm) H (6.4mm) V (4.8mm)
STPM-12XC12M 150mm -0.0692X 285.7808 214.3356 139.72 104.79 101.61 76.21 STPM-25XC12M 350mm -0.06758X 272.2848 204.2136 133.12 99.84 72.61 72.61
200mm -0.0537X 367.9024 275.9268 179.86 134.9 130.81 98.11 400mm -0.05952X 309.1328 231.8496 151.13 113.35 82.44 82.44
250mm -0.0438X 450.0256 337.5192 220.01 165.01 160.01 120.01 450mm -0.05318X 346.008 259.506 169.16 126.87 92.27 92.27
300mm -0.0370X 532.1472 399.1104 260.16 195.12 189.21 141.91 500mm -0.04806X 382.8528 287.1396 187.17 140.38 102.09 102.09
350mm -0.0321X 614.2704 460.7028 300.31 225.23 218.41 163.81 550mm -0.04384X 419.688 314.766 205.18 153.89 111.92 111.92
400mm -0.0283X 696.392 522.294 340.46 255.34 247.61 185.7 600mm -0.0403X 456.52 342.39 223.19 167.39 121.74 121.74
450mm -0.0253X 778.5152 583.8864 380.61 285.46 276.81 207.6 STPM-35XC12M 200mm -0.19139X 96.56 72.42 47.2 35.4 34.33 25.75
500mm -0.0229X 860.6368 645.4776 420.76 315.57 306 229.5 250mm -0.15031X 122.95 92.21 60.11 45.08 43.71 32.79
550mm -0.0209X 942.7584 707.0688 460.9 345.68 335.2 251.4 300mm -0.12375X 149.34 112 73.01 54.76 53.1 39.82
600mm -0.0192X 1024.8816 768.6612 501.05 375.79 364.4 273.3 350mm -0.10516X 175.73 131.8 85.91 64.43 62.48 46.86
STPM-16XC12M 100mm -0.13187X 141.9568 106.4676 69.4 52.05 37.86 37.86 400mm -0.09143X 202.12 151.59 98.81 74.11 71.86 53.9
150mm -0.09332X 200.6016 150.4512 98.07 73.55 53.49 53.49 450mm 0.08087X 228.51 171.39 111.72 83.79 81.25 60.94
200mm -0.07224X 259.1536 194.3652 126.7 95.02 69.11 69.11 500mm 0.0725X 254.91 191.18 124.62 93.47 90.63 67.97
250mm -0.05893X 317.6752 238.2564 155.31 116.48 84.71 84.71 550mm -0.0657X 281.3 210.97 137.52 103.14 100.02 75.01
300mm -0.04976X 376.1744 282.1308 183.91 137.93 100.31 100.31 600mm -0.06006X 307.7 230.78 150.43 112.82 109.41 82.05
350mm -0.04307X 434.6608 325.9956 212.5 159.38 115.91 115.91 STPM-50XC12M 300mm -0.194X 95.1632 71.3724 46.52 34.89 33.84 25.38
400mm -0.03796X 493.1632 369.8724 241.1 180.83 131.51 131.51 350mm -0.163X 113.6352 85.2264 55.55 41.67 40.4 30.3
450mm -0.03394X 551.6016 413.7012 269.67 202.25 147.09 147.09 400mm -0.140X 132.1136 99.0852 64.59 48.44 46.97 35.23
500mm -0.03068X 610.1024 457.5768 298.27 223.7 162.69 162.69 450mm -0.123X 150.5904 112.9428 73.62 55.22 53.54 40.16
550mm -0.028X 668.6352 501.4764 326.89 245.17 178.3 178.3 500mm -0.109X 169.0832 126.8124 82.66 62 60.12 45.09
600mm -0.02575X 727.1264 545.3448 355.48 266.61 193.9 193.9 550mm -0.099X 187.5472 140.6604 91.69 68.77 66.68 50.01
STPM-25XC12M
　　　		 150mm -0.1479X 124.4128 93.3096 60.82 45.62 33.18 33.18 600mm -0.090X 206.0272 154.5204 100.72 75.54 73.25 54.94
200mm -0.11394X 161.4944 121.1208 78.95 59.21 43.07 43.07 650mm -0.082X 224.5056 168.3792 109.76 82.32 79.82 59.87
250mm -0.09271X 198.472 148.854 97.03 72.77 52.93 52.93 700mm -0.076X 242.984 182.238 118.79 89.09 86.39 64.8
300mm -0.07817X 235.3824 176.5368 115.08 86.31 62.77 62.77
