STPM-25XC10M

Products / Optics /Vision Lens /FA Lens /4/3" Machine Vision FA Lens / STPM-25XC10M /

STPM-25XC10M,Resolution 10 MP;160lp/mm (center) 100lp/mm (corner),Focal Length 25 mm,lris Range F2.0-F22,Sensor Size 4/3"(17.6mmX13.2mm Ø22mm)

MODEL:STPM-25XC10M

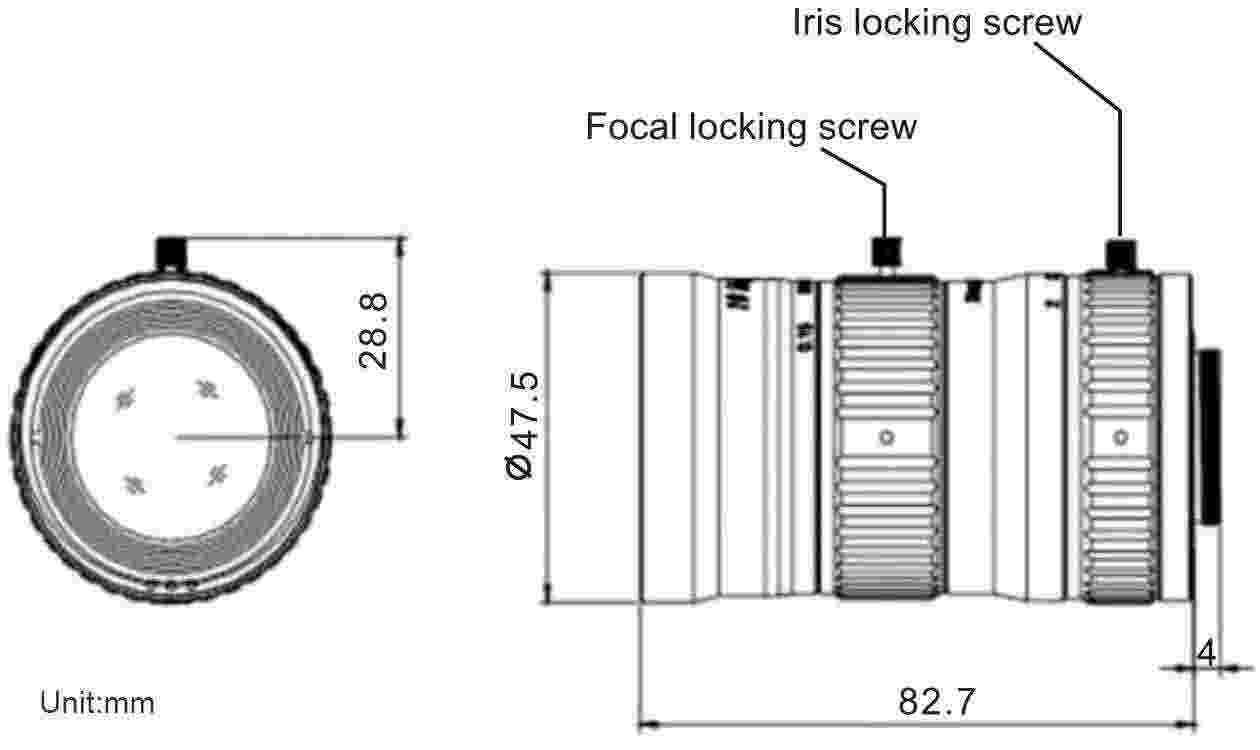

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPM-50XC12M
STPM-50XC12M,Resolution 12 MP,Focal Length 50 mm,Wavelength 420-1000nm,lris Range F2.0-F22,Sensor Size 4/3"(23mm) 		4-6 Weeks Request for quote
STPM-35XC12M
STPM-35XC12M,Resolution 12 MP,Focal Length 35 mm,Wavelength 420-1000nm,lris Range F2.0-F22,Sensor Size 4/3"(23mm) 		4-6 Weeks Request for quote
STPM-25XC12M
STPM-25XC12M,Resolution 12 MP,Focal Length 25 mm,Wavelength 420-1000nm,lris Range F2.0-F22,Sensor Size 4/3"(23mm) 		4-6 Weeks Request for quote
STPM-16XC12M
STPM-16XC12M,Resolution 12 MP,Focal Length 16 mm,Wavelength 420-1000nm,lris Range F2.0-F22,Sensor Size 4/3"(23mm) 		4-6 Weeks Request for quote
STPM-12XC12M
STPM-12XC12M,Resolution 12 MP,Focal Length 12 mm,Wavelength 420-1000nm,lris Range F2.0-F22,Sensor Size 4/3"(23mm) 		4-6 Weeks Request for quote
STPM-50XC10M
STPM-50XC10M,Resolution 10 MP;160lp/mm (center) 100lp/mm (corner),Focal Length 35 mm,lris Range F2.0-F22,Sensor Size 4/3"(17.6mmX13.2mm Ø22mm) 		4-6 Weeks Request for quote
STPM-35XC10M
STPM-35XC10M,Resolution 10 MP;160lp/mm (center) 100lp/mm (corner),Focal Length 35 mm,lris Range F2.0-F22,Sensor Size 4/3"(17.6mmX13.2mm Ø22mm) 		4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price



Product specifications and Brochures

Product Brochure Link:

Paramete STPM-25XC10M STPM-35XC10M STPM-50XC10M
Resolution 10 MP;160lp/mm (center) 100lp/mm (corner)
Focal Length (mm) 25 35 50
lris Range F2.0-F22
Max.Sensor Size 4/3"(17.6mmX13.2mm   Ø22mm)

Field of View

( Diagonal X Horizontal X Verticle)

 4/3" 49.7°x40.6°x31.0° 36.6°x29.6°x22.4° 25.9°x20.9°x15.7°
1” 35.7°x28.8°x21.8° 25.9°x20.8°x15.7° 18.2°x14.6°x11.0°
2/3" 24.9°x20.0°x15.1° 17.9°x14.4°x10.8° 12.6°x10.1°x7.6°
Control FocuS Manual
lris Manual
Distortion (mm) 4/3" -0.66%@y=11.0 -0.56%@y=11.0 -0.14%@y=11.0
1” -0.50%@y=8.0 -0.43%@y=8.0 -0.05%@y=8.0
2/3" -0.28%@y=5.5 -0.23%@y=5.5 -0.02%@y=5.5
Effective lmage Dimensions (mm) 22
Back Focal length(in air) mm 22.43 18.65 20.29
Mount C-mount
Filter Thread M46.0x0.75mm M40.5x0.5mm M40.5x0.5mm
Working Temperature -10℃~+50℃
