STPM-25LC8M--SIMTRUM Photonics Store

STPM-50LC8M
STPM-50LC8M, Resolution 8 MP,Focal Length 50 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)

4-6 Weeks

Request for quote

STPM-35LC8M
STPM-35LC8M, Resolution 8 MP,Focal Length 35 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)

4-6 Weeks

Request for quote

STPM-16LC8M
STPM-16LC8M, Resolution 8 MP,Focal Length 16 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)

4-6 Weeks

Request for quote

STPM-12LC8M
STPM-12LC8M, Resolution 8 MP,Focal Length 12 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-C,Max.Sensor Size 1"(16mm)

4-6 Weeks

Request for quote

STPM-25LC5M
STPM-25LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 25 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)

4-6 Weeks

Request for quote

STPM-20LC5M
STPM-20LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 20 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)

4-6 Weeks

Request for quote

STPM-16LC5M
STPM-16LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 16 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)

4-6 Weeks

Request for quote

STPM-12LC5M
STPM-12LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 12 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)

4-6 Weeks

Request for quote

Parameter		STPM-12LC8M	STPM-16LC8M	STPM-25LC8M	STPM-35LC8M	STPM-50LC8M
Resolution		8MP
Focal Length (mm)		12	16	25	35	50
Corresponding Wavelength			420-1000nm
lris Range		F2.0-C	F2.0-close	F1.8-close	F2.0-close	F2.0-close
Max.Sensor Size		1"(16mm)
Imaging Range		0.1m~∞	0.1m~∞	0.15m~∞	0.2m~∞	0.25m~∞
Field of View (Diagonal x Horizontal x Verticle)	1"	69.63°×60.71°×40.33°	53.94°x43.92°x33.45°	36.21°x29.08°x21.86°	26.10°x20.83°x15.72	18.38°x14.70°x10.98°
	1/2''	37.32°×30.11°×22.74°	28.23°x22.62°x16.97°	18.45°x14.72°x11.08°	13.28°x10.65°x7.94°	9.34°x7.42°x5.5°
	1/3''	-	21.24°x16.98°x12.94°	13.81°x11.08°x8.34°	9.92”x7.92°x6.00°	6.96°x5.53x4.16°
Control	Focus	Manual
Control	lris	Manual	M-lris
Object Size (mm)	1"	155.01×130.05×90.3	112.75x89.28x66.33	92.4x73.3x54.6	81.10x64.88x48.66	72.50x57.94x43.34
	1/2''	74.93×59.76×44.73	55.09x43.96x32.82	45.5x36.4x27.2	40.52x32.42x24.31	36.18x28.76x21.66
	1/3''		41.19x33.32x24.58	34.2x27.3x20.5	30.42x24.34x18.25	27.26x21.74x16.34
Distortion (mm)	1"	-1.27%@y=4.0	-2.02%@y=8	-1.41%@y=8	0.28%@y=8	-0.013%@y=8.0
	1/2''	-4.1%@y=8	-0.68%@y=4.0	-0.32%@y=4.0	0.07%@y=4.0	0.010%@y=4.0
	1/3''		-0.39%@y=3.0	-0.18%@y=3.0	0.04%@y=3.0	0.04%@y=3.0
Effective lmage Dimension		16	-	-	-	-
Back Focal Length(in air) mm		15.07	11.20	12.68	12.96	21.35
Mount		C-mount
Filter Thread (mm)		M35.5×0.5	M34x0.5	M30.5x0.5	M30.5x0.5	M37x0.5
Working Temperature		-20℃～+60℃
Weight		-	101.25g	73.65g	70.35g	105.25g

Sign In

Register

Retrieve password

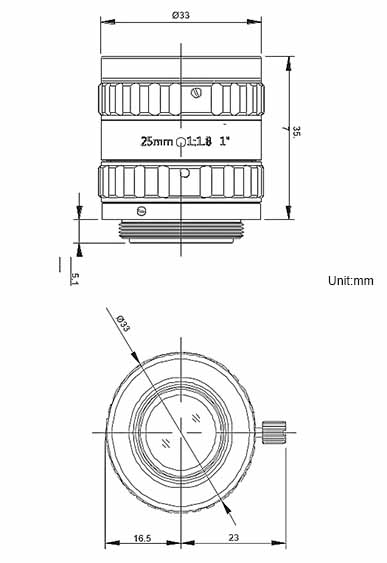

STPM-25LC8M
