STPM-16LC8M

STPM-16LC8M, Resolution 8 MP,Focal Length 16 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)

MODEL:STPM-16LC8M

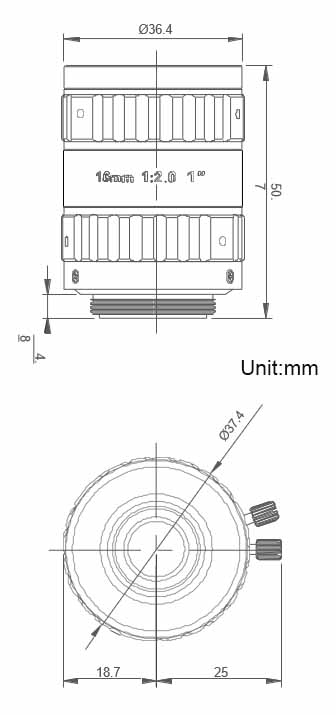

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Compare Model Drawings & Specs Availability Reference Price
STPM-50LC8M
STPM-50LC8M, Resolution 8 MP,Focal Length 50 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)
4-6 Weeks Request for quote
STPM-35LC8M
STPM-35LC8M, Resolution 8 MP,Focal Length 35 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)
4-6 Weeks Request for quote
STPM-25LC8M
STPM-25LC8M, Resolution 8 MP,Focal Length 25 mm,Corresponding Wavelength 420-1000nm,lris Range F1.8-close,Max.Sensor Size 1"(16mm)
4-6 Weeks Request for quote
STPM-12LC8M
STPM-12LC8M, Resolution 8 MP,Focal Length 12 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-C,Max.Sensor Size 1"(16mm)
4-6 Weeks Request for quote
STPM-25LC5M
STPM-25LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 25 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)
4-6 Weeks Request for quote
STPM-20LC5M
STPM-20LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 20 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)
4-6 Weeks Request for quote
STPM-16LC5M
STPM-16LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 16 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)
4-6 Weeks Request for quote
STPM-12LC5M
STPM-12LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 12 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)
4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price



Product specifications and Brochures

Product Brochure Link:

Parameter STPM-12LC8M STPM-16LC8M STPM-25LC8M STPM-35LC8M STPM-50LC8M
Resolution 8MP
Focal Length (mm) 12 16 25 35 50
Corresponding Wavelength   420-1000nm
lris Range F2.0-C F2.0-close F1.8-close F2.0-close F2.0-close
Max.Sensor Size 1"(16mm)
 Imaging Range   0.1m~ 0.1m~ 0.15m~ 0.2m~ 0.25m~
Field of View (Diagonal x Horizontal x Verticle) 1" 69.63°×60.71°×40.33° 53.94°x43.92°x33.45° 36.21°x29.08°x21.86° 26.10°x20.83°x15.72 18.38°x14.70°x10.98°
1/2'' 37.32°×30.11°×22.74° 28.23°x22.62°x16.97° 18.45°x14.72°x11.08° 13.28°x10.65°x7.94° 9.34°x7.42°x5.5°
1/3'' -  21.24°x16.98°x12.94° 13.81°x11.08°x8.34° 9.92”x7.92°x6.00° 6.96°x5.53x4.16°
Control Focus Manual
lris Manual M-lris
Object Size (mm) 1" 155.01×130.05×90.3  112.75x89.28x66.33  92.4x73.3x54.6  81.10x64.88x48.66  72.50x57.94x43.34
1/2'' 74.93×59.76×44.73  55.09x43.96x32.82  45.5x36.4x27.2  40.52x32.42x24.31  36.18x28.76x21.66
1/3''   41.19x33.32x24.58  34.2x27.3x20.5  30.42x24.34x18.25  27.26x21.74x16.34
Distortion (mm) 1"  -1.27%@y=4.0  -2.02%@y=8  -1.41%@y=8  0.28%@y=8  -0.013%@y=8.0
1/2'' -4.1%@y=8  -0.68%@y=4.0  -0.32%@y=4.0  0.07%@y=4.0  0.010%@y=4.0
1/3''   -0.39%@y=3.0  -0.18%@y=3.0  0.04%@y=3.0  0.04%@y=3.0
Effective lmage Dimension 16 -  -   - -

 Back Focal Length(in air) mm

15.07 11.20 12.68 12.96 21.35
Mount C-mount
Filter Thread (mm) M35.5×0.5  M34x0.5  M30.5x0.5  M30.5x0.5  M37x0.5
Working Temperature  -20+60
Weight -  101.25g 73.65g 70.35g 105.25g
