STPM-25LC5M--SIMTRUM Photonics Store

STPM-50LC8M
STPM-50LC8M, Resolution 8 MP,Focal Length 50 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)

4-6 Weeks

Request for quote

STPM-35LC8M
STPM-35LC8M, Resolution 8 MP,Focal Length 35 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)

4-6 Weeks

Request for quote

STPM-25LC8M
STPM-25LC8M, Resolution 8 MP,Focal Length 25 mm,Corresponding Wavelength 420-1000nm,lris Range F1.8-close,Max.Sensor Size 1"(16mm)

4-6 Weeks

Request for quote

STPM-16LC8M
STPM-16LC8M, Resolution 8 MP,Focal Length 16 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)

4-6 Weeks

Request for quote

STPM-12LC8M
STPM-12LC8M, Resolution 8 MP,Focal Length 12 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-C,Max.Sensor Size 1"(16mm)

4-6 Weeks

Request for quote

STPM-20LC5M
STPM-20LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 20 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)

4-6 Weeks

Request for quote

STPM-16LC5M
STPM-16LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 16 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)

4-6 Weeks

Request for quote

STPM-12LC5M
STPM-12LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 12 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)

4-6 Weeks

Request for quote

Parameter		STPM-12LC5M	STPM-16LC5M	STPM-20LC5M	STPM-25LC5M	STPM-35LC5M
Resolution		5 MP;160 lp/mm (center) 100 lp/mm (corner)
Focal Length (mm)		12	16	20	25	35
lris Range		F1.6-F22				F1.4-F22
Max.Sensor Size		1"(12.8mmX9.6mm Ø16mm)
Field of View (Diagonal x Horizontal x Verticle)	1"	68.8°x 57.1°x44.1°	54.3°x 44.2°x33.5°	44.4°x 35.8°x27.2°	36.2°x29.0°x21.8°	22.7°x18.2°x14.1°
	2/3”	50.0°x 40.6°x30.9°	38.3°x 30.8°x23.2°	31.0°x 25.0°x18.8°	25.0°x20.0*x15.0°	16.1°x12.9*x9.6°
Control	FocuS	Manual
	lris	Manual
Distortion(mm)	1"	-2.88%@y=8.0	-3.73%@y=8.0	-1.82%@y=8.0	-2.06%@y=8.0	0.27%@y=8.0
	2/3”	-1.79%@y=5.5	-1.98%@y=5.5	-0.79%@y=5.5	0.98%@y=5.5	-0.06%@y=5.5
Effective lmage Dimension		16mm
Back Focal Length(in air) mm		13.54	12.17	13.08	12.69	12.83
Mount		C-mount
Filter Thread（mm)		M52.0x0.75	M37.5x0.5
Working Temperature		-10℃~+50℃

Sign In

Register

Retrieve password

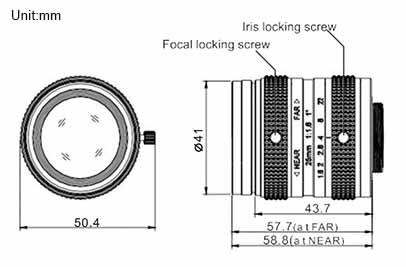

STPM-25LC5M
