STPM-12LC5M

STPM-12LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 12 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)

MODEL:STPM-12LC5M

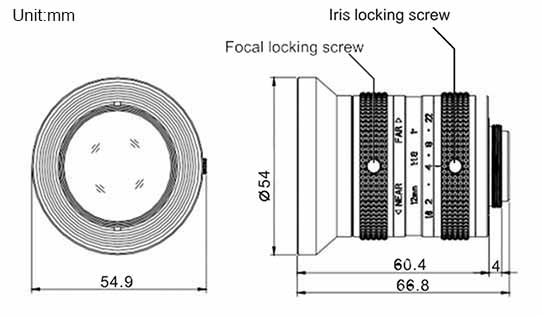

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Compare Model Drawings & Specs Availability Reference Price
STPM-50LC8M
STPM-50LC8M, Resolution 8 MP,Focal Length 50 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)
4-6 Weeks Request for quote
STPM-35LC8M
STPM-35LC8M, Resolution 8 MP,Focal Length 35 mm,Corresponding Wavelength 420-1000 nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)
4-6 Weeks Request for quote
STPM-25LC8M
STPM-25LC8M, Resolution 8 MP,Focal Length 25 mm,Corresponding Wavelength 420-1000nm,lris Range F1.8-close,Max.Sensor Size 1"(16mm)
4-6 Weeks Request for quote
STPM-16LC8M
STPM-16LC8M, Resolution 8 MP,Focal Length 16 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-close,Max.Sensor Size 1"(16mm)
4-6 Weeks Request for quote
STPM-12LC8M
STPM-12LC8M, Resolution 8 MP,Focal Length 12 mm,Corresponding Wavelength 420-1000nm,lris Range F2.0-C,Max.Sensor Size 1"(16mm)
4-6 Weeks Request for quote
STPM-25LC5M
STPM-25LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 25 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)
4-6 Weeks Request for quote
STPM-20LC5M
STPM-20LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 20 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)
4-6 Weeks Request for quote
STPM-16LC5M
STPM-16LC5M, Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner),Focal Length 16 mm,lris Range F1.6-F22,Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)
4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price



Product specifications and Brochures

Product Brochure Link:



Parameter STPM-12LC5M STPM-16LC5M STPM-20LC5M STPM-25LC5M STPM-35LC5M
Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner)
Focal Length (mm) 12 16 20 25 35
lris Range F1.6-F22 F1.4-F22
Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)
Field of View (Diagonal x Horizontal x Verticle) 1" 68.8°x 57.1°x44.1° 54.3°x 44.2°x33.5° 44.4°x 35.8°x27.2° 36.2°x29.0°x21.8° 22.7°x18.2°x14.1°
2/3” 50.0°x 40.6°x30.9° 38.3°x 30.8°x23.2° 31.0°x 25.0°x18.8° 25.0°x20.0*x15.0° 16.1°x12.9*x9.6°
Control FocuS Manual
lris Manual
Distortion(mm) 1" -2.88%@y=8.0 -3.73%@y=8.0 -1.82%@y=8.0 -2.06%@y=8.0 0.27%@y=8.0
2/3” -1.79%@y=5.5 -1.98%@y=5.5 -0.79%@y=5.5 0.98%@y=5.5 -0.06%@y=5.5
Effective lmage Dimension 16mm
 Back Focal Length(in air)  mm 13.54 12.17 13.08 12.69 12.83
Mount C-mount
Filter Threadmm) M52.0x0.75 M37.5x0.5
Working Temperature -10~+50

STPM-50LC8M - Parameter

STPM-35LC8M - Parameter

STPM-25LC8M - Parameter

STPM-16LC8M - Parameter

STPM-12LC8M - Parameter

STPM-25LC5M - Parameter

STPM-20LC5M - Parameter

STPM-16LC5M - Parameter

STPM-12LC5M - Parameter
