STPM-50MC5M

STPM-50MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 50 mm,lris Range F1.8-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)

MODEL:STPM-50MC5M

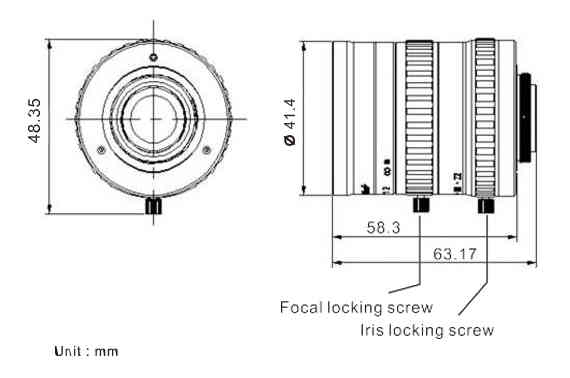

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Compare Model Drawings & Specs Availability Reference Price
STPM-50MC10M
STPM-50MC10M, Resolution 10 MP, Wavelength 420~1000nm,Focal Length 50 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm)
4-6 Weeks Request for quote
STPM-35MC10M
STPM-35MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 35 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm)
4-6 Weeks Request for quote
STPM-25MC10M
STPM-16MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 16 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm)
4-6 Weeks Request for quote
STPM-16MC10M
STPM-16MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 16 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm)
4-6 Weeks Request for quote
STPM-12MC10M
STPM-12MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 12mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm)
4-6 Weeks Request for quote
STPM-1236MC5M
STPM-1236MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 12-36 mm,lris Range F2.8-F16,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-75MC5M
STPM-75MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 75 mm,lris Range F2.0-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-35MC5M
STPM-35MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 35 mm,lris Range F1.4-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-25MC5M
STPM-25MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 25 mm,lris Range F1.4-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-12MC5M
STPM-12MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 12 mm,lris Range F1.6-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-1236MC
STPM-1236MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 12-36 mm,lris Range F2.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-75MC
STPM-75MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 75 mm,lris Range F2.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-50MC
STPM-50MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 50 mm,lris Range F1.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-35MC
STPM-35MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 35 mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-16MC
STPM-16MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 16.33mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-12MC
STPM-12MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 12.3mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Product specifications and Brochures

Product Brochure Link:

Parameter STPM-12MC5M STPM-16MC5M STPM-25MC5M STPM-35MC5M STPM-50MC5M STPM-75MC5M STPM-1236MC5M
Resolution 5 MP;160lpmm (center)125lp/mm (corner)
Focal Length 12mm 16mm 25mm 35mm 50mm 75mm 12-36mm
lris Range F1.6-F22 F1.6-F22 F1.4-F22 F1.4-F22 F1.8-F22 F2.0-F22 F2.8-F16
Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
Field of View (H x V) 2/3" 48.6°x39.8°x30.4° 38.0°~x30.8°x23.4° 24.8°x20.0°x15.0° 17.9°x14.3°x10.8° 12. 5°x 10.1°x7.6° 8.4°x6.7°x5.0 50.8°x41.2°x31.2°(wide)             17.2°x13.8°x10.4°(tele)
1/2” 36.4°x29.5°x22.3° 28.1°x 22.6°x17.1° 18.1°x14.5°x10.9° 13.0°x10.4°x7.8° 9.1°x 7.4°x5.5° 6. 1°x4.9°x3.7 37.7°x 30.3°x22.8° (wide)            12.6°x10.1°x 7.6°(tele)
Focus Range 0.1m- 0.2m- 0.2m- 0.3m- 0.4m- 0.9m- 0.15m-co(wide)0,45m-0o(tele)
Object Dimensions(at the nearest focusing distance) 102.4 X 82.0 X61.4 145.6 X 116.4 X 87.3 43.5X34.8X26.1 90.1X72.2X54.1 83.8 X67.0X 50.2 1/3.2X98.5X73.9 163.4X130.7X98.0(wide) 152.0X121.6X107.4(tele)
Control FocuS Manual
lris Manual
Distortion 2/3” -0.53%@y=5.5 0.07%@y=5.5 -0.19%@y=5.5 -0.07%@y=5.5 0.03%@y=5.5 0.04%@y=5.5 -3.4%@y=5.5(wide)  1.4%@y=5.5(tele)
1/2” -0.35%@y=4.0 -0.06%@y=4.0 -0.17%@y=4.0 0.06%@y=4.0 0.02%@y=4.0 0.02%@y=4.0 -2.2%@y=4.0(wide)    0.9%@y=4.0(tele)
Optical Back Focal Length(in air) 12.42 12.36 12.78 12.82 13.63 13.76 18.93(wide)18.87(tele)
Mount C-mount
Filter Thread M37.5x0.5mm M40.5x0.5mm M40.5x0.5mm
Working Temperature -10~+50
Weight 178.0g 181.0g 148.0g 156.0g 173.0g 223.0g 188. 0g
