STPM-25MC5M

Products / Optics /Vision Lens /FA Lens /2/3" Machine Vision FA Lens / STPM-25MC5M /

STPM-25MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 25 mm,lris Range F1.4-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)

MODEL:STPM-25MC5M

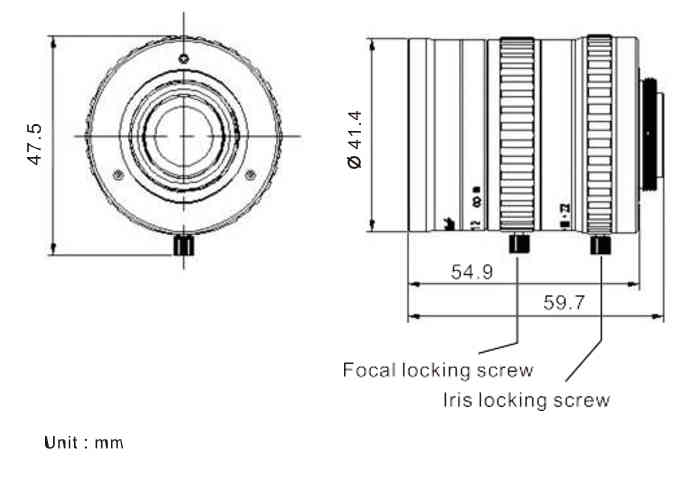

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPM-50MC10M
STPM-50MC10M, Resolution 10 MP, Wavelength 420~1000nm,Focal Length 50 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm) 		4-6 Weeks Request for quote
STPM-35MC10M
STPM-35MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 35 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm) 		4-6 Weeks Request for quote
STPM-25MC10M
STPM-16MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 16 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm) 		4-6 Weeks Request for quote
STPM-16MC10M
STPM-16MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 16 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm) 		4-6 Weeks Request for quote
STPM-12MC10M
STPM-12MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 12mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm) 		4-6 Weeks Request for quote
STPM-1236MC5M
STPM-1236MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 12-36 mm,lris Range F2.8-F16,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-75MC5M
STPM-75MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 75 mm,lris Range F2.0-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-50MC5M
STPM-50MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 50 mm,lris Range F1.8-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-35MC5M
STPM-35MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 35 mm,lris Range F1.4-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-12MC5M
STPM-12MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 12 mm,lris Range F1.6-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-1236MC
STPM-1236MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 12-36 mm,lris Range F2.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-75MC
STPM-75MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 75 mm,lris Range F2.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-50MC
STPM-50MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 50 mm,lris Range F1.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-35MC
STPM-35MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 35 mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-16MC
STPM-16MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 16.33mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote
STPM-12MC
STPM-12MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 12.3mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm) 		4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Product specifications and Brochures

Product Brochure Link:

Parameter STPM-12MC5M STPM-16MC5M STPM-25MC5M STPM-35MC5M STPM-50MC5M STPM-75MC5M STPM-1236MC5M
Resolution 5 MP;160lpmm (center)125lp/mm (corner)
Focal Length 12mm 16mm 25mm 35mm 50mm 75mm 12-36mm
lris Range F1.6-F22 F1.6-F22 F1.4-F22 F1.4-F22 F1.8-F22 F2.0-F22 F2.8-F16
Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
Field of View (H x V) 2/3" 48.6°x39.8°x30.4° 38.0°~x30.8°x23.4° 24.8°x20.0°x15.0° 17.9°x14.3°x10.8° 12. 5°x 10.1°x7.6° 8.4°x6.7°x5.0 50.8°x41.2°x31.2°(wide)             17.2°x13.8°x10.4°(tele)
1/2” 36.4°x29.5°x22.3° 28.1°x 22.6°x17.1° 18.1°x14.5°x10.9° 13.0°x10.4°x7.8° 9.1°x 7.4°x5.5° 6. 1°x4.9°x3.7 37.7°x 30.3°x22.8° (wide)            12.6°x10.1°x 7.6°(tele)
Focus Range 0.1m-∞ 0.2m-∞ 0.2m-∞ 0.3m-∞ 0.4m-∞ 0.9m-∞ 0.15m-co(wide)0,45m-0o(tele)
Object Dimensions(at the nearest focusing distance) 102.4 X 82.0 X61.4 145.6 X 116.4 X 87.3 43.5X34.8X26.1 90.1X72.2X54.1 83.8 X67.0X 50.2 1/3.2X98.5X73.9 163.4X130.7X98.0(wide) 152.0X121.6X107.4(tele)
Control FocuS Manual
lris Manual
Distortion 2/3” -0.53%@y=5.5 0.07%@y=5.5 -0.19%@y=5.5 -0.07%@y=5.5 0.03%@y=5.5 0.04%@y=5.5 -3.4%@y=5.5(wide)  1.4%@y=5.5(tele)
1/2” -0.35%@y=4.0 -0.06%@y=4.0 -0.17%@y=4.0 0.06%@y=4.0 0.02%@y=4.0 0.02%@y=4.0 -2.2%@y=4.0(wide)    0.9%@y=4.0(tele)
Optical Back Focal Length(in air) 12.42 12.36 12.78 12.82 13.63 13.76 18.93(wide)18.87(tele)
Mount C-mount
Filter Thread M37.5x0.5mm M40.5x0.5mm M40.5x0.5mm
Working Temperature -10℃~+50℃
Weight 178.0g 181.0g 148.0g 156.0g 173.0g 223.0g 188. 0g
