STPM-12MC

STPM-12MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 12.3mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)

MODEL:STPM-12MC

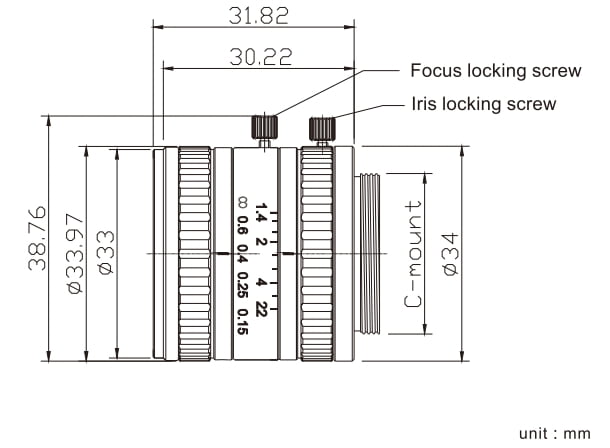

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Compare Model Drawings & Specs Availability Reference Price
STPM-50MC10M
STPM-50MC10M, Resolution 10 MP, Wavelength 420~1000nm,Focal Length 50 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm)
4-6 Weeks Request for quote
STPM-35MC10M
STPM-35MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 35 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm)
4-6 Weeks Request for quote
STPM-25MC10M
STPM-16MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 16 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm)
4-6 Weeks Request for quote
STPM-16MC10M
STPM-16MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 16 mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm)
4-6 Weeks Request for quote
STPM-12MC10M
STPM-12MC10M, Resolution 10 MP,Wavelength 420~1000nm,Focal Length 12mm,lris Range F2.8-16,Max.Sensor Size 2/3"(11mm)
4-6 Weeks Request for quote
STPM-1236MC5M
STPM-1236MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 12-36 mm,lris Range F2.8-F16,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-75MC5M
STPM-75MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 75 mm,lris Range F2.0-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-50MC5M
STPM-50MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 50 mm,lris Range F1.8-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-35MC5M
STPM-35MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 35 mm,lris Range F1.4-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-25MC5M
STPM-25MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 25 mm,lris Range F1.4-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-12MC5M
STPM-12MC5M Resolution 5 MP;160lpmm (center)125lp/mm (corner),Focal Length 12 mm,lris Range F1.6-F22,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-1236MC
STPM-1236MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 12-36 mm,lris Range F2.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-75MC
STPM-75MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 75 mm,lris Range F2.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-50MC
STPM-50MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 50 mm,lris Range F1.8-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-35MC
STPM-35MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 35 mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote
STPM-16MC
STPM-16MC Resolution 1.5 MP;125lp/mm (center)100lp/mm (corner),Focal Length 16.33mm,lris Range F1.4-C,Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price



Product specifications and Brochures

Product Brochure Link:

Parameter STPM-12MC STPM-16MC STPM-25MC STPM-35MC STPM-50MC STPM-75MC STPM-1236MC
Resolution 1.5 MP;125 lp/mm (center) 100 lp/mm (corner)
Focal Length (mm) 12.3 16.33 25 35 50 75 12-36
lris Range F1.4-C F1.8-C F2.8-C F2.8-C
Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)

Field of View (H x V)

2/3" 40.0°x30.2° 30.4°x22.9° 19.9°x15.0° 13.8°x10.4° 9.2°x7.6° 6.7°x5.0° 41.4°x31.2°(wide)
13.8°x10.4°(tele)
1/2” 29.2°x22.0° 22.3°x16.7° 14.5°x11.0° 10.1°x7.5° 7.5°x5.5° 4.9°x3.7° 30.1°x22.8°(wide)
10.1°*x7.6°(tele)
Focus Range 0.15m-∞ 0.30m-∞ 0.25m-∞ 0.30m-∞ 0.50m-∞ 1.10m-∞ 0.15m-∞(wide)
0.5m -∞(tele)
Object Dimensions(at the nearest focusing distance) cm 2/3" 12.0 (H)x8.8 (V) 16.10 (H)x12.80 (V) 8.80 (H)x6.60 (V) 7.40 (H)x5.60 (V) 8.10 (H)x6.04 (V) 11.26 (H)x8.45 (V) 6.6 (H)x4.8 (V)213"(wide)
6.7 (H)x5.0 (V) 2/3"(tele)
Control Focus Manual
lris Manual
Distortion 2/3” -1.80%@y=5.5 -1.00%@y=5.5 -0.32%@y=5.5  -0.33%@y=5.5  -0.11%@y=5.5  0.34%@y=5.5  3.5%@y=5.5 (wide)
2.3%@y=5.5 (tele)
1/2” -1.25%@y=4.0 -0.64%@y=4.0 -0.13%@y=4.0  -0.17%@y=4.0  -0.04%@y=4.0  0.19%@y=4.0  2.4%@y=3.0 (wide)
1.3%@y=3.0 (tele)
Optical Back Focal Length (in air) mm 12.7 12.67 13.6 14.7 12.94 14.35 12.6 (wide)15.2 (tele)
Mount C-Mount
Filter Thread M30.5x0.5mm
Working Temperature -10℃~+50℃



Working Distance And Magnification After Using A Close-up Attachment



Model W.D. Optical Magnification Close-up Attachment Model W.D. Optical Magnification Close-up Attachment
STPM-12MC 150mm 0.071X STPM-50MC 250mm 0.240X 7.0mm
100mm 0.100X 0.5mm 200mm 0.315X 11.0mm
STPM-16MC 300mm 0.052X 150mm 0.460X 18.0mm
250mm 0.062X 0.5mm 100mm 0.852X 38.0mm
200mm 0.077X 0.5mm STPM-75MC 1100mm 0.078X
150mm 0.100X 1.0mm 1000mm 0.087X 1.5mm
100mm 0.145X 1.0mm 900mm 0.099X 2.0mm
STPM-25MC 250mm 0.100X 800mm 0.114X 3.0mm
200mm 0.130X 0.5mm 700mm 0.134X 4.5mm
150mm 0.170X 1.0mm 600mm 0.164X 7.0mm
100mm 0.250X 2.0mm 500mm 0.209X 10.0mm
STPM-35MC 300mm 0.126X 400mm 0.291X 16.0mm
250mm 0.155X 1.0mm 300mm 0.475X 30.0mm
200mm 0.200X 2.5mm STPM-1236MC 1100mm 0.078X
150mm 0.285X 4.5mm 1000mm 0.087X 1.5mm
100mm 0.544X 8.9mm 900mm 0.099x 2.0mm
STPM-50MC

500mm 0.109X 800mm 0.114X 3.0mm
450mm 0.122X 1.0mm 700mm 0.134X 4.5mm
400mm 0.140X 2.0mm 600mm 0.164X 7.0mm
350mm 0.162X 3.0mm 500mm 0.209x 10.0mm
300mm 0.193X 5.0mm 400mm 0.291X 16.0mm
300mm 0.475X 30.0mm
