LA-BY01-H4-2041

Products / Light Analysis /Photodetectors /Photomultiplier Tubes (PMT)(160-900nm) /Photomultiplier Tube Head-On (Tube Only)(290-650nm) / LA-BY01-H4-2041 /

Spectral Range：290-650 nm ; QE@410nm：Min:25/Typ:28%;Top Detection Eff.:Min:22%/Typ:24% ；Top Collection Eff.：Typ:90%；ain:Typ:5*10^6 ; Dark Count Rate:Max:1000 Hz

MODEL:LA-BY01-H4-2041

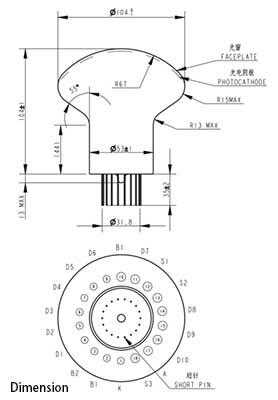

4-6week Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
LA-BY01-H4-2031
Spectral Range：290-650 nm ; QE@410nm：Typ:28%;QE@450nm:Typ:28%；Gain:Typ:1*10^7 ; Dark Count Rate:Typ:1500/Max:3000 Hz 		4-6week Request for quote
LA-BY01-H3-4031
Spectral Range：290-650 nm ; Peak QE:420 nm ;Blue Sensitivity:Min :10/Typ:11.5μA/lmf；Gain:Typ:2.73*10^5 ; Dark Current ：Typ:2/Max:30nA 		4-6week Request for quote
LA-BY01-H3-4022
Spectral Range：290-650 nm ; Peak QE:420 nm ;Blue Sensitivity:Min :8/Typ:10μA/lmf;Gain:Typ:2.73*10^5 ; Dark Current ：Typ:2/Max:30 		4-6week Request for quote
LA-BY01-H3-4021C
Spectral Range：290-650 nm ; Peak QE:380 nm ;Gain:Typ:1*10^7 ; Dark Current ：Max:100nA 		4-6week Request for quote
LA-BY01-H3-4021B
Spectral Range：290-650 nm ; Peak QE:380 nm ;Gain:Typ:1.6*10^7 ; Dark Current ：Max:50nA 		4-6week Request for quote
LA-BY01-H3-4021A
Spectral Range：290-650 nm ; Peak QE:380 nm ;Gain:Typ:2.5*10^7 ; Dark Current ：Max:30nA 		4-6week Request for quote
LA-BY01-H2-2014-D
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:50 ;Dark Current：30nA 		4-6week Request for quote
LA-BY01-H2-2014-C2
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:100 ;Dark Current：30nA 		4-6week Request for quote
LA-BY01-H2-2014-C1
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:300/Typ:800 ;Dark Current：10nA 		4-6week Request for quote
LA-BY01-H2-2014-B
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:200 ;Dark Count Rate:Max:500 ; Dark Current：5nA 		4-6week Request for quote
LA-BY01-H2-2014-A
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:400；Dark Count Rate:Max:100 ; Dark Current：3nA 		4-6week Request for quote
LA-BY01-H2-2013-C
Spectral Range：290-650 nm ; Peak QE:380 nm；Gain: Min:Typ:7*10^6 ; Dark Count Rate:Max:1000 Hz ; Dark Current：Typ:2/Max:10 		4-6week Request for quote
LA-BY01-H2-2013-B
Spectral Range：290-650 nm ; Peak QE:380 nm ; Gain: Min:Typ:7*10^6 ; Dark Count Rate:Max:140 Hz ; Dark Current：Typ:2/Max:10 nA 		4-6week Request for quote
LA-BY01-H2-2013-A
Spectral Range：290-650 nm ; Peak QE:380 nm；Gain: Min:Typ:7*10^6 ; Dark Count Rate:Max:140 Hz ; Dark Current：Typ:2/Max:10 nA 		4-6week Request for quote
LA-BY01-H1-2021
Spectral Range：290-650 nm ; Peak QE:380 nm；Gain:Typ:1*10^5 ; Dark Current：Typ:5/Max:10 nA 		4-6week Request for quote
LA-BY01-H1-2018
Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain:Typ:5*10^5(@25℃) ; Dark Current：Typ:0.1(@25℃) /Max:10(@25℃)/Max:1000(@175℃)nA 		4-6week Request for quote
LA-BY01-H1-2017
Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain:Typ:7*10^6 ; Dark Current：Typ:3/Max:20 nA 		4-6week Request for quote
LA-BY01-H1-2016
Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain:Typ:4*10^6 ; Dark Current：Typ:2/Max:10 nA 		4-6week Request for quote
LA-BY01-H1-2002
Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain: Min:1*10^6/Typ:5*10^6 ; Dark Current：Min:1/Typ:15 nA 		4-6week Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Parameter LA-BY01-H4-2031 LA-BY01-H4-2041 Unit

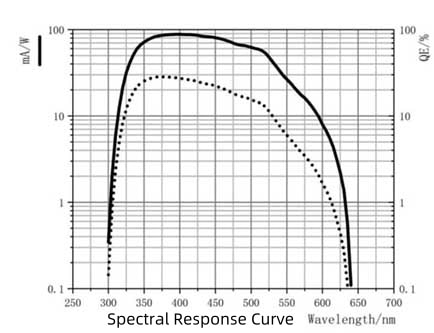

Cathode Spectral Range 290-650 nm
QE @ 410 nm Typ:28 Min:25
Typ:28		 %
QE @ 450 nm Typ:24 / %
Top Detection Eff. / Min:22
Typ:24		 %
Top Collection Eff. / Typ:90 %

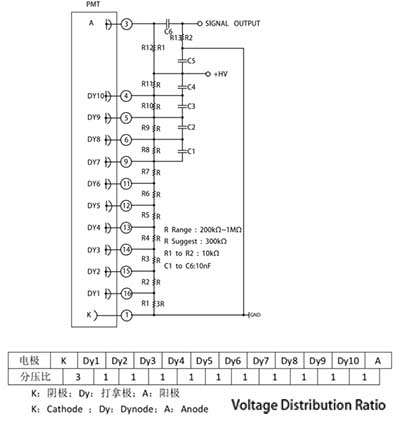

Anode Supply Voltage Min:1000
Typ:1250
Max:1500		 Typ:1050
Max:1350		 V

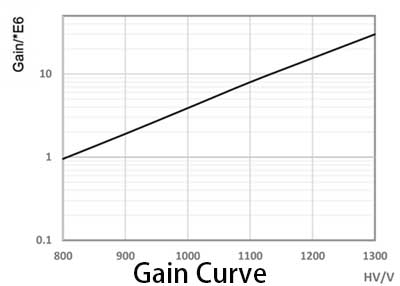

Gain Typ:1×107 Typ:5×10⁶ _
Dark Count Rae Typ:1500
Max:3000		 Max:1000 Hz
Charge Resolution / Typ:40
Single PE charge spectrum peak/valley Typ:2.5 Min:2
Typ:2.5		 _
Time Rise Time Typ:1.9 Typ:2.7 ns
TTS (FWHM) Typ:1.6
Typ:1.4(L)		 Typ:2.5
Max:3		 ns
Pre Pulsing / Typ:0.1 %
Late Pulsing / Typ:3 %
After Pulsing / Typ:8 %
Link -     -



Other Parameter

Window material Borosilicate glass
Photocathode material Bialkali
Dynode structure Circular and Linear focused
Operating temperature -30~+50℃
Storage temperature -50~+50℃
