LA-BY01-H1-2016

Products / Light Analysis /Photodetectors /Photomultiplier Tubes (PMT)(160-900nm) /Photomultiplier Tube Head-On (Tube Only)(290-650nm) / LA-BY01-H1-2016 /

Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain:Typ:4*10^6 ; Dark Current：Typ:2/Max:10 nA

MODEL:LA-BY01-H1-2016

4-6week Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
LA-BY01-H4-2041
Spectral Range：290-650 nm ; QE@410nm：Min:25/Typ:28%;Top Detection Eff.:Min:22%/Typ:24% ；Top Collection Eff.：Typ:90%；ain:Typ:5*10^6 ; Dark Count Rate:Max:1000 Hz 		4-6week Request for quote
LA-BY01-H4-2031
Spectral Range：290-650 nm ; QE@410nm：Typ:28%;QE@450nm:Typ:28%；Gain:Typ:1*10^7 ; Dark Count Rate:Typ:1500/Max:3000 Hz 		4-6week Request for quote
LA-BY01-H3-4031
Spectral Range：290-650 nm ; Peak QE:420 nm ;Blue Sensitivity:Min :10/Typ:11.5μA/lmf；Gain:Typ:2.73*10^5 ; Dark Current ：Typ:2/Max:30nA 		4-6week Request for quote
LA-BY01-H3-4022
Spectral Range：290-650 nm ; Peak QE:420 nm ;Blue Sensitivity:Min :8/Typ:10μA/lmf;Gain:Typ:2.73*10^5 ; Dark Current ：Typ:2/Max:30 		4-6week Request for quote
LA-BY01-H3-4021C
Spectral Range：290-650 nm ; Peak QE:380 nm ;Gain:Typ:1*10^7 ; Dark Current ：Max:100nA 		4-6week Request for quote
LA-BY01-H3-4021B
Spectral Range：290-650 nm ; Peak QE:380 nm ;Gain:Typ:1.6*10^7 ; Dark Current ：Max:50nA 		4-6week Request for quote
LA-BY01-H3-4021A
Spectral Range：290-650 nm ; Peak QE:380 nm ;Gain:Typ:2.5*10^7 ; Dark Current ：Max:30nA 		4-6week Request for quote
LA-BY01-H2-2014-D
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:50 ;Dark Current：30nA 		4-6week Request for quote
LA-BY01-H2-2014-C2
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:100 ;Dark Current：30nA 		4-6week Request for quote
LA-BY01-H2-2014-C1
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:300/Typ:800 ;Dark Current：10nA 		4-6week Request for quote
LA-BY01-H2-2014-B
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:200 ;Dark Count Rate:Max:500 ; Dark Current：5nA 		4-6week Request for quote
LA-BY01-H2-2014-A
Spectral Range：290-650 nm ; Peak QE:380 nm ; Anode Sensitivity：Min:400；Dark Count Rate:Max:100 ; Dark Current：3nA 		4-6week Request for quote
LA-BY01-H2-2013-C
Spectral Range：290-650 nm ; Peak QE:380 nm；Gain: Min:Typ:7*10^6 ; Dark Count Rate:Max:1000 Hz ; Dark Current：Typ:2/Max:10 		4-6week Request for quote
LA-BY01-H2-2013-B
Spectral Range：290-650 nm ; Peak QE:380 nm ; Gain: Min:Typ:7*10^6 ; Dark Count Rate:Max:140 Hz ; Dark Current：Typ:2/Max:10 nA 		4-6week Request for quote
LA-BY01-H2-2013-A
Spectral Range：290-650 nm ; Peak QE:380 nm；Gain: Min:Typ:7*10^6 ; Dark Count Rate:Max:140 Hz ; Dark Current：Typ:2/Max:10 nA 		4-6week Request for quote
LA-BY01-H1-2021
Spectral Range：290-650 nm ; Peak QE:380 nm；Gain:Typ:1*10^5 ; Dark Current：Typ:5/Max:10 nA 		4-6week Request for quote
LA-BY01-H1-2018
Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain:Typ:5*10^5(@25℃) ; Dark Current：Typ:0.1(@25℃) /Max:10(@25℃)/Max:1000(@175℃)nA 		4-6week Request for quote
LA-BY01-H1-2017
Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain:Typ:7*10^6 ; Dark Current：Typ:3/Max:20 nA 		4-6week Request for quote
LA-BY01-H1-2002
Spectral Range：290-650 nm ; Peak QE:380 nm ；Gain: Min:1*10^6/Typ:5*10^6 ; Dark Current：Min:1/Typ:15 nA 		4-6week Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Parameter LA-BY01-H1-2002 LA-BY01-H1-2016 LA-BY01-H1-2017 LA-BY01-H1-2018 LA-BY01-H1-2021 Unit

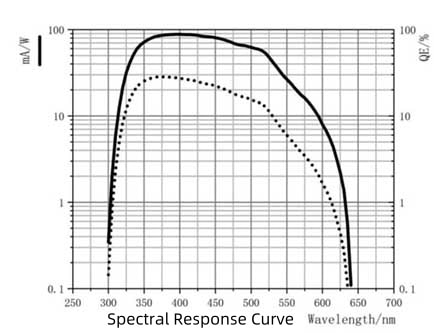

Cathode Spectral Range 290 - 650 nm

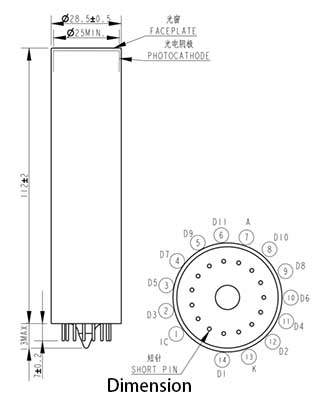

Cathode Effective Dia. Min:10 Min:25 Min:22 Min:22 Min:60 mm
Peak QE 380     nm
Luminous Sensitivity Min:40
Typ:80		 Min:60
Typ:80		 Typ:60 Min:20
Typ:40
(@25℃)		 Typ:60 μA/lm
Blue Sensitivity Min:9
Typ:10		 Min:8
Typ:11		 Min:8
Typ:10		 Min:4
Typ:6
(@25℃)		 Min:8
Typ:9		 μA/lmf
Anode Anode Sensitivity Min:30
Typ:100
(μA/lm)		 Min:50
Typ:200
(A/lmf)		 / Min:8
Typ:20
(A/lm)		 Typ:30
(A/lm)		 /

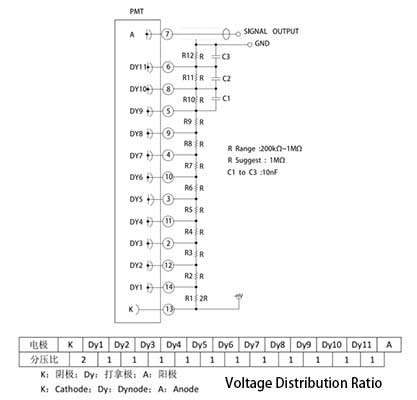

Supply Voltage Typ:1000
Max:1250		 Typ:1000
Max:1500		 Typ:1000
Max:1150		 Typ:1500
Max:1800		 Min:2000
Typ:2300
Max:3000		 V

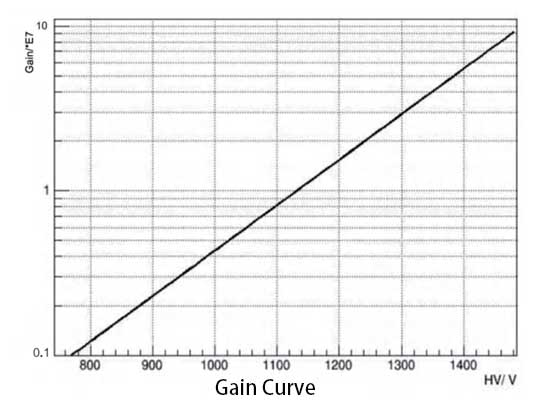

Gain Min:1×10⁶
Typ:5×10⁶		 Typ:4×10⁶ Typ:7×10⁶ Typ:5×105(@25℃) Typ:1×105 --
Dark Current Min:1
Typ:15		 Typ:2
Max:10		 Typ:3
Max:20		 Typ:0.1(@25℃)
Max::10(@25℃)
Max:1000(@175℃)		 Typ:5
Max:10		 nA
Time Rise Time Typ:2.1 Typ:1.9 Typ:1.4 Typ:1.5 Typ:1.8 ns
TTS / Typ:3 Typ:1.5 / / ns
Link





Other Parameter

Window material Borosilicate glass
Photocathode material Bialkali
High temp. biakali(H1-2018)
Dynode structure Linear focused(2012)
Box and Linear focused（2016）
Circular and Linear focused（2017/2018）
Operating temperature -30~+50℃
Storage temperature -50~+50℃
Shock(2018) 5000 m/s²（500g）0.5ms
Sine Vibration(2018) 200 m/s²（20g）
