SIMTRUM July New Product Launching Update

2022-08-17

Dear Valued Customers,

It is a pleasure to have your continued support of SIMTRUM. In July, SIMTRUM restructured the Terahertz Optical Components, and add on few series Terahertz product, please refer to the details below.

TPX Terahertz Plano Convex Lens

There are two types of metamaterials with good terahertz transmittance mainly include high-molecular-weight materials and high-resistance silicon. Among them, the refractive index of high-resistance silicon (HRFZ-Si) is high. This material is more suitable for making lens.

Size Choice 1 to 2 inch (customizable)

Focal Length 10 to 240mm (customizable)

Click Here for more info.

HDPE Terahertz Plano Convex Lens

HDPE is a light elastic crystalline material. It can be heated to 110°C or cooled to -45 ~ -120°C. Usually, HDPE also comes as a component material. In addition to thick lenses and windows, thin HDPE can also be used as THz polarizers.

Size Choice 1 to 2 inch (customizable)

Focal Length 10 to 240mm (customizable)

Click Here for more info.

Off – Axis Parabolic Mirrors

Parabolic mirrors (parabolic reflectors) are mirrors where a cross section through the optical surface has the shape of a parabola. it was designed to focus or collimate broadband light. The focus of a centered parabolic mirror is located on the axis of the incoming beam, for many users this is not practical. Therefore, an off-axis parabolic mirrors usually is the best choice because the focus point lies outside the incoming beam.

Size Choice 25.4 to 63.5 mm (customizable)

Focal Length 12.7 to 254mm (customizable)

Angle 90 degree and 15/45/60 degree

Coating Protected Gold, Protected Silver, Protected AL, UV Enhanced AL

Click Here for more info.

For more information please click on the image to reach the product pages.

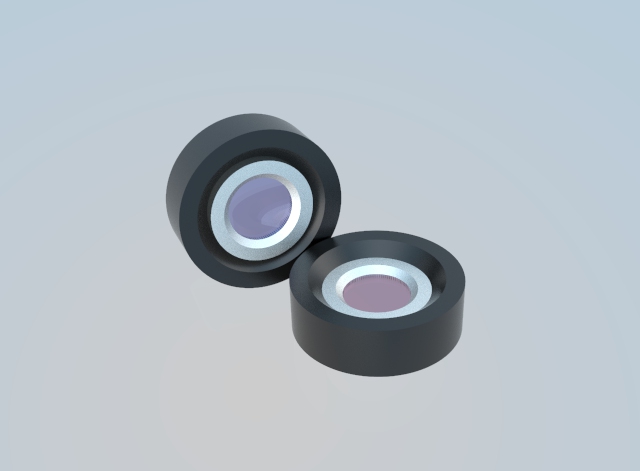

Terahertz Hollow Retro Reflector	Terahertz Metallic Mirrors	ZnTe/GaSe Terahertz Crystals

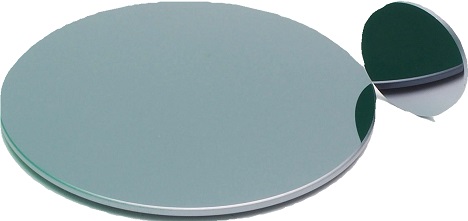

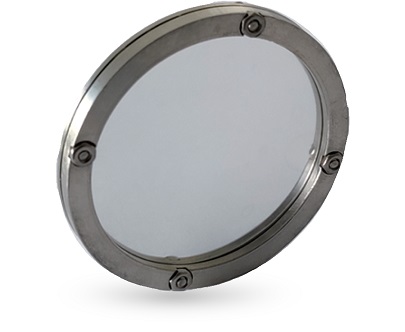

Terhertz Beam Expander Reflection	Terahertz Polarizers	THz High Resistivity Silicon Beam Splitter

SIMTRUM Launched the Terahertz Quantum Cascade Lasers (QCL) systems for imaging, spectroscopy, and heterodyne receivers. Milliwatt average power levels are available in a range of frequencies from 1.8 to 5 THZ. The compact systems are turnkey, operate cryogen free and require no optical alignment, THz QCL devices are available in multi-mode Fabry-Perot or single frequency distributed feedback (DFB) devices. Click Here for more information.

	QCL Housing-100 Versatile Laboratory Platform is a turnkey source of terahertz radiation that uses an integral Stirling Cycle cooler for cryogen-free and alignment-free operation. It is available with a multi-QCL option, which integrates up to four, automatically switched QCLS in the same system. Frequencies 1.8 to 5 THz Average Power 1 to 5 mW Power (Cooling) 200W QCL Chips up to 4 Cooldown Time <45 min to -50K Click here for more info.

	QCL Housing-110 Versatile Laboratory Platform is a turnkey source of terahertz radiation that uses an integral Stirling Cycle cooler for cryogen-free and alignment-free operation. It is available with a multi-QCL option, which integrates up to four, automatically switched QCLS in the same system. Frequencies 1.8 to 5 THz Average Power 1 to 5 mW Power (Cooling) 200W QCL Chips up to 4 Cooldown Time <30 min to -50K Click here for more info.

	QCL Housing-200 Ultra-Low Vibration Platform is an ultra-low vibration cryogen-free platform configurable for use with a variety of Terahertz Quantum Cascade Lasers. The system uses passive and active vibration damping to achieve vibration levels of <100 nm (RMS). Frequencies 1.8 to 5 THz Average Power 1 to 5 mW Power (Cooling) 200W QCL Chips up to 4 Cooldown Time <45 min to -50K Click here for more info.

	QCL Housing-1000 High Powered Terahertz Lasers is our latest generation of turnkey terahertz Quantum Cascade Laser source, offering average power levels of up to 200mW* thanks to the more powerful Pulse Tube cryocooler. The system is configurable with a wide range of QCLs emitting at discrete frequencies between 1.9 and 5THz in CW / Pulsed and single/multimode. Multiple QCLs can be mounted in the same cooler (Multi-QCL option) and is available on request. Frequencies 1.9 and 5 THz Average Power 10 to 20 mW Power (Cooling) 3000 to 4000 W QCL Chips up to 6 Cooldown Time <45 min to -50K Click here for more info.

Furthermore, we also have launched SIMTRUM’s New Light Source & Lamp series for Microscope. The Microscope Light Source and Lamp series have a wide variety of products, excellent performance, industry-leading level, and significant scientific research and application value. For more information, please refer to the details below.


Deuterium Light Source D2000 Wavelength Range 185 - 600 nm Power Output 25 - 30W Lifespan 1,500 hours Bulb Voltage 580V @20°C Click here for more info.	Halogen Light Source HL1000 Wavelength Range 360 - 2500 nm Power Output 1.7 - 8.5mW Color Temperature 2330 - 3000K Lifespan 2,000 - 10,000 hours Bulb Voltage 3.5 - 12V Click here for more info.	High Power Halogen Light Source HL2000 Wavelength Range 360 - 2500 nm Power Output 1.7 - 8.5mW Color Temperature 2330 - 3000K Lifespan 2,000 - 10,000 hours Bulb Voltage 3.5 - 12V Click here for more info.	Tungsten Halogen Light Source HL3000 Wavelength Range 360 - 2500 nm Power Output 1.7 - 8.5mW Color Temperature 2330 - 3000K Lifespan 2,000 - 10,000 hours Bulb Voltage 3.5 - 12V Click here for more info.	Tungsten Halogen Light Source LS-1 Wavelength Range 360 - 2500 nm Power Output 1.7 - 8.5mW Color Temperature 2330 - 3000K Lifespan 2,000 - 10,000 hours Bulb Voltage 3.5 - 12V Click here for more info.


Deuterium Halogen Light DH2000 Wavelength Range 360 - 2500 nm Power Output 3.0 - 8.5mW Color Temperature 2800 - 3000K Lifespan 2,000 - 10,000 hours Bulb Voltage 5 - 20W Click here for more info.	Infrared Tungsten Light MIL1000 Wavelength Range 450 - 5500 nm Power Output 7.5mW Color Temperature 1900k Lifespan ≥ 5,000 hours Click here for more info.	Calibration Light Mercury-argon HG-1 Wavelength Range 253 - 1700 nm Lifespan ≥ 6,000 hours Neon NE-1 Wavelength Range 540 - 754 nm Click here for more info.	Calibration Light Xenon Lamp XE-1 Wavelength Range 916 - 1984 nm Lifespan 3,000 hours Click here for more info.	Xenon Light Source HPX2000 Wavelength Range 200 - 2200 nm Power Output 8.0 mW Lifespan ≥ 1,000 hours Bulb Voltage 50W Click here for more info.
