Products / Lasers/Light /Fiber Lasers / Femtosecond Pulse Fiber Laser (515nm-2μm) /1560 nm High Power Femtosecond Laser /

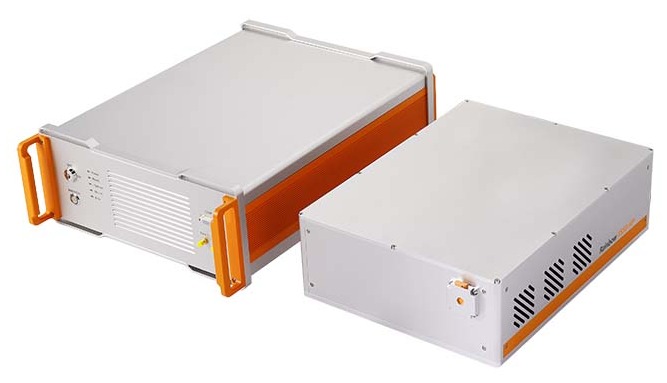

1560 nm High Power Femtosecond Laser

High Power Standard（200mW） Related Products Order Now!

SIMTRUM provides the 1560 nm femtosecond lasers featuring high output power, long operating lifetimes, good power stability and excellent beam quality. In addition, the laser can be configured with output ports for both fundamental and doubled frequency light. As a reliable and fully integrated turnkey system, the laser is used in a wide range of applications such as multi-photon microscopy, semiconductor inspection, two-photon lithography and materials science research.
Features High Peak Power Excellent Beam Quality Long Operating Lifetime Industrial-grade Stability Abundant Customization Options	Applications Semiconductor Inspection Quantum Optics and Optical Metrology Ultrafast and nonlinear optics Terahertz wave generation Multi-photon Microscopy Two-photon Microscopy

Product Specifications

Product Number	LL-NP01-1560-150-80-1000
Working Wavelength	1560±10 nm
Pulse Width	＜150 fs
Repetition Rate	80 MHz
Average Output Power	＞1 W
Average Power Stability（%）	≤0.5% RMS (12 hours@25℃）
Pulse Energy	＞12.5 nJ
Polarization Extinction Ratio (PER)	＞20 dB
Output Type	Spatially collimated output
Supply Voltage	100-240 VAC
Operational Temperature	15-35℃
Operational Humidity	20~80% (non-condensing)
Dimensions	437×300×134 mm, 531×365×156 mm
Cooling	Air cooling

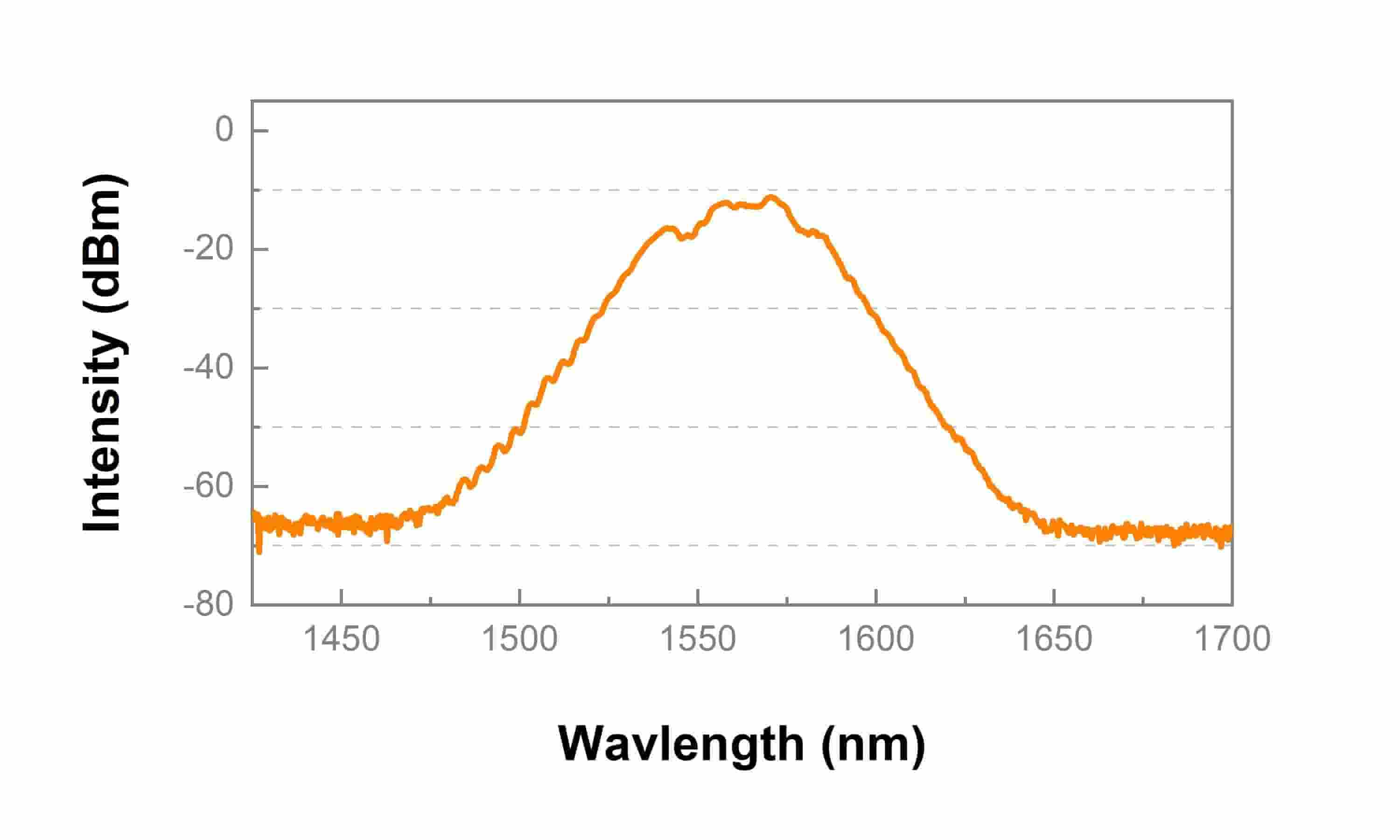

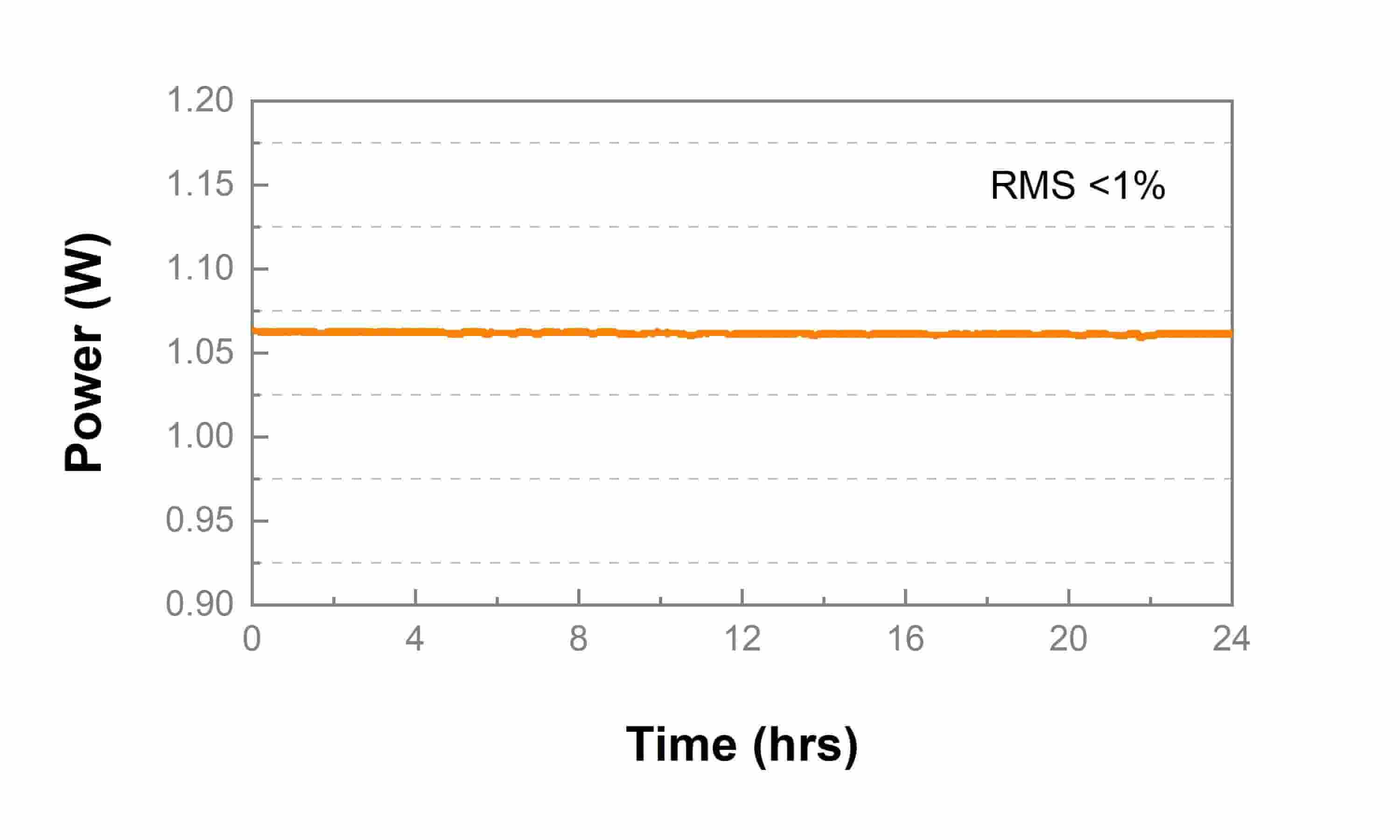

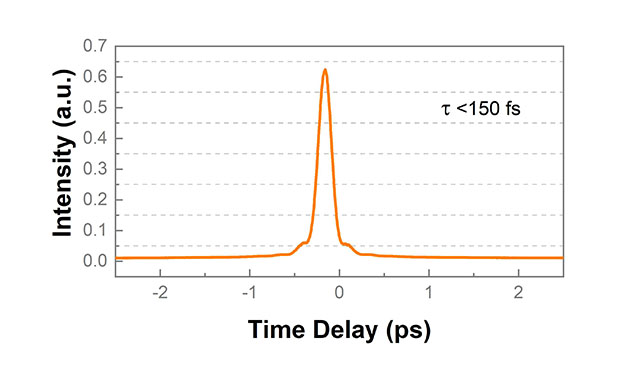

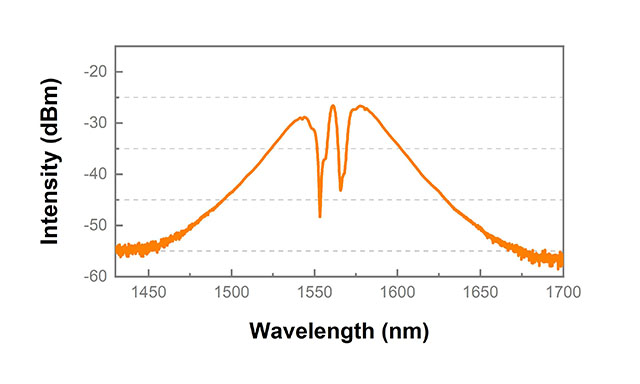

Testing Data

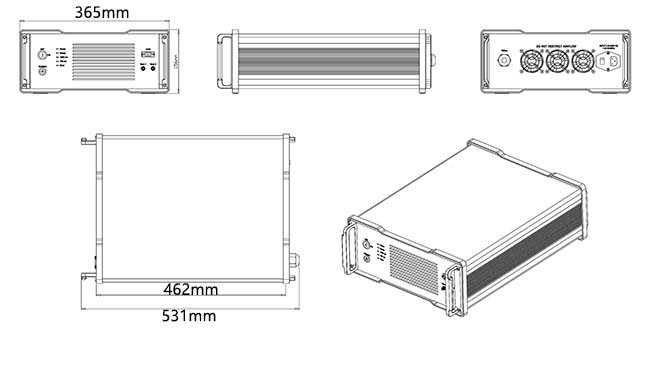

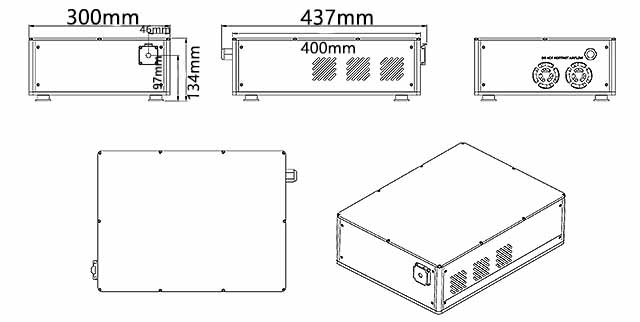

Dimensions

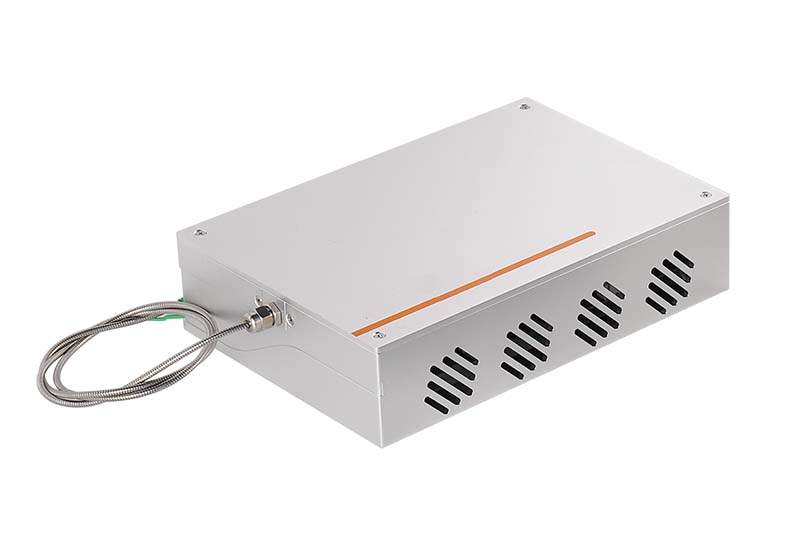

SIMTRUM provides the 1550 nm femtosecond lasers with high output power, long operating lifetimes, good power stability and excellent beam quality. As a highly integrated product, the laser can be remotely controlled via software and is ideally suited for building optical and spectroscopic systems for a wide range of applications such as time-domain terahertz generation, laser metrology and nonlinear optics.
Features Excellent Reliability Power Stability ＜0.5% Compact Structure Abundant Customisation Options	Applications Second Harmonic Generation (SHG) Imaging Third Harmonic Generation (THG) Imaging Terahertz (THz) Generation Laser Metrology Nonlinear Optics

Product Specifications

Product Number	LL-NP01-1560-80-80-100
Working Wavelength	1560±10 nm
Pulse Width	＜80 fs
Repetition Rate	80 MHz （50-100MHz optional)
Average Output Power	＞100 mW (up to 200 mW optional)
Average Power Stability（%）	≤0.5% RMS (12 hours@25℃）
Pulse Energy	＞1.25 nJ
Polarization Extinction Ratio (PER)	＞20 dB
Pigtail Length	1m (Customizable)
Output Type	PM/SM Fiber, FC/APC narrow key jumper
Supply Voltage	12 VDC
Operational Temperature	15-35℃
Operational Humidity	20~80% (non-condensing)
Dimensions	200×140×48 mm
Cooling	Air cooling

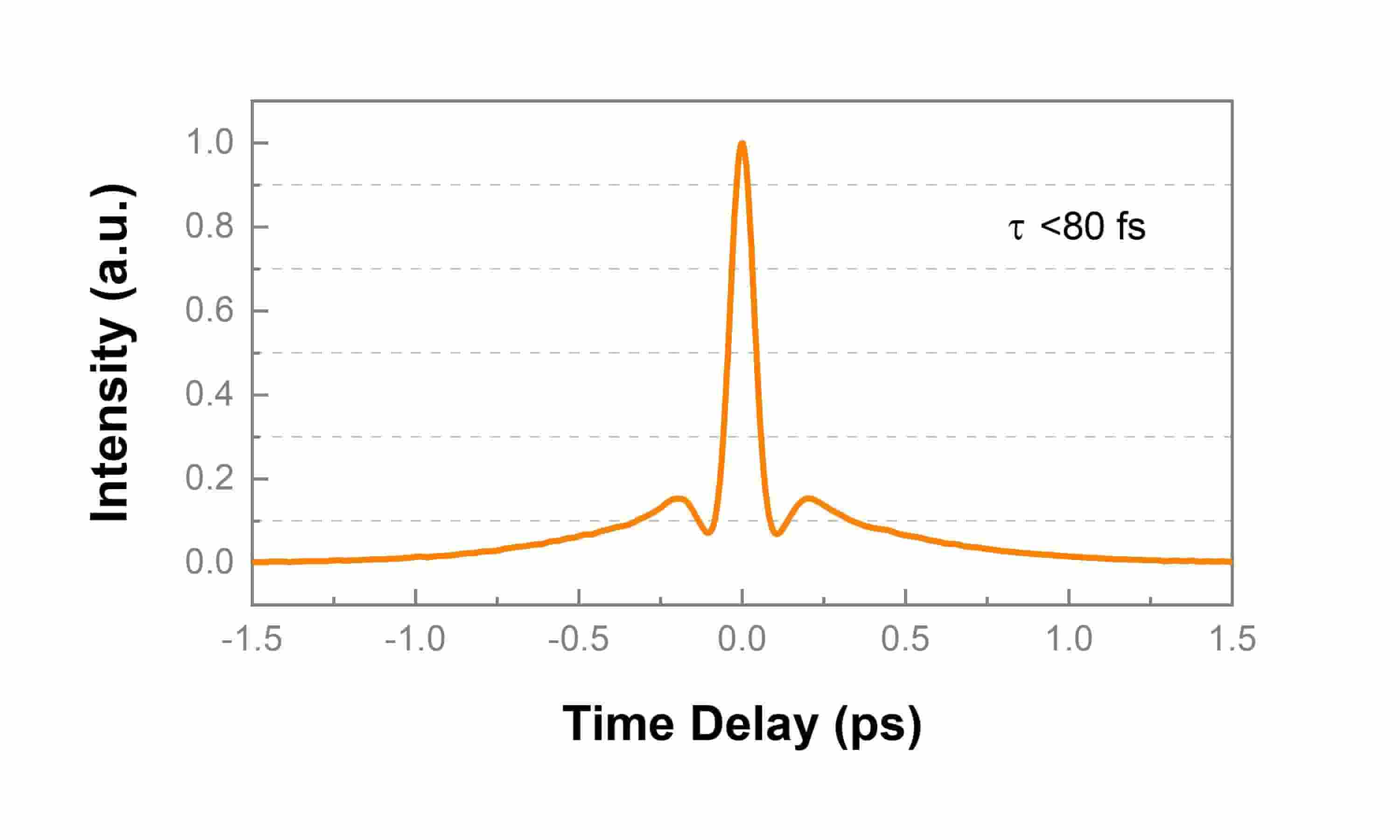

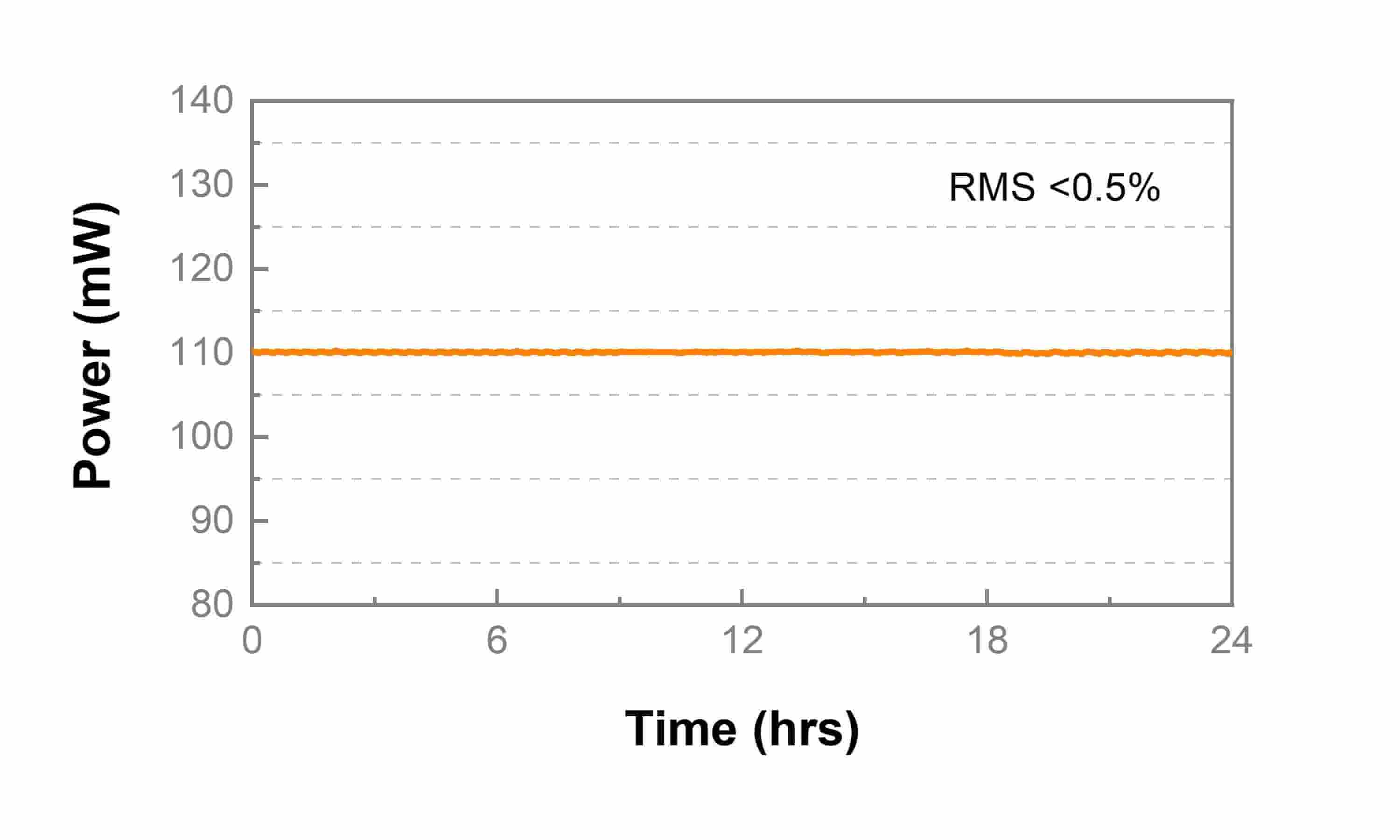

Testing Data

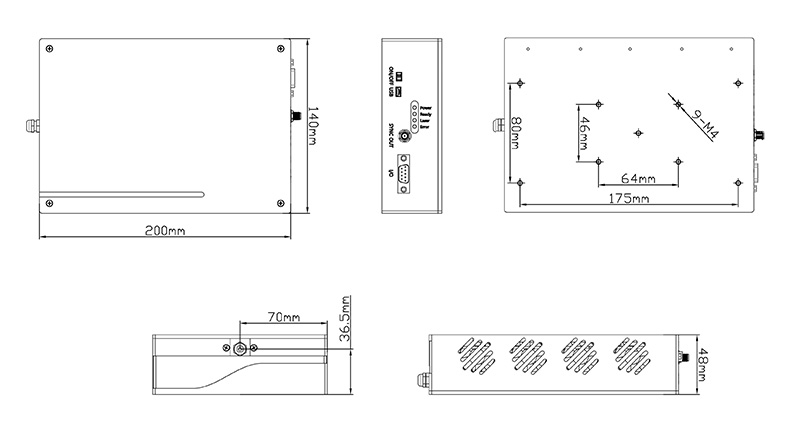

Dimensions

Type	Wavelength	Average Power Range	Pulse Width	Repetition Rate	Pulse Energy
515 nm High Power Femtosecond Laser	515 nm	＞1 W	＜200 fs	30-80 MHz	/
780 nm High Power Femtosecond Laser	780 nm	＞60 mW/ ＞200 mW	＜100 fs/ ＜150 fs	80 MHz	＞0.75 nJ/ ＞2.5 nJ
780/1560 nm Dual Output Femtosecond Laser	780/1560 nm	＞60 mW/ ＞100 mW	＜100 fs/ ＜80 fs	80 MHz	＞0.75 nJ/ ＞1.25 nJ
1030 nm High Power Femtosecond Laser	1030-1060 nm	＞5 W	＜150 fs	80 MHz	＞80 nJ
1040/1050 nm High Power Femtosecond Laser	1040/1050 nm	5-10 W	＜150 fs	80 MHz	＞80 nJ
1560 nm High Power Femtosecond Laser	1560 nm	＞100 mW/ ＞1 W	＜80 fs/＜150 fs	50-100 MHz/ 80MHz	＞1.25 nJ/ ＞12.5 nJ
1560 nm High Repetition Rate Femtosecond Laser	1560 nm	＞100 mW/ 200 mW	＜90 fs/ 50-500 fs	80-100 MHz/ 200 MHz-1 GHz	＞1 nJ
1970 nm High Power Femtosecond Laser	1970 nm	＞1 W	＜150 fs	80 MHz	＞12.5 nJ

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
Application
Working Wavelength		nm
Linewidth		nm
Output Power		W
Power Stability		%
Pulse Width		fs
Repetition Rate		MHz
Beam Quality (M²)		/
Polarization Extinction Ratio (PER)		dB

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		LL-NP01-1560-150-80-1000 Working Wavelength: 1560±10 nm ,Average Output Power: ＞1W ,Pulse Width: ＜150fs, Repetition Rate: 80MHz ,Power Stability: ≤0.5% RMS (12 hours@25℃), Pulse Energy: ＞12.5nJ ,Output Type: Spatially Collimated Output ,Cooling: Air-cooled		4-6 Weeks	$39000.00
		LL-NP01-1550-80-80-100 Working Wavelength: 1560±10 nm ,Average Output Power: ＞100mW (up to 200mW optional) ,Pulse Width: ＜80fs ,Repetition Rate: 80MHz (50-100MHz optional), Power Stability: ≤0.5% RMS (12 hours@25℃) ,Pulse Energy: ＞1.25nJ Output Type: PM/SM Fiber, FC/APC narrow key jumper, Cooling: Air-cooled		4-6 Weeks	$19000.00
