515 nm High Power Femtosecond Laser | SIMTRUM Photonics Store

Products / Lasers/Light /Fiber Lasers / Femtosecond Pulse Fiber Laser (515nm-2μm) /515 nm High Power Femtosecond Laser /

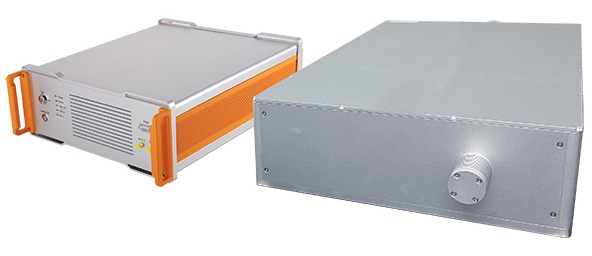

515 nm High Power Femtosecond Laser
Overview Specifications Related Products Order Now!
SIMTRUM provides the 515 nm femtosecond lasers equipped with industrial-grade ultra-fast pump lasers and innovative frequency doubling technology, featuring high output power, long operating lifetimes, good power stability and excellent beam quality.

As a reliable and fully integrated turnkey system, the laser is used in a wide range of applications such as multi-photon microscopy, semiconductor inspection, two-photon lithography and materials science research.

Features

  • High Peak Power
  • Excellent Beam Quality
  • Long Operating Lifetime
  • Industrial-grade Stability
  • Abundant Customization Options

Applications

  • Semiconductor Inspection
  • Quantum Optics and Optical Metrology
  • Ultrafast and nonlinear optics
  • Terahertz wave generation
  • Multi-photon Microscopy
  • Two-photon Microscopy

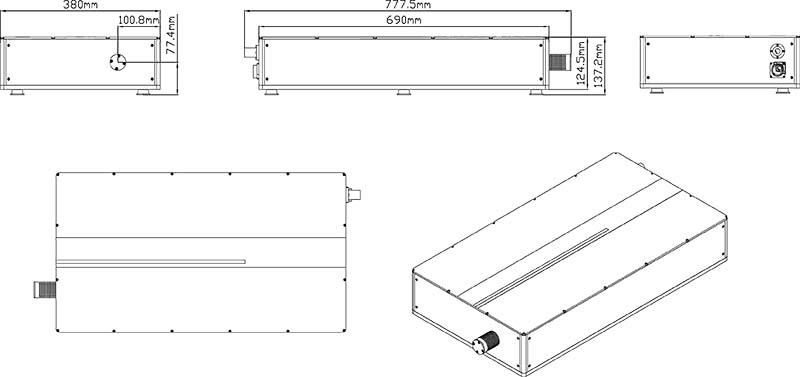

Dimensions

Product Specifications

Product Number LL-NP01-515-150-80-1000
Working Wavelength 515±2 nm
Pulse Width ＜200 fs
Repetition Rate 80 MHz (30-80 MHz optional)
Average Output Power ＞1 W
Average Power Stability（%） ≤1% RMS (12 hours@25℃）
Beam Quality M2＜1.2
Polarization Extinction Ratio (PER) ＞20 dB
Output Type Spatially Collimated Output
Supply Voltage 100-240 VAC
Operational Temperature 15-35℃
Operational Humidity 20~80% (non-condensing)
Dimensions 777.5×380×137.2 mm, 445×383.5×97 mm
Cooling Air cooling

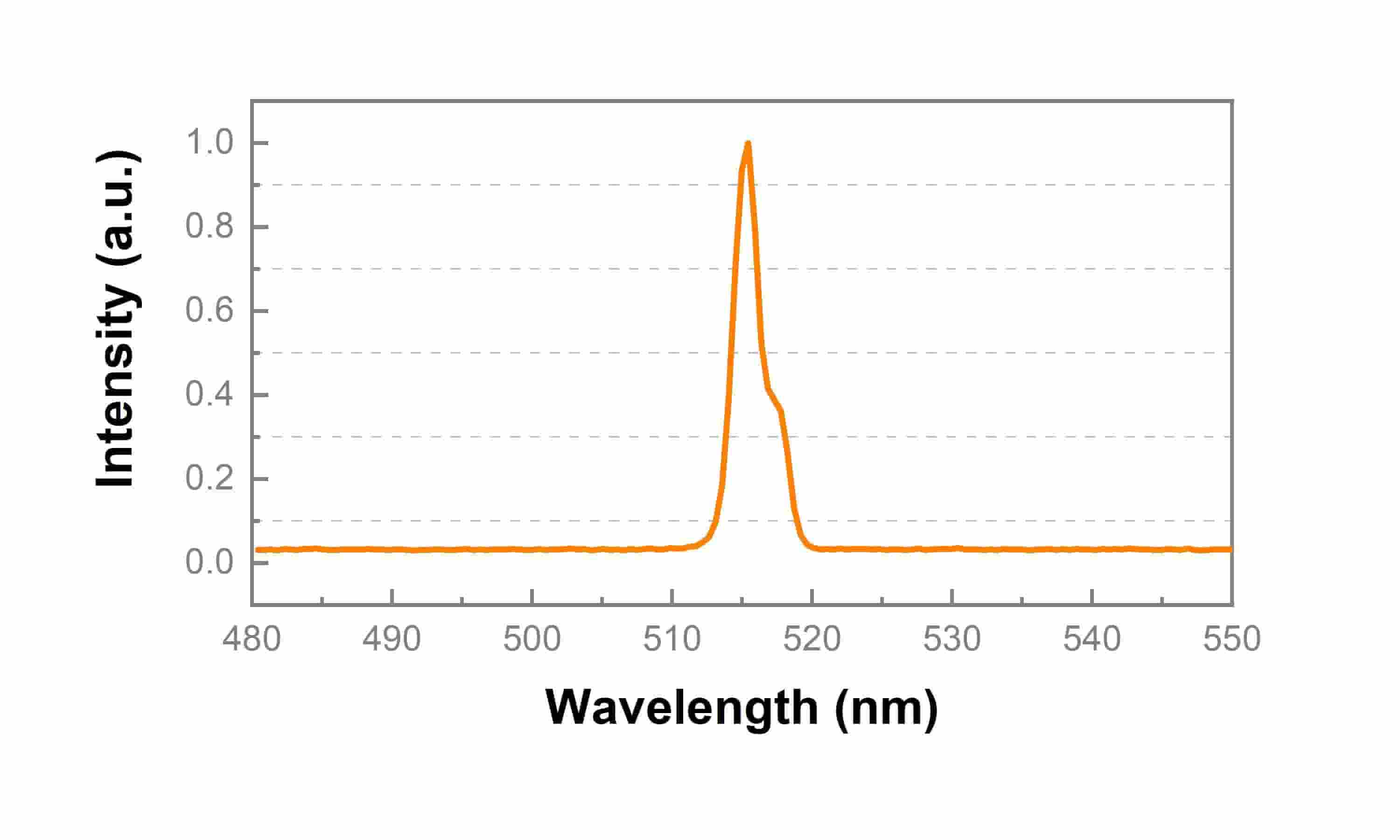

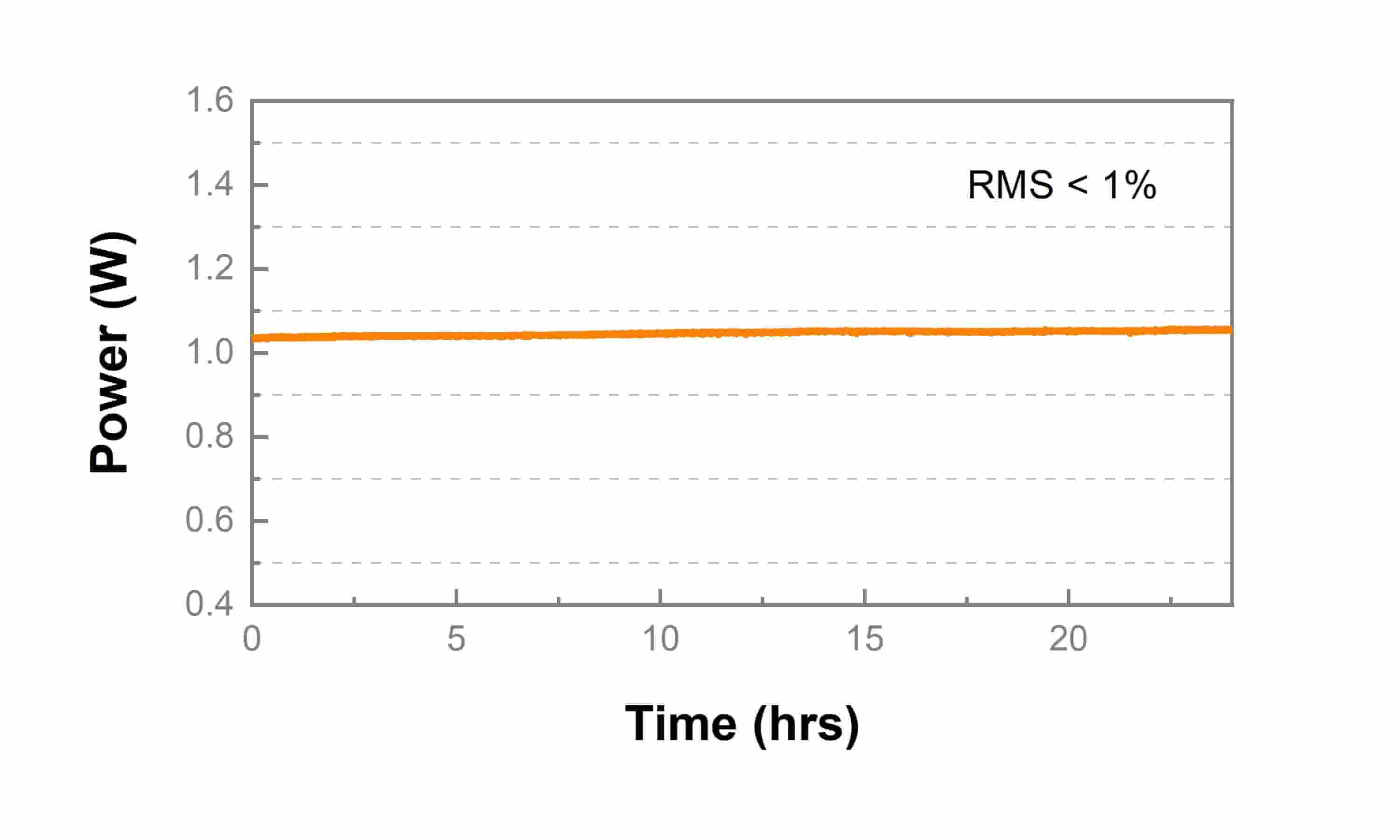

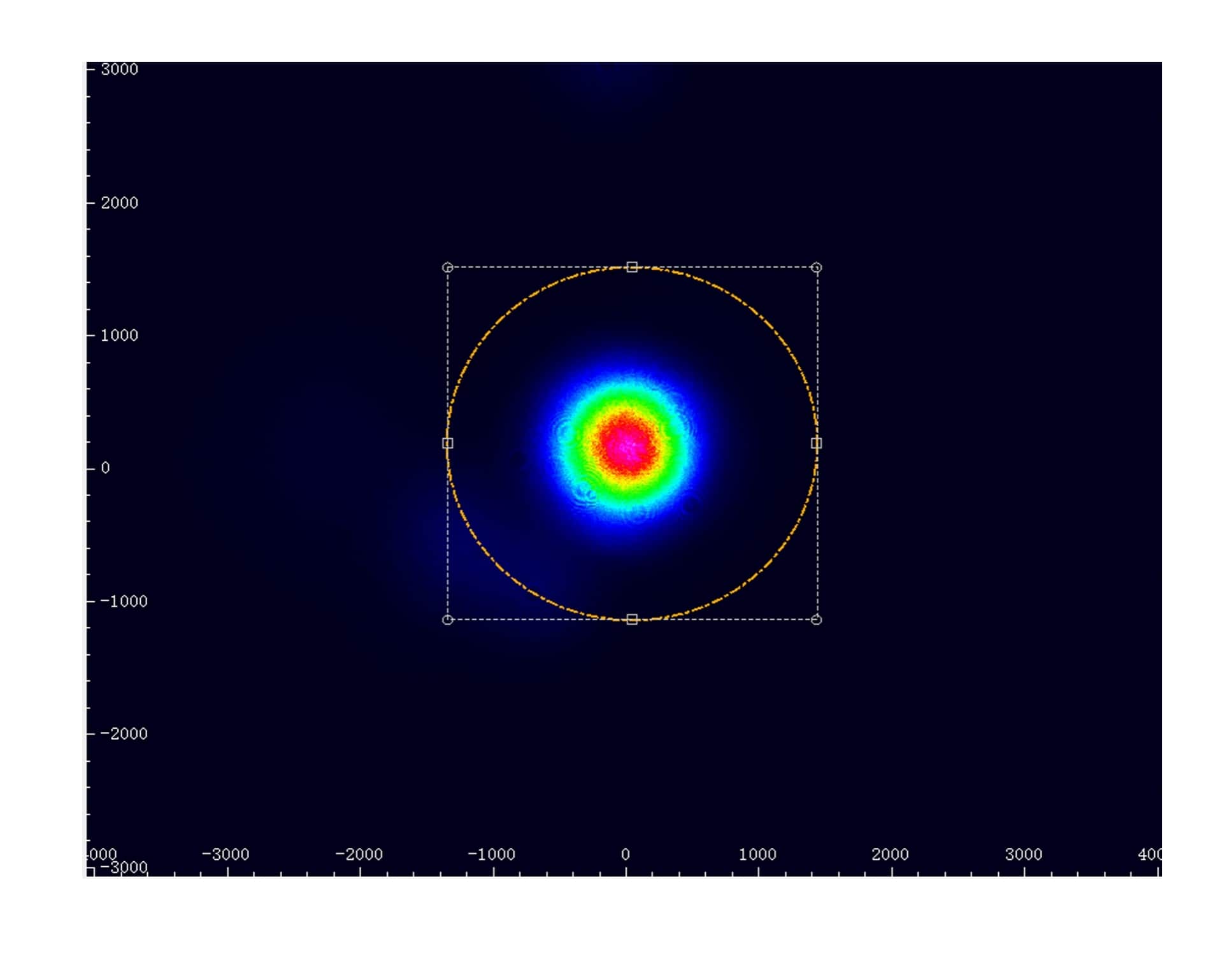

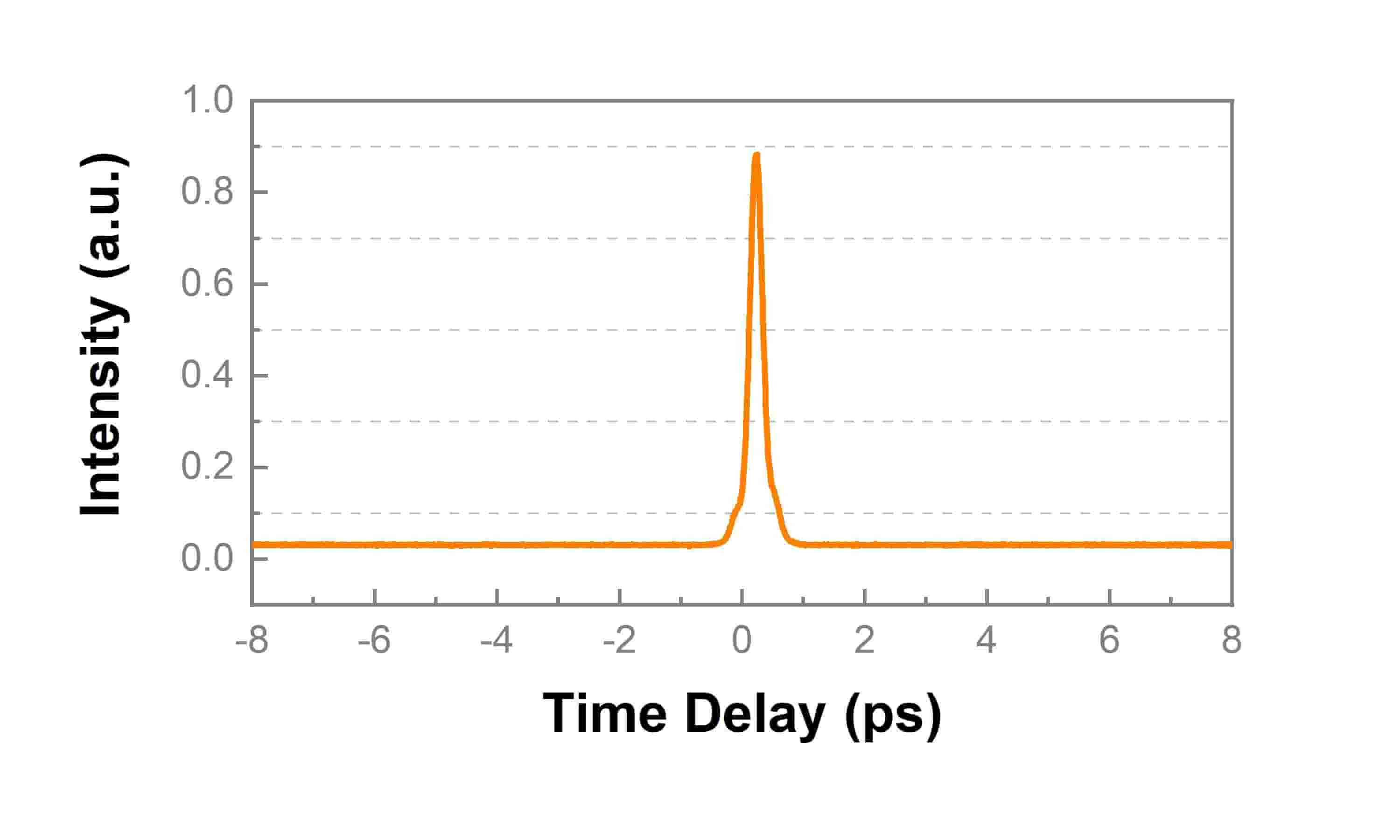

Testing Data

Type Wavelength Average Power Range Pulse Width Repetition Rate Pulse Energy
515 nm High Power Femtosecond Laser 515 nm ＞1 W ＜200 fs 30-80 MHz /
780 nm High Power Femtosecond Laser 780 nm ＞60 mW/ ＞200 mW ＜100 fs/ ＜150 fs 80 MHz ＞0.75 nJ/ ＞2.5 nJ
780/1560 nm Dual Output Femtosecond Laser  780/1560 nm ＞60 mW/ ＞100 mW ＜100 fs/ ＜80 fs 80 MHz ＞0.75 nJ/ ＞1.25 nJ
1030 nm High Power Femtosecond Laser 1030-1060 nm ＞5 W ＜150 fs 80 MHz ＞80 nJ
1040/1050 nm High Power Femtosecond Laser 1040/1050 nm 5-10 W ＜150 fs 80 MHz ＞80 nJ
1560 nm High Power Femtosecond Laser 1560 nm ＞100 mW/ ＞1 W ＜80 fs/＜150 fs 50-100 MHz/ 80MHz ＞1.25 nJ/ ＞12.5 nJ
1560 nm High Repetition Rate Femtosecond Laser 1560 nm ＞100 mW/ 200 mW ＜90 fs/ 50-500 fs 80-100 MHz/ 200 MHz-1 GHz ＞1 nJ
1970 nm High Power Femtosecond Laser 1970 nm ＞1 W ＜150 fs 80 MHz ＞12.5 nJ

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.
Items Detail Unit Remark
Application
Working Wavelength   nm
Linewidth   nm
Output Power   W
Power Stability   %
Pulse Width   fs
Repetition Rate   MHz
Beam Quality (M2)   /
Polarization Extinction Ratio (PER)   dB





We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-NP01-515-150-80-1000
Working Wavelength: 515±2 nm ,Average Output Power: ＞1W ,Pulse Width: ＜200fs ,Repetition Rate: 80MHz (30-80 MHz optional) ,Power Stability: ≤1% RMS (12 hours@25℃), Beam Quality: M2＜1.2 ,Cooling: Air-cooled 		4-6 Weeks $39000.00

LL-NP01-515-150-80-1000 - Parameter

LL-NP01-515-150-80-1000 - Download
