780nm Femtosecond Pulse Laser
780 Standard Related Products Order Now!

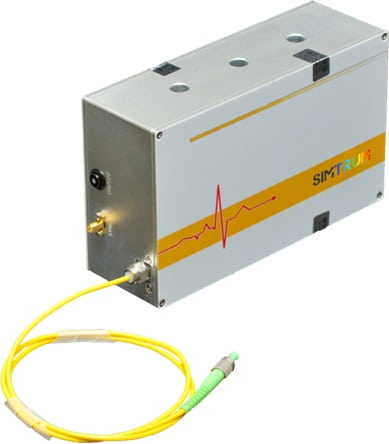

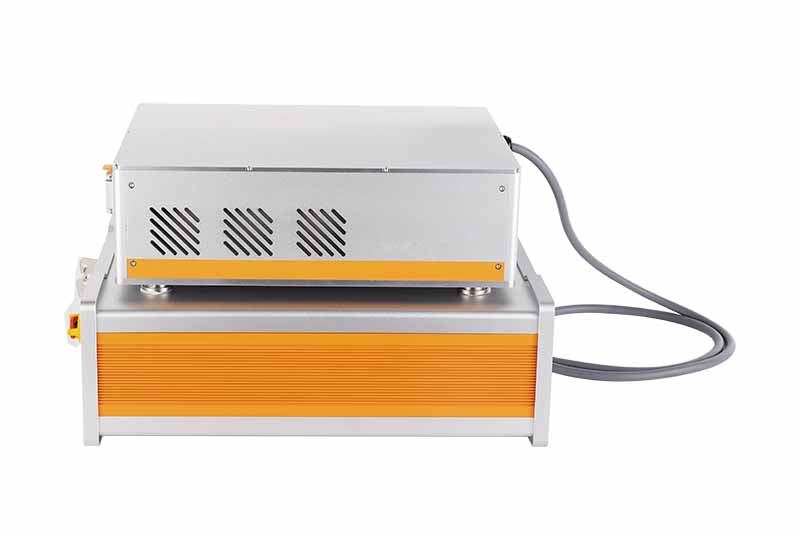

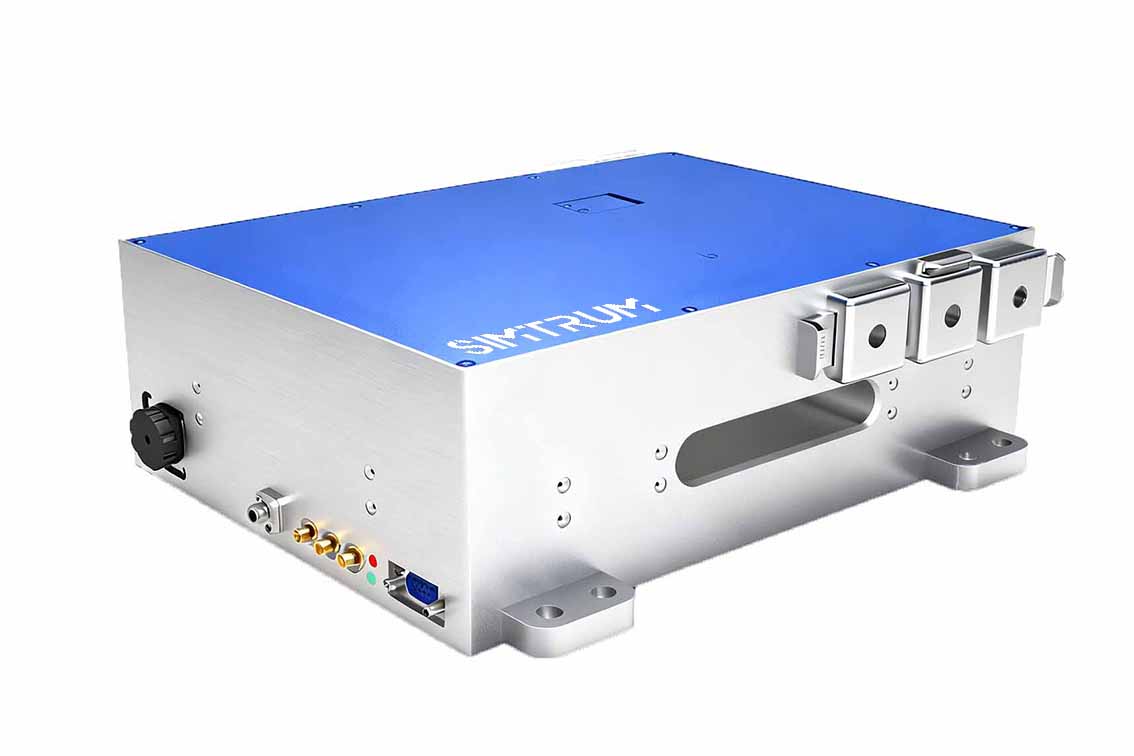

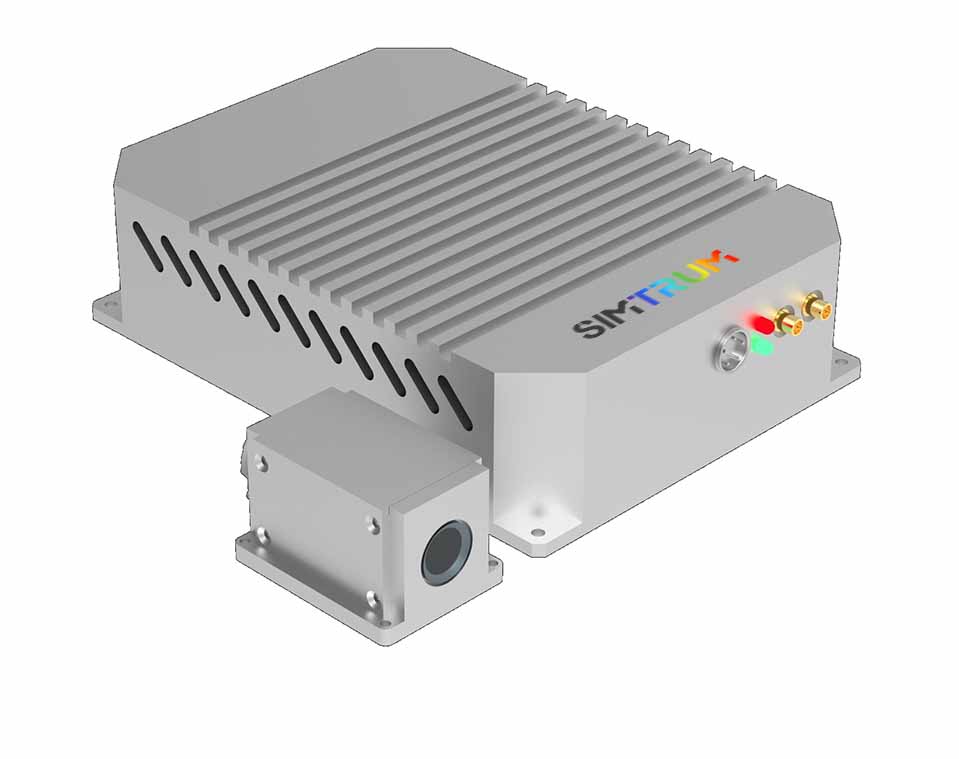

780nm Femtosecond Pulse Fiber Laser

The 780nm Femtosecond Pulse Fiber Laser Series ultrafast laser adopts the latest femtosecond laser technology and optical frequency doubling technology to achieve a stable output of femtosecond pulsed laser in a 780nm band. It has a One-click self-starting and long-term stable operation. It has the characteristics of extremely narrow laser pulses and high pulse peak power. It has important applications in the fields of optical frequency combs, terahertz waves, and multiphoton imaging.


Characteristics

-Wide Femtosecond pulse

-Self-start maintenance-free

-Full Polarization-maintaining High Stability

Applications

-Multi-photon Excitation Imaging

-Double Photon Absorption

-Ultra-fast laser Phenomenon


Product Specifications and Brochures

Product Brochure Link:


General Specifications
Optical indicatorsUnitTypical valueRemark
Center Wavelengthnm780 ±10

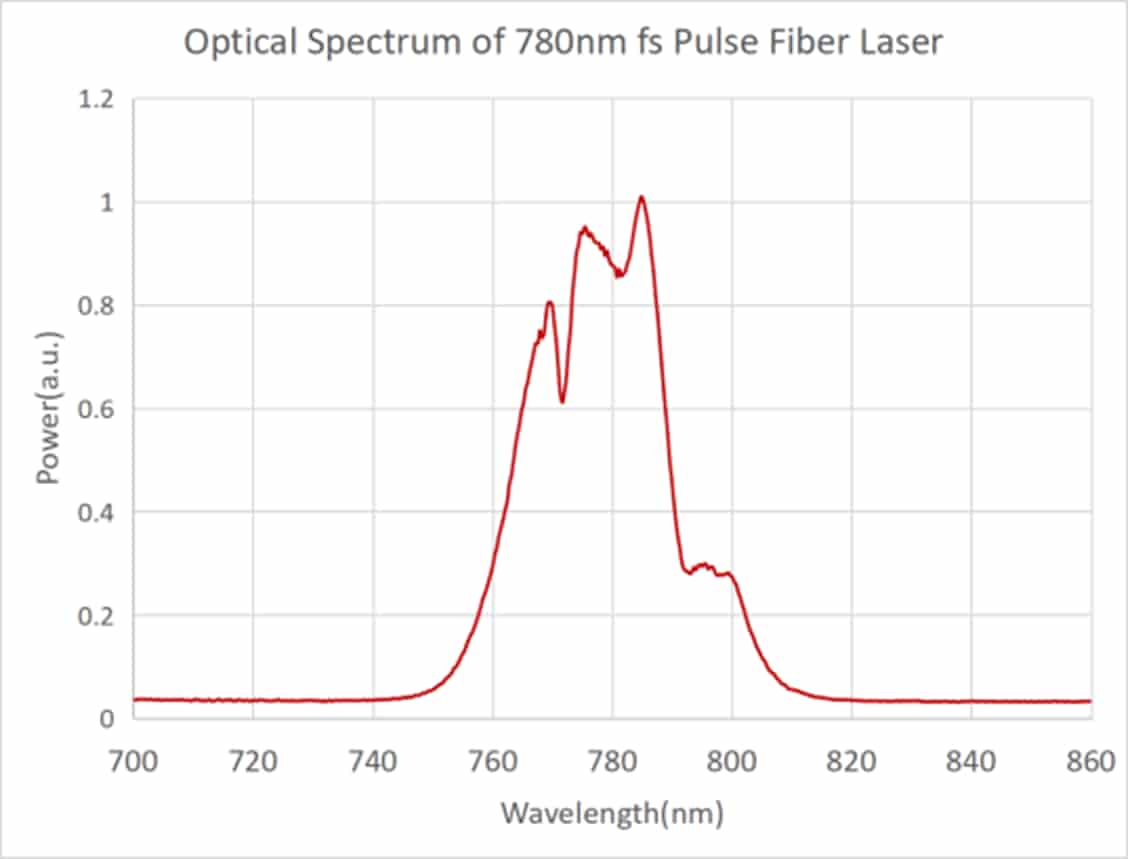

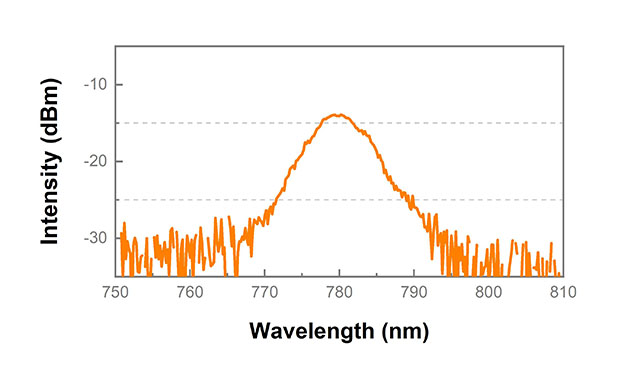

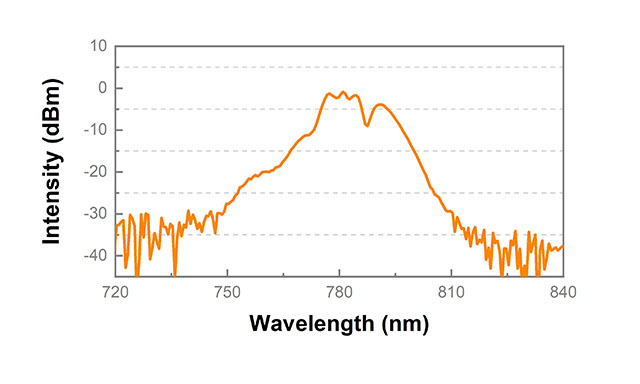

Spectrum Widthnm20

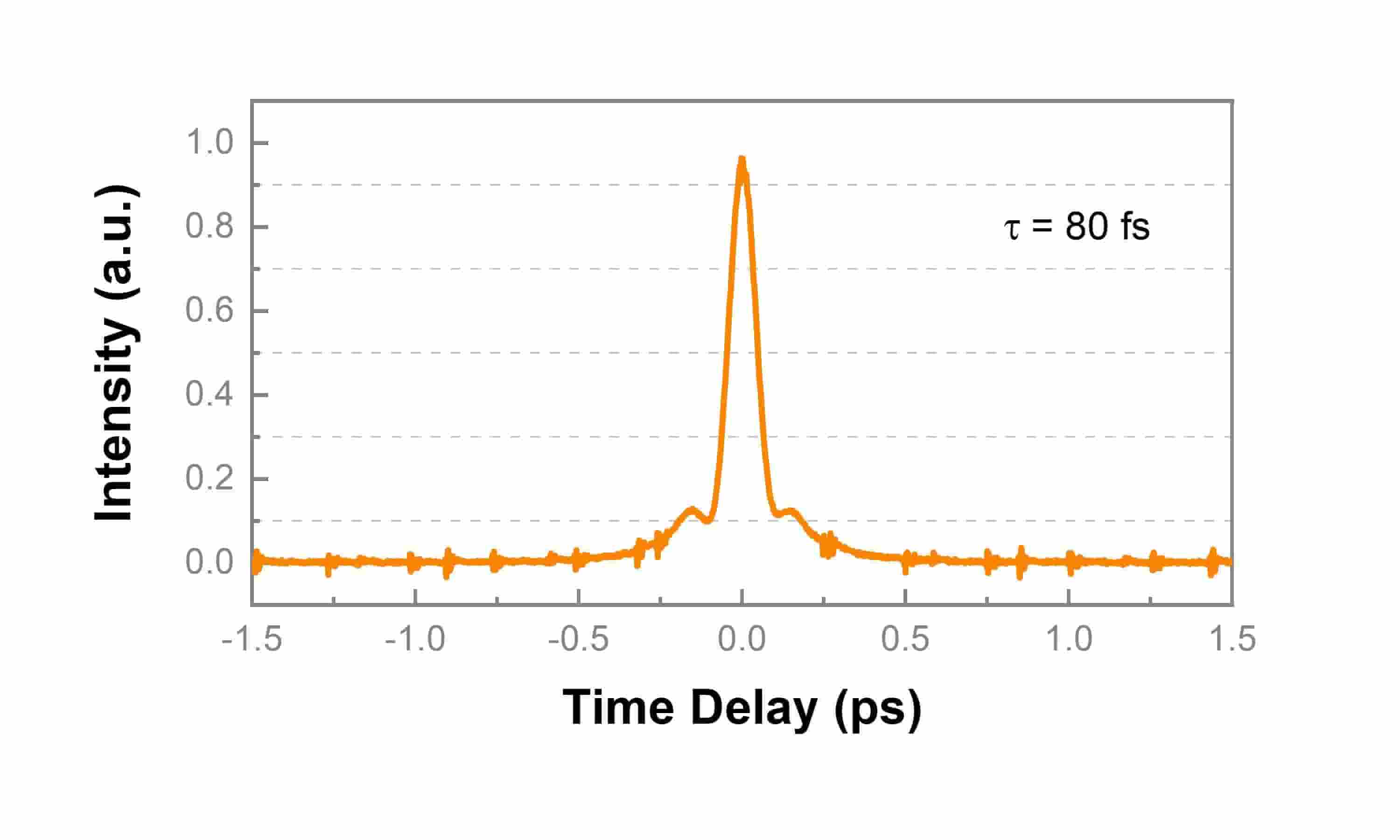

Pulse Widthfs< 100Customizable
Output PowermW> 30Customizable

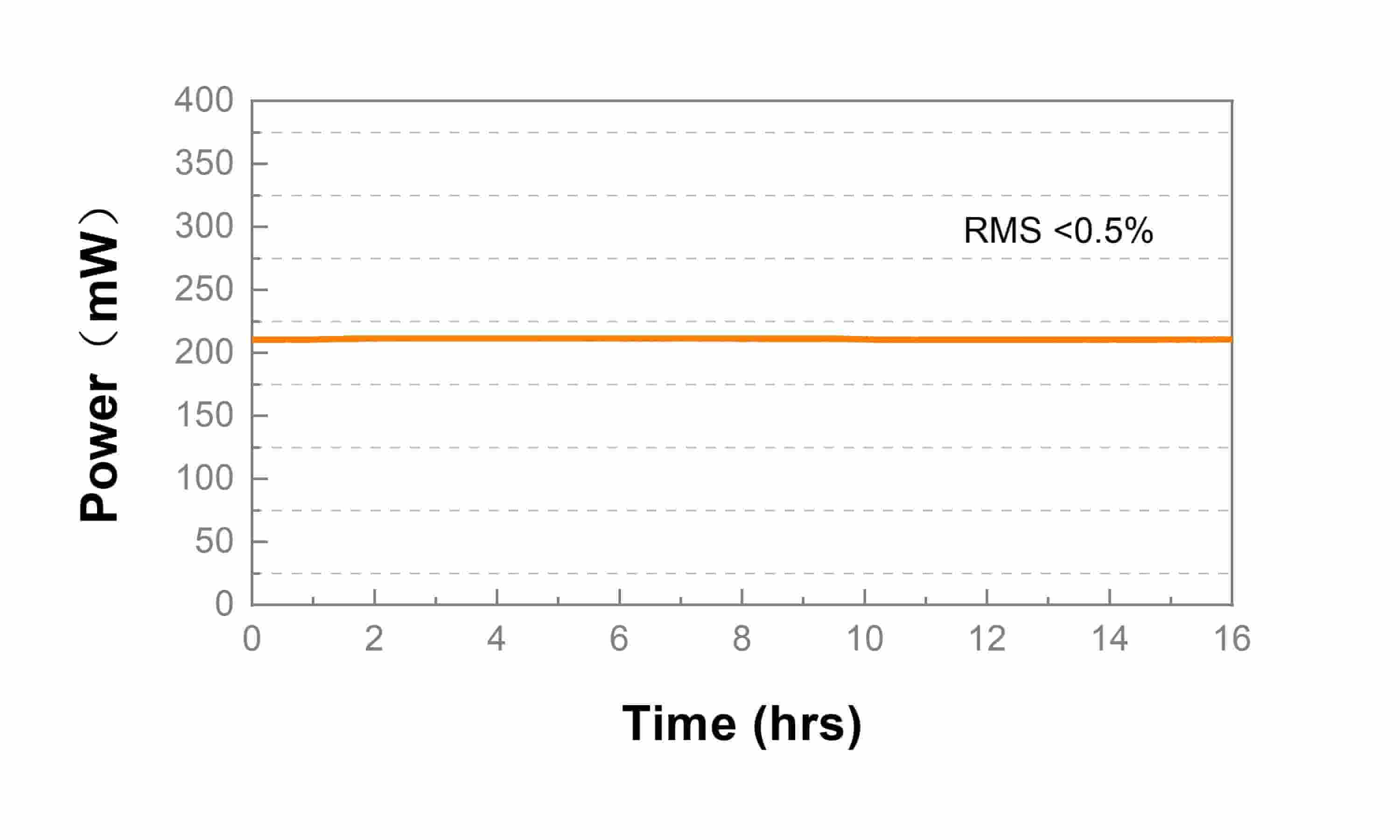

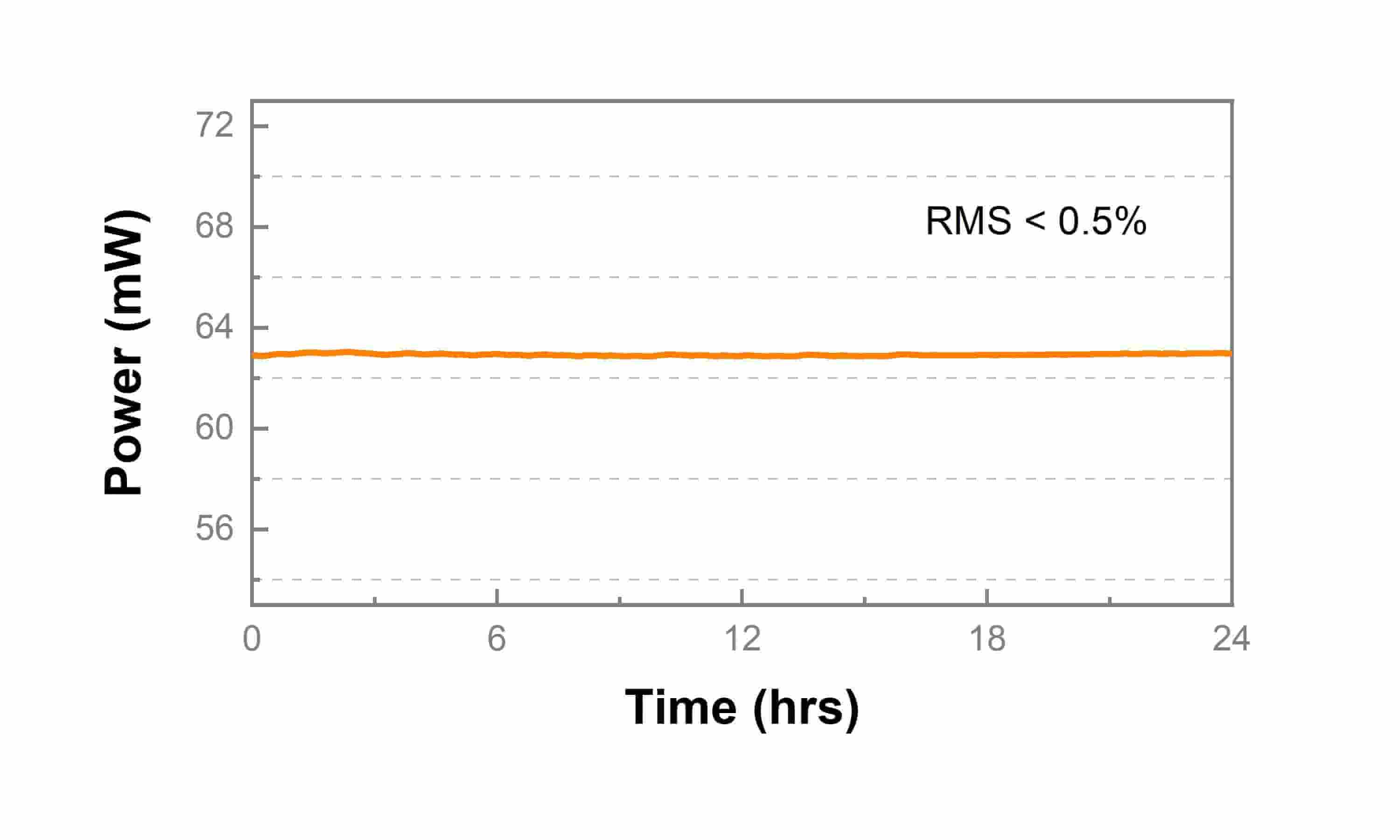

Power Instability-< ±1%
Repeat FrequencyMHz80Customizable
Repetition Rate InstabilityHz< 100
Single Pulse EnergynJ> 0.4
Polarized State-Line polarization
The Output Method-Space light
Warm-up Timemin< 1

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level


Electrical and Environmental ParametersDesktopModule
The Way of ControlKeystrokeKeystroke
Synchronized Electrical Signal InterfaceSMASMA
Power Supply100~240V   AC, <30W5V   DC, <20W

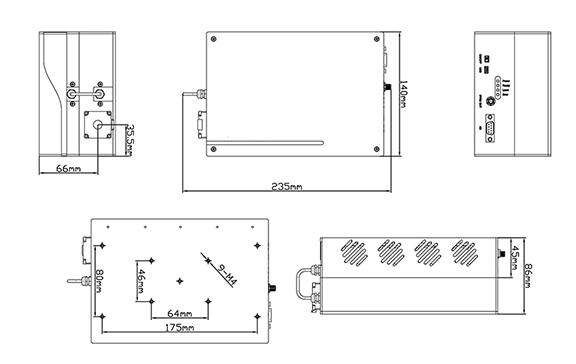

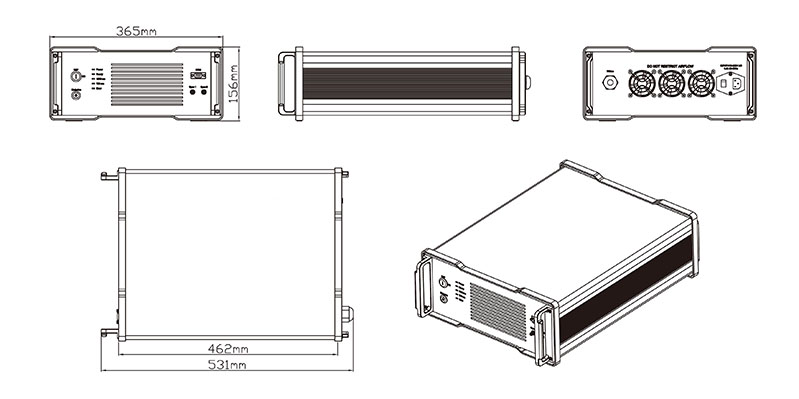

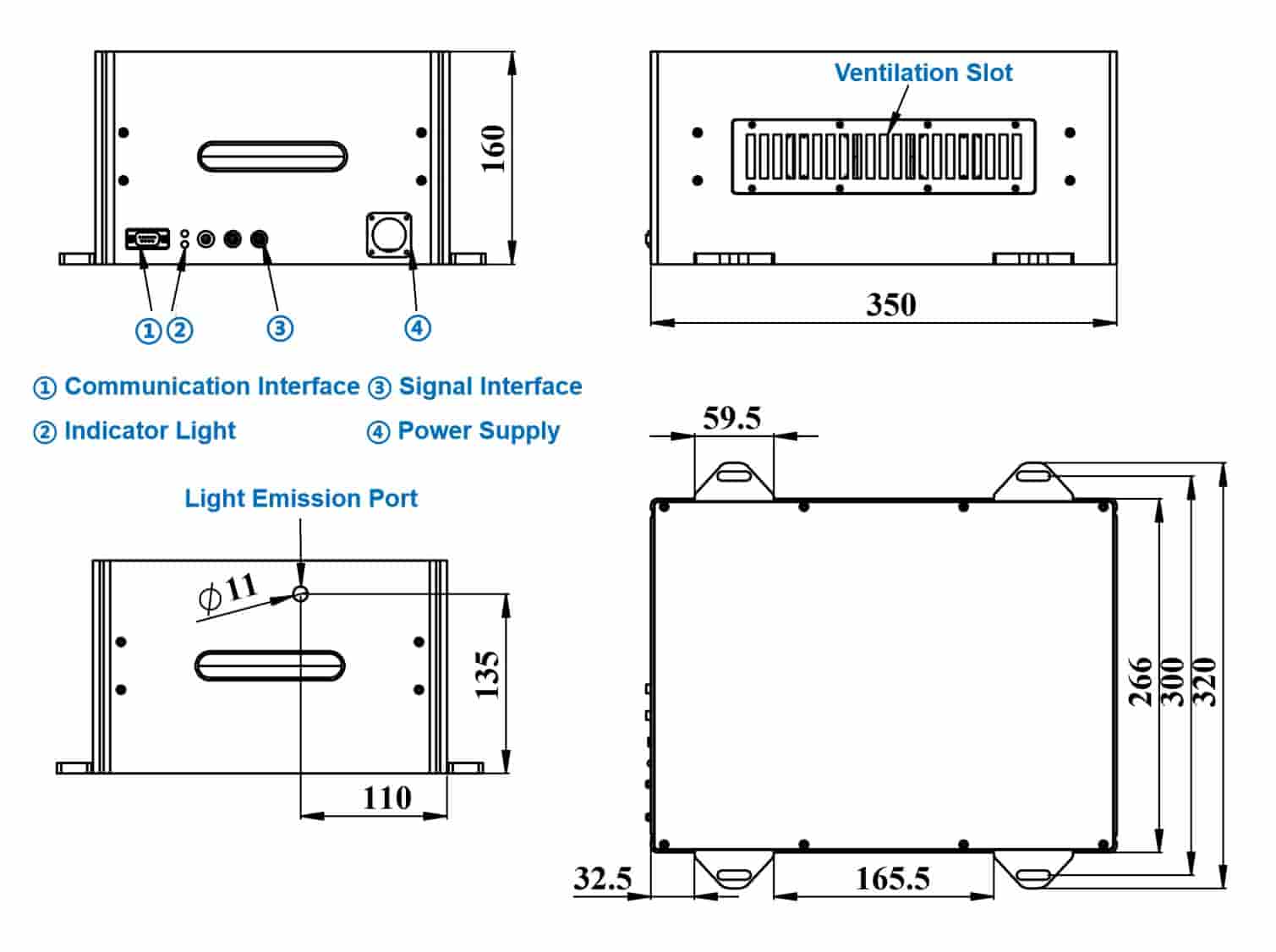

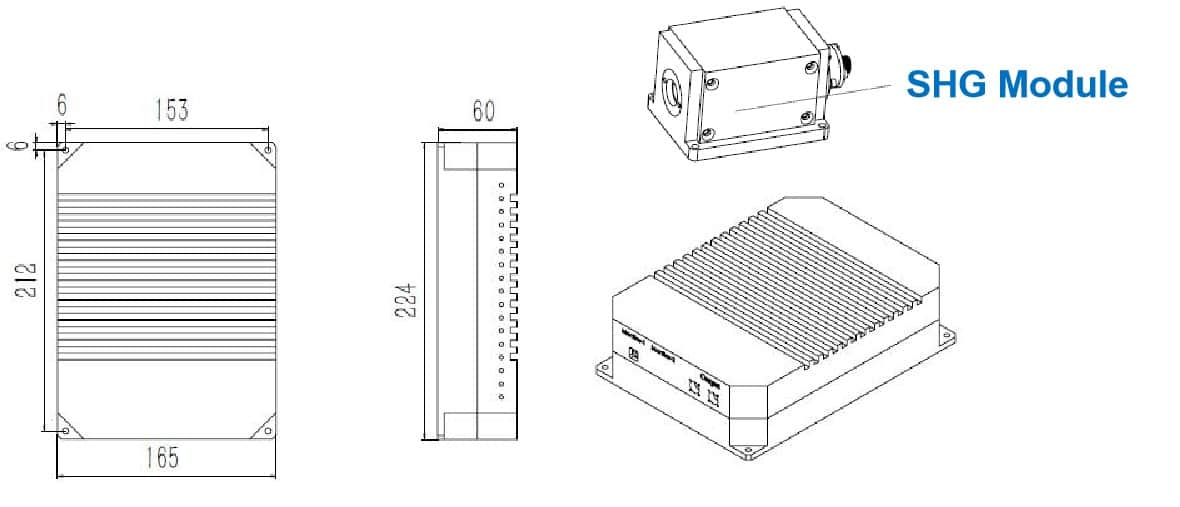

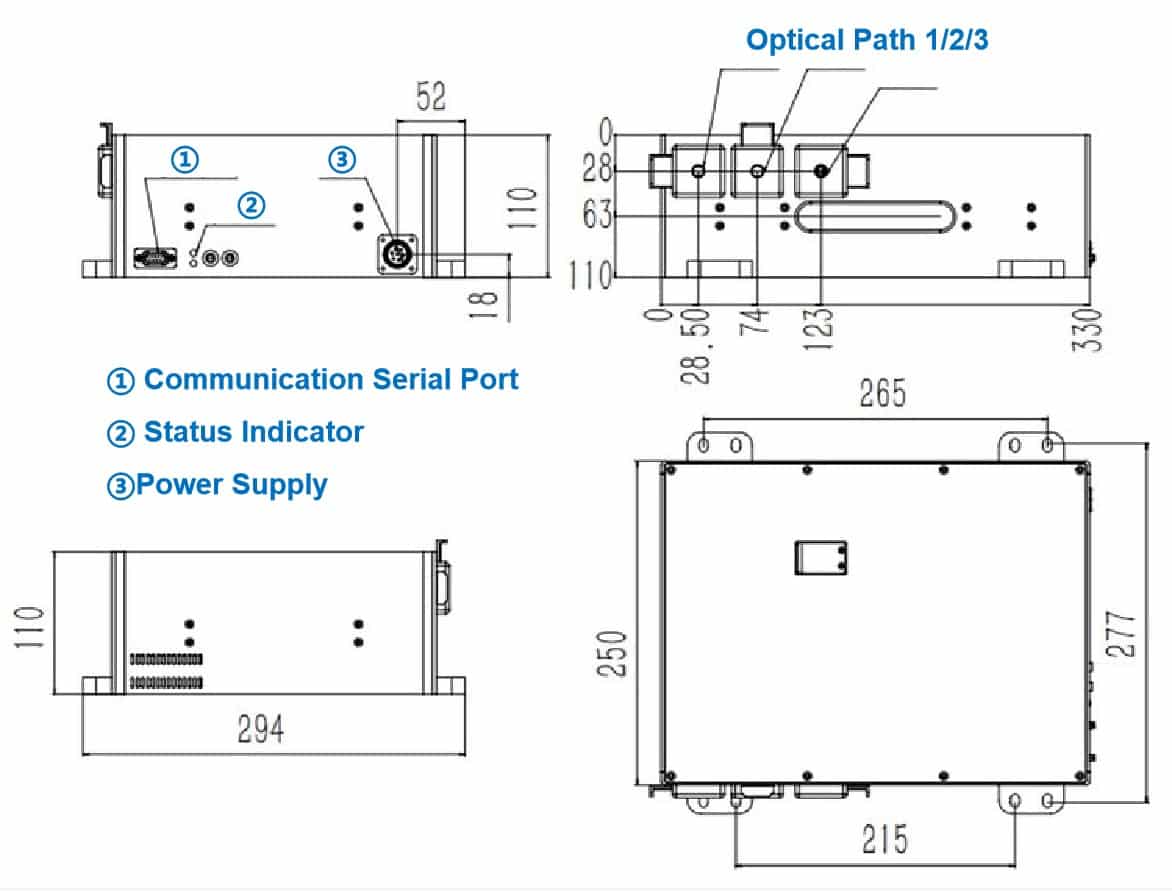

Dimensions (mm)260(W)×280(D)×120(H)mm200(W)×121(D)×55(H)mm
Operating Temperature5  ~ 35°C
Operating Humidity0~70%


Order Information / Model Number
FSPLWavelength (nm)Pulse Width (fs)

Power

(mW)

Repeat

Frequency

(MHz)

The Output

Method

The Encapsulation

Form


78050/100/200/500

1/10/50/100

80/100FS - Space Light

B - Desktop

M - Modular


ProductWavelength RangePulse WidthAverage PowerRep RatePulse Energy
780nm Femtosecond Laser  780±10 nm<100 fs>30 mW80 MHz>0.4 nJ
780/1560nm Dual Output FS Laser780/1560±10 nm<100 fs>100mW80 Mhz>1.25 nJ
1030nm Femtosecond Laser  1030±5 nm>200 fs>60 mW25 MHz>4 nJ
1040/50nm Femtosecond Laser  1040/50nm<150 fs5 - 10 W80 Mhz>80 nJ
1560nm Femtosecond Laser  1560±10 nm50 - 500 fs1 mW - 1 W80 Mhz - 200 MHz>10 nJ
2000nm Femtosecond Laser 1970±10 nm200 fs200 mW80 MHz>2.5 nJ


Model
Product

  Terahertz Quantum Cascade Lasers

  780nm Femtosecond Laser for Terahertz


  1560nm Femtosecond Laser for Terahertz

  TPX / HDPE Terahertz Plano Convex Lens

  Size choice : 1 to 2 inch (customizable)

  Focal length: 10mm to 240mm (customizable)

  Material: TPX / HDPE

  Off-Axis Parabolic Mirrors

  Size choice : 1 to 2 inch (customizable)

  Angle: 90 degree and 15/45/60 degree

  Focal length: 12.7mm to 254mm (customizable)

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL

  Through Hole: Yes

  Terahertz Hollow Retro Reflector

  Size choice : 25.4mm to 63.5mm(customizable)

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL


  Terahertz Metallic Mirrors

  Size choice : 25.4mm to 76.2mm(customizable)

  Thickness: 3 to 6mm(customizable)

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL


  Terahertz ZnTe Crystals

  Size choice : 10mm * 10mm * (0.1 to 2mm) (customizable)

  Terahertz Beam Expander Reflection

  Output diameter: 40mm

  Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL

  Terahertz Polarizers

  Size choice : 25.4mm and 50.8mm (customizable)


  THz High Resistivity Silicon Beam Splitter

  Size choice : 1 to 3 inch (customizable)

  Thickness 0.5 to 3mm


  Terahertz Beam Profiler (1-18 THz)




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Pulse Width (fs)


Search Reset
Compare Model Drawings & Specs Wavelength (nm) Output Power (mW) Pulse Width (fs) Single Pulse Energy (nJ) Wave Spectrum (nm) Availability Reference Price
(USD)
FSPL-780-M
780nm Low Power Femtosecond Laser 		4-6 Weeks Request for quote
FSPL-780-B
780nm Low Power Femtosecond Laser 		4-6 Weeks Request for quote

FSPL-780-B - Parameter

Type
Desktop

Wavelength (nm)

Warm-Up Time (min)
< 1

Operating Temperature (°C)
5 to 45

Output Power (mW)

Pulse Width (fs)

Power Instability

Repeat Frequency (MHz)

Single Pulse Energy (nJ)

Laser Output

Electrical Signal Interface
SMA

Wave Spectrum (nm)

Polarized State
Line Polarization

FSPL-780-M - Parameter

Type
Module

Wavelength (nm)

Warm-Up Time (min)
< 1

Operating Temperature (°C)
5 to 45

Output Power (mW)

Pulse Width (fs)

Power Instability

Repeat Frequency (MHz)

Single Pulse Energy (nJ)

Laser Output

Electrical Signal Interface
SMA

Wave Spectrum (nm)

Polarized State
Line Polarization

FSPL-780-B - Download

FSPL-780-M - Download
