1030nm Femtosecond Pulse Laser

1030 Low Power 1030 High Power Related Products Order Now!

STP1030 Femtosecond Fiber Laser

The optical path and circuit structure are highly integrated, compact and portable, especially suitable for industrial or OEM commercial system integration users.

STP1030 has a flexible range of performance parameters. The typical output wavelength is 1030 ± 5 nm, the repetition frequency range is 25 ± 1 MHz, and the pulse width is as low as 200fs.

Key Features

- Customizable wavelength

- Femtosecond level

- Linear polarization

- Diffraction-limited beam

Application

- Ultrafast Spectroscopy

- Two photon polymerization

- High speed optical sampling

- Speed of light measurement

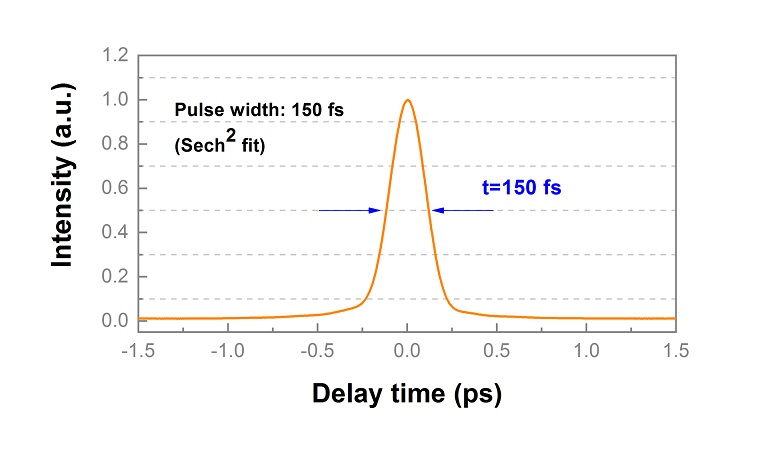

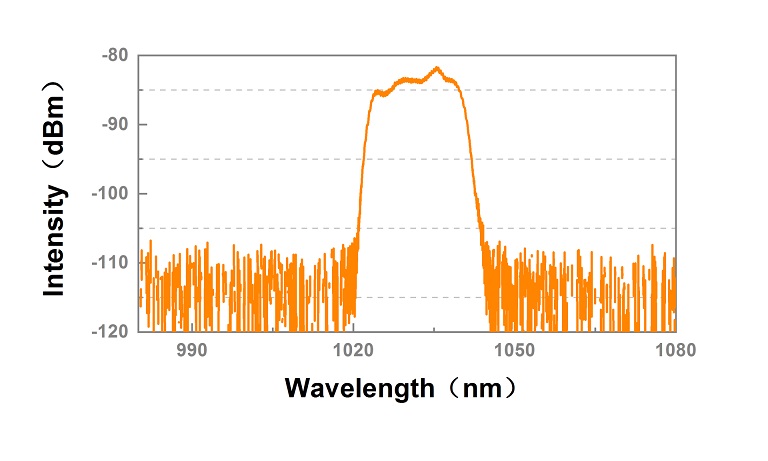

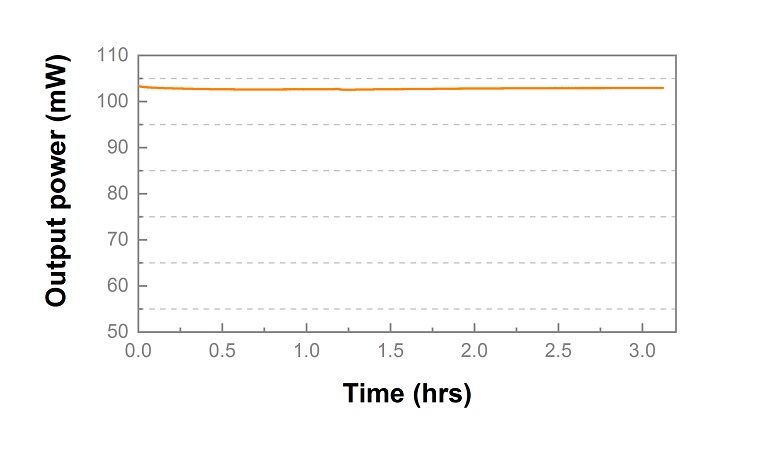

Output Spectrum	Autocorrelation Trace	Power Stability

Product Specifications and Brochures

Product Brochure Link:

Laser Parameters
Operating Wavelength	nm	1030 ± 5nm
Single Pulse Energy	nJ	>4
Pulse Width (FWHM)	fs	>200
Polarization Extinction Ratio	dB	>20
Repetition Rate	MHz	25 ± 1MHz
Beam Quality		TEM₀₀,M²<1.2
Average Power	mW	>60
Average Power Stability	% RMS	<0.5 % RMS (24h@25°C)
Output Fiber		With collimator, spot diameter <2mm
Electrical, Environmental and Mechanical Parameters
Supply Voltage	VDC	12
Operational Temperature Range	°C	15-35
Operational Humidity Range	%	20-80
Weight	kg	1.2
Dimensions	mm (LxWxH)	258 x 194 x 115
Cooling		Air-cooled

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

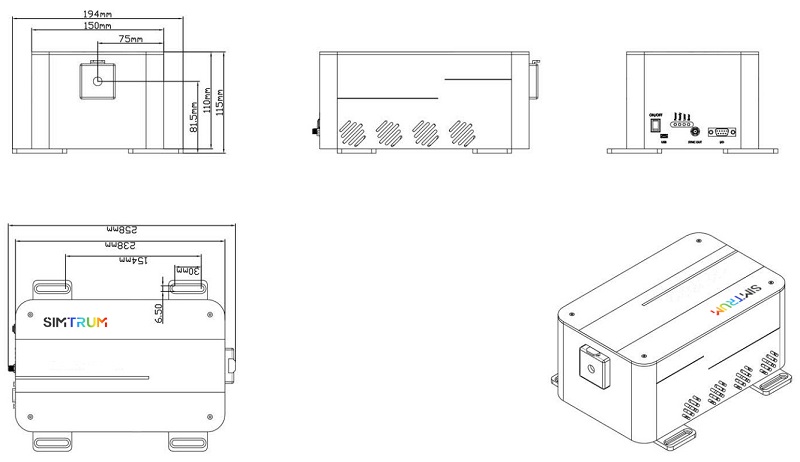

Drawings

1030 nm High Power Ultrafast Femtosecond Laser – STR1030HP

STR1030HP is our new generation of “wavelength versatile” high power fiber laser that features unparalleled output parameters. The laser adopts an innovative new cavity design that allows setting of the central wavelength within 1030-1060 nm. As with other SIMTRUM mode-locked products, the STR1030HP laser is produced using our proprietary ‘Smart-Lock’ processes to ensure long-term stability and reliability. It has an average output power exceeding 5-10 W and a pulse width under 150 fs. A frequency-doubling module can be used to enable W-level 532nm (Green) femtosecond output.

STR1030HP is well suited for applications such as OPO/OPA pumping, fluorescence microscopy, two-photon polymerization, seeding high-power amplifiers and other advanced photonic experiments.

Features

- Long-term stable operation

- High pulse energy

- Reliable mode-locking

- All-PM solution

Applications

- Harmonic imaging

- Two-photon polymerization

- Two-photon fluorescence imaging

- High precision laser ranging

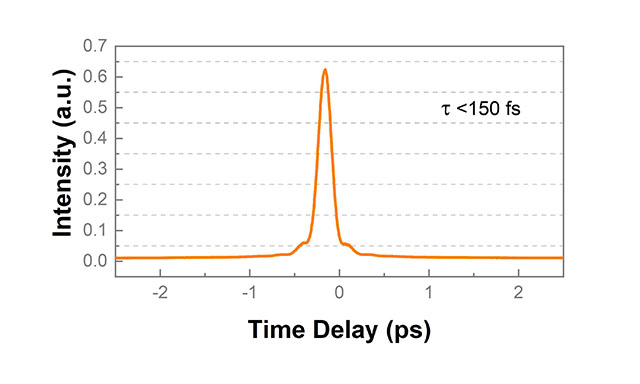

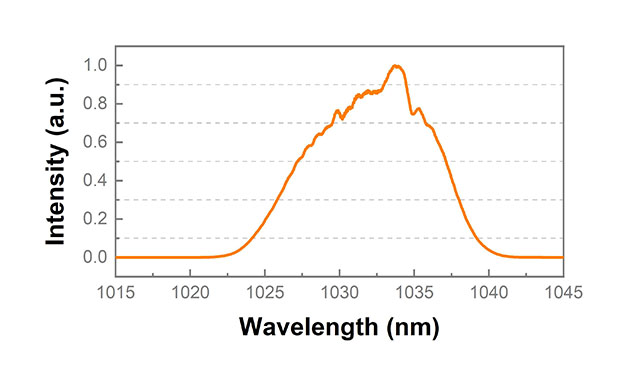

Autocorrelation Trace	Output Spectrum

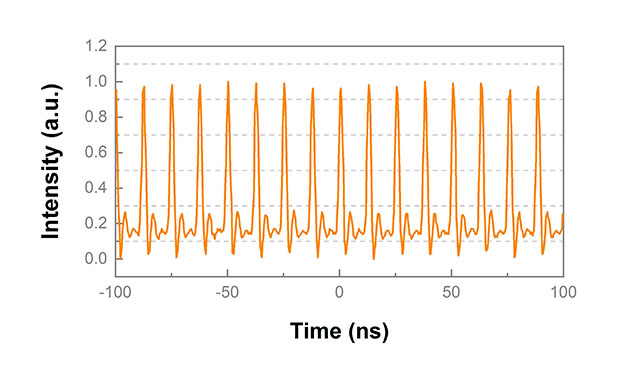

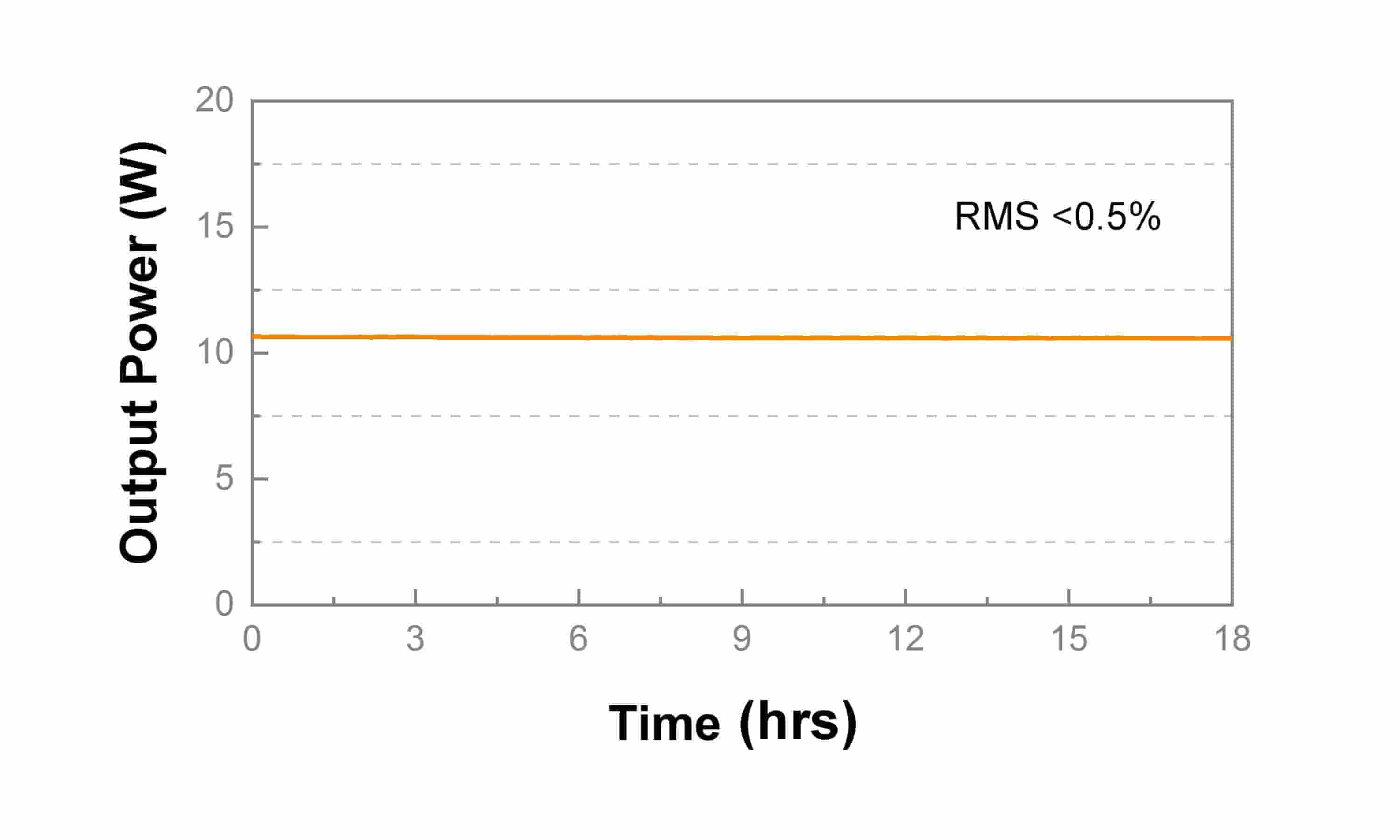

Pulse Energy	Power Stability

Product specifications and Brochures

Product Brochure Link:

Laser Parameters
Operating Wavelength	nm	1030 nm (1040/1050/1060 Optional)
Pulse Width (FWHM)	fs	< 150 fs, < 200 fs (for 8W)
Polarization Extinction Ratio	dB	> 20 dB
Repetition Rate	MHz	80 MHz
Average Power	W	5 - 10 W
Average Power Stability	% RMS	< 0.5 %RMS (12h@25°C)
Pulse Energy	nJ	> 80 nJ
Output Fiber		Spatially collimated output
Electrical, Environmental and Mechanical Parameters
Supply Voltage	VAC	100-240
Operational Temperature Range	°C	15-35
Operational Humidity Range	°C	20-80 (non-condensing)
Weight	kg	20
Dimensions	mm (LxWxH)	445 x 300 x 134 , 390 x 445 x 94
Cooling		Air Cooling

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

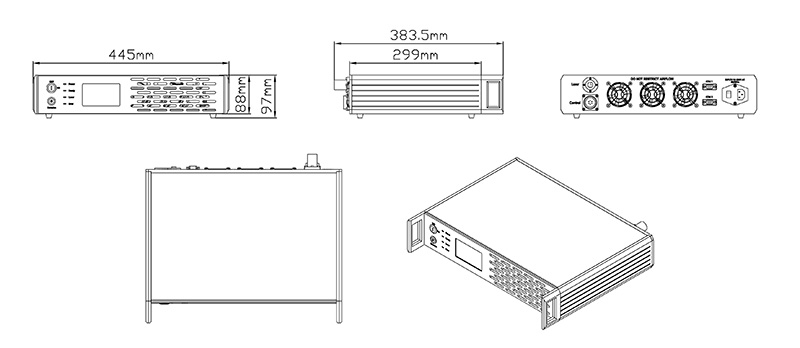

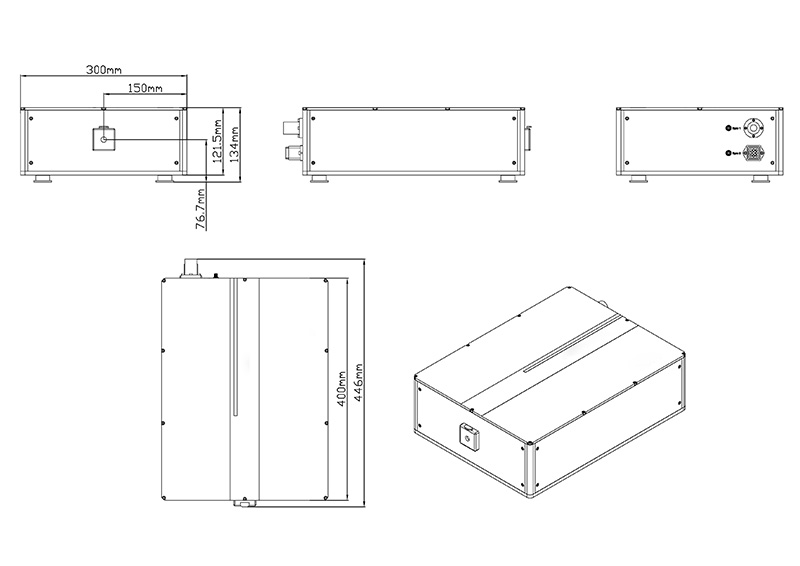

Machine Drawings

Product	Wavelength Range	Pulse Width	Average Power	Rep Rate	Pulse Energy
780nm Femtosecond Laser	780±10 nm	<100 fs	>30 mW	80 MHz	>0.4 nJ
780/1560nm Dual Output FS Laser	780/1560±10 nm	<100 fs	>100mW	80 Mhz	>1.25 nJ
1030nm Femtosecond Laser	1030±5 nm	>200 fs	>60 mW	25 MHz	>4 nJ
1040/50nm Femtosecond Laser	1040/50nm	<150 fs	5 - 10 W	80 Mhz	>80 nJ
1560nm Femtosecond Laser	1560±10 nm	50 - 500 fs	1 mW - 1 W	80 Mhz - 200 MHz	>10 nJ
2000nm Femtosecond Laser	1970±10 nm	200 fs	200 mW	80 MHz	>2.5 nJ

Model	Product
	Terahertz Quantum Cascade Lasers
	780nm Femtosecond Laser for Terahertz
	1560nm Femtosecond Laser for Terahertz
	TPX / HDPE Terahertz Plano Convex Lens Size choice : 1 to 2 inch (customizable) Focal length: 10mm to 240mm (customizable) Material: TPX / HDPE
	Off-Axis Parabolic Mirrors Size choice : 1 to 2 inch (customizable) Angle: 90 degree and 15/45/60 degree Focal length: 12.7mm to 254mm (customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL Through Hole: Yes
	Terahertz Hollow Retro Reflector Size choice : 25.4mm to 63.5mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Metallic Mirrors Size choice : 25.4mm to 76.2mm(customizable) Thickness: 3 to 6mm(customizable) Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz ZnTe Crystals Size choice : 10mm * 10mm * (0.1 to 2mm) (customizable)
	Terahertz Beam Expander Reflection Output diameter: 40mm Coating: Protected Gold, Protected Silver, Protected AL , UV Enhanced AL
	Terahertz Polarizers Size choice : 25.4mm and 50.8mm (customizable)
	THz High Resistivity Silicon Beam Splitter Size choice : 1 to 3 inch (customizable) Thickness 0.5 to 3mm
	Terahertz Beam Profiler (1-18 THz)

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		STP1030 STP1030 Femtosecond Fiber Laser, Operation wavelength 1030 ± 5nm, Single pulse energy >4nJ, Pulse width >200fs, Polarization extinction ratio >20dB, Average power stability <0.5 % RMS (24h@25°C)		4-6 Weeks	Request for quote
		STR1030HP 1030 nm High Power Ultrafast Femtosecond Laser, Operating wavelength 1030 nm (1040/1050/1060 Optional), Pulse width < 150 fs & < 200 fs (for 8W), Polarization extinction ratio >20dB, Average power 5-10W		4-6 Weeks	Request for quote
