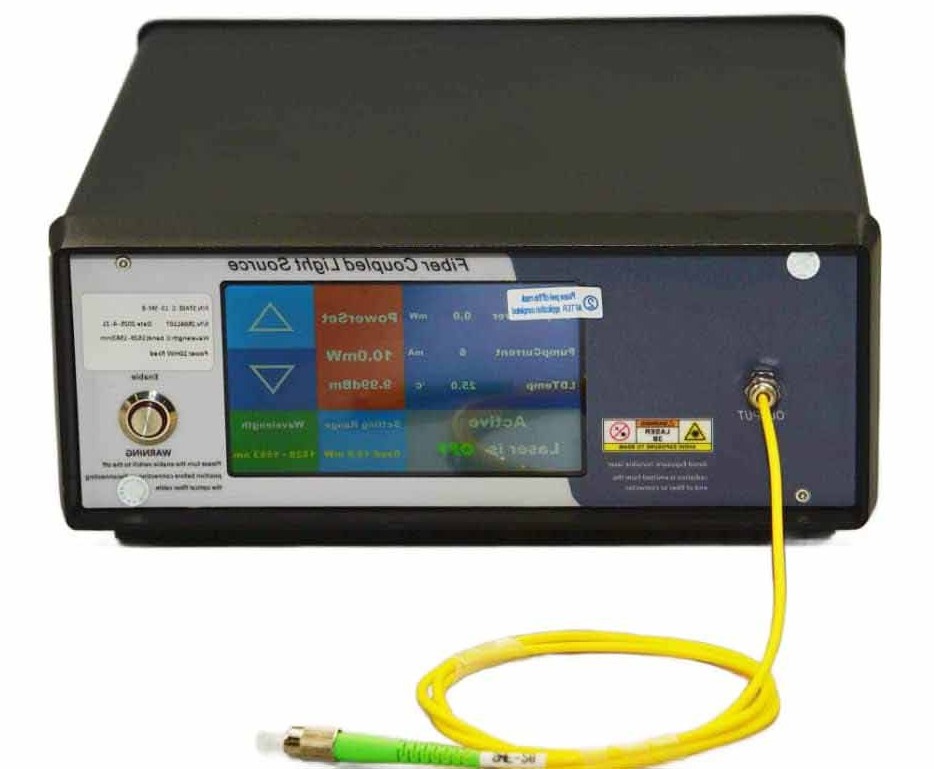

405nm-940nm CW Single Mode Fiber Laser | SIMTRUM Photonics Store

The 405nm - 940nm CW Single Mode Fiber Laser is engineered with a high-quality semiconductor chip and is backed by advanced driving and temperature control circuits to ensure consistently safe operation. It delivers a steady output power and a well-defined spectral range, complemented by superior beam quality in the TEM00 mode for precise applications.

Features

Single Mode Fiber Output
High Stability

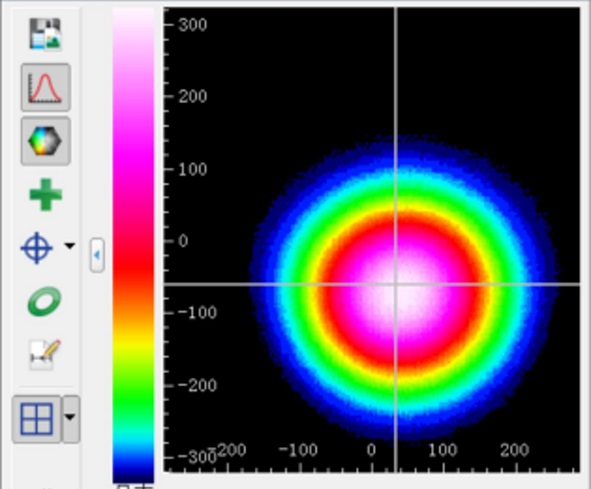

Excellent Beam Quality

Applications

Beam spot indicator
Optical Imaging
Device testing

Product specifications and Brochures

Product Brochure Link:

Optical Parameters	Unit	Typical Value	Remarks
Wavelength	nm	405~940	See the table below
Wavelength Accuracy	nm	±5 nm
Laser Mode	-	CW	Continuous light
Output Power	mW	5/30/50/80	Determine based on wavelength
Instability(15min.in)	dB	≤ ±0.02	Equivalent to ≤±0.5%
Instability(8hr)	dB	≤ ±0.05	Equivalent to ≤±1.2%
Optical Fiber	-	SM Fiber
Fiber connector	-	FC/APC

General Parameters	Desktop	Module
Control Function	Keystroke/RS232 serial Communication	RS232 serial Communication
Remote control Port	DB9 Female	DB9 Female
Power Supply	AC100~240V, <30W	DC5V3A or DC12V3A
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operation Temperature	-5~+35°C
Operation Humidity	0~70%

Ordering Information/ Product Code
Series	Wavelength(nm)	Output Power(mW)	Fiber	Packaging
STFL	405~940	5/10/20/100	SM = Single Mode Fiber	M - Module
			PM = PM Fiber	B - Desktop

Wavelength(nm)	405	450	488	520	638	660	670	685	785	808	830	850	905	940
Power(mW)	80	30	30	50	90	50	5	25	40	50	80	80	80	150
Mold field diameter (μm)	3.5	3.5	3.5	3.5	4.0	4.0	4.0	4.0	5.0	5.0	5.5	5.5	6.0	6.0
NA	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Fiber type	*	405-HP (Fiber core=2.1μm)			630-HP (Fiber core=3.5μm)				780-HP (Fiber core=4.4μm)

* Default for 450nm wavelength single-mode fibe model: Nufern S405XP (core diameter = 3μm); Polarization-maintaining fiber model: Nufern PMS405XP

Type	Wavelength	Wavelength Accuracy	Spectral Linewidth	Output Power
405-940 CW Single Mode Fiber Laser	405-940 nm	±5 nm	-	5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser	793/ 808/ 915/ 976 nm	±3 nm / ±10 nm	3nm / 6nm	5/10/25W
974/976 CW Single Mode Fiber Pump Laser	974/ 976 nm	±1 nm	-	200 - 1000mW
1030/1064 CW Single Mode Fiber Laser	1064 nm	±2 nm	< 0.1nm	100mW - 10W
1120nm CW Single Mode Fiber Laser	1120±1 nm	-	≤ 0.1nm	1/2/5W
1310 CW Single Mode Fiber Laser	1310 nm	±2 nm	≤ 3nm	10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser	1425/ 1435/ 1455/ 1465/ 1480 nm	±3 nm / ±10 nm	-	200 - 800mW
1550 CW Single Mode Fiber Laser	1550 nm	±0.5 nm	≤ 3nm	10mW - 20W
1570 CW Single Mode Fiber Laser	1570 nm ±1	±0.5 nm	< 0.1nm	10/20/50/100/200/400/500 mW 30/33/35/37/40 dBm
2000 High Power CW Fiber Laser	1900-2050 nm	-	< 1nm	> 30 W

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
STFL-405-80-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 405 nm, Wavelength Accuracy ±5 nm, Power 80 mw	4-6 Weeks	$1455.00
STFL-450-30-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 450 nm, Wavelength Accuracy ±5 nm, Power 30 mw, Fiber Core = 2.1 μm	4-6 Weeks	$1323.00
STFL-488-30-SM-B 405-940nm CW Single Mode Fiber Laser， Wavelength 488 nm, Wavelength Accuracy ±5 nm, Power 30 mw, Fiber Core = 2.1 μm	4-6 Weeks	$1376.00
STFL-520-50-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 520 nm, Wavelength Accuracy ±5 nm, Power 50 mw, Fiber Core = 2.1 μm	4-6 Weeks	$1349.00
STFL-638-90-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 638 nm, Wavelength Accuracy ±5 nm, Power 90 mw, Fiber Core=3.5 μm	4-6 Weeks	$1349.00
STFL-660-50-SM-B 405-940nm CW Single Mode Fiber Laser Wavelength 660 nm, Wavelength Accuracy ±5 nm, Power 50 mw, Fiber Core = 3.5 μm	4-6 Weeks	$1270.00
STFL-670-5-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 670 nm, Wavelength Accuracy ±5 nm, Power 5 mw, Fiber Core = 3.5 μm	4-6 Weeks	$1296.00
STFL-685-25-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 685 nm, Wavelength Accuracy ±5 nm, Power 25 mw, Fiber Core = 3.5 μm	4-6 Weeks	$1323.00
STFL-785-40-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 785 nm, Wavelength Accuracy ±5 nm, Power 40 mw, Fiber Core = 4.4 μm	4-6 Weeks	$1323.00
STFL-808-50-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 808 nm, Wavelength Accuracy ±5 nm, Power 50 mw, Fiber Core = 4.4 μm	4-6 Weeks	$1323.00
STFL-830-80-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 830 nm, Wavelength Accuracy ±5 nm, Power 80 mw, Fiber Core = 4.4 μm	4-6 Weeks	$1296.00
STFL-850-80-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 850 nm, Wavelength Accuracy ±5 nm, Power 80 mw, Fiber Core = 4.4 μm	4-6 Weeks	$1323.00
STFL-905-80-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 905 nm, Wavelength Accuracy ±5 nm, Power 80 mw, Fiber Core = 4.4 μm	4-6 Weeks	$1296.00
STFL-940-150-SM-B 405-940nm CW Single Mode Fiber Laser, Wavelength 940 nm, Wavelength Accuracy ±5 nm, Power 150 mw, Fiber Core = 4.4 μm	4-6 Weeks	$1323.00
