1030/1064nm CW Single Mode Fiber Laser | SIMTRUM Photonics

Products / Lasers/Light /Fiber Lasers /CW Fiber Laser System (405nm - 2um) /1030/1064nm CW Single Mode Fiber Laser /
1030/1064nm CW Single Mode Fiber Laser
1030/1064nm (100-500mW) 1030/1064nm (1-10W） Related Products Order Now!

SIMTRUM's 1030/1064nm CW Single Mode Fiber Laser STFL series deliver output power ranging from 100 to 500mW. These lasers feature a robust butterfly-shaped semiconductor chip, complemented by advanced drive and precise temperature control circuits for reliable operation. Ideal as a seed laser for high-power applications, this laser also excels in the production testing of optical devices. Available in both desktop and modular formats, they are designed to meet a variety of operational needs efficiently.



 SIMTRUM_1030/1064nm_CW_SM_Fiber_Laser_(100-500mW)

Features

  • Hight output power
  • Excellent stability
  • SM/PM fiber output

Applications

  • Seed laser
  • Fiber laser
  • Nonlinear optics research

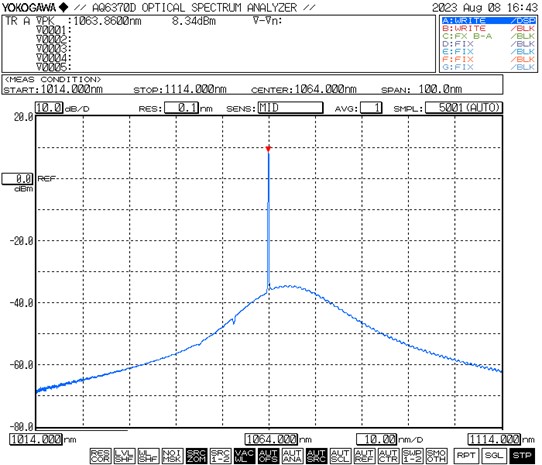

SIMTRUM_STMPHL_Optical_Spectrum



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF



Optical Parameters Unit Typical Value Remarks
Wavelength nm 1064 1030nm is also available
Wavelength Accuracy nm ±2
Spectral Linewidth nm <0.1
Laser Operation Mode - CW Continuous light
Output Power mW 100/200/300/400/500
Accuracy Working - 10~100%
Instability(15min.in) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8 hr) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Optical Fiber - Hi 1060 PM980
Fiber connector - FC/APC FC/APC
(slow axis alignment)



General Parameters Desktop Module
Control Function Keystroke / RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×320(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/Product Code
Series Wavelength (nm) Output Power (mW) Fiber Packaging
STFL 1030/1064 100/200/300/400/500 SM = HI-1060 M - Module
PM = PM980 B - Desktop




SIMTRUM's 1030/1064nm CW Single Mode Fiber Laser STFHL series offer a powerful output range of 1 to10W. These lasers feature a robust butterfly-shaped semiconductor chip, enhanced with expertly designed drive and temperature control circuits for safe and stable performance. Ideal as a seed laser for high-power applications, they are also perfect for production testing of optical devices. Available in both desktop and modular formats, these lasers are tailored to meet diverse operational needs effectively.

 SIMTRUM_1030/1064nm_CW_SM_Fiber_Laser_(1-10W)

Features

  • Hight output power
  • Excellent stability
  • SM/PM fiber output

Applications

  • Seed laser
  • Fiber laser
  • Nonlinear optics research

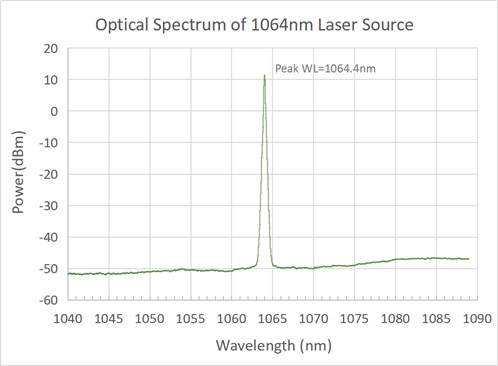

SIMTRUM_STFHL_Optical_Spectrum



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF





Optical Parameters Unit Typical Value Remarks
Wavelength nm 1064 1030nm is also available
Wavelength Accuracy nm ±2
Spectral Linewidth nm <0.1
Laser Operation Mode - CW Continuous light
Output Power W 1/2/5/10
Accuracy Working - 10~100%
Instability(15min.in) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8 hr) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Optical Fiber - Hi 1060 PM980
Fiber connector - FC/APC FC/APC
(slow axis alignment)





General Parameters Desktop Module
Control Function Keystroke / RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply AC100~240V, <30W DC12V, <60W
Dimensions 260(W)×320(D)×120(H)mm 139(W)×235(D)×70(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/Product Code
Series Wavelength (nm) Output Power (W) Fiber Packaging
STFLH 1030/1064 1/2/5/10 SM = HI-1060 M - Module
PM = PM980 B - Desktop








Type Wavelength Wavelength Accuracy Spectral Linewidth Output Power
405-940 CW Single Mode Fiber Laser 405-940 nm ±5 nm - 5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser 793/ 808/ 915/ 976 nm ±3 nm / ±10 nm 3nm / 6nm 5/10/25W
974/976 CW Single Mode Fiber Pump Laser 974/ 976 nm ±1 nm - 200 - 1000mW
1030/1064 CW Single Mode Fiber Laser 1064 nm ±2 nm < 0.1nm 100mW - 10W
1120nm CW Single Mode Fiber Laser 1120±1 nm -  ≤ 0.1nm 1/2/5W
1310 CW Single Mode Fiber Laser 1310 nm ±2 nm ≤ 3nm 10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser 1425/ 1435/ 1455/ 1465/ 1480 nm ±3 nm / ±10 nm - 200 - 800mW
1550 CW Single Mode Fiber Laser 1550 nm ±0.5 nm ≤ 3nm 10mW - 20W
1570 CW Single Mode Fiber Laser 1570 nm ±1 ±0.5 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
2000 High Power CW Fiber Laser 1900-2050 nm - < 1nm  > 30 W




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STFL-1064-100-SM-B
1030/1064nm CW Single Mode Fiber Laser(100-500mW), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 100mW, HI-1060 		4-6 Weeks $3280.00
STFL-1064-200-SM-B
1030/1064nm CW Single Mode Fiber Laser(100-500mW), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 200 mW, HI-1060 		4-6 Weeks $3942.00
STFL-1064-300-SM-B
1030/1064nm CW Single Mode Fiber Laser(100-500mW), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 300 mW, HI-1060 		4-6 Weeks $4339.00
STFL-1064-400-SM-B
1030/1064nm CW Single Mode Fiber Laser(100-500mW), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 400 mW, HI-1060 		4-6 Weeks $4603.00
STFL-1064-500-SM-B
1030/1064nm CW Single Mode Fiber Laser(100-500mW), Wavelength 1030 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 400 mW, HI-1060 		4-6 Weeks $4868.00
STFL-1064-100-PM-B
1030/1064nm CW Single Mode Fiber Laser(100-500mW), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 100mW, PM980 		4-6 Weeks $3995.00
STFL-1064-200-PM-B
1030/1064nm CW Single Mode Fiber Laser(100-500mW), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 200 mW, PM980 		4-6 Weeks $4656.00
STFL-1064-300-PM-B
1030/1064nm CW Single Mode Fiber Laser(100-500mW), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 300 mW, PM980 		4-6 Weeks $5053.00
STFL-1064-400-PM-B
1030/1064nm CW Single Mode Fiber Laser(100-500mW), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 400 mW, PM980 		4-6 Weeks $5317.00
STFL-1064-500-PM-B
1030/1064nm CW Single Mode Fiber Laser(100-500mW), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 400 mW, PM980 		4-6 Weeks $6032.00
STFLH-1064-30-SM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 1W, HI-1060 		4-6 Weeks $4444.00
STFLH-1064-33-SM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 2 W, HI-1060 		4-6 Weeks $5291.00
STFLH-1064-37-SM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 5 W, HI-1060 		4-6 Weeks $5714.00
STFLH-1064-40-SM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 10 W, HI-1060 		4-6 Weeks $6138.00
STFLH-1064-43-SM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 20 W, HI-1060 		4-6 Weeks $9259.00
STFLH-1064-45-SM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 30 W, HI-1060 		4-6 Weeks $11905.00
STFLH-1064-30-PM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 1W, PM980 		4-6 Weeks $7619.00
STFLH-1064-33-PM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 2 W, PM980 		4-6 Weeks $8254.00
STFLH-1064-37-PM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 5 W, PM980 		4-6 Weeks $9524.00
STFLH-1064-40-PM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 10 W, PM980 		4-6 Weeks $10370.00
STFLH-1064-43-PM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 20 W, PM980 		4-6 Weeks $13095.00
STFLH-1064-45-PM-B
1030/1064nm CW Single Mode Fiber Laser (1-10W), Wavelength 1064 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth <0.1 nm, Output Power 30 W, PM980 		4-6 Weeks $14286.00
