High Power Fiber-Coupled LED (255 - 980nm)

简体中文 English

High Power Fiber-Coupled LED (255 - 980nm) | SIMTRUM Photonics Store

Overview Specifications and Model Guide Order Now!

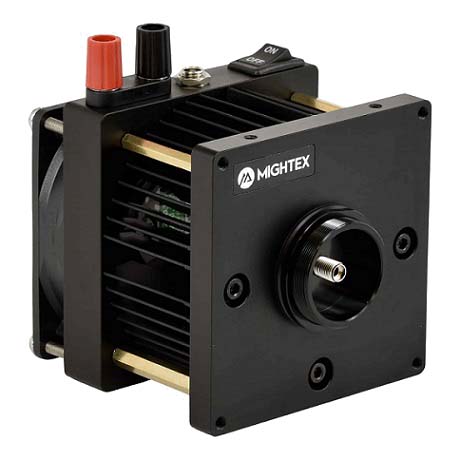

FCS-series fiber-coupled LED light sources employ the latest high-power LED technologies and a proprietary coupling optics to achieve maximum optical output power. Optical output is coupled into a fiber through a standard SMA fiber adaptor port (SMA fiber patch cords are sold separately). FCS series also features a locking electrical connector for secured connection. FCS series are designed as a universal light source for general lab use and OEM applications. The one-piece machined housing features multiple mounting holes. All LED drivers such as the SLC series or other LED drivers and current sources can be used to drive the light sources.

To drive a FCS LED source, one can use any one of the wide range of LED controllers.

· Software controlled LED controllers; or

· Manual LED drivers

IMPORTANT: For deep UV LED sources with an operating current rating of <50mA, it is strongly recommended that the following LED controllers be used to drive the LEDs:

· Software controlled LED controllers, Model# SLC-FA04-US; or

· Manual LED driver, Model# SLA-0100-2

Features:

· High-power UV/VIS/NIR/white fiber-coupled LEDs

· Interchangeable fiber with SMA connector

· No moving parts in optical path

· Multiple mounting features for lab and OEM applications

· Optical LED connectors

· Compact, machined metal housing with integrated heat sink

· Locking electrical connector

Applications:

· Microscopy

· Fluorescence

· Sensors

· Semiconductor equipment

· Testing instruments

· Medical instruments

· Machine vision

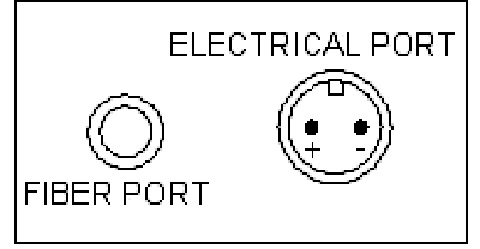

Pin diagram (Type A)

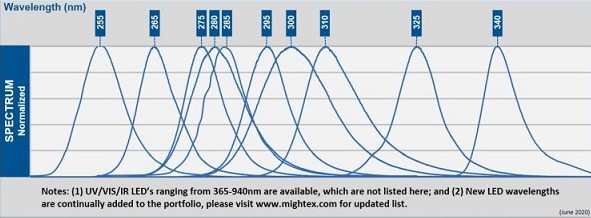

LED Wavelength	UV LED Wavelength

Product Brochure: High Power Fiber-Coupled LED

Type-A FCS (passive cooling, no cooling fan)

Wavelength Code	Description	Wavelength (nm)	Iop(mA)	Vop(V)	Typical Radiant Flux (mW) 1	Typical Radiant Flux (mW)
Wavelength Code	Description	Wavelength (nm)	Iop(mA)	Vop(V)	(with a 400µm 0.22NA fiber)	(with a 400µm 0.39NA fiber)
0	Cool White	5,500K	1000	3.9	3.2	6.4
1	Warm White	4,000K	1000	3.9	3.2	6.4
2	Glacier White	6,500K	1000	3.6	3.2	6.4
3	Warm White	3,000K	1000	2.8	2.8	5.6
255	Deep UV	255	30	6.5	45µW	80µW
0265-001	Deep UV	265	350	6.3	400µW	N/A
0275-001	Deep UV	275	600	6	700µW	N/A
0280-001	Deep UV	280	500	5.8	400µW	N/A
0295-001	Deep UV	295	600	5.8	500µW	N/A
0310-001	Deep UV	310	350	5.8	360µW	N/A
0325-001	Deep UV	325	500	5.4	220µW	N/A
0340-001	Deep UV	340	500	4.3	0.6	1.1
0365-001	UV 365nm	365	1000	3.65	4.3	8.6
380	UV 380nm	380	1000	3.2	2.8	5.6
0385-001	UV 385nm	385	1000	3.65	5.8	11.6
390	UV 390nm	390	1000	3.1	5.8	11.6
395	UV 395nm	395	1000	3.1	6.2	12.4
0400-002	UV 400nm, 3W	400	1000	3.1	6.1	12.2
405	UV 405nm	405	1000	3	7.5	15
410	410nm	410	1000	3	7.3	14.6
415	415nm	415	1000	3	7.2	14.4
430	430nm	430	500	3.8	2.9	5.8
455	455nm	455	1000	3	18	36
470	470nm	470	1000	3.9	7	14
471	471nm	471	350	3	2.1	4.2
490	490nm	490	350	3.5	3.2	6.4
505	505nm	505	1000	3.9	3.5	7
530	530nm	530	1000	2.85	7	14
560	560nm broadband	560	700	2.9	5.5	11
590	590nm	590	1000	3.2	1.2	3.8
617	617nm	617	1000	3	6.5	13
625	625nm	625	1000	3	6.5	13
656	656nm	656	1000	3.1	6.5	13
680	680nm	680	600	2.7	1.4	2.8
700	700nm	700	500	2.1	0.6	1.2
720	720nm	720	600	2.2	0.9	1.8
740	740nm	740	1000	2.9	3.6	7.2
780	NIR 780nm	780	800	2.5	2.2	4.4
810	NIR 810nm	810	800	2.2	1.5	3
850	NIR 850nm	850	1000	2.1	4	8
870	NIR 870nm	870	700	1.9	1.4	2.8
910	NIR 910nm	910	1000	1.9	1.5	3
940	NIR 940nm	940	1000	2.4	4	8
980	NIR 980nm	980	500	1.4	0.4	0.8

Type-B FCS (with a cooling fan)

Wavelength Code	Description	Peak Wavelength(nm)	Iop(mA)	Vop(V)	Typical Radiant Flux (mW) 1	Typical Radiant Flux (mW)
Wavelength Code	Description	Peak Wavelength(nm)	Iop(mA)	Vop(V)	(with a 400µm 0.22NA fiber)	(with a 400µm 0.39NA fiber)
0470-100	Blue	470	3000	4.6	11	21
0530-100	Green	530	2400	4.9	8	15
0540-100	Broadband Green	540	3000	4.6	10	20
0625-100	Red	625	2400	2.9	9	22

Type-H Super High-Power FCS (with a cooling fan)

Wavelength Code	Description	Peak Wavelength(nm)	Iop(A)	Vop(V)	Typical Radiant Flux (mW) 1	Typical Radiant Flux (mW)
Wavelength Code	Description	Peak Wavelength(nm)	Iop(A)	Vop(V)	(with a 1000µm 0.22NA fiber)	(with a 1000µm 0.39NA fiber)
0365-201	UV	365	18	4.2	120	360
0405-201	UV	405	18	3.6	70	220
0470-200	Blue	470	13	3.8	90	280
0525-200	Green	525	13	4.6	50	160
0560-200	560 broadband	560	18	3.8	90	280
0625-200	Red	625	13	2.9	40	130
0730-200	NIR	730	18	5.9	90	170
6500-200	Glacier White,30W	6500K	9	3.7	60	180
6500-201	Glacier White,65W	6500K	18	3.7	100	280

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
FCS-0000-A High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0001-A High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0002-A High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0003-A High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-265-405-A High Power Fiber-Coupled LED(UV, VIS and NIR)	In Stock	Request for quote
FCS-410-740-A High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-780-980-A High Power Fiber-Coupled LED(UV, VIS and NIR)	In Stock	Request for quote
FCS-0470-B High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0530-B High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0540-B High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0360-H High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0405-H High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0470-H High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0525-H High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0560-H High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0625-H High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-0730-H High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-6500-30-H High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote
FCS-6500-65-H High Power Fiber-Coupled LED(UV, VIS and NIR)	4-6 Weeks	Request for quote

Universal 12- and 16- Channel with 5mA Current Resolution - Parameter

Universal 12- and 16- Channel with 1mA Current Resolution - Parameter

High-Current Universal 2-Channel LED Controllers - Parameter

High Precision Universal 4-Channel LED Controllers - Parameter

Universal 4-Channel LED Controllers - Parameter

Compact Universal 1- and 2- Channel - Parameter

Universal Analog Controller SLB-Series - Parameter

Universal Analog Controller SLA-Series - Parameter
