STPM-K75DC

Products / Optics /Vision Lens /Zoom Lens /4K Big FOV Zoom Lens / STPM-K75DC /

STPM-K75DC，Optical Magnification Range 0.68 X~5.0 X，Working Distance 80 mm，Zoom Control Manual Zoom，Sensor Size 1"

MODEL:STPM-K75DC

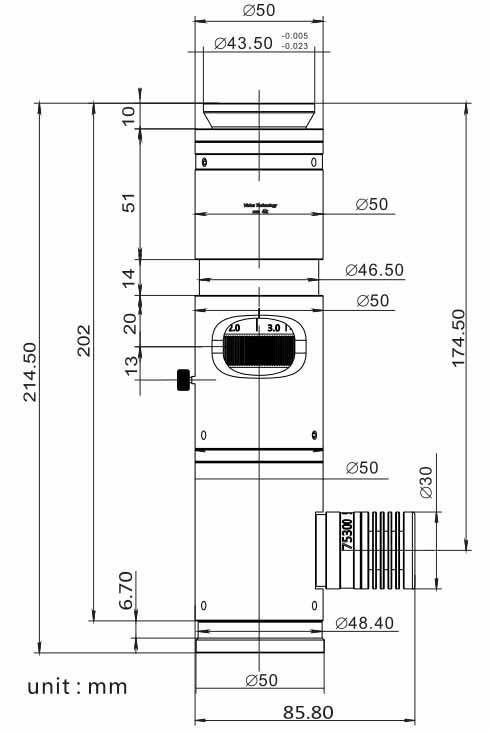

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPM-K75MC5
STPM-K75MC5，Optical Magnification Range 0.68 X~5.0 X，Working Distance 80 mm，Zoom Control Motorized Zoom，Sensor Size 1" 		4-6 Weeks Request for quote
STPM-K75M
STPM-K75M，Optical Magnification Range 0.68 X~5.0 X，Working Distance 80 mm，Zoom Control Motorized Zoom，Sensor Size 1" 		4-6 Weeks Request for quote
STPM-K75D
STPM-K75D，Optical Magnification Range 0.68 X~5.0 X，Working Distance 80 mm，Zoom Control Manual Zoom，Sensor Size 1" 		4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Product specifications and Brochures

Product Brochure Link:



Magnitcation Range 0.68X-5.0X
Working Distance (mm) 80
Magnification 0.68X 1.0X 2.0X 3.0X 4.0X 5.0X
DOF (mm) 1.78 0.89 0.25 0.12 0.08 0.07
N.A. 0.033 0.045 0.08 0.11 0.12 0.12
FNo. 10.3 11 12.4 13.5 16.5 20.6
Resolution (um) 10.17 7.46 4.19 3.05 2.8 2.8
TV Distortion < 0.02%
FOV (mm) 1" 23.53x18.82x14.12 16.0x12.8x9.6 8.0x6.4x4.8 5.33x4.27x3.2 4.0x3.2x2.4 3.2x2.56x1.92
2/3" 16.18x12.94x9.71 11.0x8.8x6.6 5.5x4.4x3 3.67x2.93x2.2 2.75x2.2x1.65 2.2x1.76x1.32
1/2" 11.76x9.41x7.06 8.0x 6.4x4.8 4.0x3.2x2.4 2.67x2.13x1.6 2.0x1.6x1.2 1.6x1.28 x0.96
1/3" 8.82x7.06x5.29 6.0x4.8x3.6 3.0x2.4x1.8 2.0x1.6x1.2 1.5x1.2x0.9 1.2x0.96x0.72
Max. Sensor Size 1"
Total Length (mm) 328
Zooming Method Manual/Motorized
Mount C-Mount



4K Zoom Lens Selection Diagram

STPM-K75MC5 - Parameter

STPM-K75M - Parameter

STPM-K75DC - Parameter

STPM-K75D - Parameter

STPM-K75MC5 - Download

STPM-K75M - Download

STPM-K75DC - Download

STPM-K75D - Download
