STPM-50UC20M-H
STPM-50UC20M-H,Sensor Size 1.1"(17.6mm),Focal Range 50 mm,Wavelength 420-1000nm，lris Range F2.8-F22,Back Focal Length (in Air) 21.3 mm

4-6 Weeks

Request for quote

STPM-35UC20M-H
STPM-35UC20M-H,Sensor Size 1.1"(17.6mm),Focal Range 35 mm,Wavelength 420-1000nm，lris Range F2.8-F22,Back Focal Length (in Air) 12.9 mm

4-6 Weeks

Request for quote

STPM-25UC20M-H
STPM-25UC20M-H,Sensor Size 1.1"(17.6mm),Focal Range 25 mm,Wavelength 420-1000nm，lris Range F2.8-F22,Back Focal Length (in Air) 12.6 mm

4-6 Weeks

Request for quote

STPM-16UC20M-H
STPM-16UC20M-H,Sensor Size 1.1"(17.6mm),Focal Range 16 mm,Wavelength 420-1000nm，lris Range F2.8-F22,Back Focal Length (in Air) 11.2 mm

4-6 Weeks

Request for quote

STPM-12UC20M-H
STPM-12UC20M-H,Sensor Size 1.1"(17.6mm),Focal Range 12 mm,Wavelength 420-1000nm，lris Range F2.8-F22,Back Focal Length (in Air) 10.6mm

4-6 Weeks

Request for quote

STPM-50UC20M
STPM-50UC20M,Sensor Size 1.1",Focal Range 50 mm,lris Range F2.8,Resolution 20MP

4-6 Weeks

Request for quote

STPM-25UC20M
STPM-25UC20M,Sensor Size 1.1",Focal Range 25 mm,lris Range F2.8,Resolution 20MP

4-6 Weeks

Request for quote

STPM-16UC20M
STPM-16UC20M,Sensor Size 1.1",Focal Range 16 mm,lris Range F2.8,Resolution 20MP

4-6 Weeks

Request for quote

Parameter		STPM-12UC20M	STPM-16UC20M	STPM-25UC20M	STPM-50UC20M
Sensor Size		1.1”	1.1”	1.1”	1.1”
Focal Range		12mm	16mm	25mm	50mm
lris Range		F2.8~16	F2.8	F2.8	F2.8
Resolution		20MP	20MP	20MP	20MP
TV Distortion		-0.22% @0.4m	-0.73%@y=8.8mm	-0.59%@y=8.8mm	-0.06%@y=8.8mm
Focus Range		0.1m~∞
Optical Back Focal Length (in Air)		-	11.2mm	12.6mm	21.3mm
FOV(HxV)	1.1”	61.22°x46.86°	58.6°x46.8°x35.2°	39.4°x31.5°x23.6°	19.9°x15.9°x11.9°
	1"	60.05°x40.57°
	1/1.2"	49.85°x32.66°
Operation Method	FoCus	-	Manual	Manual	Manual
Operation Method	lris	-	Manual	Manual	Manual
lris Type		Manual
Mount		C-Mount	C-Mount	C-Mount	C-Mount
Filter Thread		M43.5,P=0.5mm	-	-	-
Size		Φ47x57mm	-	-	-
Filter Size			M34x0.5	M30.5x0.5	M37x0.5
Weight		172±2g	-	-	-
Work Temperature		-10°C~+50°C	-20°C~+60°C	-20°C~+60°C	-20°C~+60°C
Weight			0.025kg	0.015kg	0.034kg

Sign In

Register

Retrieve password

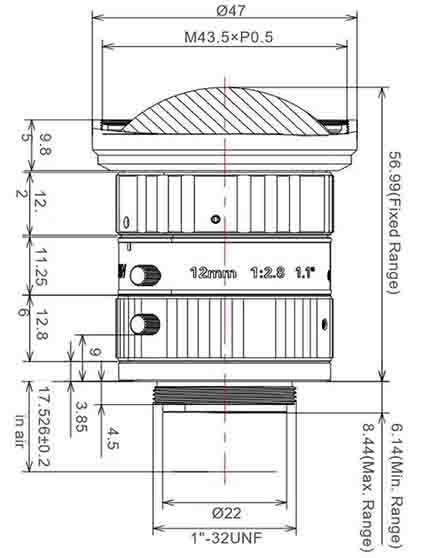

STPM-12UC20M
