MWIR Thermal Imaging Camera For Flame Temperature

Overview Specifications Related Products Order Now!

SIMTURM'S Special WMIR Thermography Camera For Flame Temperature adopts uncooled infrared thermal radiometers, high-performance infrared lenses and signal processing circuits, and embeds advanced image processing algorithms.

It features a compact size, low power consumption, rapid startup, excellent imaging quality and precise temperature measurement. The component selection of this device fully considers the requirements of high and low temperature working performance, ensuring that the entire machine has excellent environmental adaptability.

Features

Measurement wavelength is 4.5μm
Specifically designed for flame temperature measurement imaging
High frame rate design, with a measurement frequency up to 50Hz
Maximum temperature measurement range up to 1600℃/2000℃
Output full-stream lossless 16-bit temperature data
Supports secondary development and system integration

Applications

Steel metallurgy
Glass manufacturing
Combustion research
Temperature monitoring at fire scenes
Performance evaluation of fire-fighting equipment

Interface

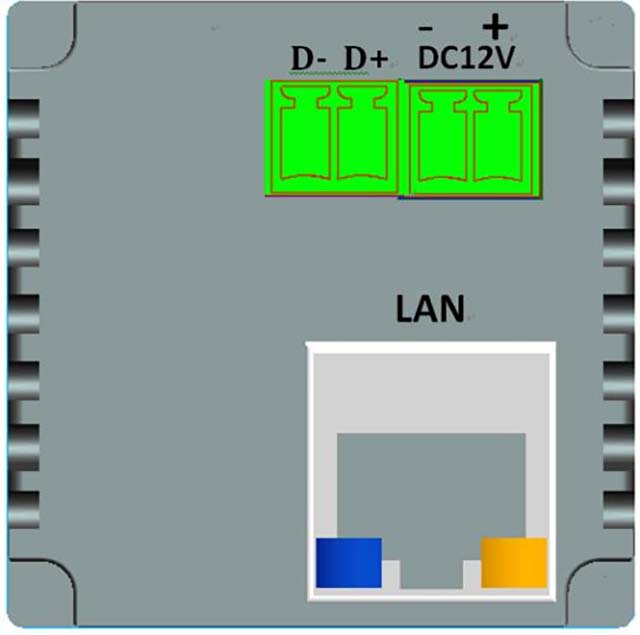

The camera has three external interfaces, namely, the 2-pin SH interface (RS485), the 2-pin SH interface (power supply), and the RJ45 interface. The interface diagram is shown in the following figure.

2-pin SH connector (power supply) provides DC12V power interface;
The 2-pin SH connector (RS485) provides RS485 communication interface;
RJ45 connector provides one network digital video output.

The RJ45 connector is the standard definition, and the signal definition of the 2PIN SH connector (power supply) is as follows:

Pin	Signal Name	Function	Description
1	DC12V +	Power	5V~12V Input
2	DC12V -	Power	Digital Ground

The signal definition of the 2-pin SH connector (RS485) is as follows:

Pin	Signal Name	Function	Description
1	D+	Communication	RS485 D+
2	D-	Communication	RS485 D-

General Specifications

Model	HJ01 - WMIR - 4.5	HJ01 - WMIR - 3.9
Detector Type	Medium - wave uncooled focal plane microbolometer
Pixel Number	640×512
Wavelength Range	4.5μm	3.9μm
Thermal Sensitivity (NETD)	≤1k@600°C
Frame Rate	≤50Hz (configurable)
Image Processing and Display
Color Palettes	Multiple color palettes, including white hot, black hot, iron red, rainbow, etc.
Contrast and Brightness	Automatic / Manual
Data Format	16 - Bit temperature data (full bitrate)
Temperature Measurement Analysis
Temperature Measurement Accuracy	±2°C or ±2%
Temperature Measurement Range	Range 1: 600°C - 1600°C;	600°C - 1600°C
	Range 2: 1000°C - 2000°C
Lens
Focal Length	Wide - angle, conventional, long - focus multiple lenses available	Multiple focal length lenses available
Focusing Method	Manual / Motorized
Electrical Characteristics
Data Interface	RJ45
Network Standard	Gigabit Ethernet
Protocol Support	UDP
Input Power Supply Voltage	DC12V
Communication Interface	UART@RS485	UART@RS485 (for pan - tilt - zoom and camera control)
Steady - State Power Consumption	<4W
Reverse Polarity Protection	Yes
Over and under voltage protection	Yes

Other Specification

Model	HJ01-WMIR-4.5	HJ01-WMIR-3.9
Environmental Parameters
Operating Temperature	-20°C~60°C
Storage Temperature	-40°C~70°C
Temperature Shock Resistance	5°C/min（-40°C~60°C）
Vibration Resistance	4.3g, 2 hours per axis in x, y, z directions
Impact Resistance	Acceleration 30g, half - sine wave, pulse width 6ms, mounting position
Humidity	≤95% (non - condensing)
Physical Characteristics
Dimensions	40mm×40mm×65mm (excluding lens)
Weight	<100g
Mounting Holes	Two M3×4 on each side
Client - side
Real - time Temperature Display	Supported
Multiple Temperature Measurement Objects	Supported
Alarm Function	Supported
Image / Photo / Playback	Supported
SDK Development Kit	Supported
Operating Environment	Support win32, x64, Linux (x86/ARM)
Data Acquisition	Obtain 16 - Bit temperature data (full code stream) through callback function

Model	Pixels	Spectral Range	Temperature Range
SWIR Thermal Imaging Camera	384288/512384/640480/768576/1280*1024	0.8~2μm	600-3000℃
MWIR Thermal Imaging Camera	640*480	3~5μm/4.8~5.2μm	200-700℃
MWIR Thermal Imaging Camera For Flame Temperature	640480/640512	3.9μm/4.5μm	600-1600℃/1000-2000℃
Cooling MWIR Thermal Imaging Camera	640*512	3.7~4.8μm/1.5~5.2μm	-10~1200℃（extended to 2000℃）
LWIR Thermal Imaging Camera	384288/640480/640*512	8~14μm	-20~650 ℃ High-temperature range：350~1600℃
Cooling LWIR Thermal Imaging Camera	640*512	7.7~9.5μm	-10~1200℃（extended to 2000℃）
Macro Infrared Thermal Imaging Camera	384288/640512	8~14μm	Normal temperature range：-20~200℃ Medium temperature range：150~650℃

Sale Guide

If you need our technical team for guidance on product selection or customization,please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
What is your application scenario?			Power inspection, monitoring the operating status of high-temperature equipment, fire early warning, etc
What is the required spectral response range?			SW/MW/LWIR
What is the temperature range you need to measure?		℃	eg: -20~500℃
What is the required resolution?			384288/640480/640512/12801024, etc. For specific resolutions, please refer to the detail page
What is the required thermal sensitivity (NETD) ?		mK	NETD represents the instrument's ability to detect minute temperature differences. A NETD<50mK indicates that a temperature difference of 0.05℃ can be identified, and it is suitable for the detection of precision electronic instruments
What are the requirements for the focusing function?			Manual or automatic, manual focusing is suitable for fixed distance measurement in simple scenes. Autofocus is suitable for rapid scanning in complex scenes
What is the motion state of the measured object?			Whether stationary or moving, the moving target requires a high frame rate to avoid image trailing
Lens options?			Telephoto, macro and other lenses are available for selection
Selection suggestions			If high-temperature targets need to be measured or high precision is required, it is recommended to give priority to shortwave measurement. For medium- temperature targets or those with anti-interference requirements, medium-wave should be selected.If it is a normal-temperature target and all-weather detection is required, long-wave detection should be given priority.
What's the difference between an infrared pyrometer and an infrared thermal imager?			Infrared pyrometers can only measure the temperature at a single point. By detecting the infrared radiation energy at a certain point on the surface of an object, it is converted into a temperature value through an algorithm, and the measurement result is directly presented in digital form.
			Infrared thermal imagers can measure surface temperature and generate a thermal map of the temperature distribution on the surface of the object being measured. They scan the infrared radiation energy at each point on the object to form a two-dimensional thermal image, with each pixel corresponding to a temperature value. The measurement results are presented.as pseudo-color or grayscale images and superimposed with temperature data.
What's the difference between an infrared thermal imager and an infrared camera?			Infrared thermal imagers receive the infrared radiation emitted by objects through infrared detectors and generate thermal images of the temperature distribution on the surface of the reflected objects, which can be displayed intuitively.The temperature distribution on the surface of an object cannot present the detailed features of the object; only the thermal profile of the object can be seen.
			Infrared cameras are divided into passive infrared cameras and active infrared cameras. The images they output are similar to those taken by ordinary cameras. With the appearance and infrared features of black and white or color images, they can present the general shape, outline and some detailed information of objects.

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		HJ01-WMIR-4.5 Pixel Number：640×512 ,Wavelength Range：4.5μm, Thermal Sensitivity (NETD)：≤1k@600°C ,Frame Rate：≤50Hz (configurable) ,Temperature Measurement Accuracy：±2°C or ±2% ,Temperature Measurement Range：Range 1: 600°C - 1600°C; Range 2: 1000°C - 2000°C		4-6 Weeks	Request for quote
		HJ01-WMIR-3.9 Pixel Number：640×512 ，Wavelength Range：3.9μm ，Thermal Sensitivity (NETD)：≤1k@600°C ，Frame Rate：≤50Hz (configurable)， Temperature Measurement Accuracy：±2°C or ±2% ，Temperature Measurement Range：600°C～1600°C		4-6 Weeks	Request for quote
