Multi Channel Spectrometer | SIMTRUM Photonics Store

Products / Light Analysis /Spectrometers /Fiber Spectrometers (200nm to 5um) /Multi Channel Spectrometer /
Multi Channel Spectrometer
Multi Channel Spectrometer Portable System Related Products Order Now!

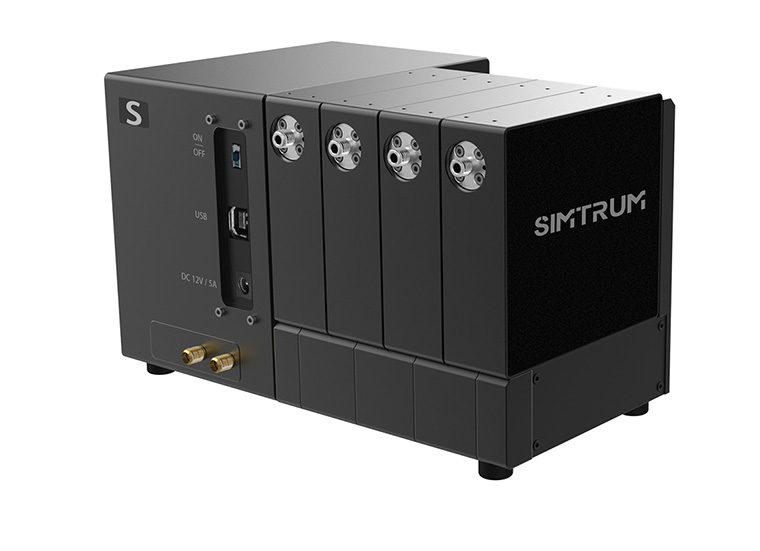

Multi-Channel Fiber Optical Spectrometer

This S series multi-channel fiber optical spectrometer with Hamamatsu detector is designed for applications in industry and scientific researches . With optional channels , this spectrometer features high resolution , high sensitivity . What's more, it is very easy to use.



Features

- Support GPIO

- High resolution and high sensitivity

- Portable , high capability in integration

- Various interfaces , available for USB and serial interface

- Optional band channel , design for the whole machine, easy to operate

Applications

- Handheld/portable LIBS

- Plasma luminescence

- Detection of coal and metal



Technical Advantages
1.High resolution and high-speed detection

The S series spectrometer features Hamamatsu detector which has optimized resolution for single channel that enables the full band to achieve 0.15 nm limit resolution. This spectrometer's minimum time of spectrum acquisition in one time comes to 22.5us. It is especially suitable for applications where high resolution and high-speed detection are needed.



2.Powerful PC software

The PC software provided with the spectrometer-FLAVOR is powerful software. In addition to the basic spectrum acquisition control functions, it also has functions such as saturation and automatic adjustment of the integration time, recording of the real integration time, and automatic peak finding. At the same time, the software also includes characteristic functions such as wavelet smoothing with patented technology .

SDK supports Windows, Android, and Linux operating systems, and can provide secondary development packages in C#, C++, Java, Python, and other languages.



3.High stability

Within the temperature rage of  0~40℃, the spectral resolution remains unchanged, which is the best choice for industrial applications.



4.Easy to use

No configuration, preheating, plug and play , can be integrated into system and be updated to a portable device.



S Series Wavelength, Slit for Choice and Brochures

Product Brochure Link:
Wavelength Range Grating Scribe/Blaze Wavelength Slit Width
10um 25um 50um 100um 200um
200-1000nm 600/200nm or 600/300nm 0.7nm 0. 8nm 1.2nm 2.4nm 4.8nm
180-550nm 1200/250nm or 1200/500nm 0.3nm 0.36nm 0.6nm 1nm 2nm
200-440nm 1800/200nm or 1800/500nm 0.15nm 0.2nm 0.3nm 0.6nm 1.2nm
300-1100nm 600/200nm or 600/300nm 0.7nm 0. 8nm 1.2nm 2.4nm 4.8nm
300-800nm 900/500nm 0.4nm 0.5nm 0.7nm 1.3nm 2.6nm
300-650nm 1200/250nm or 1200/500nm 0.3nm 0.36nm 0.6nm 1nm 2nm
300-400nm 1800/400nm 0.2nm 0.36nm 0.6nm 1nm 2nm
420-620nm 1800/200nm or 1800/500nm 0.15nm 0.2nm 0.3nm 0.6nm 1.2nm
450-550nm 1800/330nm 0.2nm 0.38nm 0.55nm 1nm 2nm
400-600nm 1200/500nm 0.3nm 0.4nm 0.8nm 1nm 2nm
400-740nm 1200/500nm 0.3nm 0.36nm 0.6nm 1nm 2nm
400-790nm 600/500nm 0.7nm 0. 8nm 1.2nm 2.4nm 4.8nm
400-880nm 900/500nm 0.4nm 0.5nm 0.7nm 1.3nm 2.6nm
500-950nm 900/500nm 0.4nm 0.5nm 0.7nm 1.3nm 2.6nm
500-820nm 1200/500nm 0.3nm 0.36nm 0.6nm 1nm 2nm
500-700nm 1800/500nm 0.15nm 0.2nm 0.3nm 0.6nm 1.2nm
600-1040nm 900/500nm 0.4nm 0.5nm 0.7nm 1.3nm 2.6nm
600-900nm 1200/500nm 0.3nm 0.36nm 0.6nm 1nm 2nm
600-780nm 1800/500nm 0.15nm 0.2nm 0.3nm 0.6nm 1.2nm
700-985nm 1200/850nm 0.25nm 0.38nm 0.55nm 1nm 2nm
700-840nm 1800/500nm 0.15nm 0.2nm 0.3nm 0.6nm 1.2nm
725-1000nm 830/900nm 0.38nm 0.5nm 0.8nm 1nm 2nm
750-880nm 1800/500nm 0.15nm 0.2nm 0.3nm 0.6nm 1.2nm
780-1060nm 1200/850nm 0.25nm 0.38nm 0.55nm 1nm 2nm
780-1100nm 600/500nm 0.7nm 0. 8nm 1.2nm 2.4nm 4.8nm
800-1060nm 1200/850nm 0.25nm 0.38nm 0.55nm 1nm 2nm
840-950nm 1800/500nm 0.15nm 0.2nm 0.3nm 0.6nm 1.2nm
900-1100nm 1200/850nm 0.25nm 0.38nm 0.55nm 1nm 2nm
940-1030nm 1800/500nm 0.15nm 0.2nm 0.3nm 0.6nm 1.2nm
1020-1100nm 1800/500nm 0.15nm 0.2nm 0.3nm 0.6nm 1.2nm



Accessories

For more information on customized accessories, please contact us info@simtrum.com
Model   No. Type Wavelength Core Diameter Length # of Fiber Connector
I1000-S/S-L2 Optic Fiber 360~2500 nm 1000 μm 2 m 1 SMA905-SMA905
V1000-S/S-L2 200 ~ 1100 nm 1000μm 2 m 1 SMA905-SMA905
DV600-S/S-L2 190~1100 nm 600μm 2 m 1 SMA905-SMA905
I600-S/S-L2 360~2500 nm 600μm 2 m 1 SMA905-SMA905
V600-S/S-L2 200 ~ 1100 nm 600μm 2 m 1 SMA905-SMA905
DV400-S/S-L2 190~1100 nm 400μm 2 m 1 SMA905-SMA905
I400-S/S-L2 360~2500 nm 400μm 2 m 1 SMA905-SMA905
V400-S/S-L2 200 ~ 1100 nm 400μm 2 m 1 SMA905-SMA905
DV200-S/S-L2 190~1100 nm 200μm 2 m 1 SMA905-SMA905
I200-S/S-L2 360~2500 nm 200μm 2 m 1 SMA905-SMA905
V200-S/S-L2 200 ~ 1100 nm 200μm 2 m 1 SMA905-SMA905
DV100-S/S-L2 190~1100 nm 100μm 2 m 1 SMA905-SMA905
I100-S/S-L2 360~2500 nm 100μm 2 m 1 SMA905-SMA905
V100-S/S-L2 200 ~ 1100 nm 100μm 2 m 1 SMA905-SMA905
I1000-Y*2-S/S-L2

Bifurcated Fiber,

 Y-bundle : 2 fibers

 360~2500nm 1000μm 2 m A-2nos, B1-1nos, B2-1nos A-SMA905 / B1-SMA905 / B2-SMA905
V1000-Y*2-S/S-L2 200 ~ 1100 nm 1000μm 2 m A-2nos, B1-1nos, B2-1nos A-SMA905 / B1-SMA905 / B2-SMA906
DV600-Y*7-S/S-L2 190~1100 nm 600μm 2 m A-7nos, B1-1nos, B2-6nos A-SMA905 / B1-SMA905 / B2-SMA907
I600-Y*7-S/S-L2 360~2500nm 600μm 2 m A-7nos, B1-1nos, B2-6nos A-SMA905 / B1-SMA905 / B2-SMA908
DV600-1*7-S/S-L2 Multi-core Fiber 190~1100 nm 600μm 2 m 7 SMA905-SMA905
I600-1*7-S/S-L2 360~2500nm 600μm 2 7 SMA905-SMA905



Software Interface

Main software user interface

1.Detection Panel  (Function menu and operation buttons)

2.Device Panel (Device list and paremeter settings)

3.Spectral Window (Spectral curve display and spectral window management)

4.Spectral Recording Panel (Spectral curve selection and naming)



Key Spectral processing feature

● Wavelength Smoothing

● Defluoresence

● Substract the background signal

● Rransmission and reflection measurement

● Absobance measurement

● Multi measurement with different timing

For detail software user manual please Click Here

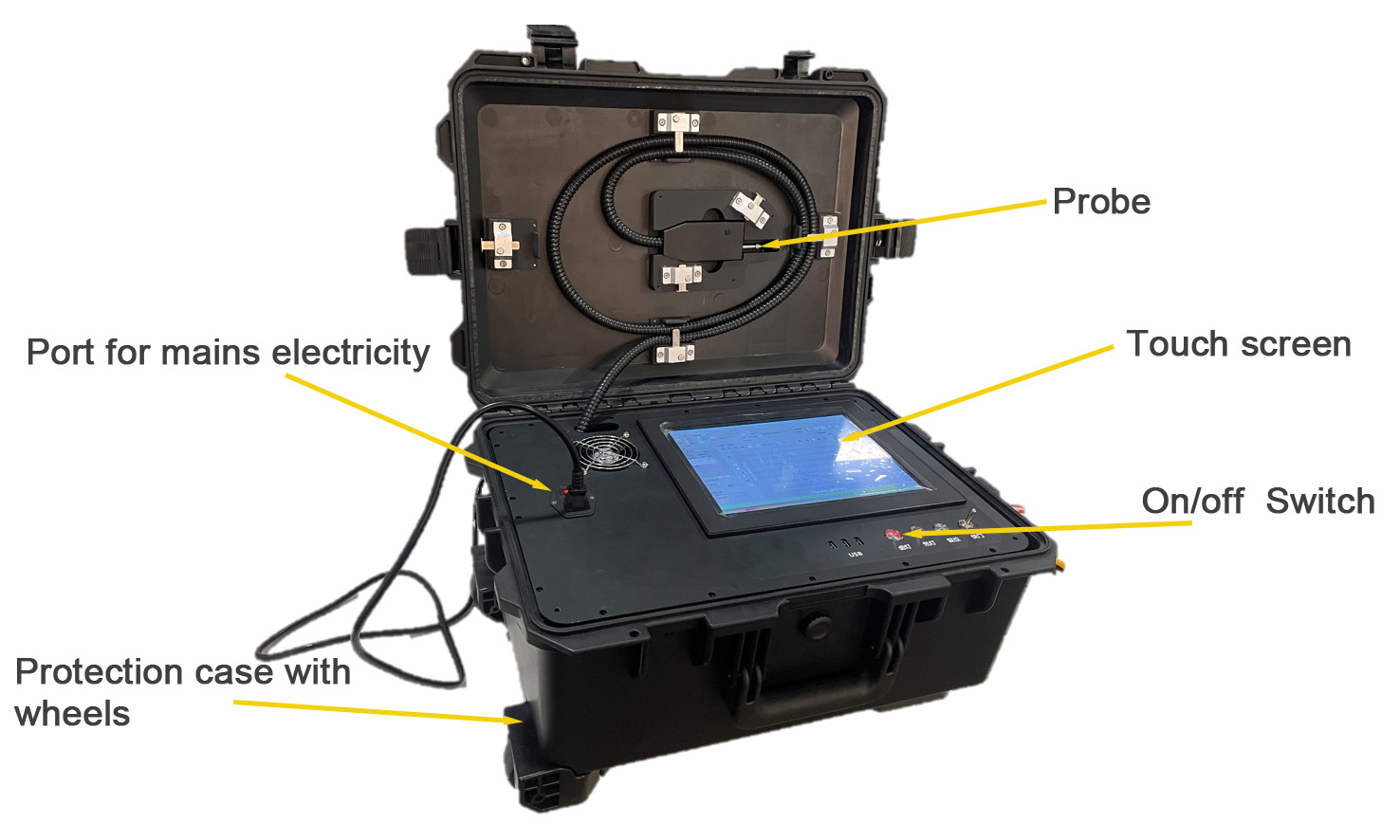

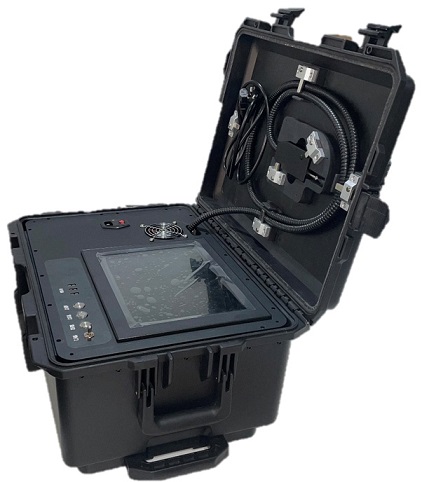

FilmX Portable Film Thickness Meter

FilmX provides dual optical paths and excellent human-computer interface , which offers leading detection performance and easy operation . Its built-in balanced deuterium halide light source significantly  improves the signal to noise ratio of the whole band .And the application of test optical path , reference optical path and dual optical path results in high accuracy.



Feature

-Portable

-White light interference

-Dual light source

-Easy to operate





Product specifications and Brochures

Product Brochure Link:
Size 425x250x170mm A/D 16bit
Weight 19kg Source 220V±10%，50/60Hz
Light source Balanced deuterium halide light source Working temperature 0~40℃
Band of light source 200~2500nm Storage temperature -20~80℃
Power of light source Deuterium lamp：25W；halogen tungsten lamp：9.75W Working humidity ≤93%  without condensatin
Band of specgrometer 200~1100nm Case production grade IP65
Resolution ~2.9nm Fiber band 190~1100nm
Life span of light source Deuterium lamp：3000hr；halogen tungsten lamp：5000hr Fiber length 2~5m for option
Optical interface SMA  and FC for option IPC Built-in
Stability of light source ±0.3% RMS/hr，P-P：superior to 0.005%； IPC MTBF ≥9000hr
Signal to noise ratio 800:1 Trigger TTL
Dynamic range 8000:1 SDK C#，C++，Python，Java，Matlab，Labview




Name Model Wavelength Range Detector Resolution Noise Ratio Dynamic Range

High Resolution Spectrometer

 L Sereis 200-1100nm Hamamatsu，S11639，2048 pixels <1nm customizable 500:1 2000:1

High Resolution Spectrometer

 H Series 200-1100nm Hamamatsu，S11639，2048 pixels <1nm customizable 500:1 2000:1

Back Illuminated Spectrometer

 M Series 200-1100nm Hamamatsu，S10420，64×2048 pixels <1nm customizable 800:1 5000:1

Hi Sensitivity Cooled Spectrometer

 MC Serie 200-1100nm Hamamatsu，S7031，64×1044 pixels <1nm customizable 1000:1 10000:1

Handheld Raman System

 RM 785/1064nm

Band Range

200-3200cm-1/ 200-2500cm-1

 6 - 8 cm-1

Portable Tabletop Raman System

 RMT EZ 785nm Band Range  200-3200cm-1
 7 cm-1  typical

Portable Tabletop Raman System

 RMT 532/785/1064nm

Band Range

200-3200cm-1/200-1800cm-1

 8 - 9 cm-1 typical


NIR Spectrometer

 NIR Series 900-2500nm Hamamatsu, G9203 3-10nm 15000:1 15000:1

MWIR Spectrometer

 MWIR Series 1-5um PbS or PbSe  256 pixels 10-30nm 20 RMS

We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
S Series Multi-channel Spectrometer
Go to The Description to Choose Wavelength and Slit In The Table for The S Series Multi-channel Spectrometer Needed 		6-8 weeks Request for quote
FilmX Portable System
FilmX Portable System, Light Source Balanced Deuterium Halide Light Source, Band of Light Source 200~2500nm, Power of Light Source Deuterium Lamp 25W；Halogen Tungsten Lamp 9.75W,Band of Specgrometer 200~1100nm, Resolution ~2.9nm, Life Span of Light Source Deuterium Lamp 3000hr; Alogen Tungsten Lamp 5000hr 		6-8 weeks Request for quote

FilmX Portable System - Parameter

S Series Multi-channel Spectrometer - Parameter

DV600-1*7-S/S-L2 - Parameter

I600-1*7-S/S-L2 - Parameter

I600-Y*7-S/S-L2 - Parameter

DV600-Y*7-S/S-L2 - Parameter

V1000-Y*2-S/S-L2 - Parameter

I1000-Y*2-S/S-L2 - Parameter

V100-S/S-L2 - Parameter

I100-S/S-L2 - Parameter

DV100-S/S-L2 - Parameter

V200-S/S-L2 - Parameter

I200-S/S-L2 - Parameter

DV200-S/S-L2 - Parameter

V400-S/S-L2 - Parameter

I400-S/S-L2 - Parameter

DV400-S/S-L2 - Parameter

V600-S/S-L2 - Parameter

I600-S/S-L2 - Parameter

DV600-S/S-L2 - Parameter

V1000-S/S-L2 - Parameter

I1000-S/S-L2 - Parameter

FilmX Portable System - Download

S Series Multi-channel Spectrometer - Download

DV600-1*7-S/S-L2 - Download

Download

I600-1*7-S/S-L2 - Download

Download

I600-Y*7-S/S-L2 - Download

Download

DV600-Y*7-S/S-L2 - Download

Download

V1000-Y*2-S/S-L2 - Download

Download

I1000-Y*2-S/S-L2 - Download

Download

V100-S/S-L2 - Download

Download

I100-S/S-L2 - Download

Download

DV100-S/S-L2 - Download

Download

V200-S/S-L2 - Download

Download

I200-S/S-L2 - Download

Download

DV200-S/S-L2 - Download

Download

V400-S/S-L2 - Download

Download

I400-S/S-L2 - Download

Download

DV400-S/S-L2 - Download

Download

V600-S/S-L2 - Download

Download

I600-S/S-L2 - Download

Download

DV600-S/S-L2 - Download

Download

V1000-S/S-L2 - Download

Download

I1000-S/S-L2 - Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
I1000-S/S-L2
Optic Fiber, Wavelength 360-2500 nm, Number of Fiber 1nos, Core Diameter 1000 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $384.00
V1000-S/S-L2
Optic Fiber, Wavelength 200-1100 nm, Number of Fiber 1nos, Core Diameter 1000 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $374.00
DV600-S/S-L2
Optic Fiber, Wavelength 190-1100 nm, Number of Fiber1nos, Core Diameter 600 um, Length 2M, Connector SMA905-SMA905, Package 5.5 Blue armored tubing 		2-3 Weeks $324.00
I600-S/S-L2
Optic Fiber, Wavelength 360-2500 nm, Number of Fiber 1nos, Core Diameter 600 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $202.00
V600-S/S-L2
Optic Fiber, Wavelength 200-1100 nm, Number of Fiber 1nos, Core Diameter 600 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $188.00
DV400-S/S-L2
Optic Fiber, Wavelength 190-1100 nm, Number of Fiber 1nos, Core Diameter 400 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $192.00
I400-S/S-L2
Optic Fiber, Wavelength 360-2500 nm, Number of Fiber 1nos, Core Diameter 400 um, Length 2M, Connector SMA905-SMA905, Package 5.5 blue armored tubing 		2-3 Weeks $172.00
V400-S/S-L2
Optic Fiber, Wavelength 200-1100 nm, Number of Fiber 1nos, Core Diameter 600 um, Length 2M, Connector SMA905-SMA905, Package 5.5 blue armored tubing 		2-3 Weeks $172.00
DV200-S/S-L2
Optic Fiber, Wavelength 190-1100 nm, Number of Fiber 1nos, Core Diameter 200 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $162.00
I200-S/S-L2
Optic Fiber, Wavelength 360-2500 nm, Number of Fiber 1nos, Core Diameter 200 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $142.00
V200-S/S-L2
Optic Fiber, Wavelength 200-1100 nm, Core Number 1nos, Core Diameter 200 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $142.00
DV100-S/S-L2
Optic Fiber, Wavelength 190-1100 nm, Core Number 1nos, Core Diameter 100 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $162.00
I100-S/S-L2
Optic Fiber, Wavelength 360-2500 nm, Core Number 1nos, Core Diameter 100 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $142.00
V100-S/S-L2
Optic Fiber, Wavelength 200-1100 nm, Core Number 1nos, Core Diameter 100 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $142.00
I1000-Y*2-S/S-L2
Bifurcated Fiber, Y-bundle: 2 fibers , Wavelength 360-2500 nm, Core Diameter 1000 um, Length 2M, Connector SMA905-SMA905, Package 6.0 armored tubing 		2-3 Weeks $647.00
V1000-Y*2-S/S-L2
Bifurcated Fiber, Y-bundle: 2 fibers, Wavelength 200-1100 nm, Core Diameter 1000 um, Length 2M, Connector SMA905-SMA905, Package 6.0 armored tubing 		2-3 Weeks $465.00
DV600-Y*7-S/S-L2
Bifurcated Fiber, Y-bundle: 7 fibers, Wavelength 190-1100 nm, Core Number A-7nos, B1-1nos, B2 - 6nos, Core Diameter 600 um, Length 2M, Connector SMA905-SMA905,Package PVC 		2-3 Weeks $1264.00
I600-Y*7-S/S-L2
Bifurcated Fiber, Y-bundle: 2 fibers , Wavelength 360-2500 nm, Core Diameter 600 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $1007.00
I600-1*7-S/S-L2
Multi-core Fiber, Wavelength 360-2500 nm, Number of Fiber 7nos, Core Diameter 600 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $967.00
DV600-1*7-S/S-L2
Multi-core Fiber, Wavelength 190-1100 nm, Core Number 7nos, Core Diameter 600 um, Length 2M, Connector SMA905-SMA905, Package PVC 		2-3 Weeks $1214.00
