Cooled Mid-Wave Infrared Module | SIMTRUM Photonics Store

Products / Imaging /SW/MW/LW Infrared Cameras /Mid-Wave Infrared Camera (MWIR) /Cooled Mid-Wave Infrared Camera /
Cooled Mid-Wave Infrared Camera
STEYAS Series STGAVIN Series Specifications Related Products Order Now!

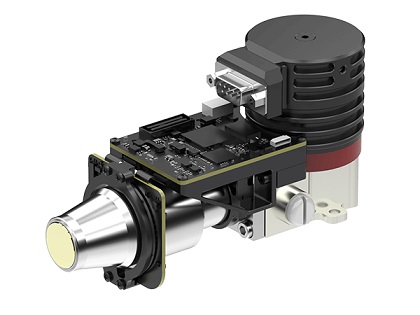

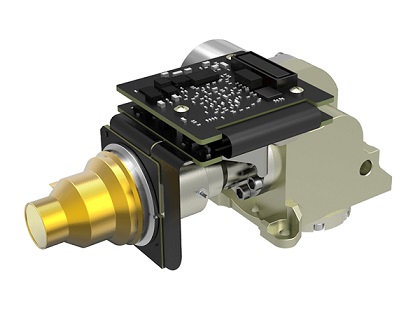

STEYAS Series Cooled Infrared AD Module

Equipped with a high-performance signal processing circuit, STEYAS series cooled AD module is applicable to all MCT&T2SL cooled infrared offered by SIMTRUM. The standard cameralink interface could output 16 bits of raw data. It is easy for OEM customers for rapid secondary development, which could shorten the development period of modules and complete products based on cooled infrared detectors.



Feature

Adopt high performance cooled infrared detector

- High sensitivity with best NETD<9mK


Easy to develop & integrate

- Cameralink interface output 16bit raw data, serial port control.

- Integrated structure and dimensions are consistent with a detector.

- 5V single-supply.


Designed for specific applications

- Output frame frequency is adjustable @ 1~200Hz.






Applications

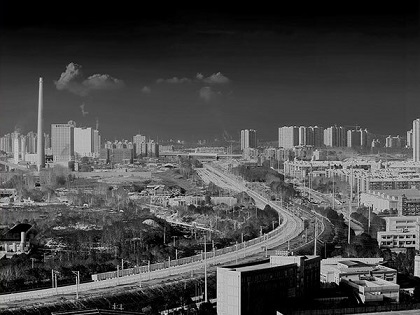

- Remote Monitoring System

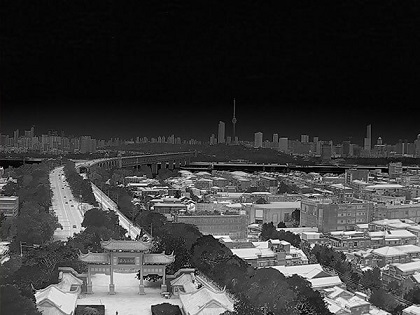

- Hand-held Reconnaissance System

- Multi-sensor Payload

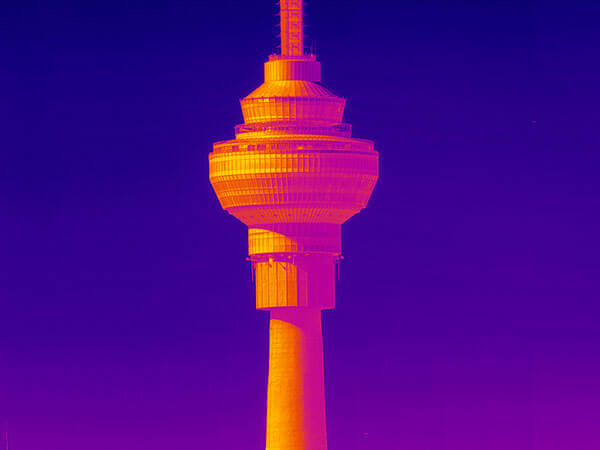

- Search & Tracking System

- Enhanced Flight Vision System

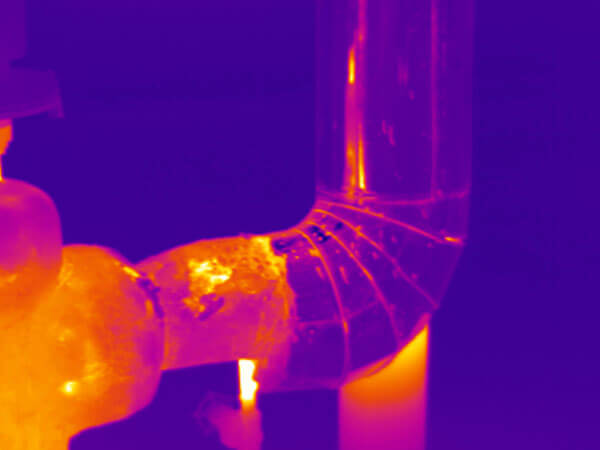

- Gas Detection

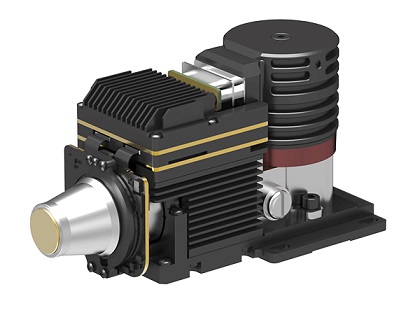

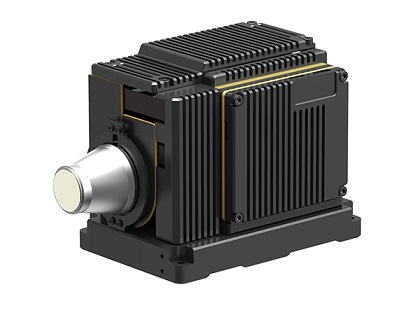

STGAVIN Series Cooled Thermal Module

STGAVIN series cooled thermal module utilizes GST MCT &T2SL cooled IR detectors and integrates various image processing algorithms to output clear infrared images in total darkness or bad weather conditions. It can detect and recognize risks and threats at a long distance while presenting more target details at a short distance.



Feature

Meet the needs of long-range detection

- High sensitivity with best NETD<9mK

- Long range detection, aircraft can be detected at 60km away;

- Wide field of view, resolution up to 1280x1024.


Easy integration into the system

- DVP/Cameralink interface, raw/YUV image output.

- A variety of continuous optical zoom lenses are available.







Applications

- Remote Monitoring System

- Hand-held Reconnaissance System

- Multi-sensor Payload



- Search & Tracking System

- Enhanced Flight Vision System

- Gas Detection






STEYAS Series

Product specifications and Brochures

Product Brochure Link:

ModelSTEYAS330STEYAS615ASTEYAS615BSTEYAS1212
IR Detector Performance
Resolution320x256640x5121280x1024
Pixel Pitch30μm15μm12μm
CryocoolerRS058RS046RS058F
Spectral Range3.7μm～4.8μm MW
Cooling Time (25°C)≤6min≤5.5min≤6min
Optimal NETD (20°C)≤9mK≤17mK≤18mK≤20mK
Working Mode
Frame Rate1~200Hz Adjustable1~50Hz Adjustable1~100Hz adjustable
Working ModeSnapshot; ITR/IWR Integration Mode; Windows Mode;   Anti-blooming
Electrical Specification
Standard External InterfaceQSH 60 pin
Digital VideoCameralink: Output 16bit Raw Data
External SyncCC1: INT/Frame External Sync; CC2: MC External Sync
CommunicationCameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply1 Channel Imaging Panel: 5V
    1 Channel Cryocooler: 24V
Stable Power Consumption7W8W9W
Dimension (mm)142×58.5×71122×88×59149×58.5×71
Weight≤680g≤400g≤680g
Working Temperature-40°C ~ +60°C
Vibration MagnitudeVibration: GJB   Vehicle-mounted High Speed Transport
    Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each


STGAVIN Series

Product specifications and Brochures

Product Brochure Link:

ModelSTGAVIN330STGAVIN615ASTGAVIN615BSTGAVIN1212
IR Detector Performance
Resolution320x256640x5121280x1024
Pixel Pitch30μm15μm12μm
CryocoolerRS058RS046RS058F
Spectral Range3.7μm～4.8μm MW
Cooling Time(20°C)≤7min≤8min
NETD (20°C)≤10mK≤15mK≤20mK
Image Processing
Frame Rate50Hz/100Hz/200Hz50Hz/100Hz
Dimming ModeLinear/Histogram/Mixed
Digital Zoom×1/×2/×4
Image DirectionHorizontally/Vertically/Diagonally Flip
Image AlgorithmNUC/AGC/IDE
Electrical Specification
Standard External InterfaceJ30JZ 25pinJ30JZ 25pin;
    HDMI Special Output Interface
Analog VideoPAL/
Digital Video16bit RAW/YUV: 16bit DVP/Cameralink OutputHDMI Output: YUV
    Cameralink Output: 16bit RAW/YUV
External SyncFrame External Sync: RS422 Level
CommunicationRS422, 115200bps
Power Supply20~28VDC24V±1V
Stable Power Consumption12W16W
Dimension (mm)150×67×80125×92×67165x86x107
Weight≤900g≤650g≤1600g
Operation Temperature-40°C ~ +60°C
Vibration MagnitudeVibration: GJB   Vehicle-mounted High Speed Transport
    Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional LensContinuous Zoom
    30~240mm/F4
    15~300mm/F4
    21~420mm/F4
    35~690mm/F4		Continuous Zoom:   37.5~750mm/F4
    Fixed Zoom: 19mm/F2; 40mm/F2; 240mm/F2



Microscop Cameras

Camera CategoryResolutionPixel SizeFPSWavelengthNote
Microscope  TE-Cooling USB3.0 CCD Camera1.5MP to 12MP6.45um to 3.1um~30FPS380nm - 650nmIR Cut filter
Microscope  USB3.0 CCD Camera1.5MP to 12MP6.45um to 3.1um~30FPS380nm - 650nmIR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera24MP and 61MP5.94um and 3.76umup to 190FPS380nm -650nmUV extended available
TE-Cooling USB3.0 CMOS Camera10MP to 45MP4.63um to 2.31umup to 96FPS380nm - 650nmIR Cut filter
TE-Cooling USB3.0 CMOS Camera with  External Trigger0.5MP / 0.5MP6.9um / 9um20FPS380nm - 650nm
External Trigger
Microscope USB3.0 CMOS Camera0.5MP to 45MP
6.9um to 1.55umupto 520FPS380nm - 650nmIR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced1.3MP to 10MP9.7um to 4.6umupto 86FPS200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP1.5MP to 45MP
3.4um to 1.2umupto 165FPS380nm - 650nmIR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera5MP2um30FPS380nm - 650nmIR Cut filter
HDMI Color CMOS Camera2MP to 8MP
60FPS380 - 1100nm

UV & NIR Enhanced CMOS Camera4.2/8MP,  2.1/4.1MP

upto 200FPS200-1100nmUV or NIR Enhance


Scientific Cameras

TypeModelWavelengthSensor   TypeResolutionPixel sizeFrame RateQE
X-RAY sCMOS Camera XF9580-1000eVBSI sCMOS2048 x 204822.5um or 13.3um 48~100% full range
XUV/VUV CameramaxCam1-300nm BSI/FSI CCD 1024 x 25526um
Refer to brochures
High Speed sCMOS CameraDhyana 2100200-1100nmFSI CMOS / Mono5220(H) x 4096(V)4.5um x 4.5um450fps@8bit63%@520nm
Dhyana 9KTDI200-1100nmBSI sCMOS TDI/Mono90725um x 5um510kHZ@8bit82%@550nm,
Cooled High Sensitivity sCMOS Camera95V2200-1100nmBSI sCMOS/Mono2048(H) x 2048(V)11μm x 11μm48fps@12bit STD95%@560nm
400BSI V2200-1100nmBSI sCMOS2048(H) x 2048(V)6.5μm x 6.5μm74fps@CL, 40fps@USB3.095%@600nm
400BSI V3200-1100nmBSI sCMOS2048(H) x 2048(V)6.5μm x 6.5μm100fps@CL, 40fps@USB3.095%@600nm
400D200-1100nmFSI   sCMOS/Mono2048(H) x 2040(V)6.5μm x 6.5μm35fps@16bit72%@595nm
400DC200-1100nmFSI   sCMOS/Color2048(H) x 2044(V)6.5μm x 6.5μm22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras6060BSI200-1100nmBSI sCMOS/Mono6144(H) x 6144(V)10μm x 10μm26.4fps@12-bit STD95%@580nm
4040BSI200-1100nm4096(H) x   4096(V)9μm x 9μm16.5fps@CL, 9.7fps@USB3.090%@550nm
6060FSI200-1100nmFSI sCMOS/Mono6144(H) x   6144(V)10μm x 10μm44fps@12-bit STD72%@550nm
4040FSI200-1100nm4096(H) x   4096(V)9μm x 9μm16.5fps@CL, 9.7fps@USB3.074%@600nm
Compact Industry sCMOS Camera401D  200-1100nmFSI sCMOS/Mono2048(H) x 2048(V)6.5μm x 6.5μm40fps@16bit, 45fps@8bit72%@595nm
401A-G200-1100nm2048(H) x 2048(V)11μm x 11μm
58%@600nm
401A-U200-1100nm2048(H) x 2048(V)11μm x 11μm
58%@600nm
201D200-1100nm2048(H) x 1152(V)6.5μm x 6.5μm70fps@16bit, 80fps@8bit72%@595nm


Intensified CMOS Cameras

TypeTime-Resolved iCMOSHigh-speed Gated iCMOS CameraHigh-speed Fluorescence iCMOS Camera
540M/S1000M/SFLUO (1000 FPS)FLUO (2000 FPS)
Product Image

TRiCAM_Specifications 1.jpeg

Framerate 162 fps540 fps1000 fps1000 fps - 7500 fps2000 fps - 6400 fps
Sensor Resolution1920 x 1200 pixels1696 x 1710 pixels1280 x 1024 pixels1280 x 1024 pixels1920 x 1080 pixels*
Pixel size5.86 x 5.86  µm 8 x 8 µm6.6   x 6.6 µm6.6 x 6.6 µm10 x 10 µm
Photon gain (max.)50000 lm/m^2/lx 11000 lm/m^2/lx11000 lm/m^2/lx36000 lm/m^2/lx36000 lm/m^2/lx
Gating repetition rate100 or 300Khz100khz100khz100khz100khz
Intensifier18mm intensifier Dual-stage   intensifierDual-stage intensifierSingle-stage intensifier  Single-stage intensifier
Bit Depth10 bit and 12 bit8 bit8 and 12 bit8 and 12 bit8 bit
Minimum exposure time40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)


Imaging Intensified Tube

TypeTime-Resolved Image IntensifierHigh-speed Image Intensifier
Model 18Model 25Model 18Model 25
Product Image

Input diameter18mm25mm18mm25mm
Effective areaGen II: ø 17.5 mm, Gen III: 13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mmGen II: ø 17.5 mm, Gen III:   13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition 100 kHz, 300 kHz or 1 MHz100 kHz, 300 kHz or 1 MHz100khz Or 300khz ,  2.5 MHz  burst mode100khz Or 300khz,  2.5 MHz burst mode
Min. gate width< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)
Frame RateUp to 500 fpsUp to 500 fpsup to 1,000,000 fpsup to 1,000,000 fps
Photon Gain

S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000

S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000		S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000		S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000


Short-wave, Mid-wave, Long-wave Infrared Cameras

ProductSpectral RangeRsolutionCoolingFeature
SWIR Camera400-1700nm1.3MP, 0.3MPuncooled
MIR CameraMid Infrared Detector3.7um to 4.8um0.08MP, 0.3MP,1.5MPCooled
Mid Infrared Camera3.7um to 4.8um0.08MP, 0.3MP,1.5MPCooled
Duel Band Detector3.7 to 4.8um|7.7 to 9.5um320*256px Cooled
LWIR CameraCooled LWIR Detector7.7um to 9.4um0.08MP, 0.3MPCooled
Cooled LWIR Camera7.7um to 9.4um0.3MPCooled
LWIR Thermography Camera 8 to 14um0.08MP, 0.3MP,1.5MPUncooledBroad Temperature Range
Thermography Camera for Skin Screening8 to 14um320*256px UncooledBody Temperature
Thermal Imaging Cameras for Phone8 to 14um256*192pxUncooledFor Smart Phone
Compact Thermal Imaging Camera8 to 14um0.08MP, 0.3MPUncooledFor CCTV , Drone



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STEYAS330
MWIR Cooled Infrared Camera, Resolution: 320x256, Pixel Pitch: 30um, Spectral Range: 3.7um～4.8um MW, Frame Rate: 1~200Hz Adjuestable 		4-6 Weeks Request for quote

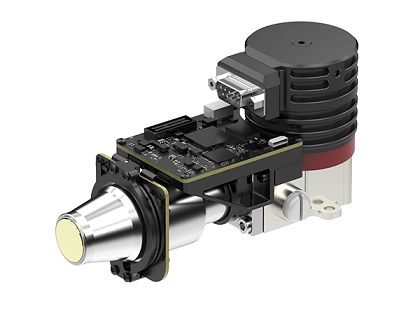

STEYAS615A
MWIR Cooled Infrared Camera, Resolution: 640x512, Pixel Pitch: 15um, Spectral Range: 3.7um～4.8um MW, Frame Rate: 1~200Hz Adjustable 		4-6 Weeks Request for quote
STEYAS615B
MWIR Cooled Infrared Camera, Resolution: 640x512, Pixel Pitch: 15um, Spectral Range: 3.7um～4.8um MW, Frame Rate: 1~50Hz Adjustable 		4-6 Weeks Request for quote
STEYAS1212
MWIR Cooled Infrared Camera, Resolution: 1280x1024, Pixel Pitch: 12um, Spectral Range: 3.7um～4.8um MW, Frame Rate: 1~100Hz Adjustable 		4-6 Weeks Request for quote

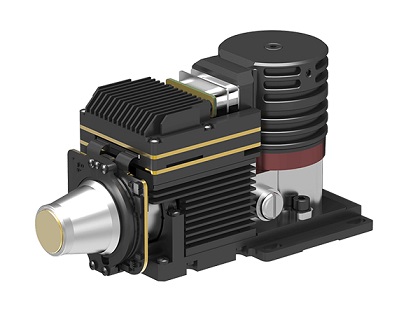

STGAVIN330
MWIR Cooled Infrared Camera, Resolution: 320x256, Pixel Pitch: 30um, Spectral Range: 3.7um～4.8um MW, Frame Rate: 50Hz/100Hz/200Hz 		4-6 Weeks Request for quote
STGAVIN615A
MWIR Cooled Infrared Camera, Resolution: 320x256, Pixel Pitch: 15um, Spectral Range: 3.7um～4.8um MW, Frame Rate: 50Hz/100Hz 		4-6 Weeks Request for quote

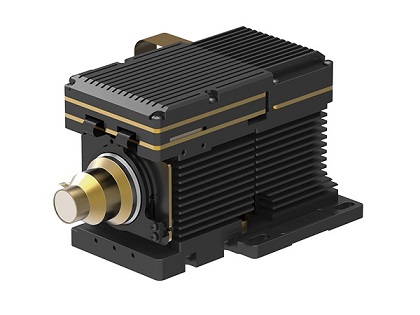

STGAVIN615B
MWIR Cooled Infrared Camera, Resolution: 640x512, Pixel Pitch: 15um, Spectral Range: 3.7um～4.8um MW, Frame Rate: 50Hz/100Hz 		4-6 Weeks Request for quote
STGAVIN1212
MWIR Cooled Infrared Camera, Resolution: 1280x1024, Pixel Pitch: 12um, Spectral Range: 3.7um～4.8um MW, Frame Rate: 50Hz/100Hz 		4-6 Weeks Request for quote

STGAVIN1212 - Parameter

STGAVIN615B - Parameter

STGAVIN615A - Parameter

STGAVIN330 - Parameter

STEYAS1212 - Parameter

STEYAS615B - Parameter

STEYAS615A - Parameter

STEYAS330 - Parameter

STGAVIN1212 - Download

STGAVIN615B - Download

STGAVIN615A - Download

STGAVIN330 - Download

STEYAS1212 - Download

STEYAS615B - Download

STEYAS615A - Download

STEYAS330 - Download
