Air Spaced Achromatic Half Waveplates | SIMTRUM Photonics Store

Products / Air Spaced Achromatic Half Waveplates /
Air Spaced Achromatic Half Waveplates
Overview Specifications and Graphs Order Now!

Achromatic Half Waveplates are made from two different birefringent quartz plate with a fast axis quartz plate aligning with slow axis of magnesium fluoride. This allow a retardation value of λ/2 to be achieved across the range of wavelengths targeted.


Air Spaced Achromatic Half Waveplates have their two components separated such that the problems that would arise are limited. This type of waveplates can have a higher laser damage threshold and greater temperature range while maintaining excellent beam deviation and transmitted wavefront. However, it is also of a higher cost.



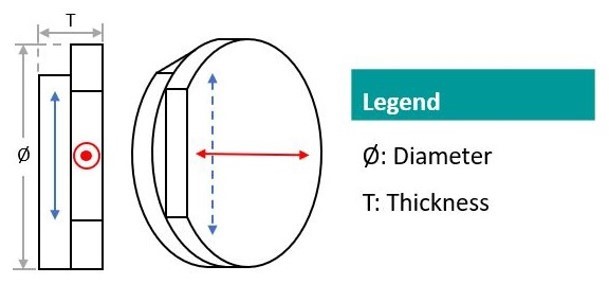

General Specifications

Type

Air Spaced Achromatic Half Waveplate

Material

Quartz+MgF2

Retardation

λ/2

Retardation Tolerance

λ/100

Dimensional Tolerance(mm)

+0/-0.2

Thickness Tolerance(mm)

±0.1

Parallelism(arcsec)

<10

Clear Aperture

>80%

Surface Quality

40/20

Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>5J/cm²(20ns 20Hz 1064nm)



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Design Wavelength (nm)

Diameter (mm)


Search Reset
Compare Model Drawings & Specs Design Wavelength (nm) Retardation Diameter (mm) Mount Diameter (mm) Availability Reference Price
(USD)
QM-AAHWP-10-450-650-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 10mm, AR Coating: R<1% @450-650nm 		450-650λ/21025.4 2-3 Weeks Request for quote
QM-AAHWP-10-550-750-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 10mm, AR Coating: R<1% @550-750nm 		550-750λ/21025.4 2-3 Weeks Request for quote
QM-AAHWP-10-650-1100-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 10mm, AR Coating: R<1% @650-1100nm 		650-1100λ/21025.4 2-3 Weeks Request for quote
QM-AAHWP-10-900-2100-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 10mm, AR Coating: R<1% @900-2100nm 		900-2100 λ/21025.4 2-3 Weeks Request for quote
QM-AAHWP-15-450-650-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 15mm, AR Coating: R<1% @450-650nm 		450-650λ/21525.4 2-3 Weeks Request for quote
QM-AAHWP-15-550-750-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 15mm, AR Coating: R<1% @550-750nm 		550-750λ/21525.4 2-3 Weeks Request for quote
QM-AAHWP-15-650-1100-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 15mm, AR Coating: R<1% @650-1100nm 		650-1100λ/21525.4 2-3 Weeks Request for quote
QM-AAHWP-15-900-2100-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 15mm, AR Coating: R<1% @900-2100nm 		900-2100 λ/21525.4 2-3 Weeks Request for quote
QM-AAHWP-20-450-650-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 20mm, AR Coating: R<1% @450-650nm 		450-650λ/22025.4 2-3 Weeks Request for quote
QM-AAHWP-20-550-750-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 20mm, AR Coating: R<1% @550-750nm 		550-750λ/22025.4 2-3 Weeks Request for quote
QM-AAHWP-20-650-1100-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 20mm, AR Coating: R<1% @650-1100nm 		650-1100λ/22025.4 2-3 Weeks Request for quote
QM-AAHWP-20-900-2100-M
Quartz+MgF2, Air Spaced Achromatic Half Waveplate, Ø= 20mm, AR Coating: R<1% @900-2100nm 		900-2100 λ/22025.4 2-3 Weeks Request for quote

QM-AAHWP-20-900-2100-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @900-2100nm

Diameter (mm)
20

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
900-2100

Surface Quality
40/20

Clear Aperture
18mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

QM-AAHWP-20-650-1100-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @650-1100nm

Diameter (mm)
20

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
650-1100

Surface Quality
40/20

Clear Aperture
18mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

QM-AAHWP-20-550-750-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @550-750nm

Diameter (mm)
20

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
550-750

Surface Quality
40/20

Clear Aperture
18mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

QM-AAHWP-20-450-650-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @450-650nm

Diameter (mm)
20

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
450-650

Surface Quality
40/20

Clear Aperture
18mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

QM-AAHWP-15-900-2100-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @900-2100nm

Diameter (mm)
15

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
900-2100

Surface Quality
40/20

Clear Aperture
13.5mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

QM-AAHWP-15-650-1100-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @650-1100nm

Diameter (mm)
15

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
650-1100

Surface Quality
40/20

Clear Aperture
13.5mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

QM-AAHWP-15-550-750-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @550-750nm

Diameter (mm)
15

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
550-750

Surface Quality
40/20

Clear Aperture
13.5mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

QM-AAHWP-15-450-650-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @450-650nm

Diameter (mm)
15

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
450-650

Surface Quality
40/20

Clear Aperture
13.5mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

QM-AAHWP-10-900-2100-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @900-2100nm

Diameter (mm)
10

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
900-2100

Surface Quality
40/20

Clear Aperture
8mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

QM-AAHWP-10-650-1100-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @650-1100nm

Diameter (mm)
10

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
650-1100

Surface Quality
40/20

Clear Aperture
8mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

QM-AAHWP-10-550-750-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @550-750nm

Diameter (mm)
10

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
550-750

Surface Quality
40/20

Clear Aperture
8mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2

QM-AAHWP-10-450-650-M - Parameter

Type
Air Spaced Achromatic Half Waveplate

Material
Quartz+MgF2

Coating
R<1% @450-650nm

Diameter (mm)
10

Thickness Tolerance (mm)
±0.1

Design Wavelength (nm)
450-650

Surface Quality
40/20

Clear Aperture
8mm

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)
1

Wavefront Distortion
<λ4@633nm

Parallelism (arcsec)
<10

Retardation
λ/2

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Diameter Tolerance (mm)
+0/-0.2
