Laser Line Non-Polarizing Beamsplitter Cube | SIMTRUM Photonics Store

Products / Optics /Beamsplitters /Beamsplitter Cube /Laser Line Non-Polarizing Beamsplitter Cube /
Laser Line Non-Polarizing Beamsplitter Cube
Overview Coating Graph Demo

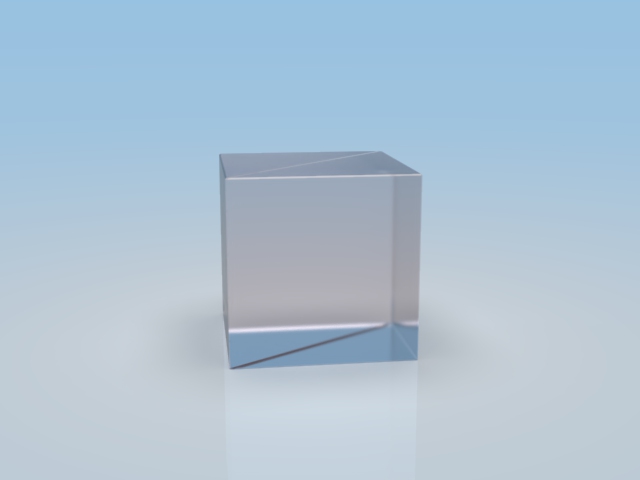

Laser Line Non-Polarizing Beamsplitter Cube, Beamsplitter Cube www.simtrum.com

Laser Line Non-Polarization Beamsplitter Cube is used to split or combine laser beams of a targeted wavelength. As it is a non-polarizing beamsplitter, the polarization of the outgoing beams remains the same when the incoming beam is a varied polarized light. Being partial-reflective coated mirrors, but often used with the incident of angle at 45°, cube beam splitters consist of a thin cube of optical glass with a different type of coatings.


BK7 is the most common optical glass used in high-quality optical components as it is a hard glass that can withstand a variety of physical and chemical exposure. Relatively scratch and chemical resistant, it has a low bubble and inclusion content, therefore making it an ideal choice for precision lenses. It is the ideal choice for general purpose visual and NIR

applications as it has excellent transmission.


General Specifications

Material

BK 7

Type

Laser Line Non-Polarizing Beamsplitter Cube

Polarization

|Rs-Rp|<6%, |Ts-Tp|<6%

Surface Quality

40/20

Clear Aperture

>90%

Surface Flatness

<λ/4

Transmitted Beam Deviation(arcmin)

<3

Reflected Beam Deviation(arcmin)

<3

Angle of Incidence(degree)

0

Absorption

<10%

Split Ratio

45:45±5%

Chamfer

0.5mmx45°

Damage Threshold(pulsed)

7.5J/cm²(10ns 10Hz)



Laser Line Non-Polarizing Beamsplitter Cube, Beamsplitter Cube www.simtrum.com      Laser Line Non-Polarizing Beamsplitter Cube, Beamsplitter Cube www.simtrum.com

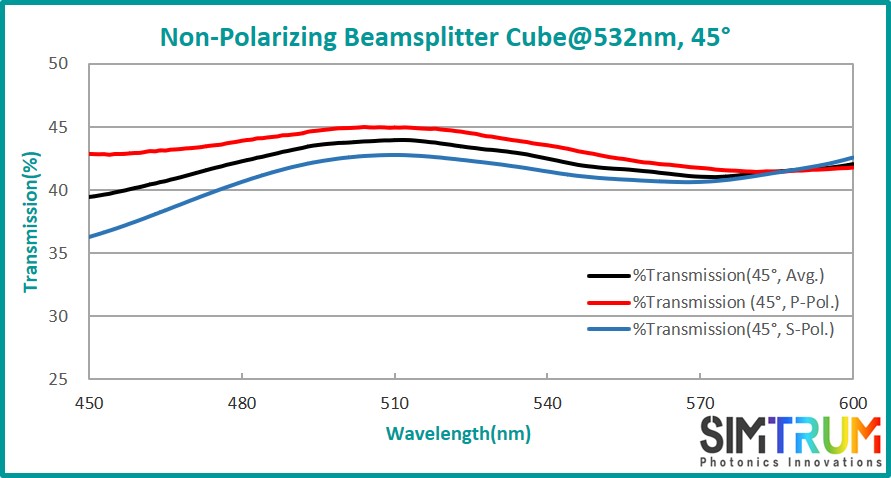

Non-Polarizing Beamsplitter Cube@532nmNon-Polarizing Beamsplitter Cube@633nm


           Laser Line Non-Polarizing Beamsplitter Cube, Beamsplitter Cube www.simtrum.com

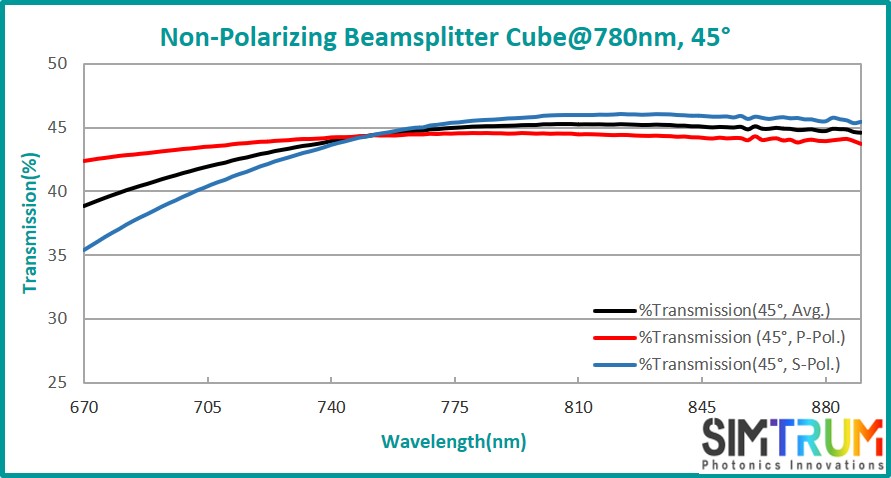

Non-Polarizing Beamsplitter Cube@780nm



For technical assistance or a quotation, drop us an email at info@simtrum.com.

We will get back to you within 3 working days.


SINGAPORE: For same day service, please contact us at 6996 0391. Office Hours: 9am - 6pm (+8GMT)

For more contact information click here.



Dimension (A=B=C) (mm)

Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Wavelength (nm) Dimension (A=B=C) (mm) Split Ratio Availability Reference Price
(USD)
BK7-LNPBSC-10-532
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=10mm, Coating: Ravg < 0.5% @ 532nm 		5321045:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-10-633
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=10mm, Coating: Ravg < 0.5% @ 633nm 		6331045:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-10-780
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=10mm, Coating: Ravg < 0.5% @ 780nm 		7801045:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-12.7-1064
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=12.7mm, Coating: Ravg < 0.5% @ 1064nm 		106412.745:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-12.7-1310
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=12.7mm, Coating: Ravg < 0.5% @ 1310nm 		131012.745:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-12.7-488
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=12.7mm, Coating: Ravg < 0.5% @ 488nm 		48812.745:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-12.7-532
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=12.7mm, Coating: Ravg < 0.5% @ 532nm 		53212.745:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-12.7-633
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=12.7mm, Coating: Ravg < 0.5% @ 633nm 		63312.745:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-12.7-670
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=12.7mm, Coating: Ravg < 0.5% @ 670nm 		12.745:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-12.7-780
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=12.7mm, Coating: Ravg < 0.5% @ 780nm 		78012.745:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-20-532
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=20mm, Coating: Ravg < 0.5% @ 532nm 		5322045:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-20-633
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=20mm, Coating: Ravg < 0.5% @ 633nm 		6332045:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-20-780
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=20mm, Coating: Ravg < 0.5% @ 780nm 		7802045:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-25.4-1064
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=25.4mm, Coating: Ravg < 0.5% @ 1064nm 		106425.445:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-25.4-1310
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=25.4mm, Coating: Ravg < 0.5% @ 1310nm 		131025.445:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-25.4-488
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=25.4mm, Coating: Ravg < 0.5% @ 488nm 		48825.445:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-25.4-532
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=25.4mm, Coating: Ravg < 0.5% @ 532nm 		53225.445:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-25.4-633
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=25.4mm, Coating: Ravg < 0.5% @ 633nm 		63325.445:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-25.4-670
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=25.4mm, Coating: Ravg < 0.5% @ 670nm 		25.445:45±5% 2-3 Weeks Request for quote
BK7-LNPBSC-25.4-780
BK7, Laser Line Non-Pol Beamsplitter Cube, Dimension=25.4mm, Coating: Ravg < 0.5% @ 780nm 		78025.445:45±5% 2-3 Weeks Request for quote

BK7-LNPBSC-25.4-780 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 780nm

Wavelength (nm)
780

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<4λ@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-25.4-670 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating

Wavelength (nm)

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<4λ@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-25.4-633 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 633nm

Wavelength (nm)
633

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<4λ@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-25.4-532 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 532nm

Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<4λ@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-25.4-488 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating

Wavelength (nm)
488

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<4λ@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-25.4-1310 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1310nm

Wavelength (nm)
1310

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<4λ@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-25.4-1064 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1064nm

Wavelength (nm)
1064

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-20-780 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 780nm

Wavelength (nm)
780

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-20-633 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 633nm

Wavelength (nm)
633

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-20-532 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 532nm

Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-12.7-780 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 780nm

Wavelength (nm)
780

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-12.7-670 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating

Wavelength (nm)

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-12.7-633 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 633nm

Wavelength (nm)
633

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-12.7-532 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 532nm

Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-12.7-488 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating

Wavelength (nm)
488

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-12.7-1310 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1310nm

Wavelength (nm)
1310

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-12.7-1064 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 1064nm

Wavelength (nm)
1064

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-10-780 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 780nm

Wavelength (nm)
780

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-10-633 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 633nm

Wavelength (nm)
633

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-10-532 - Parameter

Type
Laser Line Non-Polarizing Beamsplitter Cube

Material
BK7

Coating
Ravg < 0.5% @ 532nm

Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
>100mJ/cm²(20ns 20Hz @1064nm)

Dimensional Tolerance (mm)
±0.15

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Split Ratio
45:45±5%

Reflected Beam Deviation (arcmin)
<3

Polarization
|Rs-Rp|<6%, |Ts-Tp|<6%

Absorption
<10%

BK7-LNPBSC-25.4-780 - Download

Download

Download

Download

Download

BK7-LNPBSC-25.4-670 - Download

Download

Download

Download

Download

BK7-LNPBSC-25.4-633 - Download

Download

Download

Download

Download

BK7-LNPBSC-25.4-532 - Download

Download

Download

Download

Download

BK7-LNPBSC-25.4-488 - Download

Download

Download

Download

Download

BK7-LNPBSC-25.4-1310 - Download

Download

Download

Download

Download

BK7-LNPBSC-25.4-1064 - Download

Download

Download

Download

Download

BK7-LNPBSC-20-780 - Download

Download

Download

Download

Download

BK7-LNPBSC-20-633 - Download

Download

Download

Download

Download

BK7-LNPBSC-20-532 - Download

Download

Download

Download

Download

BK7-LNPBSC-12.7-780 - Download

Download

Download

Download

Download

BK7-LNPBSC-12.7-670 - Download

Download

Download

Download

Download

BK7-LNPBSC-12.7-633 - Download

Download

Download

Download

Download

BK7-LNPBSC-12.7-532 - Download

Download

Download

Download

Download

BK7-LNPBSC-12.7-488 - Download

Download

Download

Download

Download

BK7-LNPBSC-12.7-1310 - Download

Download

Download

Download

Download

BK7-LNPBSC-12.7-1064 - Download

Download

Download

Download

Download

BK7-LNPBSC-10-780 - Download

Download

Download

Download

Download

BK7-LNPBSC-10-633 - Download

Download

Download

Download

Download

BK7-LNPBSC-10-532 - Download

Download

Download

Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
