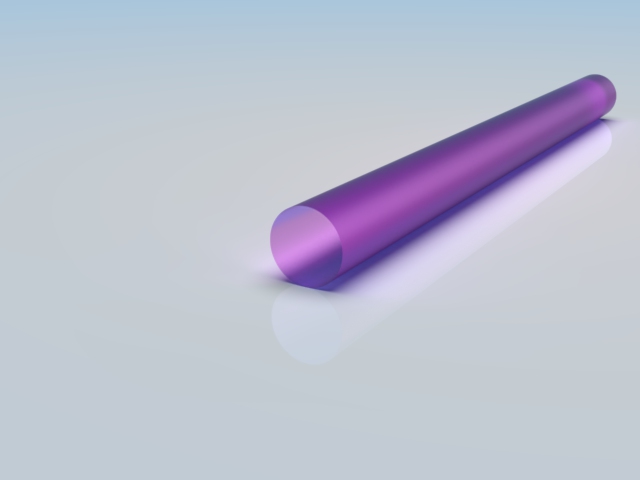

Nd:YAG
Overview Specification Order Now!


Nd:YAG(neodymium-doped yttrium aluminium garnet Y3Al5O12) is a crystal that is suitable for high powered and Q-switched lasers due to its good fluorescent lifetime thermal conductivity and crystal strength. It has a four-level gain medium with a narrow gain bandwidth, giving it high gain efficiency and low threshold pump power. The most common emission wavelength out of the four-gain medium is 1064nm. The next common one would be the 532nm wavelength by Q-switching used for dermatology purposes.


Nd:YAG can go up to fourth order harmonic generation. While increasing the concentration of neodymium doping can reduce pump absorption length, excessive doping can quench the upper-state lifetime due to the up-conversion process.




General Specifications

Material

Nd:YAG

Diameter Tolerance(mm)

±0.1

Surface Quality

10/5

Flatness

<λ/6@633nm

Wavefront Distortion

λ/8

Parallelism(arcsec)

<20



Properties of 1.0% Nd:YAG at 25 °C

Chemical formula

Y2.97Nd0.03Al5O12

Crystal structure

Cubic

Density

4.55g/cm3

Melting point

1970 °C

Mohs hardness

8.5

Transition

  4 F3/2 → 4 I11/2 @ 1064 nm

Fluorescence lifetime

230 μs for 1064 nm

Thermal conductivity

0.14Wcm-1K-1

Specific heat

0.59Jg-1K-1

Thermal expansion

6.9 ×10-6°C-1

∂n/∂t

7.3 ×10-6°C-1

Young’s modulus

3.17 × 104Kg/mm-2

Poisson ratio

0.25

Thermal shock resistance

790Wm-1

Refractive index

1.818 @ 1064 nm
