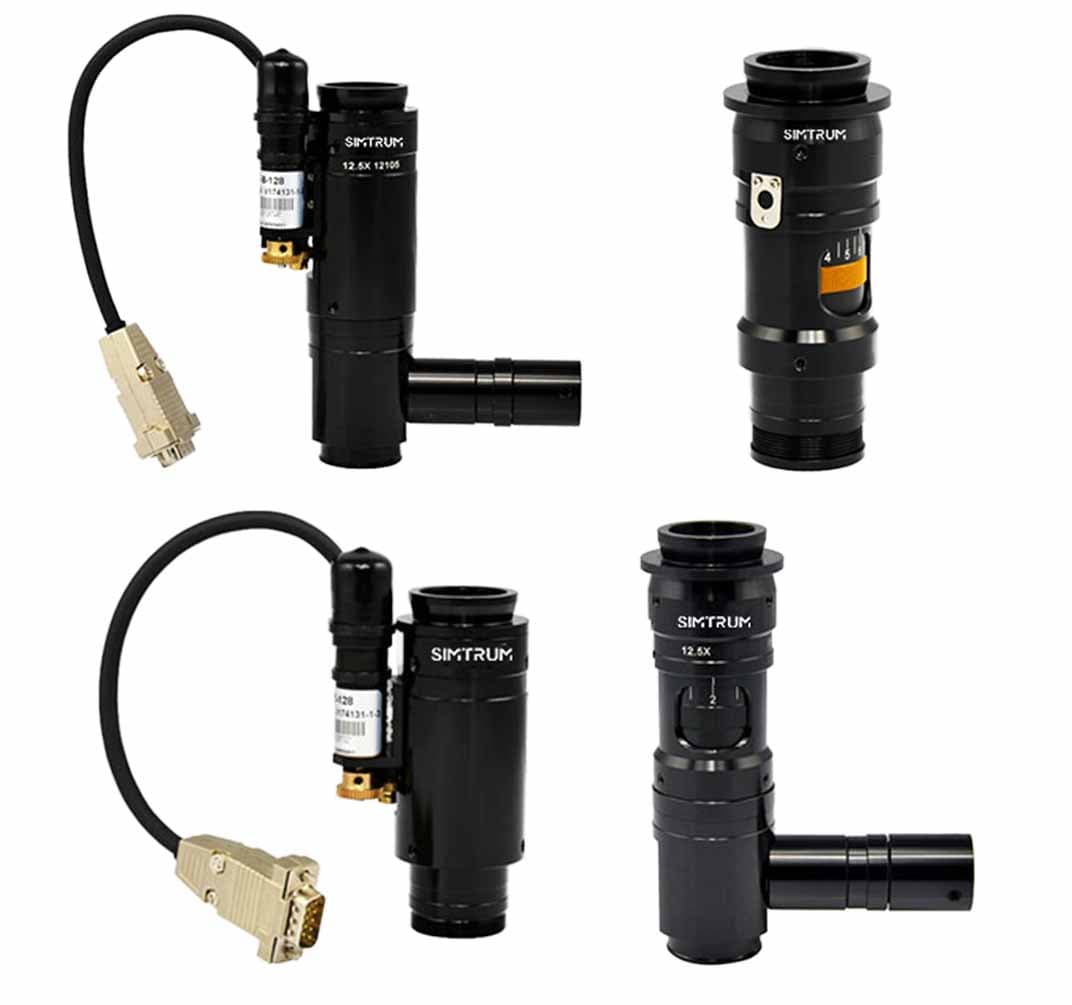

Simtrum’s Z125 Series Zoom Lens is a 12.5:1 telecentric zoom lens, featuring a magnification range of 0.58x to 7.5x and engineered for exceptional performance with high resolution, minimal distortion, and a large numerical aperture (N). Designed for compactness and ease of assembly, it offers a field of view from 1.47mm to 18.97mm based on a 2/3" CCD, making it ideal for applications in the semiconductor, automation, and communication fields.

The detented zoom allows for precise and repetitive positioning with either 15 or 16 divided points for mechanical positioning, crafted from high-hardness alloy for durability. Coaxial illumination ensures shadow-free, high-contrast images suitable for observing reflective surfaces such as polished samples and deep holes.

Feature

• Telecentric optical design. Magnification range: 0.58x-7.5xmagnification ratio is 12.5:1
• Field of view: 1.47-18.97mm(based on 2/3"CCD)
• Excellent performance, with high resolution, low distortionand super big N:A
• Compact design,easy assemblly and installation

Application

• Semiconductor
• Automation
• Communication fields

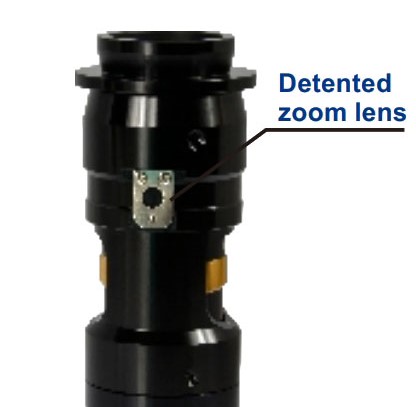

Detented Zoom Lens

• High accuracy in zoom and repetitiv positioning
• 15 divided points or 16 divided points for mechanical positioning
• High hardness alloy material, for a long lifespan; Precision mechanical structure

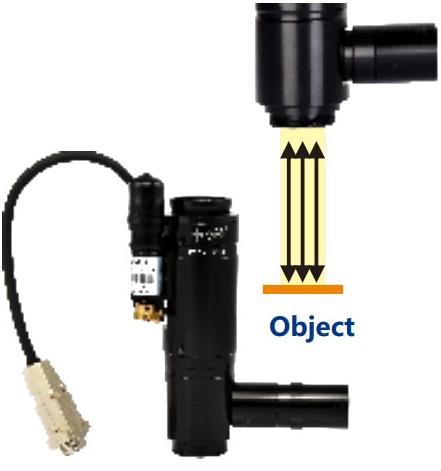

Coaxial lllumination

• Infinity parallel incident light, with shadow-free and uniform illumination
• High contract and vivid color image, for better image quality
• Applied for reflective surface observation: waters，polishing samples, deep holes, etc

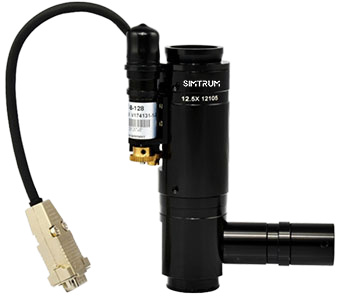

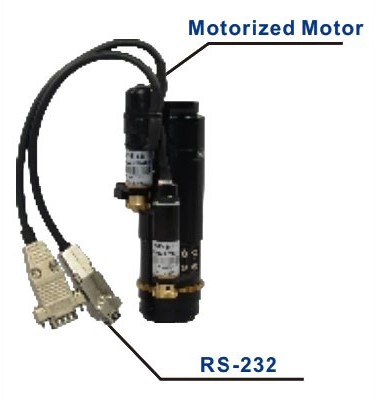

 Motorized Zoom

• High speed in zoom and focus and high accuracy in repetitive positioning
• Imported DC servo motor, closed-loop control
• Stable quality even in the strong vibration environment

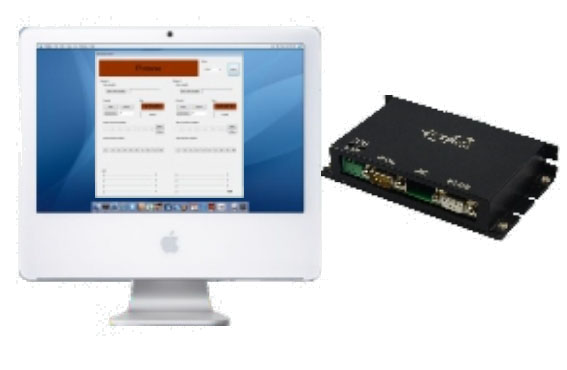

 Motorized Controller

• The integrated motorized control systems are available for all the SIMTRUM'S zoom lenses
• Motorized controlling system can control singleor dual channels via RS232 or USB:
• Underlying sourcing code will be provided
