Compact Uncooled LWIR Thermal Image Camera for Drone
STiLC Series STiTL612 STWIN Series Software Related Products Order Now!

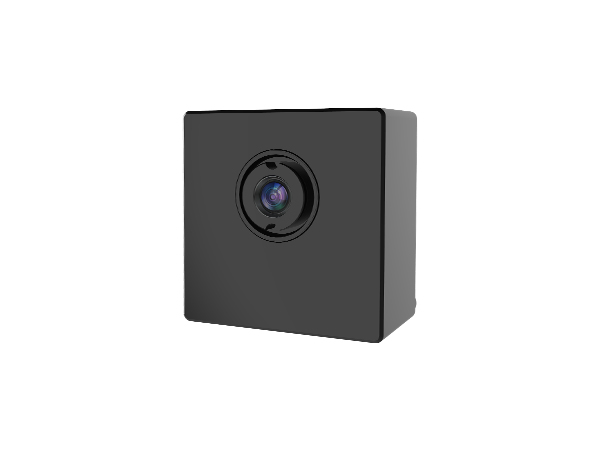

STiLC212 - iLC Series 256x192 VOx Uncooled Thermal Modules

Oriented for optimal Size-Weight-and Performance-Cost (SWaP-C), the STiLC212 thermal module delivers sharp, smooth thermal image and provides various standard interfaces to facilitate the secondary development of our customers. Its cost control accelerates the popularization of thermal imaging technology in the consumer industries, such as Community Fireproof & Theftproof, Smart Building, Smart Breeding, Home Care, etc.





Feature

Optimal SWaP-C

- Reduced cost: self-developed WLP 256x192/12um infrared detector with high annual output

- Miniature size: 21mm x 21mm x 12.8mm (with 3.2mm lens)


Intelligent & Precise

- Powerful processing algorithm: NUC, 3DNR, DNS, DRC, EE

- Non-contact temperature measurement with a range of -20℃ to 150 ℃ and remarkable accuracy of ±3℃ or ±3%


Easy Integration

- Provide Windows/Linux SDK

- Various interfaces: 30pin-HRS/RS232-TTL/USB2.0/GPIO

- Digital video output: RAW/YUV/BT656



Applications

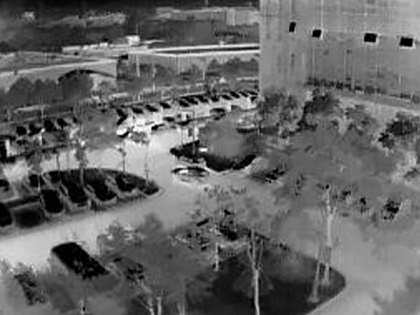

Security Monitoring

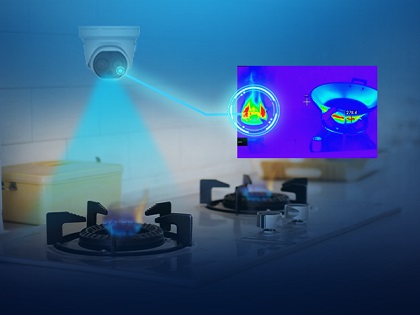

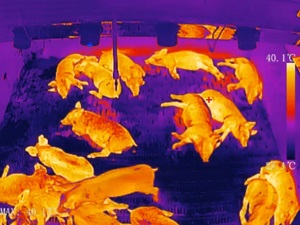

Smart HomeLiving Creatures Detection



Product specifications and Brochures

Product Brochure Link:

ModelSTiLC212RSTiLC212R-P
IR Detector Performance
Sensitive MaterialVanadium Oxide
Resolution256×192
Pixel Size12μm
Spectral Response8μm ~14μm
Typical NETD≤45mK
Image Processing
Frame Rate25Hz/30Hz
Start-up Time3s
Digital VideoRAW/YUV/BT656
Image AlgorithmNon-uniformity Correction (NUC)  3D Noise Reduction (3DNR)  2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)  Edge Enhancement (EE)
Image Display Black Hot/White Hot/Pseudo Color
PC Software
ICC SoftwareModule Control and Video Display
Electrical Characteristics
Standard External Interface30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male）
USB Extension BoardType-C
Communication InterfaceTTL-RS232/USB2.0
Digital Video InterfaceCMOS8/USB2.0
Supply Voltage3.3V±0.1V VDC
Typical Power Consumption0.7W
Temperature Measurement
Operating Temperature Range-10℃ to 50℃
Temperature Measurement Range-20℃ to 150℃; Support Customization and Expansion
Temperature Measurement AccuracyGreater of ±3℃/±3% (@23℃±3℃)
Temperature Measurement Distance is 1.5m		Greater of ±8℃/±8% (@23℃±3℃)
Temperature Measurement Distance is 1.5m
Regional Temperature MeasurementSupport Maximum, Minimum and Average Value of the Output Regional Temperature
SDKWindows / Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm)21×21×12.8 (With 3.2mm Lens)21×21×17.4 (With 3.2mm Lens)
Weight8.6g±1g (With 3.2mm Lens)13g±1g (With 3.2mm Lens)
Installation InterfaceM1.6x3.3; Two Interfaces / Surface; 2 Surfaces in Total
Environmental Adaptability
Operating Temperature-40℃～+70℃
Storage Temperature-45℃～+85℃
Humidity5%~95%, non-condensing
Vibration5.35grms, 3-axis
ShockHalf Sine Wave, 40g/11ms, 3-axis, 6-direction
CertificationROHS2.0/REACH
Optics
Optional Lens3.2mm/F1.1; HFOV: 55.6±2.8°; Coating: AR; Fixed Athermal
Protection Level/IP67

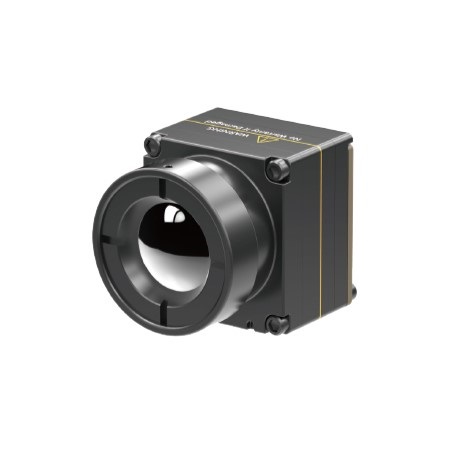

STiTL612 –  STiTL Series 640x512 VOx Uncooled Thermal Modules

The STiTL612 uncooled thermal module is small in size and light in weight, which provides a  reliable solution for infrared system integration with limited space. Its compact structure has reached the ultimate level of the same specification module. It is specially developed for the field of electric power inspection, photovoltaic inspection, environmental protection detection, scientific research, aerial photography, police investigation, disaster relief & rescue,  forest fire prevention, urban safety, etc.


Feature

Compact & Lightweight Design

- Size: 21mm x 21mm x 13.5mm

- Weight: <20g (with 9.1mm lens)

- Low power consumption as low as 0.7W


Clear Image & Accurate Radiometry

- Brand new image process algorithm: NUC/3DNR/DNS/DRC/EE

- Regional, point & isotherm temperature measurement


Common Interfaces for Easy Integration

- Support Windows/Linux SDK

- DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output, serial port control



Applications

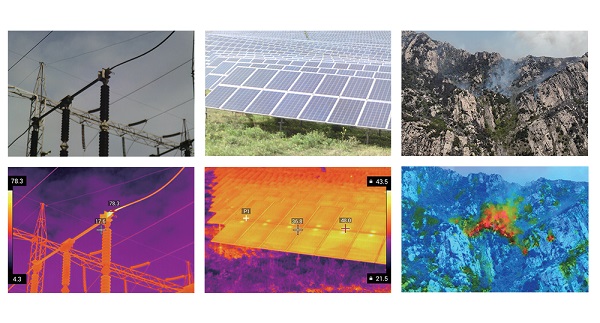

- UAV Payloads

- Wearable Devices




Product specifications and Brochures

Product Brochure Link:

ModelSTiTL612/R
IR Detector Performance
Sensitive MaterialVOx
Resolution640x512
Pixel Size12μm
Spectral Response8~14μm
Typical NETD≤40mk
Image Processing
Frame Rate30Hz
Start-up Time5s
Digital VideoRAW/YUV/BT656
Image AlgorithmNon-uniformity Correction (NUC)  3D Noise Reduction (3DNR)  2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)  Edge Enhancement (EE)
Image Display Black Hot/White Hot/Pseudo Color
PC Software
ICC SoftwareModule Control and Video Display
Electrical Characteristics
Standard External Interface30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male）
USB Extension BoardType-C
Communication InterfaceRS232-TTL/USB2.0
Digital Video InterfaceCMOS8/USB2.0
Supply Voltage3.3V±0.1V VDC
Typical Power Consumption0.7W
Temperature Measurement
Operating Temperature Range-10°C to 50°C
Temperature Measurement Range-20°C to 150°C, 0°C to 550°C; Support Customization and Expansion
Temperature Measurement AccuracyGreater of ±3°C or ±3% (@23℃±3℃)
Regional Temperature MeasurementSupport Maximum, Minimum and Average Value of the Output Regional Temperature
SDKSupport Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm)21×22.3×27.3 (With 9.1mm Lens)
Weight20.8g±1.5g (With 9.1mm Lens)
Installation Interface/
Environmental Adaptability
Operating Temperature-40°C to 70°C
Storage Temperature-45°C  to  85°C
Humidity5% to 95%, Non-condensing
Vibration5.35grms, 3 Axis
ShockHalf-sine Wave, 40g/11ms, 3 Axis 6 Direction
CertificationROHS2.0/REACH
Optics
Optional LensFixed Athermal: 9.1mm

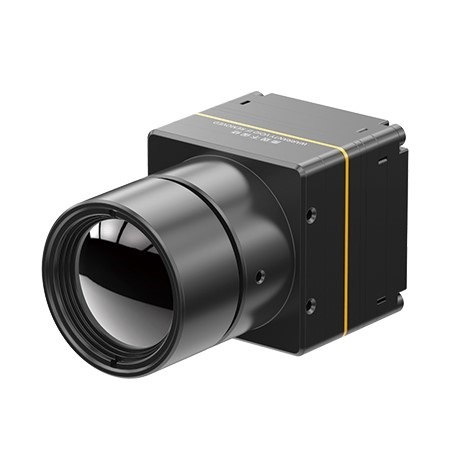

STWIN Series Uncooled Thermal Modules

STWIN series uncooled thermal modules integrate the self-developed ceramic package infrared detector, high-performance signal processing circuit and enhanced image algorithm to output clear, sharp images and accurate temperature data. Its compact design and lightweight structure could satisfy customers’ strict integration requirements on size, weight and power consumption.


STWIN612 integrates a 640x512/12um ceramic package uncooled infrared detector. With typical NETD < 40mk, the STWIN612 thermal module could present a clearer, sharper and more detailed image.


STWIN412 uses 384x288/12um ceramic package infrared detector. The thermal module supports 11 pseudo-color in total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot). Different industries have different color palette choices.



Features

Optimal SWaP-C

- Size: 25.4x25.4x35mm (without lens)

- Light weight: 25g (without lens)

- Power consumption as low as 0.8W


Outstanding Performance

- Powerful image process algorithm: NUC/3D/2D/DRC/EE

- Temperature measurement accuracy: ±2℃ or ±2%

- Temperature measurement range: -20℃ to 150 ℃, 0 to 550 ℃ (customizable)


Strong Universality

- Image data output: YUV/BT.656/LVDS/USB2.0

- Support Windows/Linux SDK; achieve video stream analysis and conversion from gray to temperature.

- Good stability in various harsh environments


Applications

- UAV Payloads

- Intelligent Hardware

- Thermography


- Security Monitoring

- Robots

- Firefighting & Rescue

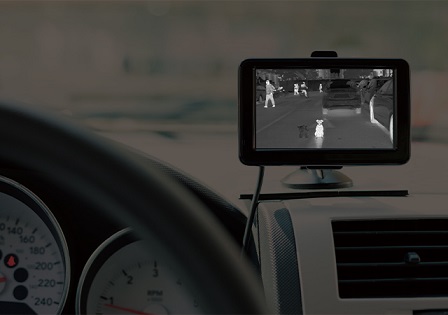

- ADAS






Product specifications and Brochures

Product Brochure Link:

ModelSTWIN612/RSTWIN412/R
IR Detector Performance
Resolution640×512384×288
Pixel Size12μm
Spectral Response8~14μm
Typical NETD＜40mK
Image Processing
Frame Rate25Hz/30Hz25Hz/30Hz/50Hz
Start-up Time6s
Digital VideoYUV/BT.656/LVDS/USB2.0
Analog VideoPAL/NTSC
Image AlgorithmNUC/3D/2D/DRC/EE
Image Display 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot)
Electrical Characteristics
Standard External Interface50pin_HRS
Communication InterfaceRS232/USB2.0
Supply Voltage4~5.5V
Typical Power Consumption0.8W
Temperature Measurement
Operating Temperature Range-10℃ to 50℃
Temperature Measurement Range-20℃ to 150℃, 0℃ to 550℃
Temperature Measurement AccuracyGreater of ±2℃ or ±2%
SDKWindows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm)25.4×25.4×35 (Without Lens)
Weight25g (Without Lens)
Environmental Adaptability
Operating Temperature-40℃ to 70℃
Storage Temperature-45℃ to 85℃
Humidity5% to 95%, non-condensing
Vibration5.35grms, 3 Axis
ShockHalf Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Optics
Optional LensFixed Athermal: 13mm



Below are the Driver & Software, or you can Click Here to drop us a message for technical assistance.



Control
SDK
Driver
