Cooled MIR & LWIR Infrared Detectors
Overview Specifications Related Products Order Now!

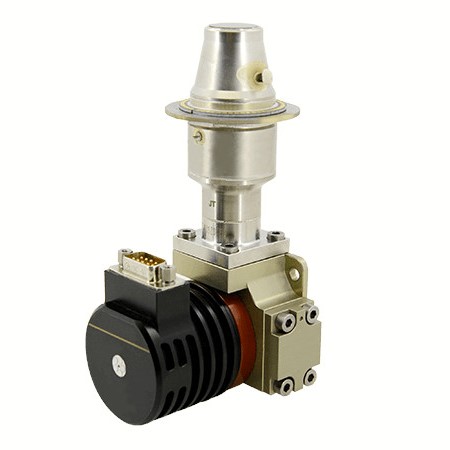

STC330S - 320X256 MW/LWIR Cooled Infrared Detector

STC330S MW/LW Dual-color is one of T2SL cooled infrared detectors offered by SIMTRUM. It combines the advantages of both medium and long wave detection in one single 320x256@30µm infrared detector package for high-performance imaging in the 3.7~4.8μm Medium Wave Infrared (MWIR) and 7.7~9.5μm Long Wave Infrared (LWIR) wavebands, which can greatly lower the false warning rate.


Each of the 320x256 pixels in the array can be switched between MWIR and LWIR sensitivity mode by changing the bias voltage on the device, ensuring spatial coherence between the two bands. Images/videos from both bands can be captured and output within a single frame period, optimizing the temporal coherence between bands. The frame frequency of both bands can be up to 100Hz for monitoring the high-speed moving targets.



Feature

- Resolution: 320X256

- Pixel Pitch: 30um

- High Sensitivity




- Compact Design

- Lightweight

- Low Power Consumption

Applications

- Remote Moitoring System

- Hand-held Reconnaissance System

- Multi-sensor Payload




- Search & Tracking System

- Enhanced Flight Vision System (EVS)

- Gas Detection



Product specifications and Brochures

Product Brochure Link:

Specification
ModelSTC330S MWIR/LWIR
MaterialT2SL
Resolution320x256
Pixel Pitch30μm
Spectral RangeMW: 3.7μm～4.8μm
LW: 7.7μm～9.5μm
Working ModeSnapshot; ITR Integration Mode; Windows Mode; Anti-blooming
Charge CapacityMW: 8.9Me-/3Me-
LW: 21Me-
Dynamic RangeMW：≥76dB
LW：≥80dB
Numberof Output2 or 8; Up to 12 Mpixel/s per Output
NETDMW≤20mK
LW≤25mK
Effective Pixel Rate≥99.0%
Response Non-uniformity≤8%
Cryocooler TypeRS058
Steady Power Consumption＜9W
Max Power Consumption＜18W
Power supply24V DC
Cooling Time＜8min
Weight≤600g
Dimension (mm)142x58.5x71
Working Temperature-45°C ~ +71°C
