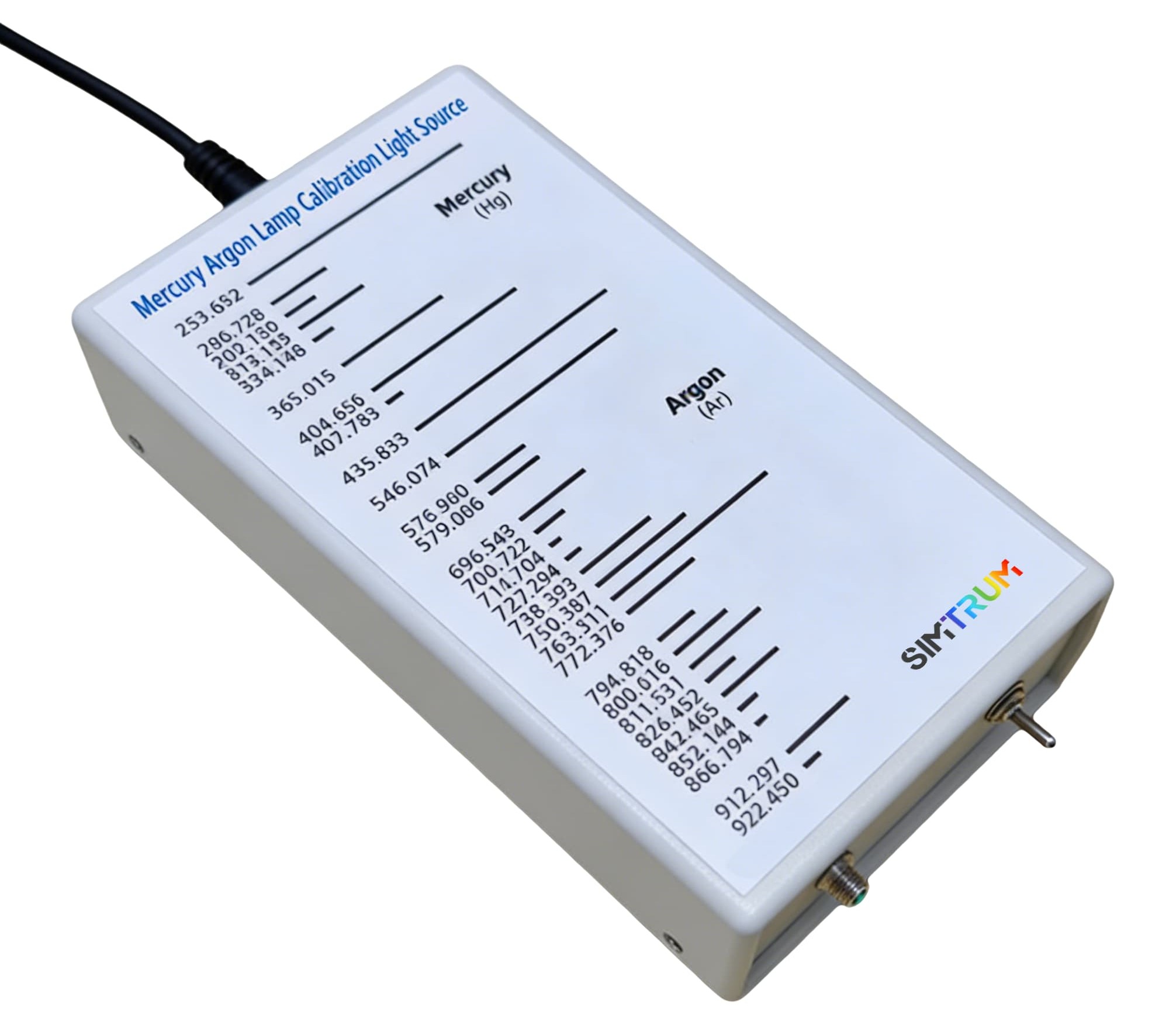

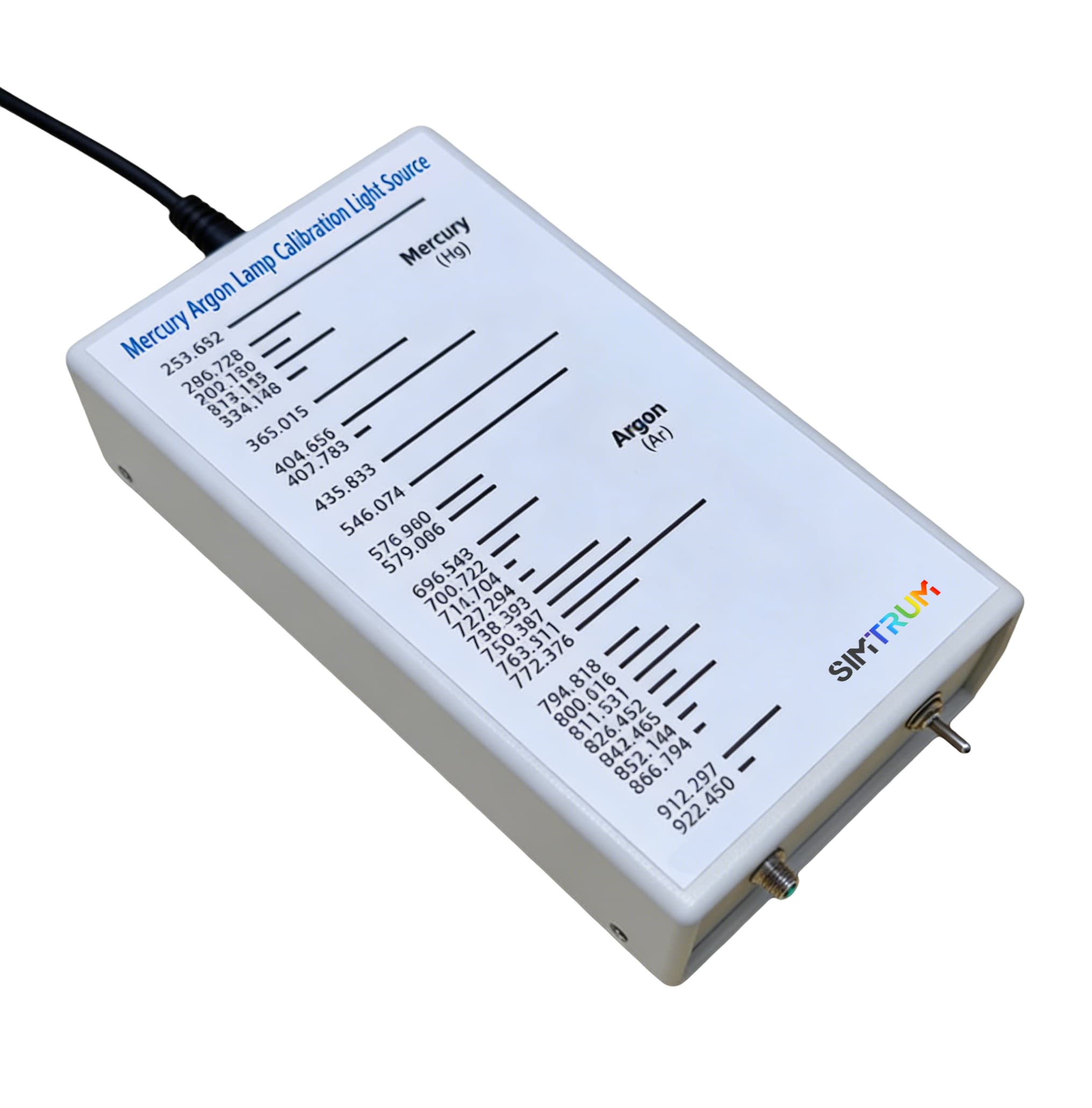

HG-1 Mercury-argon Calibration Light Source

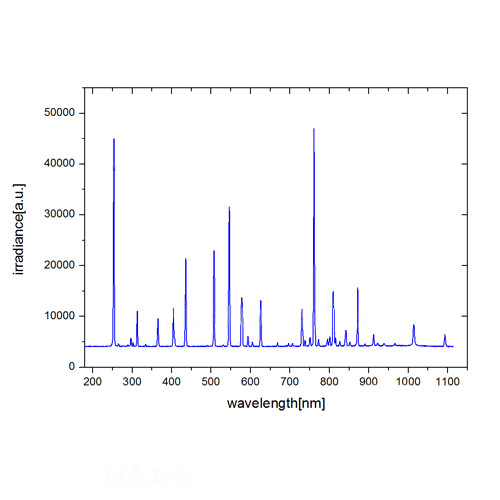

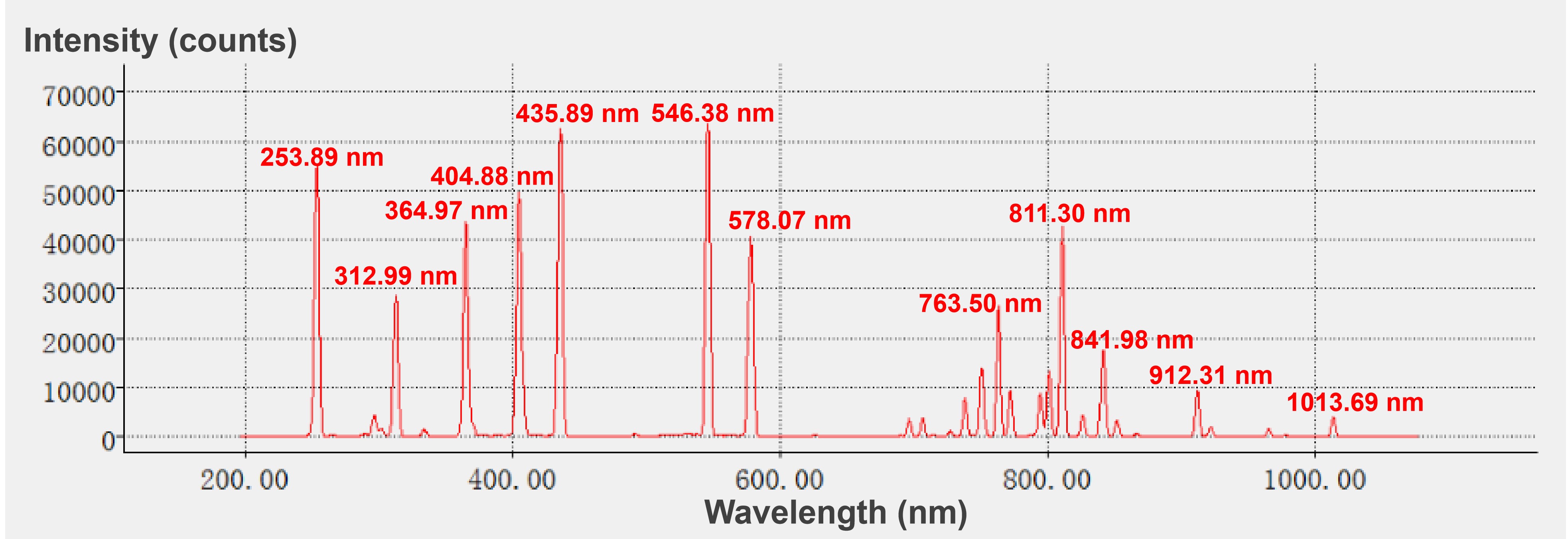

The mercury-argon lamp is a compact, low-cost HG-1 mercury-argon calibration light source, which is a wavelength calibration light source for UV-VIS-NIR spectroscopy systems. The HG-1 produces a spectral range of 253-1700nm UV-Vis for fast, reliable wavelength correction. Easily identifiable mercury and argon transmission lines are printed on the housing. Our spectrometers are carefully calibrated. However, the wavelength shifts slightly over time and as the environment changes. If wavelength accuracy is important to your application, you may consider calibrating the wavelength every time. You can retune the optical spectrometer to perform a linear regression using the characteristic peaks in the spreadsheet below.
Features
● SMA905 connector (FC connector optional)
● Wavelength range 253-1700nm
● Calibrate the light source. Generates mercury and argon atomic emission lines for calibrating spectrometers
● Easy to operate. The spectrometer system can be calibrated with only a power supply and fiber optics.
● The curves obtained by spectrometers with different responses will be somewhat different.
Product specifications and Brochures
Product Brochure Link:
NE-1 Neon Calibration Light Source
The compact low-cost NE-1 calibration light source is suitable for wavelength calibration in the visible and near-infrared regions. The NE-1 produces transmission lines in the 540 - 754 nm range and is suitable for performing fast and reliable spectrometer wavelength calibration. Easily identifiable transmission lines are printed on the NE-1 housing. The NE-1 can be used to confirm the wavelength accuracy of either spectrometer and, if necessary, to recalibrate the spectrometer. The NE-1 operates from a 12 VDC power supply (included in the product). Any SMA fiber or FC fiber can be used to connect to the NE-1.
Product Details
● Mainly used for visible-NIR wavelength calibration without intensity calibration
● Calibration lines are printed on the luminaire housing for ease of use
Spectral Curve
XE-1 Xenon Lamp Calibration Light Source

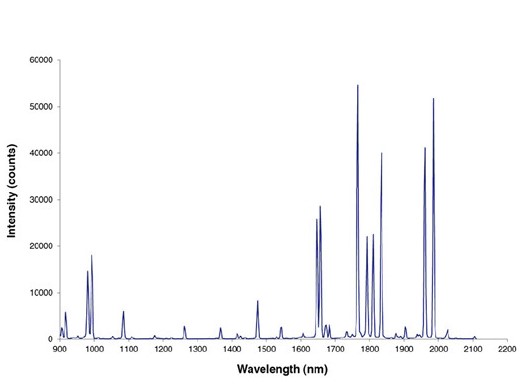

The XE-1 is a light source that produces xenon atomic emission lines in the wavelength range 916-1984 nm. For quick and reliable calibration of spectral analysis instruments! It gives all xenon characteristic lines from 916-1984 nm. Through the standard SMA905 or FC/PC interface, the light source can be quickly connected to the optical fiber, so the wavelength calibration of the optical fiber spectrometer can be very easy. In addition, there are wavelength-calibrated light sources suitable for other wavelength bands, such as Neon Lamp NE-1 (340-1100nm) and Mercury-Argon Lamp (253-1700nm).
● Imported high-quality bulbs are used, with a lifespan of up to 3000 hours, low power, only 3 watts;
● It can be used in various optical fiber interface type spectral analysis instruments for wavelength calibration;
● Small size, size: 60mm x 45mm x 40mm;
● Wide wavelength range, 916-1984 nm; SMA905 interface output;
● Powered by 12V 2A DC, equipped with a power adapter;
● All aluminum alloy shell;
● The light source bulbs are consumables, please replace them before the service life is reached.
Technical Support Available: Contact us | You can download our full Product Line Card Click Here
