Products / Imaging /Scientific CMOS Cameras /Intensified CMOS Camera (200-1100nm) /High-speed Gated iCMOS Camera /

High-speed Gated iCMOS Camera

Overview Specification Photocathodes & Phosphor Related Products Order Now!

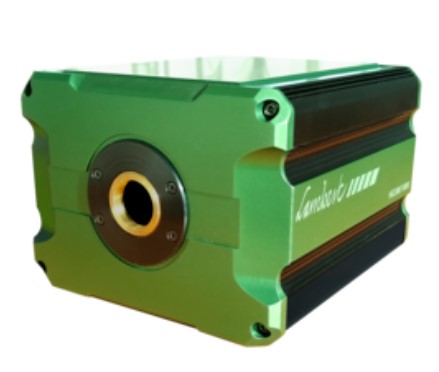

High-speed Gated Intensified Camera

The HiCAM is an integrated camera system that was designed for high-speed imaging in low-light conditions. It features a 1.3 megapixel image sensor that captures detailed images at high frame rates of up to 500 fps at full resolution. Reducing the resolution allows for even higher framerates.

A high-quality image intensifier boosts light levels, which offers a unique combination of exposed high-speed recordings in low-light conditions. The dual-stage image intensifier can be equiped with a variaty of photocathodes; ranging from ultraviolet to infrared. And because the image intensifier is fiber-optically coupled, the signal-to-noise ratio of the camera is far superior to a lens-coupled system.

With gating, the image intensifier is used as an ultra high speed shutter, reducing the effective exposure time. This enables time-resolved filtering and also eliminates motion blur. The fanless design of the camera minimizes vibrations to ensure sharp images.

Data can either be temporarily stored in the built-in memory of the HiCAM 500 or streamed directly to a frame grabber by the HiCAM 500S. Camera control and data download is done over a gigabit ethernet connection using the bundled software. Intensifier gain and gating are also configurable from the software.

Features

● High resolution image intensifiers

Gen II and Gen III image intensifiers offering the world’s highest resolution and sensitivity in the

UV, visible or near infrared.

● Small gate widths

Down to 40 ns (FWHM) with minimal jitter.

● High gate repetition rates

Up to 100 kHz.

● Compact design

For an easy fit to your imaging or spectroscopy setup.

Applications

● Combustion research

● Plasma physics

● Time-resolved fluorescence

● Dynamic phenomena in microscopy

● Laser Induced Fluorescence (LIF)

● Particle Image Velocimetry (PIV)

● Micro-fluidics

● Blood-flow analysis

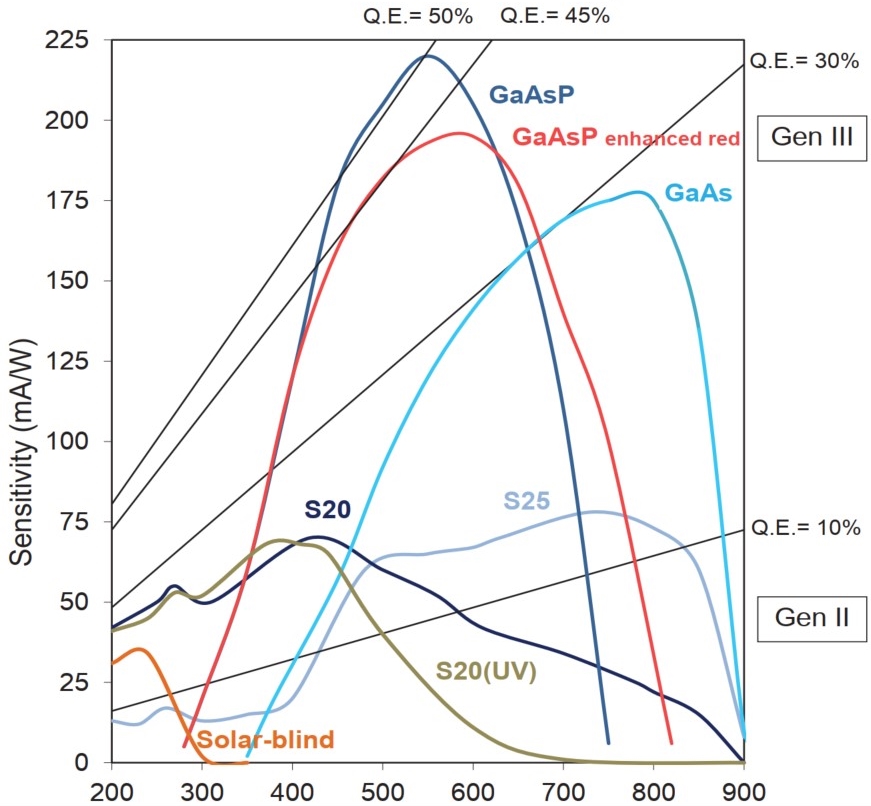

Intensifier Sensitivity		Phosphor Response Time

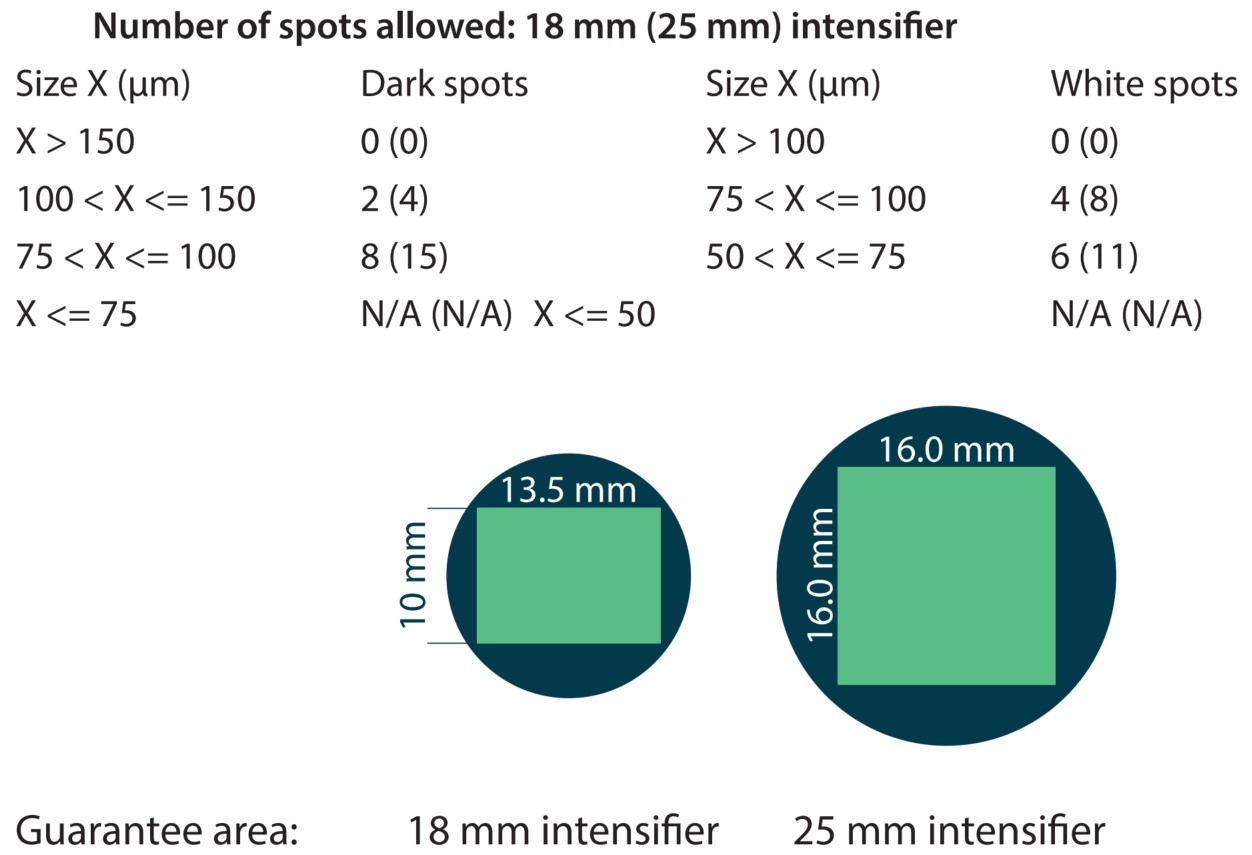

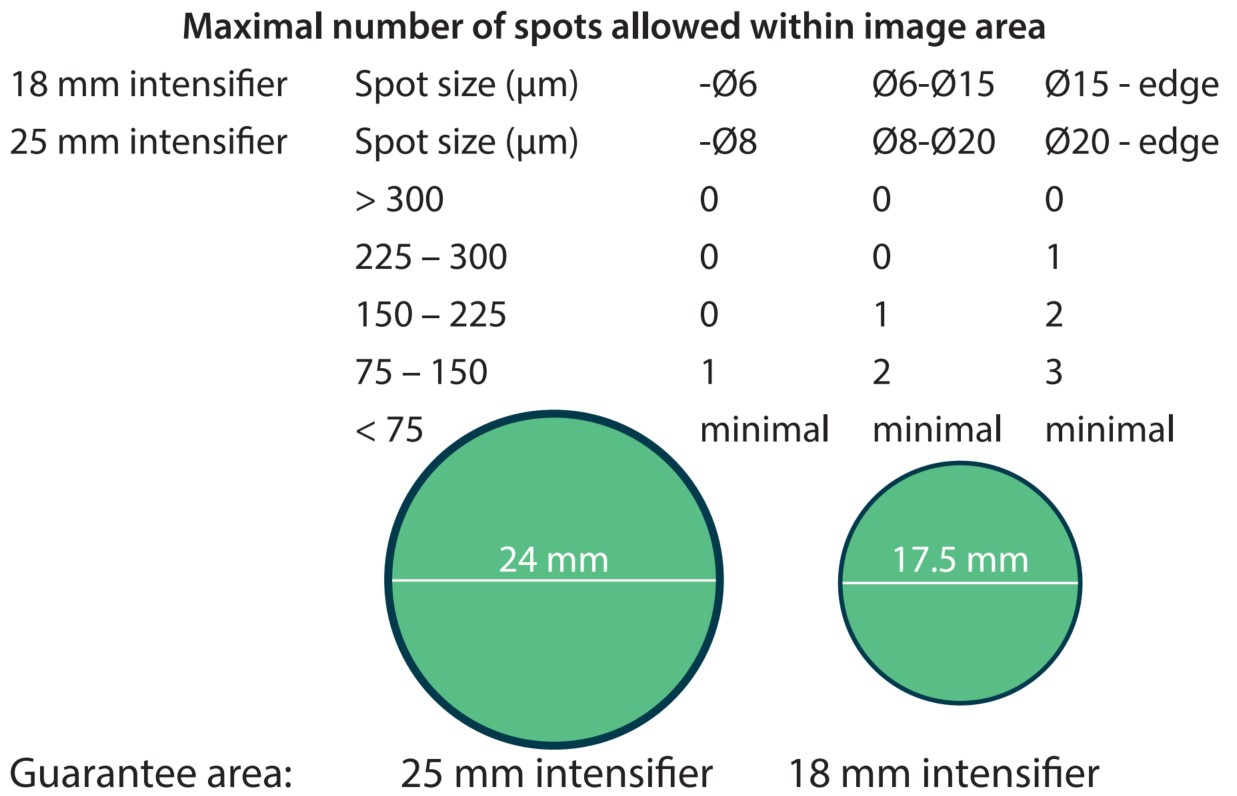

S20 and S25 intensifier quality The number of dark spots, exceeding a contrast with their surrounding area of 20%, is less than or equal to the number indicated below. The size of non-circular spots is determined on the basis of equal area to circular spots. When the distance between two spots is less than the maximum dimension of either spot, the two spots are considered to be one spot. There shall be no bright spots in the active area.		GaAs and GaAsP intensifier quality The dark and white spots which exceed a contrast of 30 percent of their surrounding area should not exceed the following values over the guarantee area. Spot size is defined as the diameter of the circle, with an area equal to the area of the spot. N/A denotes 'Not applicable' in the table below.

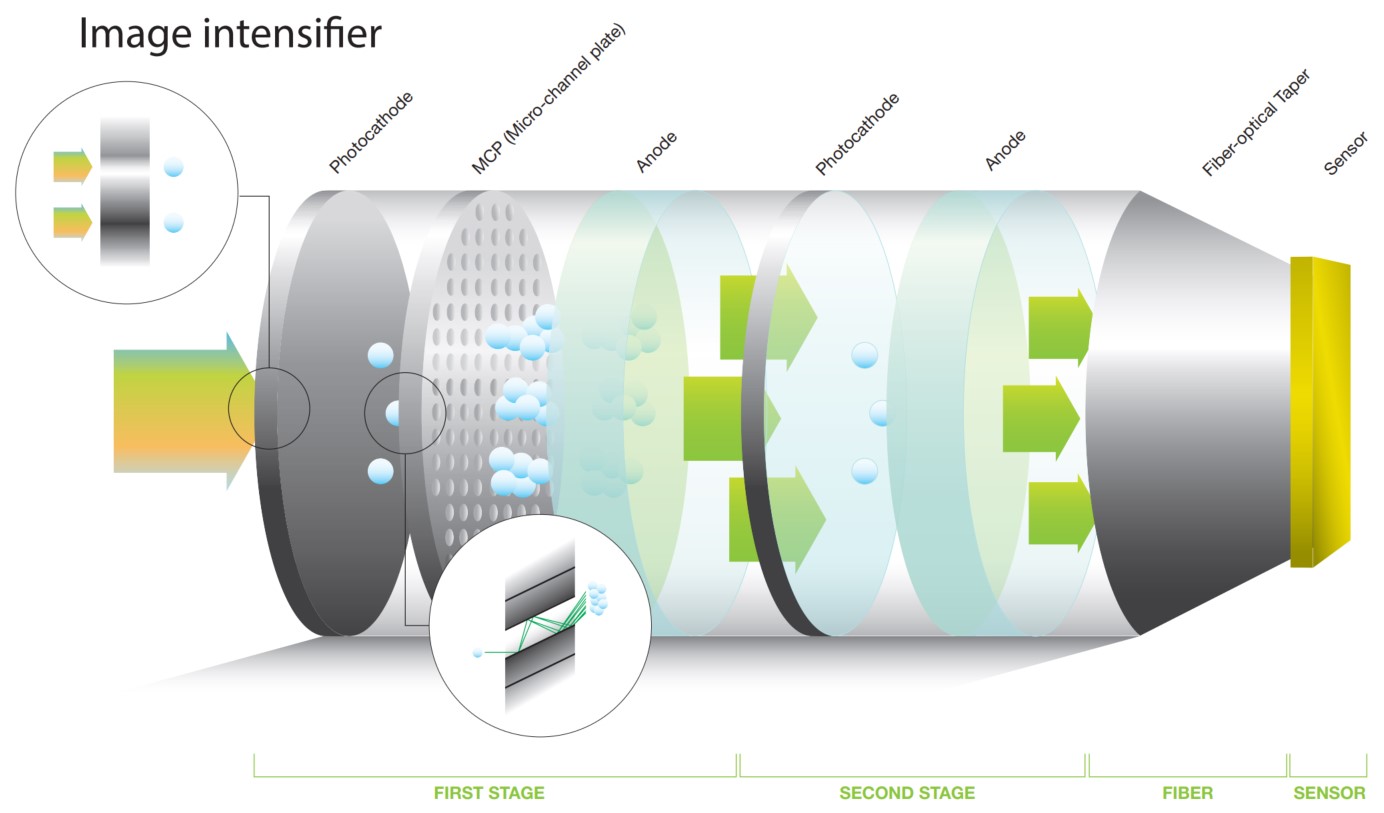

Photons are converted into electrons at the photocathode. These are accelerated towards the micro-channel plate by an electric field and hit the channel walls. Depending on the voltage across the channel, multiple electrons are generated by secondary emission.

This cloud of electrons is accelerated towards the anode screen, where the electrons are converted back into photons by the phosphor layer. The second stage of the intensifier (the booster) further increases the light intensity. Finally, the photons are transferred to the sensor by a fiberoptical taper.

Model Guide
	HiCAM 500M/S	HiCAM 540M/S	HiCAM 1000S
Framerate (Full Resolution)	500 fps	540 fps	1000 fps
Sensor Resolution	1280 x 1024 pixels	1696 x 1710 pixels	1280 x 1024 pixels
Internal Memory	HiCAM 500M: 8 or 16 GB	HiCAM 540M: 8 or 16 GB	N/A
Streaming	HiCAM 500S: Camera Link	HiCAM 540S: CoaXPress	HiCAM 1000S: CoaXPress
Bit Depth	8 and 10 bit	8 bit	8 and 12 bit

Product specifications and Brochures

Product Brochure Link:

Camera Specification
Maximum resolution (pixels)	1280 x 1024
Resolution (pixels)	1280 x 1024	800 x 600	512 x 512
Frame rate (fps)	500	1200	2000
Internal memory options	8 or 16 GB
Pixel size	14 x 14 µm
Computer interface	Gigabit ethernet
SDK and LabView driver	Optional
ADC resolution	8 or 10 bit

Gating Properties
Gain Control	√
Gate control	√
Shutter control	√	Optional
Gating pulse width range	40 ns – 2.5 s	< 3 ns – 10 s	10 ns – 2.5 s
Resulting min pulse width (increments)	40 ns (10 ns)	< 3 ns (10 ps)	10 ns (10 ns)
Pulse repetition rate	100 kHz	300 kHz	300 kHz

Image Intensifier Properties
First stage		S20	S25	GaAs	GaAsP
Max. response wavelength (nm)		270–450	500–850	450–550	550–750
Full spectral range (nm)		200–800	200–900	350–900	300–750
Luminous sensitivity (µA/lm)	Min. Typ.	150 175	500 700	400 800	1000 1200
Gain	Min. Typ.	1500 ph/ph 3000 lm/m2/lx	2200 ph/ph 7500 lm/m2/lx	2000 cd/m2/lx 3600 lm/m2/lx	5000 cd/m2/lx 11000 lm/m2/lx
Peak quantum efficiency (%)	Min. Typ.	20	17	35 50	27
Resolution (lp/mm)	Min. Typ.	45 56	45 56	45 57	40 50
EBI (µlx)	Typ. Max.	0.1 0.25	0.1 0.25	0.03 0.3	0.03 0.3
Input window		Quartz	Quartz	Borosilicate glass	Borosilicate glass

		18 mm intensifier		25 mm intensifier
Effective area on input		12.78 x 12.68 mm		17.75 x 17.61 mm
Input window thickness		5.5 mm		6.0 mm

Second stage		Minimal		Typical
Photon gain (ph/ph)		6		11

Typical total gain		22000	50000	75000	100000

Photocathodes

The photocathode is the entrance of the image intensifier. This is where the incoming photons are converted to electrons. The quantum efficiency of the photocathode material specifies how efficient this conversion is for each wavelength.

Second generation image intensifiers The photocathode of a second generation image intensifier can have a quantum efficiency of up to 25%. S25 photocathodes are only available in the 18 mm diameter image intensifiers.	Typical QE Typical quantum efficiency (%) of second generation image intensifiers as a function of wavelength (nm).



Second generation high QE image intensifiers The photocathode of a second generation high QE image intensifier can have a quantum efficiency of over 30%. Please note that these image intensifiers are only available with a diameter of 18 mm.	Typical QE, 200 ns gate width Typical quantum efficiency (%) of second generation high QE image intensifiers as a function of wavelength (nm).



Second generation fast-gated high QE image intensifiers The photocathode of a second generation high QE image intensifier can have a quantum efficiency of over 25%. Please note that these image intensifiers are only available with a diameter of 18 mm.	Typical QE, 3 ns gate width Typical quantum efficiency (%) of second generation high QE image intensifiers as a function of wavelength (nm).



Third generation image intensifiers The photocathode of a third generation image intensifier can have a quantum efficiency of up to 50%.	Typical QE Typical quantum efficiency (%) of third generation image intensifiers as a function of wavelength (nm).

Phosphors

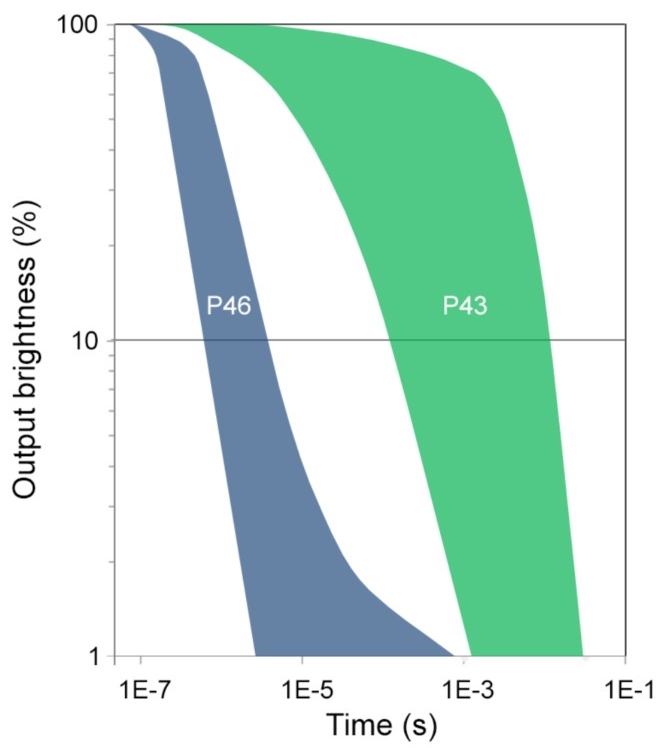

Phosphor Decay Time

The anode screen of the image intensifier contains a layer of phosphorescent material. Upon impact of an electron, the phosphor screen will emit light. Depending on the type of phosphor, the intensity of the emitted light will decrease faster. The more efficient the phosphor, the slower its light intensity decays after excitation.

Our time-resolved cameras and camera attachments use P43 phosphor. The high luminous efficiency of this phosphor increases the light levels at the output of the image intensifier. This increases the quality of the resulting image.

Our high-speed cameras and camera attachments use P46 phosphor. This phosphor has a short decay time, so the light signal of consecutive frames doesn't get mixed up.

P47 phosphor is available on request, when even faster decay times are required.

PHOSPHOR	EMISSION	EFFICIENCY (E/KV)	DECAY TO 10%	DECAY TO 1%

P43	545 nm	20	1.5 ms	3 ms
P46	530 nm	6	500 ns	2000 ns
P47	400 nm	4	100 ns	400 ns

Microscop Cameras

Camera Category	Resolution	Pixel Size	FPS	Wavelength	Note
Microscope TE-Cooling USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera	24MP and 61MP	5.94um and 3.76um	up to 190FPS	380nm -650nm	UV extended available
TE-Cooling USB3.0 CMOS Camera	10MP to 45MP	4.63um to 2.31um	up to 96FPS	380nm - 650nm	IR Cut filter
TE-Cooling USB3.0 CMOS Camera with External Trigger	0.5MP / 0.5MP	6.9um / 9um	20FPS	380nm - 650nm	External Trigger
Microscope USB3.0 CMOS Camera	0.5MP to 45MP	6.9um to 1.55um	upto 520FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced	1.3MP to 10MP	9.7um to 4.6um	upto 86FPS	200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP	1.5MP to 45MP	3.4um to 1.2um	upto 165FPS	380nm - 650nm	IR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera	5MP	2um	30FPS	380nm - 650nm	IR Cut filter
HDMI Color CMOS Camera	2MP to 8MP		60FPS	380 - 1100nm
UV & NIR Enhanced CMOS Camera	4.2/8MP, 2.1/4.1MP		upto 200FPS	200-1100nm	UV or NIR Enhance

Scientific Cameras

Type	Model	Wavelength	Sensor Type	Resolution	Pixel size	Frame Rate	QE
X-RAY sCMOS Camera	XF95	80-1000eV	BSI sCMOS	2048 x 2048	22.5um or 13.3um	48	~100% full range
XUV/VUV Camera	maxCam	1-300nm	BSI/FSI CCD	1024 x 255	26um		Refer to brochures
High Speed sCMOS Camera	Dhyana 2100	200-1100nm	FSI CMOS / Mono	5220(H) x 4096(V)	4.5um x 4.5um	450fps@8bit	63%@520nm
High Speed sCMOS Camera	Dhyana 9KTDI	200-1100nm	BSI sCMOS TDI/Mono	9072	5um x 5um	510kHZ@8bit	82%@550nm,
Cooled High Sensitivity sCMOS Camera	95V2	200-1100nm	BSI sCMOS/Mono	2048(H) x 2048(V)	11μm x 11μm	48fps@12bit STD	95%@560nm
	400BSI V2	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	74fps@CL, 40fps@USB3.0	95%@600nm
	400BSI V3	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	100fps@CL, 40fps@USB3.0	95%@600nm
	400D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2040(V)	6.5μm x 6.5μm	35fps@16bit	72%@595nm
	400DC	200-1100nm	FSI sCMOS/Color	2048(H) x 2044(V)	6.5μm x 6.5μm	22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras	6060BSI	200-1100nm	BSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	26.4fps@12-bit STD	95%@580nm
	4040BSI	200-1100nm	BSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	90%@550nm
	6060FSI	200-1100nm	FSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	44fps@12-bit STD	72%@550nm
	4040FSI	200-1100nm	FSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	74%@600nm
Compact Industry sCMOS Camera	401D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2048(V)	6.5μm x 6.5μm	40fps@16bit, 45fps@8bit	72%@595nm
	401A-G	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	401A-U	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	201D	200-1100nm		2048(H) x 1152(V)	6.5μm x 6.5μm	70fps@16bit, 80fps@8bit	72%@595nm

Intensified CMOS Cameras

Type	Time-Resolved iCMOS	High-speed Gated iCMOS Camera		High-speed Fluorescence iCMOS Camera
Type	Time-Resolved iCMOS	540M/S	1000M/S	FLUO (1000 FPS)	FLUO (2000 FPS)
Product Image
Framerate	162 fps	540 fps	1000 fps	1000 fps - 7500 fps	2000 fps - 6400 fps
Sensor Resolution	1920 x 1200 pixels	1696 x 1710 pixels	1280 x 1024 pixels	1280 x 1024 pixels	1920 x 1080 pixels*
Pixel size	5.86 x 5.86 µm	8 x 8 µm	6.6 x 6.6 µm	6.6 x 6.6 µm	10 x 10 µm
Photon gain (max.)	50000 lm/m^2/lx	11000 lm/m^2/lx	11000 lm/m^2/lx	36000 lm/m^2/lx	36000 lm/m^2/lx
Gating repetition rate	100 or 300Khz	100khz	100khz	100khz	100khz
Intensifier	18mm intensifier	Dual-stage intensifier	Dual-stage intensifier	Single-stage intensifier	Single-stage intensifier
Bit Depth	10 bit and 12 bit	8 bit	8 and 12 bit	8 and 12 bit	8 bit
Minimum exposure time	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)

Imaging Intensified Tube

Type	Time-Resolved Image Intensifier		High-speed Image Intensifier
Type	Model 18	Model 25	Model 18	Model 25
Product Image
Input diameter	18mm	25mm	18mm	25mm
Effective area	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition	100 kHz, 300 kHz or 1 MHz	100 kHz, 300 kHz or 1 MHz	100khz Or 300khz , 2.5 MHz burst mode	100khz Or 300khz, 2.5 MHz burst mode
Min. gate width	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)
Frame Rate	Up to 500 fps	Up to 500 fps	up to 1,000,000 fps	up to 1,000,000 fps
Photon Gain	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000

Short-wave, Mid-wave, Long-wave Infrared Cameras

Product		Spectral Range	Rsolution	Cooling	Feature
SWIR Camera		400-1700nm	1.3MP, 0.3MP	uncooled
MIR Camera	Mid Infrared Detector	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Mid Infrared Camera	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Duel Band Detector	3.7 to 4.8um\|7.7 to 9.5um	320*256px	Cooled
LWIR Camera	Cooled LWIR Detector	7.7um to 9.4um	0.08MP, 0.3MP	Cooled
	Cooled LWIR Camera	7.7um to 9.4um	0.3MP	Cooled
	LWIR Thermography Camera	8 to 14um	0.08MP, 0.3MP,1.5MP	Uncooled	Broad Temperature Range
	Thermography Camera for Skin Screening	8 to 14um	320*256px	Uncooled	Body Temperature
	Thermal Imaging Cameras for Phone	8 to 14um	256*192px	Uncooled	For Smart Phone
	Compact Thermal Imaging Camera	8 to 14um	0.08MP, 0.3MP	Uncooled	For CCTV , Drone
