Products / Lasers/Light /Incoherent Light Sources /Single Wavelength LED Source(240-980nm) /Un-collimated LED Source (340 980nm) /

Un-collimated LED Source (340 980nm)

Overview Standard Range Close Range Order Now!

Un-collimated LED Sources

Mightex’s precision LED spotlight consists of a state-of-the-art high-power LED emitter and a proprietary high-NA multi-element aspherical optical system. The result is a high-power, uniform illumination spot with a highly-delineated edge.

Mightex’s PLS- series precision LED spotlights are a general-purpose light source that can be used where uniform and high-intensity illumination is required. The projection lens at the front of the spotlight can be slid and locked to focus the illumination pattern at different working distances. With the standard projection lens, the spot diameter is linearly proportional to working distance.

The LED emitters are mounted directly on the metal base of the light source which also features an integrated heatsink. This configuration minimizes thermal resistance between the LED emitter and the heatsink, resulting in better heat dissipation.

Multi-chip LED emitters (i.e. Type-B) have been added to the product portfolio. Some of these 7W to 15W LEDs have total optical power exceeding 500mW, doubling the power of a single-chip LED. Such Type-B models with higher powers (7W and higher) feature a cooling fan, and have a different form factor compared to Type-A models. Please examine the installation drawings carefully. Power supply for the cooling fan is included in the price of the Type-B precision LED spotlights.

The precision LED spotlight includes a 2-meter cable with two bare-wire terminals at the end. The light sources can be driven by Mightex LED controllers or other LED controllers and current sources.

IMPORTANT :

(1) LED’s can ONLY be driven by a constant-current source, and NOT a voltage source (e.g. a battery, or a AC/DC power supply etc.);

(2) Please always verify LED’s current rating first before applying current to the LED, and please always make sure NOT to apply current that is above the LED’s current rating.

Features:

- Uniform illumination spot with a highly delineated edge

- High output power

- Multi-element aspherical optics

- Wide range of available wavelengths

- Adjustable focus

- Multiple mounting features for lab and OEM applications

- Integrated heatsink

Applications:

- General purpose light source

- Machine vision

- Bio-photonics

- Semiconductor equipment

- UV curing

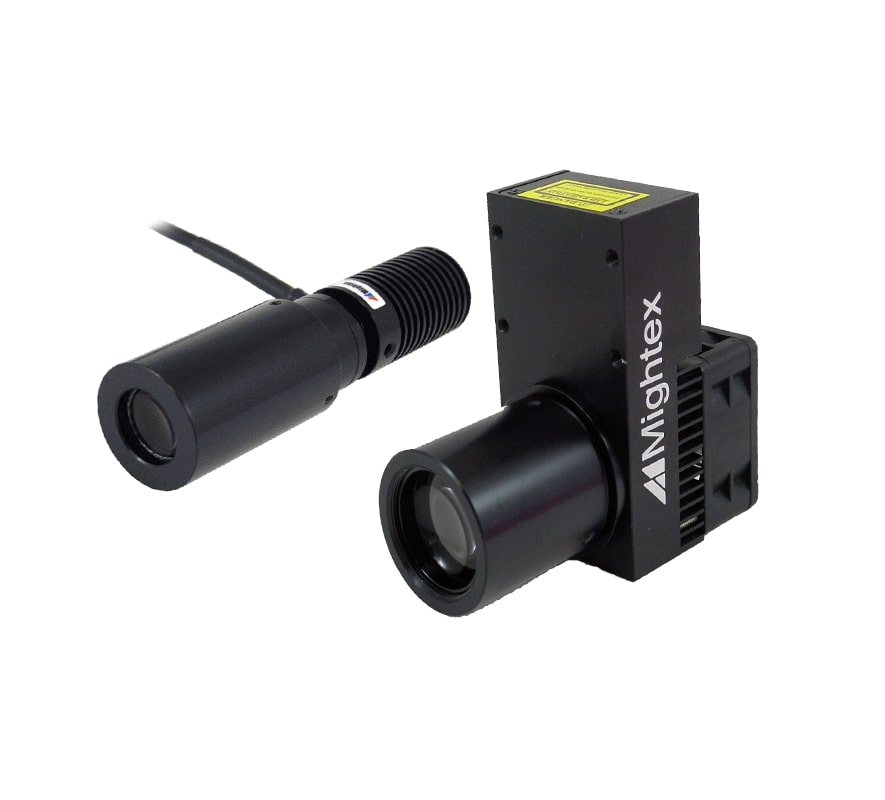

Precision LED Spotlights - Standard Range

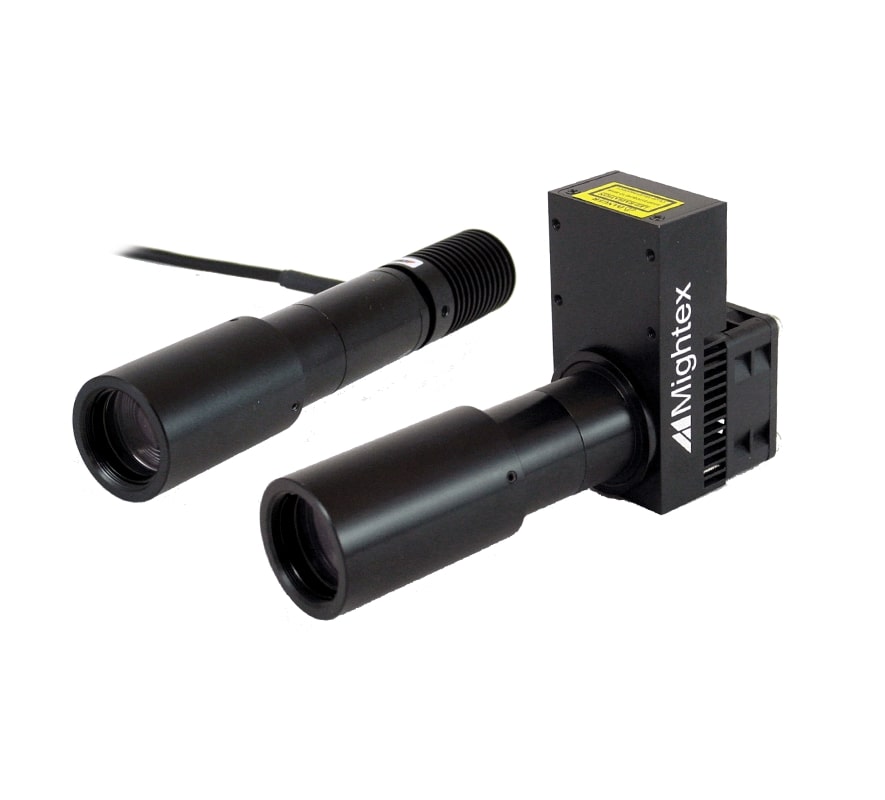

Precision LED Spotlights - Close Range

Product Drawings

Model	Drawing 1	Drawing 2	Drawing 3	Graph
Precision LED Spotlights - Standard Range
Precision LED Spotlights - Close Range			-

Please check the table below for individual specifications tied to individual products.

Product Brochure Link: Precision LED Spotlights - Standard Range

Specifications

Minimum Working Distance: 100mm
Spot Diameter: 30mm at minimum working distance. Spot diameter scales linearly with working distance.

Type-A and Type-B PLS

Part Number	Type (A or B) 1	Wavelength (nm)	Iop (mA)	Vop (V)	Typical Output Power (mW) 2
PLS-0340-030-02-S	A	340	500	4.3	11
PLS-0365-030-04-S	A	365	1000	3.65	180
PLS-0365-030-13-S	B	365	3500	3.85	720
PLS-0380-030-03-S	A	380	1000	3.2	65
PLS-0385-030-04-S	A	385	1000	3.65	250
PLS-0385-030-07-S	B	385	500	15	300
PLS-0385-030-11-S	B	385	700	15.5	375
PLS-0385-030-13-S	B	385	3500	3.75	900
PLS-0390-030-03-S	A	390	1000	3.1	140
PLS-0395-030-03-S	A	395	1000	3.1	150
PLS-0400-030-S	A	400	350	3.5	50
PLS-0400-030-03-S	A	400	1000	3.1	150
PLS-0400-030-04-S	A	400	1000	3.5	380
PLS-0400-030-17-S	B	400	1000	16.6	400
PLS-0405-030-03-S	A	405	1000	3	180
PLS-0410-030-03-S	A	410	1000	3	175
PLS-0415-030-03-S	A	415	1000	3	120
PLS-0430-030-02-S	A	430	500	3.8	100
PLS-0455-030-S	A	530	1000	3	260
PLS-0470-030-S	A	470	1000	3.9	110
PLS-0470-030-15-S	B	470	1000	15	450
PLS-0471-030-02-S	A	471	350	3	75
PLS-0490-030-01-S	A	490	350	3.5	80
PLS-0505-030-S	A	505	1000	3.9	65
PLS-0505-030-12-S	B	505	1000	12.2	185
PLS-0530-030-S	A	530	1000	2.85	100
PLS-0530-030-15-S	B	530	1000	15	200
PLS-0540-030-14-S	B	540 broadband	3000	4.6	260
PLS-0560-030-02-S	A	560 broadband	700	2.9	95
PLS-0590-030-S	A	590	1000	3.9	35
PLS-0590-030-05-S	B	590	500	9.5	130
PLS-0617-030-S	A	617	1000	3.9	80
PLS-0617-030-10-S	B	617	1000	10.8	200
PLS-0625-030-S	A	625	1000	3.9	90
PLS-0625-030-07-S	B	625	700	9.6	155
PLS-0656-030-S	A	656	1000	3.9	180
PLS-0656-030-07-S	B	656	700	9.6	420
PLS-0680-030-S	A	680	600	2.7	20
PLS-0700-030-01-S	A	700	500	2.1	27
PLS-0720-030-01-S	A	720	600	2.2	39
PLS-0740-030-03-S	A	740	1000	2.5	100
PLS-0740-030-10-S	B	740	1000	9.5	300
PLS-0780-030-S	A	780	800	2.5	60
PLS-0810-030-02-S	A	810	800	2.2	65
PLS-0850-030-S	A	850	1000	2.1	85
PLS-0870-030-01-S	A	870	700	1.9	60
PLS-0910-030-02-S	A	910	1000	1.9	60
PLS-0940-030-S	A	940	700	1.5	50
PLS-0980-030-01-S	A	980	500	1.4	16
PLS-6500-030-S	A	Glacier white 6,500K	1000	3.6	100
PLS-6500-030-15-S	B	Glacier white 6,500K	1000	15	400
PLS-5500-030-S	A	Cool white 5,500K	1000	3.9	85
PLS-5500-030-12-S	B	Cool white 5,500K	1000	12	400
PLS-4000-030-S	A	Warm white 4,000K	1000	3.9	85
PLS-3000-030-S	A	Warm white 3,000K	1000	2.8	70
PLS-3000-030-12-S	B	Warm white 3,000K	1000	12	320

1. Type-A and Type-B LED sources have different installation drawings. The former does not include a cooling fan, whereas the latter does. When ordering an LED controller for a Type-B LED, please make sure to upgrade the AC/DC power adapter from the 'standard' 12V to 24V (P/N: ACC-SLC-24VU). For certain LED controllers, it is not recommended to mix Type-A and Type-B LEDs on the same controller. Please check controller specification to confirm.

2. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Type-H PLS

Part Number	Wavelength (nm)	Iop(A)	Vop(V)	Typical Output Power (mW) 1
PLS-0365-030-76-S	365	18	4.2	2200
PLS-0405-030-65-S	405	18	3.6	1400
PLS-0470-030-50-S	470	13	3.8	1850
PLS-0525-030-60-S	525	13	4.6	715
PLS-0560-030-68-S	560 broadband	18	3.8	1800
PLS-0625-030-38-S	625	13	2.9	605
PLS-0730-030-77-S	730	18	5.9	2100
PLS-6500-030-33-S	Glacier white 6,500K	9	3.7	1100
PLS-6500-030-65-S	Glacier white 6,500K	18	5.9	2000

1. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Precision LED Spotlights - Standard Range Spectral Graph

Please check the table below for individual specifications tied to individual products

Product Brochure Link: Precision LED Spotlights - Close Range

Specifications

Minimum Working Distance: 75mm
Maximum Working Distance: 100mm
Spot Diameter: 10mm at minimum working distance. 17mm at maximum working distance.

Type-A and Type-B PLS

Part Number	Type (A or B) 1	Wavelength (nm)	Iop(mA)	Vop(V)	Typical Output Power (mW) 2
PLS-0340-010-02-C	A	340	500	4.3	11
PLS-0365-010-04-C	A	365	1000	3.65	180
PLS-0365-010-13-C	B	365	3500	3.85	720
PLS-0380-010-03-C	A	380	1000	3.2	65
PLS-0385-010-04-C	A	385	1000	3.65	250
PLS-0385-010-07-C	B	385	500	15	300
PLS-0385-010-11-C	B	385	700	15.5	375
PLS-0385-010-13-C	B	385	3500	3.75	900
PLS-0390-010-03-C	A	390	1000	3.1	140
PLS-0395-010-03-C	A	395	1000	3.1	150
PLS-0400-010-03-C	A	400	1000	3.1	150
PLS-0400-010-04-C	A	400	1000	3.5	380
PLS-0400-010-17-C	B	400	1000	16.6	400
PLS-0405-010-03-C	A	405	1000	3.1	180
PLS-0410-010-03-C	A	410	1000	3.1	175
PLS-0415-010-03-C	A	415	1000	3.1	120
PLS-0430-010-02-C	A	430	500	3.8	100
PLS-0455-010-C	A	455	1000	3	260
PLS-0470-010-C	A	470	1000	3.9	110
PLS-0470-010-15-C	B	470	1000	15	450
PLS-0471-010-02-C	A	471	350	3	75
PLS-0490-010-01-C	A	490	350	3.5	80
PLS-0505-010-C	A	505	1000	3.9	65
PLS-0505-010-12-C	B	505	1000	12.2	185
PLS-0530-010-C	A	530	1000	2.85	100
PLS-0530-010-15-C	B	530	1000	15	200
PLS-0540-010-14-C	B	540 broadband	3000	4.6	260
PLS-0560-010-02-C	A	560 broadband	700	2.9	95
PLS-0590-010-C	A	590	1000	3.9	35
PLS-0590-010-05-C	B	590	500	9.5	130
PLS-0617-010-C	A	617	1000	3.9	80
PLS-0617-010-10-C	B	617	1000	10.8	200
PLS-0625-010-C	A	625	1000	3.9	90
PLS-0625-010-07-C	B	625	700	9.6	155
PLS-0656-010-C	A	656	1000	3.9	180
PLS-0656-010-07-C	B	656	700	9.6	420
PLS-0680-010-02-C	A	680	600	2.7	20
PLS-0700-010-01-C	A	700	500	2.1	27
PLS-0720-010-01-C	A	720	600	2.2	39
PLS-0740-010-03-C	A	740	1000	2.5	100
PLS-0740-010-10-C	B	740	1000	9.5	300
PLS-0780-010-C	A	780	800	2.5	60
PLS-0810-010-02-C	A	810	800	2.2	65
PLS-0850-010-C	A	850	1000	2.1	85
PLS-0870-010-01-C	A	870	700	1.9	60
PLS-0910-010-02-C	A	910	1000	1.9	60
PLS-0940-010-C	A	940	700	1.5	50
PLS-0980-010-01-C	A	980	500	1.4	16
PLS-6500-010-C	A	Glacier white 6,500K	1000	3.6	100
PLS-6500-010-15-C	B	Glacier white 6,500K	1000	15	400
PLS-5500-010-C	A	Cool white 5,500K	1000	3.9	85
PLS-5500-010-12-C	B	Cool white 5,500K	1000	12	400
PLS-4000-010-C	A	Warm white 4,000K	1000	3.9	85
PLS-3000-010-C	A	Warm white 3,000K	1000	2.8	70
PLS-3000-010-12-C	B	Warm white 3,000K	1000	12	320

Type-H PLS

Part Number	Wavelength (nm)	Iop(A)	Vop(V)	Typical Output Power (mW) 1
PLS-0365-010-76-C	365	18	4.2	640
PLS-0405-010-65-C	405	18	3.6	420
PLS-0470-010-50-C	470	13	3.8	630
PLS-0525-010-60-C	525	13	4.6	240
PLS-0560-010-68-C	560 broadband	18	3.8	950
PLS-0625-010-38-C	625	13	2.9	200
PLS-0730-010-77-C	730	18	5.9	650
PLS-6500-010-33-C	Glacier white 6,500K	9	3.7	400
PLS-6500-010-65-C	Glacier white 6,500K	18	3.7	680

Precision LED Spotlights - Close Range Spectral Graph
