ID1000 Timing Controller

Overview Specification & Model Guide Related Product Order Now!

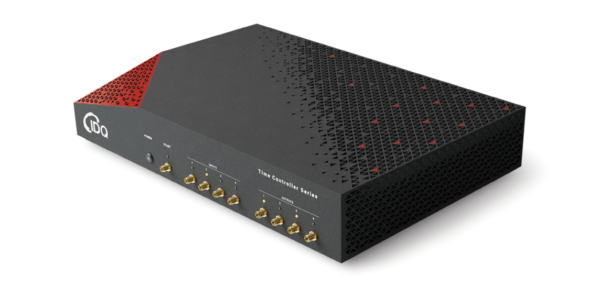

The ID1000 Time Controller - The latest addition to IDQ’s Photonic Quantum Sensing range: a unifying force for your single-photon experiments and applications. Count more, post-process less and react faster to single-photon experiments, with this all-in-one time-tagging, coincidence correlation and delay/pulse generation system.

The ID1000 is available in two core versions

● The ID1000-MASTER (time-correlated single-photon counting) offers time-tagging, counting and histogram correlation continuously on five

interchangeable input & reference channels, ideal for all applications requiring time-resolved and picosecond-precise event tagging.

● The ID1000-TCSPC provides full TCSPC functionalities as well as on-board processing and four programmable delay/pulse generator output

channels.

Versions are fully upgradable from one to the other. Add-on functionalities such as high-resolution mode, digital processing are available for each version to offer even higher performance to end users. Check the specification sheet for more details.

Applications

○ QKD and quantum communication

○ Quantum optics and computing

○ Single-photon source characterisation

○ Fluorescence lifetime measurements

○ Failure analysis of integrated circuits

○ VIS, NIR and MIR spectroscopy

Key Benefits

○ Five interchangeable input and reference channels

• High-resolution mode: up to 300 MHz across all inputs, with 3 ps resolution

• High-speed mode: up to 100 MHz per input, with 100 ps resolution

○ Measure four coincidence histograms in parallel

○ Record the precise arrival time of every detection event, with or without coincidence filtering

○ Tailored pulses (NIM or TTL) from four output channels, with customizable patterns and widths,

up to 250 MHz per output

○ Advanced integrated logic: filter events for two-, three- and four-fold coincidences in real time

○ Quick and easy lab integration: suite of LabView and Python scripts

Product specifications and Brochures

Product Brochure Link:

Functional specifications	High Speed	High Resolution⁽¹⁾	MASTER	TCSPC
# Inputs channels per device	5		√	√
# Input channels in multi-device mode ⁽²⁾	> 64		√
Min. time bin width	100 ps	3 ps	√	√
Timing jitter (single-channel, RMS) ⁽³⁾	< 28 ps	< 4 ps	√	√
Max. DNL (RMS)	< 10 ps	< 0.2 ps	√	√
Max. input count rate ⁽⁴⁾	5 x 100 MHz	300 MHz	√	√
Max. timestamp rate ⁽⁵⁾	10 M events/s		√	√
Input voltage range	-2 V to +2 V		√	√
Input channel delay	1 ps to 4 ms (in 1 ps steps)		√	√
# Output channels	4		√
Output pulse format	NIM or TTL		√
Max. rate per output channel	250 MHz		√
Min. output pulse width	6 ns (TTL), 1 ns (NIM)		√
Input – Output latency	400 ns	1500 ns	√

(1) HR add-on license required.

(2) Number of accessible input channels when 16 Time Controllers are synchronised.

(3) Measured as the width of a two-channel start-stop histogram with fast input pulses, divided by a factor of √2 to give the single-channel jitter.

Timing jitter for high-speed mode is a worst-case estimate with an assumed Gaussian instrument response profile.

(4) Count rates available for single-channel counters, coincidence counters, and histogram processing, across all input channels of a single device.

(5) Measure up to four sets of timestamps in parallel, in total up to the max. timestamp rate.

Electrical & Environmental Specificatins
Power supply requirements	100 V to 240 V, 50 Hz to 60 Hz, 1 A to 2.5 A
Operational temperature	5 ℃ to 40 ℃
Max. environment humidity	80% up to 31℃, 50% up to 40 ℃
Device dimensions (W x H x L)	380 mm x 63 mm x 255 mm

Available add-ons	Core ID1000 Version
Available add-ons	MASTER	TCSPC
HR - Access to 'high resolution' (3 ps resolution, < 4 ps jitter) mode for the 5 input channels	↑	↑
PRCSG - Access to the internal FPGA logic, to configure real-time selection filters for up to four-fold coincidences	√	↑
4OUT - Access to the 4 output channels and the internal delay / pulse generator functionality	√	↑

↑ Available upgrade √ Already available

Ultra-fast Pulse Generator for TCSPC

ID1000 Timing Controller

Visible Single Photon Detector(SPD)

Model	Wavelength Range	Timing Resolution	QE	Dark Count Rate
Silicon APD Detection Module	200 -1060nm		65%@700nm，2%@200nm	<200cps to <500cps
Visible SPD (Peak QE~500nm)	350 - 1000nm	<40ps	35%@500nm, 25%@600nm	<7Hz to <250Hz
Visible SPD (Peak QE~800nm)	350 - 1000nm	<200ps	60%@640nm, 80%@800nm	<300Hz to <1000Hz
Visible Photon Counter OEM	350 - 900nm	40 -60ps	35%@500nm，4%@900nm	<30Hz to <300Hz

Infrared Single Photon Detector(SPD)

Model	Wavelength Range	Jitter	QE	Dark Count Rate
NIR Single Photon Det ector (Dual Channels)	900-1700nm	<100ps		≤2e-6/gate @10% SPDE
Super Conducting Nanowire System	780 - 1625nm	20- 40ps	>80% over min 100nm	<1Hz to <100Hz
NIR Single Photon Detector (900-1700)	900 - 1700nm		10%, 20% @1550nm	≤2e-6/gate @10% SPDE
NIR Single Photon Detector Free Running/Gated	900 - 1700nm	<150ps	up to 35%	0.8 to 6 Khz
NIR Single Photon Detector Low Dark Count	900 - 1700nm	<150ps	25%	50 t0 200 Hz

Photodetectors

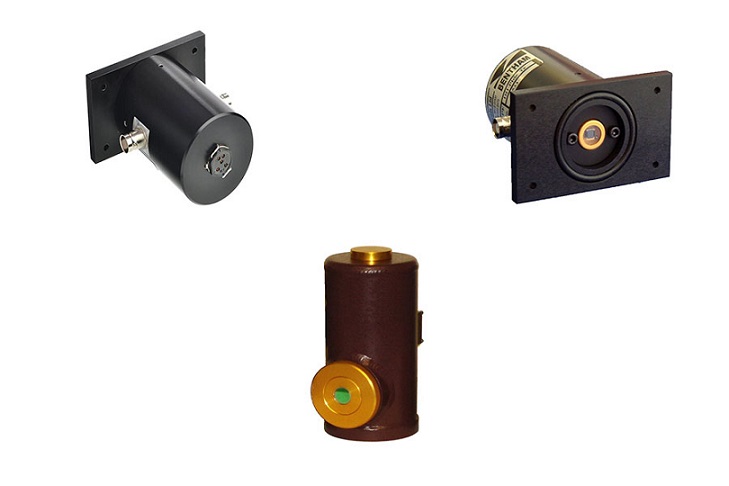

	Photomultiplier Tubes (PMTs)
	Visible Single Photon Detector(SPD)
	Infrared Single Photon Detector(SPD)
	Photodiode PD (200nm-12um)
	Pyroelectric Infrared Detectors (2-12um)
