Microscope USB3.0 CMOS Camera with ISP | SIMTRUM Photonics

Products / Imaging /Microscope Cameras /Microscope CMOS Camera (UV-NIR) /Microscope USB3.0 CMOS Camera with ISP /
Microscope USB3.0 CMOS Camera with ISP
Overview Model Guide Microscope Configuration Lens Choice Related Products Order Now!

Microscope USB3.0 CMOS Camera with ISP– MCMOS-ISP Series adopts SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface.


MCMOS-ISP series hardware resolutions range from 1.5M to 45M and come with integrated CNC aluminum alloy compact housing.


MCMOS-ISP series integrated with 12-bit Ultra-Fine Hardware Image Signal Processor Video Pipeline(Ultra-Fine HISP VP) for Demosaic, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-Fine HISP VP and greatly accelerate the processing speed.


MCMOS-ISP series comes with advanced video & image processing application, providing Windows/ Linux/ macOS /Android multiple platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);


The MCMOS-ISP series can be widely used in bright field light environments and microscope image capture and analysis with a higher frame rate.


Features

- SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface;

- Real-time 8/12bit depth switch(depending on sensor);

- Ultra-Fine HISP VP and USB3.0 5 Gbps interface ensuring high frame rates;

-Super high sensitivity up to 2188mV(IMX264);

- Ultra-low noise and low power dissipation by using column-parallel A/D conversion;

- With hardware resolution among 1.5M to 45M;

- Rolling shutter or global shutter;

- Standard C-Mount camera;

- CNC aluminum alloy housing;

- With advanced video & image processing application;

- Providing Windows/Linux/Mac OS multiple platforms SDK;

- Native C/C++, C#/VB.Net, DirectShow, Twain, LabView






Product specifications and Brochures

Product Brochure Link:


Other Specifications for MCMOS-ISP Series
Spectral Range380-650nm (with IR-cut Filter)
White BalanceROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color TechniqueUltra-Fine Color Engine/NA for Monochromatic Sensor
Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,

 C#/VB.NET, Python, Java, DirectShow, Twain, etc)

Recording SystemStill Picture and Movie
Cooling System*Natural
Operating Environment
Operating Temperature(in Centidegree)-10~ 50
Storage Temperature(in Centidegree)-20~ 60
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDC 5V over PC USB Port
Software Environment
Operating SystemMicrosoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit)
OSx(Mac OS X)
Linux
PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB Port: USB3.0 High-speed Port
Display: 17” or Larger
CD-ROM

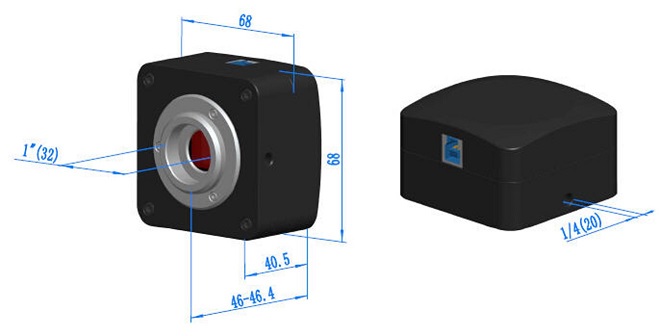

Dimension

The MCMOS-ISP series body, made from tough, CNC aluminum alloy, ensures a heavy-duty, workhorse solution. The camera is designed with a high-quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

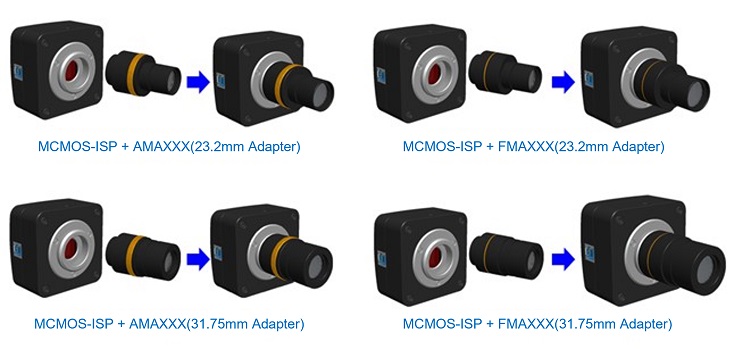

Extension for MCMOS-ISP Series with Microscope or Telescope Adapter

ExtensionPicture
C-mount Camera

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;
Microscope Camera

Telescope Camera




Ordering Information



Model Guide

Order CodeSensor & Size(mm)*Pixel(μm)G Sensitivity
Dark Signal		FPS/ResolutionBinningExposure
MCMOS-ISP45000KPA
IP145000A		45M/IMX294(C)
1.4“ (18.93x13.00)		2.315 x2.315108mv with 1/30s
0.03mv with 1/30s		8.1@8176x5616
30.0@4088x2808
8.1@7408x5556
33.0@4088x2808
10.4@8176x4320
34.7@4096x2160
62.5@2048x1080
86.5@1344x720		1x1(3:2)
2x2(3:2)
1x1(4:3)
2x2(4:3)
1x1(17:9)
2x2(17:9)
3x3(17:9)
4x4(17:9)		0.1ms~15s
MCMOS-ISP45000KPB
IP145000B		45M/IMX492(C)
1.4“ (18.93x13.00)		2.315 x2.315108mv with 1/30s
0.03mv with 1/30s		8.1@8176x56161x10.1ms~15s
MCMOS-ISP32000KPA
IP132000A		32M/IMX294(C)
1.15“ (12.96x12.96)		2.315 x2.315108mv with 1/30s
0.03mv with 1/30s		8.1@5600x5600
30.0@2800x2800
30.0@1400x1400		1x1
2x2
4x4		0.1ms~15s
MCMOS-ISP21000KPA
IP121000A		21M/IMX269(C)
4/3”(17.4x13.1)		3.3 x3.3399mv with 1/30s
0.1mv with 1/30s		17@5280x3954
17@3952x3952
56@2640x1976
67@1760x1316
192@584x438		1x1
1x1
2x2
3x3
9x9		0.1ms~15s
MCMOS-ISP20000KPA
IP120000A		20M/IMX183(C)
1 “(13.06x8.76)		2.4 x2.4462mv with 1/30s
0.21mv with 1/30s		15@5440x3648
50@2736x1824
60@1824x1216		1x1
2x2
3x3		0.1ms~15s
MCMOS-ISP20000KPC
IP120000C		20M/IMX183(C)
1 “(13.06x8.76)		2.4 x2.4462mv with 1/30s
0.21mv with 1/30s		20@5440x3648
48@2736x1824
58@1824x1216		1x1
2x2
3x3		0.1ms~15s
MCMOS-ISP18000KPA
IP118001A		18M/SONY Special(C)
1/2.2 “(5.86x4.46)		1.2 x1.2130mv with 1/30s
0.1mv with 1/30s		17@4880x3720
40@2448x1836
50@1728x1296		1x1
2x2
3x3		0.1ms~15s
MCMOS-ISP15600KPA
IP115600A

15.6M/SONY Special (C)

1.1 “(13.0x13.0)

3.3 x3.3399mv with 1/30s
0.1mv with 1/30s		17@3952x3952
56@1976x1976
67@1316x1316		1x1
2x2
3x3		0.1ms~15s
MCMOS-ISP12300KPA
IP112300A		12.3M/IMX304(C, GS)
1.1”(14.13x10.35)		3.45x3.451146mv with 1/30s
0.1mv with 1/30s		23.4@4096x3000
46.3@2048x1500		1x1
1x1		0.244ms~15s
MCMOS-ISP12000KPA
IP112000A		12M/IMX226(C)
1/1.7“(7.40x5.55)		1.85x1.85280mv with 1/30s
0.1mv with 1/30s		25@4000x3000
50@2048x1080		1x1
2x2		0.1ms~15s
MCMOS-ISP12000KPB
IP112000B		12M/IMX577(C)
1/2“(6.29x4.71)		1.55x1.55250mv with 1/30s
0.25mv with 1/30s		30@4056x3040
60@2028x1520
120@1014x760		1x1
2x2
4x4		0.1ms~15s
MCMOS-ISP09000KPA
IP109000A		9.0M/IMX305(C, GS)
1“ (14.13x7.45)		3.45x3.451146mv with 1/30s
0.15mv with 1/30s		34@4096x2160
60@2048x1080		1x1
1x1		0.1ms~15s
MCMOS-ISP09000KPB
IP109000B		9.0M/IMX533(C)
1“ (11.31x11.28)		3.76x3.76535mv with 1/30s
0.04mv with 1/30s		40@3008x3000
123@1488x1500
186@992x998		1x1
2x2
3x3		0.1ms~15s
MCMOS-ISP08300KPA
IP108300A		8.3M/IMX274(C)
1/2.5”(6.22x3.50)		1.62x1.62236mv with 1/30s
0.1mv with 1/30s		32@3840x2160
65@1920x1080		1x1
2x2		0.244ms~15s
MCMOS-ISP08300KPB
IP108300B		8.3M/IMX334(C)
1/1.8”(7.68x4.32)		2.0x2.0505mv with 1/30s
0.1mv with 1/30s		35@3840x2160
60@1920x1080		1x1
2x2		0.02ms~15s
MCMOS-ISP08300KPC
IP108300C		8.3M/IMX485(C)
1/1.2”(11.14x6.26)		2.9x2.92188mv with 1/30s
0.15mv with 1/30s		45@3840x2160
70@1920x1080		1x1
2x2		0.02ms~15s
MCMOS-ISP08300KPD
IP108300D		8.3M/IMX585(C)
1/1.2”(11.14x6.26)		2.9x2.95970(mV/lx/s)
0.13mv with 1/30s		45@3840x2160
70@1920x1080		1x1
2x2		0.02ms~15s
MCMOS-ISP08300KPE
IP108300E		8.3M/IMX678(C)
1/1.8”(7.68x4.32)		2.0x2.03541(mV/lx/s)
0.15mv with 1/30s		45@3840x2160
70@1920x1080		1x1
2x2		0.02ms~15s
MCMOS-ISP08000KPA
IP108000A		8.0M/IMX294(C)
1.15 “(13.00x13.00)		4.63 x4.63419mv with 1/30s
0.12mv with 1/30s		30@2808x2808(14bit)
139@1392x1392
139@696x696		1x1
2x2
4x4		0.1ms~15s
MCMOS-ISP06300KPA
IP106300A		6.3M/IMX178(C)
1/1.8“ (7.37x4.92)		2.4x2.4425mv with 1/30s
0.15mv with 1/30s		30@3072 x2048
38@1536x 1024		1x1
2x2		0.1ms~15s
MCMOS-ISP06300KPB
IP106300B		6.3M/IMX178(C)
1/1.8“ (7.37x4.92)		2.4x2.4425mv with 1/30s
0.15mv with 1/30s		59@3072 x2048
59@1536x 1024		1x1
2x2		0.02ms~15s
MCMOS-ISP05000KPA
IP105000A		5.0M/IMX264(C, GS)
2/3” (8.45x7.07)		3.45x3.451146mv with 1/30s
0.15mv with 1/30s		35@2448x2048
50@1224x1024		1x1
1x1		0.1ms~15s
MCMOS-ISP03100KPA
IP103100A		3.1M/IMX265(C, GS)
1/1.8“ (7.07x5.30)		3.45x3.451146mv with 1/30s
0.15mv with 1/30s		53@2048x1536
85@1024x768		1x1
1x1		0.1ms~15s
MCMOS-ISP03100KPB
IP103100B		3.1M/IMX123(C)
1/2.8“ (5.12x3.84)		2.5x2.5600mv with 1/30s
0.15mv with 1/30s		50@2048x1536
50@1920x1080		1x1
1x1		0.1ms~15s
MCMOS-ISP02100KPA
IP102100A		2.1M/IMX482(C)
1/1.2”(11.14x6.26)		5.8x5.88935mv with 1/30s
0.6mv with 1/30s		96@1920x10801x114us~15s
MCMOS-ISP02000KPA
IP102000A		2M/IMX385(C)
1/2“ (7.2x4.05)		3.75x3.752350mv with 1/30s
0.15mv with 1/30s		125@1920x10801x10.1ms~15s
MCMOS-ISP01500KPA
IP101500A		1.5M/IMX273(C, GS)
1/2.9“ (4.968x3.726)		3.45x3.451146mv with 1/30s
0.15mv with 1/30s		164@1440x1080
320@720x540		1x1
2x2		0.1ms~15s

* C: Color; M: Monochrome; GS: Global Shutter; Default shutter: Rolling Shutter



Packing Information






Standard Package
ACarton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo
BGift box L:15cm W:15cm H:10cm (0.58~0.6Kg/ box)
COne MCMOS-ISP series camera
DHigh-Speed USB3.0 A male to B male gold-plated connectors cable /2.0m
ECD (Driver & utilities software, Ø12cm)
Optional Accessory
FAdjustable lens adapterC-mount to Dia. 23.2mm eyepiece tube
C-mount to Dia. 31.75mm eyepiece tube
GFixed lens adapterC-mount to Dia. 23.2mm eyepiece tube
C-mount to Dia. 31.75mm eyepiece tube
H108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
I108016(Dia.23.2mm to 30.5mm ring)/Adapter rings for 30.5mm eyepiece tube
J108016(Dia.23.2mm to 30.5mm ring)/Adapter rings for 30.5mm eyepiece tube
KCalibration kit106011/TS-M1 (X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)


Note: For F and G optional items, please specify your camera type (C-mount, microscope camera, or telescope camera), SIMTRUM

          will help you to determine the right microscope or telescope camera adapter for your application.



Trinocular Digital Microscope

Step 1 Attach the C-Mount Camera and Adapter to the straight photo tube

Step 2 Attach the C-Mount Camera and Adapter to the 3rd ocular tube or the other 2 eyepiece tubes



Binocular Digital Microscope

Step 1 Remove the eyepiece from the ocular tube or the eyepiece tube




Step 2 Attach (Screw) the camera adapter to the C-Mount Camera


Step 3 Attach (Insert) the eyepiece camera into the ocular tube or eyepiece tube


Binocular Digital Microscope

1, Standard C-Mount: Dia. 1 inch (25.4mm) female thread

2, Standard C-Mount: Dia. 1 inch (25.4mm) male thrad

3, Camera Adapter connector: size varies between microscope brands

4, Straight photo tube: size varies between microscope brands

5, Relay lens: standard eyepiece connector size, Dia. 23.2mm (male)

6, 3rd ocular tube: standard eyepiece connector size, Dia. 23.2mm (female)

7, Ocular tube: standard eyepiece connector size, Dia. 23.2mm (female)


1/2” 2MP 100lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-0420MM4F2.0-F16-2.80%90°77.4°61.8° 0.1m-∞--C
TPL-0614MM6F1.4-F16-1.00%68°56.6°43.8° 0.1m-∞M30.5x0.5C
TPL-0814MM8F1.4-F16-0.70%54°43.8°33.6° 0.1m-∞M30.5x0.5C
2/3” 2MP 100lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-1214MM12F1.4-F16-1.00%48.86°39.94°30.44° 0.1m-∞M30.5x0.5C
TPL-1614MM16F1.4-F16-1.00%36°29.12°22.02°0.2m-∞M30.5x0.5C
TPL-2514MM25F1.4-F32-1.00%24.18°19.42°14.6°0.3m-∞M30.5x0.5C
TPL-3514MM35F1.4-F32-1.00%17.9°14.4°10.8°0.5m-∞M30.5x0.5C
TPL-5020MM50F2.0-F160.40%12.7°10.2°7.7°1m-∞M30.5x0.5C
TPL-7524MM75F2.4-F220.65%8.32°6.7°5.02°1m-∞M34x0.5C
TPL-7525MM75F2.50.20%5.31°4.23°3.15°0.18X-0.38XM30.5x0.5C
1” 2MP 100lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-0614MLM6F1.4-F32-19.00%112°88.66°72.89°0.15m-∞M43x0.75C
2/3” 3MP 120lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-0814M3M8F1.4-F160.70%64.26°53.76°41.66° 0.1m-∞M37x0.5C
TPL-0918M3M9F1.8-F16-0.50%61.85°51.22°39.54° 0.1m-∞M27x0.5C
TPL-1218M3M12F1.8-F16-0.30%47.7°39°29.8° 0.1m-∞M27x0.5C
TPL-1618M3M16F1.8-F16-0.35%36.8°29.8°22.5° 0.1m-∞M27x0.5C
TPL-2518M3M25F1.8-F16-0.10%23.3°18.8°14.2°0.15m-∞M27x0.5C
TPL-3518M3M35F1.8-F16-0.10%16.04°12.8°9.6°0.25m-∞M27x0.5C
TPL-5018M3M50F1.8-F16-0.10%11.52°9.14°6.86°0.5m-∞M27x0.5C

TPL-1618M3M-A

(Ultra-Short TTL)

16F1.8-F16-1.98%38.09°30.69°23.13°0.3m-∞M25.5x0.5C
1/2” 5MP 150lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-0414M5M4F1.4-F32-1.50%85°75.12°58.76° 0.1m-∞M52x0.75C
TPL-0614M5M6F1.8-F16-1.00%64.48°53.8°41.6° 0.1m-∞M35.5x0.5C
2/3” 5MP 150lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-0814M5M8F1.4-F16-1.00%66.2°55.24°42.78° 0.1m-∞M35.5x0.5C
TPL-1214M5M12F1.4-F22-0.30%47.1°39.58°29.44° 0.1m-∞M35.5x0.5C
TPL-1614M5M16F1.4-F22-0.30%36.6°29.78°22.6° 0.1m-∞M35.5x0.5C
TPL-2514M5M25F1.4-F16-0.10%23.6°19.04°14.32°0.2m-∞M35.5x0.5C
TPL-3514M5M35F1.4-F16-0.05%17.4°14°10.6°0.15m-∞M35.5x0.5C
TPL-5020M5M50F2.0-F32-0.10%12.36°9.92°7.45°0.4m-∞M35.5x0.5C
TPL-7520M5M75F2.0-F32-0.10%8.36°6.72°5.04°0.8m-∞M40.5x0.5C
1” 5MP 150lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-06520ML5M6.5F2.0-10.50%106.4°94°76° 0.1m-∞M52x0.75C
TPL-1218ML5M12F1.8-F32-1.10%64.4°53.6°41.6°0.2m-∞M77x0.75C
TPL-1620ML5M16F2.0-F220.50%51.5°41.84°32.4°0.5m-∞M34x0.5C
TPL-2020ML5M20F2.0-F22-0.80%43.2°34.9°26.6°0.3m-∞M37.5x0.5C
TPL-2520ML5M25F2.0-F32-0.20%34.8°27.94°21.14°0.3m-∞M43x0.75C
4/3” 5MP 150lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-1224MX5M12F2.4-F22-4.00%86.06°71.03°55.9°0.3m-∞M77x0.75C
TPL-1620MX5M16F2.0-F32-2.50%67.39°56.33°43.5° 0.1m-∞M72x0.75C
TPL-2520MX5M25F2.0-F32-1.40%48.2°37.4°28.6°0.15m-∞M35.5x0.5C
TPL-3520MX5M35F2.0-F22-1.10%36°27.76°20.98°0.2m-∞M37.5x0.5C
2/3” 6MP 170lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-0820M6M8F2.0-F160.45%69°57.62°44.83° 0.1m-∞M58x0.75C
TPL-1220M6M12F2.0-F161.00%48.22°39.4°29.92° 0.1m-∞M37.5x0.5C
TPL-1620M6M16F2.0-F160.60%36.7°29.6°22.3° 0.1m-∞M30.5x0.5C
TPL-2520M6M25F2.0-F16-0.25%22.6°18°13.6°0.2m-∞M30.5x0.5C
TPL-3520M6M35F2.0-F16-0.35%17°13.3°10°0.2m-∞M30.5x0.5C
TPL-5020M6M50F2.0-F16-0.05%10.14°8.16°6.14°0.2m-∞M37.5x0.5C
TPL-7538M6M75F3.80.30%--5.39°4.05°--M30.5x0.5C
2/3” 10MP 200lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-0518M10M5F1.8-F11-4.20%96.54°84°67.6°0.1m-∞M62x0.75C
TPL-0818M10M8F1.8-F22-1.00%65.64°55.06°42.7° 0.1m-∞M37.5x0.5C
TPL-1218M10M12F1.8-F32-0.42%48.9°40.1°30.6° 0.1m-∞M30.5x0.5C
TPL-1618M10M16F1.8-F22-0.20%37.74°30.6°23.2°0.2m-∞M30.5x0.5C
TPL-2518M10M25F1.8-F32-0.13%24.5°19.7°14.84°0.2m-∞M30.5x0.5C
TPL-3518M10M35F1.8-F16-0.10%12.58°10.07°7.56°0.3m-∞M34x0.5C
TPL-5018M10M50F1.8-F22-0.10%11.67°9.36°6.89°0.5m-∞M40.5x0.5C
TPL-2525CM10M252.5/4/5.6/8/110.50%24.67°19.95°15.09°0.1m-0.5m--C
TPL-3528CM10M352.5/4/5.6/8/11-0.50%17.93°14.37°10.79°0.3m-∞--C
TPL-5040CM10M504/5.6/8/11-0.25%12.58°10.07°7.56°0.5m-∞--C
1.1” 12MP 150lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-1228ML12M12F2.80.51%69.35°57.95°45.54° 0.1m-∞M46x0.75C
TPL-1623ML12M16F2.30.40%54.39°44.56°34.45° 0.1m-∞M43x0.75C
TPL-2520ML12M25F2.00.25%35.3°28.68°21.75° 0.1m-∞M37.5x0.5C
TPL-3530ML12M35F2.00.15%25.27°20.4°15°0.2m-∞M37.5x0.5C
TPL-5022ML12M50F2.20.10%16.18°13°9.77°0.25m-∞M37.5x0.5C
TPL-7526ML12M75F2.6-0.35%7.53°6.05°4.65°0.3m-∞M34x0.5C
TPL-0625ML12M6F2.50.23%107.35°86.02°64.58°0.15m-∞M62x0.75C
TPL-0828ML12M8F2.8-0.47%93.85°80.89°65.21°0.12m-∞M55x0.75C
1” 12MP L50lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-0725FL12M7F2.55(Fixed)-61.00%143°109.2°80°0.5m-∞--C/CS
1.1” 24MP 200lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-1228SF12F2.80.26%67.92°56.86°44.26°0.12m-1mM49x0.75C
TPL-1624SF16F2.40.60%49.64°40.79°31.18°0.12m-∞M40.5x0.5C
TPL-2520SF25F2.0-0.33%34.68°28.11°21.24°0.12m-∞M40.5x0.5C
TPL-3526SF35F2.60.10%22.06°17.87°13.49°0.12m-∞M46x0.75C
TPL-5020SF50F2.00.08%13.68°11.3°8.47°0.2m-∞M52x0.75C
4/3” 25MP 180lp/mm
Model NumberEFL(mm)F/#Optical DistortionField AngleWorking Distance (m)Filter ThreadMount
DHV
TPL-1825XF18F2.50.84%62.63°52.44°40.65°0.12m-∞M46x0.75C
TPL-2524XF25F2.4-0.36%43.70°35.64°27.09°0.15m-∞M46x0.75C
TPL-3524XF35F2.4-0.25%33.37°26.98°20.35°0.23m-∞M46x0.75C
TPL-5025XF50F2.50.08%22.38°18°13.55°0.25m-∞M46x0.75C



Microscop Cameras

Camera CategoryResolutionPixel SizeFPSWavelengthNote
Microscope  TE-Cooling USB3.0 CCD Camera1.5MP to 12MP6.45um to 3.1um~30FPS380nm - 650nmIR Cut filter
Microscope  USB3.0 CCD Camera1.5MP to 12MP6.45um to 3.1um~30FPS380nm - 650nmIR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera24MP and 61MP5.94um and 3.76umup to 190FPS380nm -650nmUV extended available
TE-Cooling USB3.0 CMOS Camera10MP to 45MP4.63um to 2.31umup to 96FPS380nm - 650nmIR Cut filter
TE-Cooling USB3.0 CMOS Camera with  External Trigger0.5MP / 0.5MP6.9um / 9um20FPS380nm - 650nm
External Trigger
Microscope USB3.0 CMOS Camera0.5MP to 45MP
6.9um to 1.55umupto 520FPS380nm - 650nmIR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced1.3MP to 10MP9.7um to 4.6umupto 86FPS200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP1.5MP to 45MP
3.4um to 1.2umupto 165FPS380nm - 650nmIR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera5MP2um30FPS380nm - 650nmIR Cut filter
HDMI Color CMOS Camera2MP to 8MP
60FPS380 - 1100nm

UV & NIR Enhanced CMOS Camera4.2/8MP,  2.1/4.1MP

upto 200FPS200-1100nmUV or NIR Enhance


Scientific Cameras

TypeModelWavelengthSensor   TypeResolutionPixel sizeFrame RateQE
X-RAY sCMOS Camera XF9580-1000eVBSI sCMOS2048 x 204822.5um or 13.3um 48~100% full range
XUV/VUV CameramaxCam1-300nm BSI/FSI CCD 1024 x 25526um
Refer to brochures
High Speed sCMOS CameraDhyana 2100200-1100nmFSI CMOS / Mono5220(H) x 4096(V)4.5um x 4.5um450fps@8bit63%@520nm
Dhyana 9KTDI200-1100nmBSI sCMOS TDI/Mono90725um x 5um510kHZ@8bit82%@550nm,
Cooled High Sensitivity sCMOS Camera95V2200-1100nmBSI sCMOS/Mono2048(H) x 2048(V)11μm x 11μm48fps@12bit STD95%@560nm
400BSI V2200-1100nmBSI sCMOS2048(H) x 2048(V)6.5μm x 6.5μm74fps@CL, 40fps@USB3.095%@600nm
400BSI V3200-1100nmBSI sCMOS2048(H) x 2048(V)6.5μm x 6.5μm100fps@CL, 40fps@USB3.095%@600nm
400D200-1100nmFSI   sCMOS/Mono2048(H) x 2040(V)6.5μm x 6.5μm35fps@16bit72%@595nm
400DC200-1100nmFSI   sCMOS/Color2048(H) x 2044(V)6.5μm x 6.5μm22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras6060BSI200-1100nmBSI sCMOS/Mono6144(H) x 6144(V)10μm x 10μm26.4fps@12-bit STD95%@580nm
4040BSI200-1100nm4096(H) x   4096(V)9μm x 9μm16.5fps@CL, 9.7fps@USB3.090%@550nm
6060FSI200-1100nmFSI sCMOS/Mono6144(H) x   6144(V)10μm x 10μm44fps@12-bit STD72%@550nm
4040FSI200-1100nm4096(H) x   4096(V)9μm x 9μm16.5fps@CL, 9.7fps@USB3.074%@600nm
Compact Industry sCMOS Camera401D  200-1100nmFSI sCMOS/Mono2048(H) x 2048(V)6.5μm x 6.5μm40fps@16bit, 45fps@8bit72%@595nm
401A-G200-1100nm2048(H) x 2048(V)11μm x 11μm
58%@600nm
401A-U200-1100nm2048(H) x 2048(V)11μm x 11μm
58%@600nm
201D200-1100nm2048(H) x 1152(V)6.5μm x 6.5μm70fps@16bit, 80fps@8bit72%@595nm


Intensified CMOS Cameras

TypeTime-Resolved iCMOSHigh-speed Gated iCMOS CameraHigh-speed Fluorescence iCMOS Camera
540M/S1000M/SFLUO (1000 FPS)FLUO (2000 FPS)
Product Image

TRiCAM_Specifications 1.jpeg

Framerate 162 fps540 fps1000 fps1000 fps - 7500 fps2000 fps - 6400 fps
Sensor Resolution1920 x 1200 pixels1696 x 1710 pixels1280 x 1024 pixels1280 x 1024 pixels1920 x 1080 pixels*
Pixel size5.86 x 5.86  µm 8 x 8 µm6.6   x 6.6 µm6.6 x 6.6 µm10 x 10 µm
Photon gain (max.)50000 lm/m^2/lx 11000 lm/m^2/lx11000 lm/m^2/lx36000 lm/m^2/lx36000 lm/m^2/lx
Gating repetition rate100 or 300Khz100khz100khz100khz100khz
Intensifier18mm intensifier Dual-stage   intensifierDual-stage intensifierSingle-stage intensifier  Single-stage intensifier
Bit Depth10 bit and 12 bit8 bit8 and 12 bit8 and 12 bit8 bit
Minimum exposure time40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)40 ns (3 ns optional)


Imaging Intensified Tube

TypeTime-Resolved Image IntensifierHigh-speed Image Intensifier
Model 18Model 25Model 18Model 25
Product Image

Input diameter18mm25mm18mm25mm
Effective areaGen II: ø 17.5 mm, Gen III: 13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mmGen II: ø 17.5 mm, Gen III:   13.5x10 mmGen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition 100 kHz, 300 kHz or 1 MHz100 kHz, 300 kHz or 1 MHz100khz Or 300khz ,  2.5 MHz  burst mode100khz Or 300khz,  2.5 MHz burst mode
Min. gate width< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)< 3ns - 40ns (FWHM)
Frame RateUp to 500 fpsUp to 500 fpsup to 1,000,000 fpsup to 1,000,000 fps
Photon Gain

S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000

S20 : 14800, S25:30000
GaAs: 40000, GaAsp: 20000		S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000		S20 : 40000, S25:30000
GaAs: 30000, GaAsp: 50000


Short-wave, Mid-wave, Long-wave Infrared Cameras

ProductSpectral RangeRsolutionCoolingFeature
SWIR Camera400-1700nm1.3MP, 0.3MPuncooled
MIR CameraMid Infrared Detector3.7um to 4.8um0.08MP, 0.3MP,1.5MPCooled
Mid Infrared Camera3.7um to 4.8um0.08MP, 0.3MP,1.5MPCooled
Duel Band Detector3.7 to 4.8um|7.7 to 9.5um320*256px Cooled
LWIR CameraCooled LWIR Detector7.7um to 9.4um0.08MP, 0.3MPCooled
Cooled LWIR Camera7.7um to 9.4um0.3MPCooled
LWIR Thermography Camera 8 to 14um0.08MP, 0.3MP,1.5MPUncooledBroad Temperature Range
Thermography Camera for Skin Screening8 to 14um320*256px UncooledBody Temperature
Thermal Imaging Cameras for Phone8 to 14um256*192pxUncooledFor Smart Phone
Compact Thermal Imaging Camera8 to 14um0.08MP, 0.3MPUncooledFor CCTV , Drone



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
GT 2.0
Sensor Size: 1/2.9", Resolution: 2MP 		4-6 Weeks Request for quote
GT 5.0
Sensor Size: 1/2.8", Resolution: 5MP 		4-6 Weeks Request for quote
GT 12
Sensor Size: 1/2.3", Resolution: 12MP 		4-6 Weeks Request for quote
MCMOS-ISP45000KPA-IP145000A
Microscope USB3.0 CMOS Camera with ISP, Sensor 45Mega pixel, Color mode Polychromatic, FPS 8.1@8176x5616, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP32000KPA-IP132000A
Microscope USB3.0 CMOS Camera with ISP, Sensor 32Mega pixel, Color mode Polychromatic, FPS 8.1@5600x5600, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP21000KPA-IP121000A
Microscope USB3.0 CMOS Camera with ISP, Sensor 21Mega pixel, Color mode Polychromatic, FPS 17@5280x3954, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP20000KPA-IP120000A
Microscope USB3.0 CMOS Camera with ISP, Sensor 20Mega pixel, Color mode Polychromatic, FPS 15@5440x3648, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP18000KPA-IP118000A
Microscope USB3.0 CMOS Camera with ISP, Sensor 18Mega pixel, Color mode Polychromatic, FPS 17@4880x3720, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP15600KPA-IP115600A
Microscope USB3.0 CMOS Camera with ISP, Sensor 15.6Mega pixel, Color mode Polychromatic, FPS 17@3952x3952, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP12300KPA-IP112300A
Microscope USB3.0 CMOS Camera with ISP, Sensor 12.3Mega pixel, Color mode Polychromatic, Global Shutter, FPS 23.4@4096x3000, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP12000KPA-IP112000A
Microscope USB3.0 CMOS Camera with ISP, Sensor 12Mega pixel, Color mode Polychromatic, FPS 25@4000x3000, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP9000KPA-IP19000A
Microscope USB3.0 CMOS Camera with ISP, Sensor 9Mega pixel, Color mode Polychromatic, Global Shutter, FPS 34@4096x2160, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP08300KPA-IP108300A
Microscope USB3.0 CMOS Camera with ISP, Sensor 8.3Mega pixel, Color mode Polychromatic, FPS 32@3840x2160, Exposure 0.244ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP08000KPA-IP108000A
Microscope USB3.0 CMOS Camera with ISP, Sensor 8Mega pixel, Color mode Polychromatic, FPS 30@2808x2808, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP06300KPA-IP106300A
Microscope USB3.0 CMOS Camera with ISP, Sensor 6.3Mega pixel, Color mode Polychromatic, FPS 30@3072x2048, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP05000KPA-IP105000A
Microscope USB3.0 CMOS Camera with ISP, Sensor 10.5Mega pixel, Color mode Polychromatic, Global Shutter, FPS 35@2448x2048, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP03100KPA-IP103100A
Microscope USB3.0 CMOS Camera with ISP, Sensor 3.1Mega pixel, Global Shutter, Color mode Polychromatic, FPS 53@2048x1536, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP02100KPA-IP102100A
Microscope USB3.0 CMOS Camera with ISP, Sensor 2.1Mega pixel, Color mode Polychromatic, FPS 96@1920x1080, Exposure 14us~15s 		4-6 Weeks Request for quote
MCMOS-ISP02000KPA-IP102000A
Microscope USB3.0 CMOS Camera with ISP, Sensor 2Mega pixel, Color mode Polychromatic, FPS 125@1920x1080, Exposure 0.1ms~15s 		4-6 Weeks Request for quote
MCMOS-ISP01500KPA-IP101500A
Microscope USB3.0 CMOS Camera with ISP, Sensor 1.5Mega pixel, Global Shutter, Color mode Polychromatic, FPS 164@1440x1080, Exposure 0.1ms~15s 		4-6 Weeks Request for quote

MCMOS-ISP01500KPA-IP101500A - Parameter

MCMOS-ISP02000KPA-IP102000A - Parameter

MCMOS-ISP02100KPA-IP102100A - Parameter

MCMOS-ISP03100KPA-IP103100A - Parameter

MCMOS-ISP05000KPA-IP105000A - Parameter

MCMOS-ISP06300KPA-IP106300A - Parameter

MCMOS-ISP08000KPA-IP108000A - Parameter

MCMOS-ISP08300KPA-IP108300A - Parameter

MCMOS-ISP9000KPA-IP19000A - Parameter

MCMOS-ISP12000KPA-IP112000A - Parameter

MCMOS-ISP12300KPA-IP112300A - Parameter

MCMOS-ISP15600KPA-IP115600A - Parameter

MCMOS-ISP18000KPA-IP118000A - Parameter

MCMOS-ISP20000KPA-IP120000A - Parameter

MCMOS-ISP21000KPA-IP121000A - Parameter

MCMOS-ISP32000KPA-IP132000A - Parameter

MCMOS-ISP45000KPA-IP145000A - Parameter

GT 12 - Parameter

GT 5.0 - Parameter

GT 2.0 - Parameter

MCMOS-ISP01500KPA-IP101500A - Download

MCMOS-ISP02000KPA-IP102000A - Download

MCMOS-ISP02100KPA-IP102100A - Download

MCMOS-ISP03100KPA-IP103100A - Download

MCMOS-ISP05000KPA-IP105000A - Download

MCMOS-ISP06300KPA-IP106300A - Download

MCMOS-ISP08000KPA-IP108000A - Download

MCMOS-ISP08300KPA-IP108300A - Download

MCMOS-ISP9000KPA-IP19000A - Download

MCMOS-ISP12000KPA-IP112000A - Download

MCMOS-ISP12300KPA-IP112300A - Download

MCMOS-ISP15600KPA-IP115600A - Download

MCMOS-ISP18000KPA-IP118000A - Download

MCMOS-ISP20000KPA-IP120000A - Download

MCMOS-ISP21000KPA-IP121000A - Download

MCMOS-ISP32000KPA-IP132000A - Download

MCMOS-ISP45000KPA-IP145000A - Download

GT 12 - Download

Download

Download

Download

GT 5.0 - Download

Download

Download

Download

GT 2.0 - Download

Download

Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
