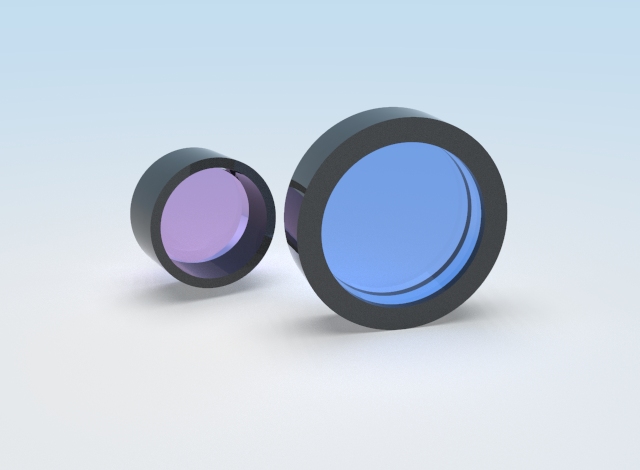

Single Bandpass Fluorescence Filters

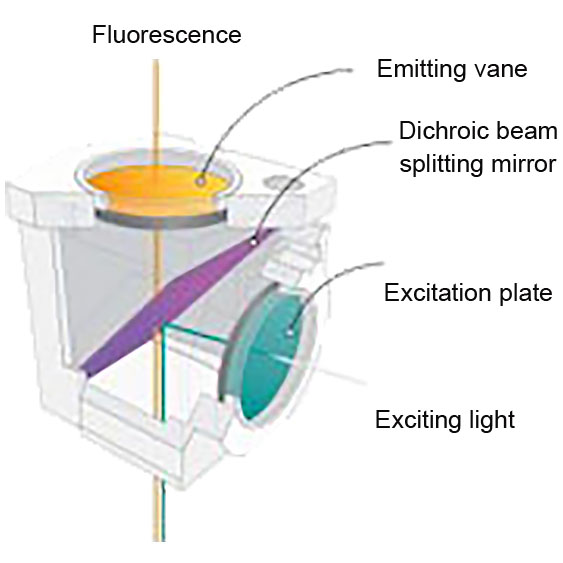

Single-band filter sets consist of a group of filters, each designed to transmit (or block) a specific wavelength (or a very narrow range of wavelengths) of light. These types of filters are extremely important in optical experiments, photography, astronomical observations, and various optical devices, ensuring that only light of specific wavelengths can pass through.Single-band filter sets consist  typical application(s) is Widefield Microscopy.



The AT series offers "high cost-performance ratio," while the ET series is positioned as a high-end series. Chroma's magnetron sputtering is a high-end coating process that controls ions in the plasma using magnetic fields, allowing the coating material to be deposited uniformly and precisely on the substrate. Both the AT and ET series feature high transmittance (allowing a significant amount of light of specific wavelengths to pass), high cut-off depth (effectively blocking light of non-target wavelengths), and high steepness (providing sharp filtering effects at the boundaries of target wavelengths).



You can choose to purchase a complete set of filters or individual filters based on your specific needs!


The main differences between the AT and ET series are as follows:
Product range Transmittance Cut-off depth Spectral steepness Zero drift
AT Series >/= 92% avg OD5 abs </= 2% Not guaranteed
ET Series >/= 92% avg OD6 avg </= 1% guarantee


                                   AT Series - GFP Bandpass Filters (39002)                                                        ET Series - GFP Bandpass Filters (49002)

AT Series - Single-band bandpass filter sets

39000 series

Chroma’s 39000 series consists of our standard AT sputtered bandpass filter sets. These affordably priced filter sets provide the same durability and longevity as our premium ET filter sets, with transmission levels >90%, and are covered by Chroma’s lifetime warranty.
AT filter sets are the perfect choice for routine fluorescence detection and assays, and for most applications requiring accurate color discrimination and excellent out-of-band blocking. For zero-pixel-shift image registration, and for applications requiring the highest possible signal intensities, please refer to our ET filters.

Filter set Excitation tablets
(CWL/FWHM)nm
Dichroic mirrors
(50% cut-on)nm
Transmitters
(CWL/FWHM)nm
Typical fluorophoresTypical fluorophores Spectral Transmission Curves
39000 375/28 415 460/50 DAPI/Hoechst/Alexa Fluor 350TM
39001 435/20 455 480/30 ECFP/AmCyan/Cerulean/Atto 425
39002 480/30 505 535/40 EGFP/FITC/Cy2TM/Alexa Fluor 488TM/Atto 488
39003 495/20 515 540/30 EYFP/Citrine/Rhodamine 123/Alexa Fluor 514™
39004 540/25 565 605/55 Cy3™/TRITC/DsRed/TAMRA
39005 540/25 565 620/60 AsRed2/Propidium IodideTRITC-red-shifted
39006 575/30 605 640/60 ROX/Texas Red®/mCherry/Alexa Fluor 594TM
39007 620/50 655 690/50 Cy5™/Alexa Fluor 647TM/Atto 647N/Quasar® 670
39008 420/40 455 535/40 Lucifer Yellow
39009 480/30 505 620/60 Acridine Orange/Di-8-ANEPPS
39010 560/40 600 635/60 ROX/Texas Red®/mCherry/Alexa Fluor 594TM

AT Series - Single-band long-pass filter sets
19000 series
Chroma’s 19000 series longpass filter sets consist of our affordably priced AT filters. Longpass filter sets are used in many clinical and industrial applications. These filter sets are similar to our 39000 series but use longpass emission filters instead of bandpass emission filters. This provides versatility by allowing for detecting various fluorochromes with overlapping absorption spectra and will provide high signal intensity. These sets are covered by Chroma’s lifetime warranty.
Longpass sets cannot reliably distinguish between more than one fluorescent probe in any given sample. For samples with multiple fluorochromes, please refer to our bandpass filter sets, such as the 39000 AT or 49000 ET series of filter sets.
Filter set Excitation tablets
(CWL/FWHM)nm
Dichroic mirrors
(50% cut-on)nm
Transmitters
(CWL/FWHM)nm
Typical fluorophoresTypical fluorophores Spectral Transmission Curves
19000 375/28 415 435 DAPI/Calcofluor White
19001 420/40 455 465 Aqua
19002 480/30 505 515 GFP/FITC
19004 540/25 565 575 TRITC/Cy3
19006 560/40 600 610 Texas Red
19008 450/50 485 495 Auramine
19010 480/30 505 600 FM 1-43/Chlorophyll
19011 405/30 440 450 Coumarin/Pacific Blue
19012 375/28 415 515 FluoroGold/Calcofluor White
AT Series - Quantum dot (Qdot) filter sets
39100 series
The 39100 series are AT filter sets designed for use with nanocrystals such as Qdots. These crystals are inorganic nanoparticles manufactured with semiconductor materials which exhibit quantum mechanical properties resulting in their unique fluorescent properties. The various Qdots may all be excited with the same violet or UV wavelengths, but the wavelengths of fluorescence emission becomes longer as the nanocrystal size becomes larger.
All sets in this series use the same AT425/50x excitation filter and accompanying dichroic, with different emission filters corresponding to the emission spectra of the various Qdots.
Filter set Excitation tablets
(CWL/FWHM)nm
Dichroic mirrors
(50% cut-on)nm
Transmitters(CWL/FWHM)nm Typical fluorophoresTypical fluorophores Spectral Transmission Curves
39101 425/50 485 525/30 Qdot 525
39102 425/50 485 545/30 Qdot 545
39103 425/50 485 565/30 Qdot 565
39104 425/50 485 585/30 Qdot 585
39105 425/50 485 605/30 Qdot 605
39106 425/50 485 625/30 Qdot 625
39107 425/50 485 655/30 Qdot 655
39108 425/50 485 705/30 Qdot 705
39109 425/50 485 800/40 Qdot 800

*Note Prices do not include any shipping, tax or customs clearance charges


ET Series - Single-band bandpass filter sets
49000 Series
Chorma’s 49000 series of single band sets features our highest throughput sputter coatings (ET) which achieve the highest transmission levels for interference filters. These filters have very steep transitions from peak transmission to high optical density to best exploit the spectral properties of modern fluorochromes with short Stokes shifts. This is because steep transitions allow for very little spectral separation between excitation and emission bands.
These filters offer the greatest hardness and durability against environmental factors such as high heat and humidity, and are covered by Simtrum’s lifetime warranty. All ET filters sets provide zero-pixel-shift image registration* between filter sets, at no additional cost.
*It is important to note that filters are only one factor in achieving perfect image registration in imaging systems. All other components and devices must also be in register.
Filter set Excitation tablets

(CWL/FWHM)nm
Dichroic mirrors

(50% cut-on)nm
Transmitters

(CWL/FWHM)nm
Typical fluorophoresTypical fluorophores Spectral Transmission Curves
49000 350/50 400 460/50 DAPI/Hoechst/Alexa Fluor 350TM
49001 436/20 455 480/40 ECFP/AmCyan/Cerulean/Brilliant Violet™ 480
49002 470/40 495 525/50 EGFP/FITC/Cy2TM/Alexa Fluor 488TM/Atto 488
49003 500/20 515 535/30 EYFP/Citrine/Rhodamine 123/Alexa Fluor 514™
49004 545/25 565 605/70 Cy3™/TRITC/DsRed/TAMRA
49005 545/30 570 620/60 AsRed2/Propidium IodideTRITC-red-shifted
49006 620/60 660 700/75 Cy5™/Alexa Fluor 647TM/Atto 647N/Quasar® 670
49007 710/75 760 810/90 Cy7™/DiR/DyLight 750/Alexa Fluor 750™
49008 560/40 585 630/75 ROX/Texas Red®/mCherry/Alexa Fluor 594TM
49009 640/30 660 690/50 Cy5™/Alexa Fluor 647TM/Atto 647N/Quasar® 670
49010 546/10 560 585/40 R-phycoerythrin/mOrange2/mKO
49011 480/40 510 535/50 FITC/Cy2TM/Alexa Fluor 488TM/Atto 488
49013 445/30 470 500/40 Atto 425/mTFP1
49014 530/30 550 575/40 Alexa Fluor 532™/Cy3™/HEX/mKO/mOrange2
49015 605/50 635 670/50 Alexa Fluor 633™/Atto 633/DyLight 633
49020 480/20 495 510/20 EGFP/Azami Green/DiO/mWasabi/ZsGreen1
49021 405/20 425 460/50 DyLight 405/EBFP2/Pacific Blue/TagBFP
49022 650/45 685 720/60 Cy5.5™/Alexa Fluor 680™/Atto 680/DyLight 680
49023 500/40 525 560/50 JOE/Rhodamine 6G/Eosin/TET
49024 440/40 495 630/75 mKeima Red/DiAPulsar™ 650
49026 405/40 470 550/60 Tetracycline/Lucifer Yellow
49027 395/25 412 431/28 Brilliant™ Violet 421
49028 395/25 425 460/50 DAPI for 395nm light sources
49030 775/50 810 845/55 Indocyanine Green
49031 569/25 588 615/40 Cy3.5™/Alexa Fluor 568™/CAL Fluor® Red 590
49032 436/20 455 480/30 Brilliant™ Violet 480
ET Series - Single Band Longpass Filter Set
49000 Series
Chorma’s 49000 series of single band sets features our highest throughput sputter coatings (ET) which achieve the highest transmission levels for interference filters. These filters have very steep transitions from peak transmission to high optical density to best exploit the spectral properties of modern fluorochromes with short Stokes shifts. This is because steep transitions allow for very little spectral separation between excitation and emission bands.
These filters offer the greatest hardness and durability against environmental factors such as high heat and humidity, and are covered by Simtrum’s lifetime warranty. All ET filters sets provide zero-pixel-shift image registration* between filter sets, at no additional cost.
*It is important to note that filters are only one factor in achieving perfect image registration in imaging systems. All other components and devices must also be in register.

Filter set

Excitation tablets

(CWL/FWHM)nm

Dichroic mirrors

(50% cut-on)nm

Transmitters

(CWL/FWHM)nm

Typical fluorophores Spectral Transmission Curves
     49012

480/40

510

510

FITC/Cy2TM/Alexa Fluor 488TM/Atto 488

49016

545/25

562

570

Cy3™/TRITC/DsRed/TAMRA

49017

560/40

590

590

ROX/Texas Red®/mCherry/Alexa Fluor 594TM

49018

470/40

495

500

EGFP/FITC/Cy2TM/Alexa Fluor 488TM/Atto 488

49019

620/60

660

665

Cy5™/Alexa Fluor 647TM/Atto 647N/Quasar® 670

49025

350/50

400

425

DAPI/Hoechst/Alexa Fluor 350TM

49029

500/20

515

520

EYFP/Citrine/Rhodamine 123/Alexa Fluor 514™

49037

740/40

770

780

Alexa Fluor 790™/DyLight 800

*Note Prices do not include any shipping, tax or customs clearance charges


Dichroic beamsplitters (mirrors) are used as light guiding optics, intended to reflect a specified range(s) of wavelengths and transmit a different specified range(s) of wavelengths at a specified AOI, typically 45 degrees.  Most of Chroma’s catalog dichroics are intended for use at 45 degrees AOI, if unsure please ask us.  Dichroics are a necessary component of filter sets used in epifluorescence configurations.

Chroma manufactures UltraFlat dichroics for laser applications demanding superior levels of surface flatness, such as TIRF and other super-resolution techniques.  We offer UltraFlat dichroics either for use as individual parts or included in assembled filter sets.

However, the secret with flat dichroics is that they need to stay flat in your imaging system.  Filter cubes that use clips, springs or screws to hold dichroics will torque them out of flatness.  Chroma's TIRF & Super-resolution filter cubes keep your dichroics just as flat in your microscope as they were when we made them.

Most of our dichroics intended for more routine widefield fluorescence applications neither have nor require high levels of surface flatness but still deliver the other performance advantages of sputtered interference filter coatings.

Dichroic mirror for single band filter sets:

Model Wavelength (CWL): nm  Following Sets: Spectral Transmission Curves
T412lpxt 412 T412lpxt is part of following sets:49027 - ET
AT415DC
415
AT415DC is part of following sets:39000 - AT /19000 - AT /19012 - AT
T425lpxr 425 T425lpxr is part of following sets:49021 - ET /49301 - ET /49028 - ET /49053 - ET
AT440DC 440 AT440DC is part of following sets:19011 - AT
T455lp 455 T455lp is part of following sets:49001 - ET/49052 - ET /49302 - ET/49032 - ET
T470lpxr 470 T470lpxr is part of following sets:49013 - ET /49026 - ET
AT485DC 485 AT485DC is part of following sets:19008 - AT /39101 - AT- Qdot /39102 - AT- Qdot /39103 - AT- Qdot/39104 - AT- Qdot /39105 - AT- Qdot /39106 - AT- Qdot /39107 - AT- Qdot /39108 - AT- Qdot /39109 - AT- Qdot
T495lpxr 495 T495lpxr is part of following sets:49002 - ET /49020 - ET /49024 - ET /49054 - ET
T495lpxt T495lpxt is part of following sets:49018 - ET
AT505DC 505 AT505DC is part of following sets:39002 - AT /39009 - AT /19002 - AT /19010 - AT
T510lpxrxt 510 T510lpxrxt is part of following sets:49012 - ET /49011 - ET
T515lp 515 T515lp is part of following sets:49003 - ET /49029 - ET /49303 - ET
T525lpxr 525 T525lpxr is part of following sets:49023 - ET
T550lpxr 550 T550lpxr is part of following sets:49014 - ET
T560lpxr 560 T560lpxr is part of following sets:49010 - ET
T562lpxr 562 T562lpxr is part of following sets:49016 - ET
T565lpxr 565 T565lpxr is part of following sets:49004 - ET/49305 - ET
T570lp 570 T570lp is part of following sets:49005 - ET
T570lpxr T570lpxr is part of following sets:79009 - ET /79010 - ET /49063 - ET
T585lpxr 585 T585lpxr is part of following sets:49008 - ET
T588lpxr 588 T588lpxr is part of following sets:49031 - ET
T590lpxr 590 T590lpxr is part of following sets:49017 - ET
AT600DC 600 AT600DC is part of following sets:39010 - AT /19006 - AT
T635lpxr 635 T635lpxr is part of following sets:49015 - ET
AT655DC 655 AT655DC is part of following sets:39007 - AT
T660lpxr 660 T660lpxr is part of following sets:49006 - ET /49009 - ET /49019 - ET
T685lpxr 685 T685lpxr is part of following sets:49022 - ET
T760lpxr 760 T760lpxr is part of following sets:49007 - ET
T770lpxr 770 T770lpxr is part of following sets:49037 - ET
T810lpxr 810 T810lpxr is part of following sets:49030 - ET

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).







Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
39000-Filter Set
39000-AT-Filter sets,Excitation tablets (CWL/FWHM) 375/28 nm, Dichroic mirrors(50% cut-on) 415nm,Transmitters (CWL/FWHM) 460/50 nm,Filters can be purchased separately
4-6 Weeks $575.00
39001-Filter Set
39001-AT-ECFP/Cerulean,Excitation tablets (CWL/FWHM) 435/280 nm, Dichroic mirrors(50% cut-on) 455 nm,Transmitters (CWL/FWHM) 480/30 nm,Filters can be purchased separately
4-6 Weeks $575.00
39002-Filter Set
39002-AT - EGFP/FITC/Cy2/AlexaFluor 488,Excitation tablets (CWL/FWHM) 480/30 nm, Dichroic mirrors(50% cut-on) 455nm,Transmitters (CWL/FWHM) 535/40 nm,Filters can be purchased separately
4-6 Weeks $575.00
39003-Filter Set
39003-AT – UV/DAPI Longpass,Excitation tablets (CWL/FWHM) 375/28 nm, Dichroic mirrors(50% cut-on) 415 nm,Transmitters (CWL/FWHM) 435/30 nm,Filters can be purchased separately
4-6 Weeks $575.00
39004-Filter Set
39004-AT-TRITC/Cy3/TagRFP/AlexaFluor 546,Excitation tablets (CWL/FWHM) 540/25 nm, Dichroic mirrors(50% cut-on) 565 nm,Transmitters (CWL/FWHM) 605/55 nm,Filters can be purchased separately
4-6 Weeks $575.00
39005-Filter Set
39000-AT – UV/DAPI Longpass,Excitation tablets (CWL/FWHM) 375/28 nm, Dichroic mirrors(50% cut-on) 415 nm,Transmitters (CWL/FWHM) 435/30 nm,Filters can be purchased separately
4-6 Weeks $575.00
39007-Filter Set
39007-AT-Cy5/AlexaFluor 647/Draq5,Excitation tablets (CWL/FWHM) 620/50 nm, Dichroic mirrors(50% cut-on) 655 nm,Transmitters (CWL/FWHM) 690/50 nm,Filters can be purchased separately
4-6 Weeks $575.00
39008-Filter Set
39008-A -Lucifer Yellow/Tetracycline/AlexaFluor 430,Excitation tablets (CWL/FWHM) 420/40 nm, Dichroic mirrors(50% cut-on) 455 nm,Transmitters (CWL/FWHM) 535/40 nm,Filters can be purchased separately
4-6 Weeks $575.00
39009-Filter Set
39009-AT-Acridine Orange/Di-8-ANEPPS,Excitation tablets (CWL/FWHM) 480/30 nm, Dichroic mirrors(50% cut-on) 505 nm,Transmitters (CWL/FWHM) 620/60 nm,Filters can be purchased separately
4-6 Weeks $575.00
39010-Filter Set
39010-AT–Texas Red/mCherry/AlexaFluor 594,Excitation tablets (CWL/FWHM) 560/40 nm, Dichroic mirrors(50% cut-on) 600 nm,Transmitters (CWL/FWHM) 635/60 nm,Filters can be purchased separately
4 - 6 Weeks $575.00
19000-Filter Set
19000-AT – UV/DAPI Longpass,Excitation tablets (CWL/FWHM) 375/28 nm, Dichroic mirrors(50% cut-on) 415 nm,Transmitters (CWL/FWHM) 435 nm,Filters can be purchased separately
4 - 6 Weeks $500.00
19001-Filter Set
19001-AT-Aqua Longpass,Excitation tablets (CWL/FWHM) 420/40 nm, Dichroic mirrors(50% cut-on) 455 nm,Transmitters (CWL/FWHM) 465 nm,Filters can be purchased separately
4 - 6 Weeks $500.00
19002-Filter Set
19002-AT-GFP/FITC Longpass,Excitation tablets (CWL/FWHM) 480/30 nm, Dichroic mirrors(50% cut-on) 505nm,Transmitters (CWL/FWHM) 515 nm,Filters can be purchased separately
4 - 6 Weeks $500.00
19004-Filter Set
19004-AT-TRITC/Cy3 Longpass,Excitation tablets (CWL/FWHM) 540/25 nm, Dichroic mirrors(50% cut-on) 565 nm,Transmitters (CWL/FWHM) 575 nm,Filters can be purchased separately
4 - 6 Weeks $500.00
19006-Filter Set
19006-AT-Texas Red Longpass,Excitation tablets (CWL/FWHM) 560/40 nm, Dichroic mirrors(50% cut-on) 600 nm,Transmitters (CWL/FWHM) 610 nm,Filters can be purchased separately
4 - 6 Weeks $500.00
19008-Filter Set
19008-AT-Auramine Longpass,Excitation tablets (CWL/FWHM) 450/50 nm, Dichroic mirrors(50% cut-on) 485 nm,Transmitters (CWL/FWHM) 495 nm,Filters can be purchased separately
4 - 6 Weeks $500.00
19010-Filter Set
19010-A-FM 1-43/Chlorophyll Longpass,Excitation tablets (CWL/FWHM) 480/30 nm, Dichroic mirrors(50% cut-on) 505 nm,Transmitters (CWL/FWHM) 600 nm,Filters can be purchased separately
4 - 6 Weeks $500.00
19011-Filter Set
19011-AT–Coumarin/Pacific Blue Longpass,Excitation tablets (CWL/FWHM) 405/30 nm, Dichroic mirrors(50% cut-on) 440 nm,Transmitters (CWL/FWHM) 450 nm,Filters can be purchased separately
4 - 6 Weeks $500.00
19012-Filter Set
19012-AT–FluoroGold/Calcofluor White Longpass,Excitation tablets (CWL/FWHM) 375/28 nm, Dichroic mirrors(50% cut-on) 415 nm,Transmitters (CWL/FWHM) 515 nm,Filters can be purchased separately
4 - 6 Weeks $500.00
39101-Filter Set
39101-AT–Qdot 525,Excitation tablets (CWL/FWHM) 425/50 nm, Dichroic mirrors(50% cut-on) 485 nm,Transmitters (CWL/FWHM) 525/30 nm,Filters can be purchased separately
4 - 6 Weeks $575.00
39102-Filter Set
39102-AT-Qdot 545,Excitation tablets (CWL/FWHM) 425/50 nm, Dichroic mirrors(50% cut-on) 485 nm,Transmitters (CWL/FWHM) 545/30 nm,Filters can be purchased separately
4 - 6 Weeks $575.00
39103-Filter Set
39103-AT-Qdot 565,Excitation tablets (CWL/FWHM) 425/50 nm, Dichroic mirrors(50% cut-on) 485 nm,Transmitters (CWL/FWHM) 565/30 nm,Filters can be purchased separately
4 - 6 Weeks $575.00
39104-Filter Set
39104-AT–Qdot 585,Excitation tablets (CWL/FWHM) 425/50 nm, Dichroic mirrors(50% cut-on) 485 nm,Transmitters (CWL/FWHM) 585/30 nm,Filters can be purchased separately
4 - 6 Weeks $575.00
39105-Filter Set
39105-AT–Qdot 605,Excitation tablets (CWL/FWHM) 425/50 nm, Dichroic mirrors(50% cut-on) 485 nm,Transmitters (CWL/FWHM) 605/30 nm,Filters can be purchased separately
4 - 6 Weeks $575.00
39106-Filter Set
39106-AT–Qdot 625,Excitation tablets (CWL/FWHM) 425/50 nm, Dichroic mirrors(50% cut-on) 485 nm,Transmitters (CWL/FWHM) 625/30 nm,Filters can be purchased separately
4 - 6 Weeks $575.00
39107-Filter Set
39107-AT–Qdot 655,Excitation tablets (CWL/FWHM) 425/50 nm, Dichroic mirrors(50% cut-on) 485 nm,Transmitters (CWL/FWHM) 655/30 nm,Filters can be purchased separately
4 - 6 Weeks $575.00
39108-Filter Set
39108-AT–Qdot 705,Excitation tablets (CWL/FWHM) 425/50 nm, Dichroic mirrors(50% cut-on) 485 nm,Transmitters (CWL/FWHM) 705/30 nm,Filters can be purchased separately
4 - 6 Weeks $575.00
39109-Filter Set
39100-AT–Qdot 800,Excitation tablets (CWL/FWHM) 425/50 nm, Dichroic mirrors(50% cut-on) 485 nm,Transmitters (CWL/FWHM) 800/40 nm,Filters can be purchased separately
4 - 6 Weeks $575.00
49000-Filter Set
49000-ET-DAPI,Excitation tablets (CWL/FWHM) 350/50 nm, Dichroic mirrors(50% cut-on) 400 nm,Transmitters (CWL/FWHM) 460/50 nm,Filters can be purchased separately
4 - 6 Weeks $725.00
49001-Filter Set
49001-ET-ECFP,Excitation tablets (CWL/FWHM) 436/20 nm, Dichroic mirrors(50% cut-on) 455 nm,Transmitters (CWL/FWHM) 480/40 nm,Filters can be purchased separately
4-6 Weeks $925.00
49002-Filter Set
49002-ET-EGFP (FITC/Cy2),Excitation tablets (CWL/FWHM) 470/40 nm, Dichroic mirrors(50% cut-on) 495 nm,Transmitters (CWL/FWHM) 525/50 nm,Filters can be purchased separately
4-6 Weeks $925.00
49003-Filter Set
49003-ET-EYFP,Excitation tablets (CWL/FWHM) 500/20 nm, Dichroic mirrors(50% cut-on) 515 nm,Transmitters (CWL/FWHM) 535/30 nm,Filters can be purchased separately
4-6 Weeks $925.00
49004-Filter Set
49004-ET-CY3/TRITC,Excitation tablets (CWL/FWHM) 545/25 nm, Dichroic mirrors(50% cut-on) 565 nm,Transmitters (CWL/FWHM) 605/70 nm,Filters can be purchased separately
4-6 Weeks $925.00
49005-Filter Set
49005-ET-DSRed (TRITC/Cy3),Excitation tablets (CWL/FWHM) 545/30 nm, Dichroic mirrors(50% cut-on) 570 nm,Transmitters (CWL/FWHM) 620/60 nm,Filters can be purchased separately
4-6 Weeks $925.00
49006-Filter Set
49006-ET-Cy5,Excitation tablets (CWL/FWHM) 620/60 nm, Dichroic mirrors(50% cut-on) 660 nm,Transmitters (CWL/FWHM) 700/75 nm,Filters can be purchased separately
4-6 Weeks $925.00
49007-Filter Set
49007-ET- Cy7,Excitation tablets (CWL/FWHM) 710/75 nm, Dichroic mirrors(50% cut-on) 760 nm,Transmitters (CWL/FWHM) 810/90 nm,Filters can be purchased separately
4-6 Weeks $925.00
49008-Filter Set
49008-ET-mCherry, Texas Red®,Excitation tablets (CWL/FWHM) 560/40 nm, Dichroic mirrors(50% cut-on) 585 nm,Transmitters (CWL/FWHM) 630/75 nm,Filters can be purchased separately
4-6 Weeks $925.00
49009-Filter Set
49009-ET-Cy5 Narrow Excitation,Excitation tablets (CWL/FWHM) 640/30 nm, Dichroic mirrors(50% cut-on) 660 nm,Transmitters (CWL/FWHM) 690/50 nm,Filters can be purchased separately
4-6 Weeks $925.00
49010-Filter Set
49010-ET-R&B Phycoerythrin/mOrange/mKO,Excitation tablets (CWL/FWHM) 546/10 nm, Dichroic mirrors(50% cut-on) 560 nm,Transmitters (CWL/FWHM) 585/40nm,Filters can be purchased separately
4-6 Weeks $925.00
49011-Filter Set
49011-ET-FITC/Alexa Fluor 488/Fluo3/Oregon Green,Excitation tablets (CWL/FWHM) 480/40 nm, Dichroic mirrors(50% cut-on) 510 nm,Transmitters (CWL/FWHM) 535/50 nm,Filters can be purchased separately
4-6 Weeks $925.00
49012-Filter Set
49012-ET-FITC/EGFP Longpass,Excitation tablets (CWL/FWHM) 480/40 nm, Dichroic mirrors(50% cut-on) 510 nm,Transmitters (CWL/FWHM) 510 nm,Filters can be purchased separately
4-6 Weeks $925.00
49013-Filter Set
49013-ET-TFP (Teal FP),Excitation tablets (CWL/FWHM) 445/30 nm, Dichroic mirrors(50% cut-on) 470 nm,Transmitters (CWL/FWHM) 500/40nm,Filters can be purchased separately
4-6 Weeks $925.00
49014-Filter Set
49014-ET-mKO/mOrange,Excitation tablets (CWL/FWHM) 530/30 nm, Dichroic mirrors(50% cut-on) 550 nm,Transmitters (CWL/FWHM) 575/40 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49015-Filter Set
49015-ET-AlexaFluor 633,Excitation tablets (CWL/FWHM) 605/50 nm, Dichroic mirrors(50% cut-on) 635 nm,Transmitters (CWL/FWHM) 670/50 nm,Filters can be purchased separately
4-6 Weeks $925.00
49016-Filter Set
49016-ET-Cy3/TRITC Longpass,Excitation tablets (CWL/FWHM) 545/25 nm, Dichroic mirrors(50% cut-on) 562 nm,Transmitters (CWL/FWHM) 570 nm,Filters can be purchased separately
4-6 Weeks $925.00
49017-Filter Set
49017-ET-mCherry/Texas Red Longpass,Excitation tablets (CWL/FWHM) 560/40 nm, Dichroic mirrors(50% cut-on) 590 nm,Transmitters (CWL/FWHM) 590 nm,Filters can be purchased separately
4-6 Weeks $925.00
49018-Filter Set
49018-ET-EGFP Longpass,Excitation tablets (CWL/FWHM) 470/40 nm, Dichroic mirrors(50% cut-on) 495 nm,Transmitters (CWL/FWHM) 500 nm,Filters can be purchased separately
4-6 Weeks $925.00
49019-Filter Set
49019-ET- Cy5 Longpass,Excitation tablets (CWL/FWHM) 620/60 nm, Dichroic mirrors(50% cut-on) 660 nm,Transmitters (CWL/FWHM) 665 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49020-Filter Set
49020-ET-Narrow Band EGFP to Minimize Autofluorescence,Excitation tablets (CWL/FWHM) 480/20 nm, Dichroic mirrors(50% cut-on) 495 nm,Transmitters (CWL/FWHM) 510/20 nm,Filters can be purchased separately
4-6 Weeks $925.00
49021-Filter Set
49021-ET-EBFP2/Coumarin/Attenuated DAPI,Excitation tablets (CWL/FWHM) 405/20 nm, Dichroic mirrors(50% cut-on) 425 nm,Transmitters (CWL/FWHM) 460/50 nm,Filters can be purchased separately
4-6 Weeks $925.00
49022-Filter Set
49022-ET-Cy5.5,Excitation tablets (CWL/FWHM) 650/45 nm, Dichroic mirrors(50% cut-on) 685 nm,Transmitters (CWL/FWHM) 720/60 nm,Filters can be purchased separately
4-6 Weeks $925.00
49023-Filter Set
49023-ET-AlexaFluor 514/ZsYellow/Eosin,Excitation tablets (CWL/FWHM) 500/40 nm, Dichroic mirrors(50% cut-on) 525 nm,Transmitters (CWL/FWHM) 560/50 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49024-Filter Set
49024-ET-Keima Red/DiA,Excitation tablets (CWL/FWHM) 440/40 nm, Dichroic mirrors(50% cut-on) 495 nm,Transmitters (CWL/FWHM) 630/75 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49025-Filter Set
49025-ET-DAPI/FluoroGold Longpass,Excitation tablets (CWL/FWHM) 350/50 nm, Dichroic mirrors(50% cut-on) 400 nm,Transmitters (CWL/FWHM) 425 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49026-Filter Set
49026-ET-Tetracycline,Excitation tablets (CWL/FWHM) 405/40 nm, Dichroic mirrors(50% cut-on) 470 nm,Transmitters (CWL/FWHM) 550/60 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49027-Filter Set
49027-ET-Brilliant™ Violet 421, Alexa Fluor 405,Excitation tablets (CWL/FWHM) 395/25 nm, Dichroic mirrors(50% cut-on)412 nm,Transmitters (CWL/FWHM) 431/28 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49028-Filter Set
49028-ET-DAPI for 395nm light sources,Excitation tablets (CWL/FWHM) 395/25 nm, Dichroic mirrors(50% cut-on) 425 nm,Transmitters (CWL/FWHM) 460/50 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49029-Filter Set
49029-ET-EYFP Longpass,Excitation tablets (CWL/FWHM) 500/20 nm, Dichroic mirrors(50% cut-on) 515 nm,Transmitters (CWL/FWHM) 520 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49030-Filter Set
49030-ET-Indocyanine Green,Excitation tablets (CWL/FWHM) 775/50 nm, Dichroic mirrors(50% cut-on) 810 nm,Transmitters (CWL/FWHM) 845/55 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49031-Filter Set
49031-ET-Alexa Fluor 568, Cy3.5,Excitation tablets (CWL/FWHM) 569/25 nm, Dichroic mirrors(50% cut-on) 588 nm,Transmitters (CWL/FWHM) 615/40 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49032-Filter Set
49032-ET-Brilliant™ Violet 480,Excitation tablets (CWL/FWHM) 436/20 nm, Dichroic mirrors(50% cut-on) 455 nm,Transmitters (CWL/FWHM) 480/30 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
49037-Filter Set
49037-ET-Li_Cor for IR dye 800,Excitation tablets (CWL/FWHM) 740/40 nm, Dichroic mirrors(50% cut-on) 770 nm,Transmitters (CWL/FWHM) 780 nm,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $925.00
T412lpxt
Dichroic beamsplitters (mirrors),Wavelength (CWL): 412 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
AT415DC
Dichroic beamsplitters (mirrors),Wavelength (CWL): 415 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $175.00
AT440DC
Dichroic beamsplitters (mirrors),Wavelength (CWL): 440 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $175.00
T470lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 470 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
AT485DC
Dichroic beamsplitters (mirrors),Wavelength (CWL): 485 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $175.00
T495lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 495 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T495lpxt
Dichroic beamsplitters (mirrors),Wavelength (CWL): 495 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $300.00
T510lpxrxt
Dichroic beamsplitters (mirrors),Wavelength (CWL): 510 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $300.00
T525lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 525 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T550lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 550nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T560lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 560 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T562lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL):562 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T570lp
Dichroic beamsplitters (mirrors),Wavelength (CWL): 570 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T570lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 570 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T585lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 585 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T588lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 588 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T590lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 590 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T635lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 635 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
AT655DC
Dichroic beamsplitters (mirrors),Wavelength (CWL): 655 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $175.00
T660lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 660 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T685lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 685 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T760lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 760 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T770lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 770 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T810lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 810 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T425lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 425 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T455lp
Dichroic beamsplitters (mirrors),Wavelength (CWL): 455 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
AT505DC
Dichroic beamsplitters (mirrors),Wavelength (CWL): 505 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $175.00
T515lp
Dichroic beamsplitters (mirrors),Wavelength (CWL): 515 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
T565lpxr
Dichroic beamsplitters (mirrors),Wavelength (CWL): 565 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $250.00
AT600DC
Dichroic beamsplitters (mirrors),Wavelength (CWL): 600 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges
4-6 Weeks $175.00

AT600DC - Parameter

T565lpxr - Parameter

T515lp - Parameter

AT505DC - Parameter

T455lp - Parameter

T425lpxr - Parameter

T810lpxr - Parameter

T770lpxr - Parameter

T760lpxr - Parameter

T685lpxr - Parameter

T660lpxr - Parameter

AT655DC - Parameter

T635lpxr - Parameter

T590lpxr - Parameter

T588lpxr - Parameter

T585lpxr - Parameter

T570lpxr - Parameter

T570lp - Parameter

T562lpxr - Parameter

T560lpxr - Parameter

T550lpxr - Parameter

T525lpxr - Parameter

T510lpxrxt - Parameter

T495lpxt - Parameter

T495lpxr - Parameter

AT485DC - Parameter

T470lpxr - Parameter

AT440DC - Parameter

AT415DC - Parameter

T412lpxt - Parameter

49037-Filter Set - Parameter

49032-Filter Set - Parameter

49031-Filter Set - Parameter

49030-Filter Set - Parameter

49029-Filter Set - Parameter

49028-Filter Set - Parameter

49027-Filter Set - Parameter

49026-Filter Set - Parameter

49025-Filter Set - Parameter

49024-Filter Set - Parameter

49023-Filter Set - Parameter

49022-Filter Set - Parameter

49021-Filter Set - Parameter

49020-Filter Set - Parameter

49019-Filter Set - Parameter

49018-Filter Set - Parameter

49017-Filter Set - Parameter

49016-Filter Set - Parameter

49015-Filter Set - Parameter

49014-Filter Set - Parameter

49013-Filter Set - Parameter

49012-Filter Set - Parameter

49011-Filter Set - Parameter

49010-Filter Set - Parameter

49009-Filter Set - Parameter

49008-Filter Set - Parameter

49007-Filter Set - Parameter

49006-Filter Set - Parameter

49005-Filter Set - Parameter

49004-Filter Set - Parameter

49003-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
25.4

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
470

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
35

Temperature Range
-20°C to +80°C

49002-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
25.4

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
470

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
20

Temperature Range
-20°C to +80°C

49001-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
25.4

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
470

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
10

Temperature Range
-20°C to +80°C

49000-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
25.4

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
450

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
35

Temperature Range
-20°C to +80°C

39109-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
25.4

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
405

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
35

Temperature Range
-20°C to +80°C

39108-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
25.4

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
365

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
35

Temperature Range
-20°C to +80°C

39107-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
25.4

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
20

Temperature Range
-20°C to +80°C

39106-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
25.4

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
20

Temperature Range
-20°C to +80°C

39105-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
40

Temperature Range
-20°C to +80°C

39104-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
650

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
40

Temperature Range
-20°C to +80°C

39103-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
630

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
40

Temperature Range
-20°C to +80°C

39102-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
620

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
40

Temperature Range
-20°C to +80°C

39101-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
590

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
40

Temperature Range
-20°C to +80°C

19012-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
570

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
40

Temperature Range
-20°C to +80°C

19011-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
550

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
40

Temperature Range
-20°C to +80°C

19010-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
550

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
15

Temperature Range
-20°C to +80°C

19008-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
530

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
35

Temperature Range
-20°C to +80°C

19006-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
530

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
15

Temperature Range
-20°C to +80°C

19004-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
520

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
20

Temperature Range
-20°C to +80°C

19002-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
520

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
10

Temperature Range
-20°C to +80°C

19001-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
510

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
20

Temperature Range
-20°C to +80°C

19000-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
510

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
15

Temperature Range
-20°C to +80°C

39010-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
480

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
20

Temperature Range
-20°C to +80°C

39009-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
480

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
10

Temperature Range
-20°C to +80°C

39008-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
470

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
35

Temperature Range
-20°C to +80°C

39007-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
470

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
20

Temperature Range
-20°C to +80°C

39005-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
470

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
10

Temperature Range
-20°C to +80°C

39004-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
450

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
35

Temperature Range
-20°C to +80°C

39003-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
405

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
35

Temperature Range
-20°C to +80°C

39002-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)
365

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
35

Temperature Range
-20°C to +80°C

39001-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
20

Temperature Range
-20°C to +80°C

39000-Filter Set - Parameter

Type
Fluorescence Filters

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0/-0.2

Thickness Tolerance (mm)
±0.1

Surface Quality
40-20

Chamfer
<0.5mmx45°

Thickness (mm)
6

Center Wavelength (nm)

Out-of-Band Blocking
200-1150nm

Bandwidth (FWHM) (nm)
20

Temperature Range
-20°C to +80°C

AT600DC - Download

T565lpxr - Download

T515lp - Download

AT505DC - Download

T455lp - Download

T425lpxr - Download

T810lpxr - Download

T770lpxr - Download

T760lpxr - Download

T685lpxr - Download

T660lpxr - Download

AT655DC - Download

T635lpxr - Download

T590lpxr - Download

T588lpxr - Download

T585lpxr - Download

T570lpxr - Download

T570lp - Download

T562lpxr - Download

T560lpxr - Download

T550lpxr - Download

T525lpxr - Download

T510lpxrxt - Download

T495lpxt - Download

T495lpxr - Download

AT485DC - Download

T470lpxr - Download

AT440DC - Download

AT415DC - Download

T412lpxt - Download

49037-Filter Set - Download

49032-Filter Set - Download

49031-Filter Set - Download

49030-Filter Set - Download

49029-Filter Set - Download

49028-Filter Set - Download

49027-Filter Set - Download

49026-Filter Set - Download

49025-Filter Set - Download

49024-Filter Set - Download

49023-Filter Set - Download

49022-Filter Set - Download

49021-Filter Set - Download

49020-Filter Set - Download

49019-Filter Set - Download

49018-Filter Set - Download

49017-Filter Set - Download

49016-Filter Set - Download

49015-Filter Set - Download

49014-Filter Set - Download

49013-Filter Set - Download

49012-Filter Set - Download

49011-Filter Set - Download

49010-Filter Set - Download

49009-Filter Set - Download

49008-Filter Set - Download

49007-Filter Set - Download

49006-Filter Set - Download

49005-Filter Set - Download

49004-Filter Set - Download

49003-Filter Set - Download

49002-Filter Set - Download

49001-Filter Set - Download

49000-Filter Set - Download

39109-Filter Set - Download

39108-Filter Set - Download

39107-Filter Set - Download

39106-Filter Set - Download

39105-Filter Set - Download

39104-Filter Set - Download

39103-Filter Set - Download

39102-Filter Set - Download

39101-Filter Set - Download

19012-Filter Set - Download

19011-Filter Set - Download

19010-Filter Set - Download

19008-Filter Set - Download

19006-Filter Set - Download

19004-Filter Set - Download

19002-Filter Set - Download

19001-Filter Set - Download

19000-Filter Set - Download

39010-Filter Set - Download

39009-Filter Set - Download

39008-Filter Set - Download

39007-Filter Set - Download

39005-Filter Set - Download

39004-Filter Set - Download

39003-Filter Set - Download

39002-Filter Set - Download

39001-Filter Set - Download

39000-Filter Set - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
