STPMS-06ML110

Products / Optics /Vision Lens /Telecentric Lens Series /Macro Telecentric Lens / STPMS-06ML110 /

STPMS-06ML110，Macro Telecentric Lens 0.6X, Max. sensor size 2/3''，Resolution 7.29μm，Working Distance 110 mm

MODEL:STPMS-06ML110

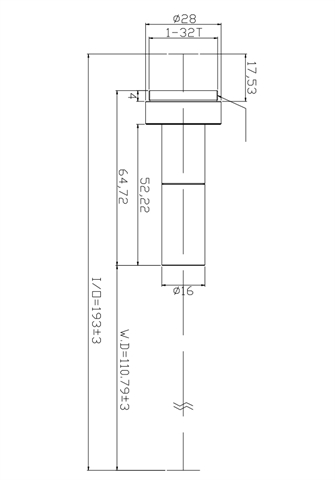

4-6 weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPMS-03ML185
STPMS-03ML185，Macro Telecentric Lens 0.3X, Max. sensor size 2/3''，Resolution 13.98 μm，Working Distance 185 mm 		4-6 weeks Request for quote
STPMS-1ML80
STPMS-1ML80，Macro Telecentric Lens 1.0 X, Max. sensor size 2/3''，Resolution 6.99 μm，Working Distance 80 mm 		4-6 weeks Request for quote
STPMS-07ML110
STPMS-07ML110，Macro Telecentric Lens 0.7X, Max. sensor size 2/3''，Resolution 6.71μm，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-05ML130
STPMS-05ML130，Macro Telecentric Lens 0.5X, Max. sensor size 2/3''，Resolution 8.18μm，Working Distance 130mm 		4-6 weeks Request for quote
STPMS-04ML150
STPMS-04ML150，Macro Telecentric Lens 0.4X, Max. sensor size 2/3''，Resolution 10.17μm，Working Distance 150 mm 		4-6 weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Product specifications

Model STPMS-04ML150 STPMS-05ML130 STPMS-06ML110 STPMS-07ML100 STPMS-1ML80 STPMS-03ML185
Magnification 0.4X 0.5X 0.6X 0.7X 1.0X 0.3X
FOV (mm)(HxV)  1/4" 8.0 x 6.0 9.6 x 7.2 8.0 x 6.0 6.9 x 5.1 4.8 x 3.6 16.0 x 12.0
1/3" 12.0 x 9.0 12.8 x 9.6 10.7 x 8.0 9.1 x 6.9 6.4 x 4.8 21.3 x 16.0
1/2.5" 14.4 x 10.8 14.3 x 10.7 11.9 x 8.9 10.2 x 7.7   23.8 x 17.9
1/2.3" 15.4 x 11.6
1/2" 16.0 x 12.0       7.1 x 5.4
1/1.8" 17.9 x 13.4 17.6x 13.2 14.7x11.0 12.6x9.4 8.8x6.6 29.3x22.0
2/3" 22.0 x 16.5
Working Distance 150  mm 130 mm 110 mm 100 mm 80 mm 185 mm
Resolution (μm) 10.17 8.18 7.29 6.71 6.99 13.98
F.No. 6.2 6.2 6.67 7.1 10.4 5.56
TV Distortion 0.02% 0.02% 0.02% 0.02% 0.02% 0.02%
DOF 3.3mm 1.95mm 1.45mm 1.14mm 0.83mm 5.56mm
Max.Sensor Size 2/3'' 2/3'' 2/3'' 2/3'' 2/3'' 2/3''
Mount C-Mount C-Mount C-Mount C-Mount C-Mount C-Mount
Lighting --- --- --- --- --- ---
Working Temperature -10℃~+50℃ -10℃~+50℃ -10℃~+50℃ -10℃~+50℃ -10℃~+50℃ -10℃~+50℃



STPMS-03ML185 - Parameter

STPMS-1ML80 - Parameter

STPMS-07ML110 - Parameter

STPMS-06ML110 - Parameter

STPMS-05ML130 - Parameter

STPMS-04ML150 - Parameter

STPMS-03ML185 - Download

STPMS-1ML80 - Download

STPMS-07ML110 - Download

STPMS-06ML110 - Download

STPMS-05ML130 - Download

STPMS-04ML150 - Download
