STPMS-1.5ST110

Products / Optics /Vision Lens /Telecentric Lens Series /Standard Telecentric Lens / STPMS-1.5ST110 /

STPMS-1.5ST110，Standard Telecentric Lens 1.5 X, Max. sensor size 2/3"，Resolution 12.43 μm，Working Distance 110 mm

MODEL:STPMS-1.5ST110

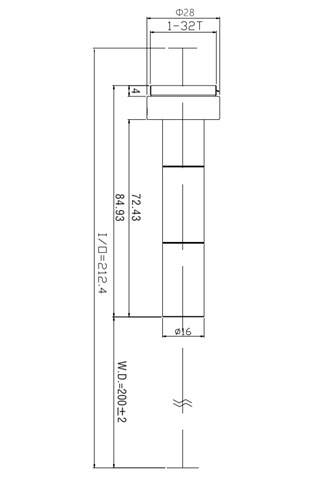

4-6 weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
STPMS-10GX9.54
STPMS-10GX9.54，Standard Telecentric Lens 10X, Max. sensor size 1/4"，Resolution 1.2 μm，Working Distance 9.54 mm 		4-6 weeks Request for quote
STPMS-8GX9.5
1.1μm 		4-6 weeks Request for quote
STPMS-0.8ST90
STPMS-0.8ST90，Standard Telecentric Lens 0.5X, Max. sensor size 1/2"，Resolution 8.947 μm，Working Distance 90.5 mm 		4-6 weeks Request for quote
STPMS-0.5ST40
STPMS-0.5ST40，Standard Telecentric Lens 0.5X, Max. sensor size 1/2"，Resolution 6.7 μm，Working Distance 40 mm 		4-6 weeks Request for quote
STPMS-2ST150-C
STPMS-2ST150-C，Standard Telecentric Lens 2X, Max. sensor size 1/2"，Resolution 13.42 μm，Working Distance 150+5 mm 		4-6 weeks Request for quote
STPMS-2ST150
STPMS-2ST150，Standard Telecentric Lens 2X, Max. sensor size 1/2"，Resolution 13.42 μm，Working Distance 150+5 mm 		4-6 weeks Request for quote
STPMS-2ST110-C
STPMS-2ST110，Standard Telecentric Lens 2 X, Max. sensor size 2/3"，Resolution 8 μm，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-2ST110
STPMS-2ST110，Standard Telecentric Lens 2 X, Max. sensor size 2/3"，Resolution 8 μm，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-2ST40-C
STPMS-2ST40，Standard Telecentric Lens 2 X, Max. sensor size 1/2"，Resolution 3 μm，Working Distance 40.4 mm 		4-6 weeks Request for quote
STPMS-2ST40
STPMS-2ST40，Standard Telecentric Lens 2 X, Max. sensor size 1/2"，Resolution 3 μm，Working Distance 40.4 mm 		4-6 weeks Request for quote
STPMS-1.5ST230-C
STPMS-1.5ST230-C，Standard Telecentric Lens 1.5 X, Max. sensor size 1/1.8"，Resolution 16.78 μm，Working Distance 230 mm ,lighting Coaxial 		4-6 weeks Request for quote
STPMS-1.5ST230
STPMS-1.5ST230，Standard Telecentric Lens 1.5 X, Max. sensor size 1/1.8"，Resolution 16.78 μm，Working Distance 230 mm 		4-6 weeks Request for quote
STPMS-1.5ST110-C
STPMS-1.5ST110-C，Standard Telecentric Lens 1.5 X, Max. sensor size 2/3"，Resolution 12.43 μm，Working Distance 110 mm ,lighting Coaxial 		4-6 weeks Request for quote
STPMS-1ST200-C
STPMS-1ST200-C，Standard Telecentric Lens 1X, Max. sensor size 1/1.8"，Resolution 22.37 μm，Working Distance 200士10mm 		4-6 weeks Request for quote
STPMS-1ST200
STPMS-1ST200，Standard Telecentric Lens 1X, Max. sensor size 1/1.8"，Resolution 22.37 μm，Working Distance 200士10 mm 		4-6 weeks Request for quote
STPMS-1ST110-C
STPMS-1ST110-C，Standard Telecentric Lens 1X, Max. sensor size 1/2"，Resolution 13.42 μm，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-1ST110
STPMS-1ST110，Standard Telecentric Lens 1X, Max. sensor size 1/2"，Resolution 13.42 μm，Working Distance 110 mm 		4-6 weeks Request for quote
STPMS-1ST85
STPMS-1ST85，Standard Telecentric Lens 1X, Max. sensor size 2/3"，Resolution 8.39μm，Working Distance 85 mm 		4-6 weeks Request for quote
STPMS-1ST65-C
STPMS-1ST65 -C，Standard Telecentric Lens 1X, Max. sensor size 1/2"，Resolution 10 μm，Working Distance 65 mm 		4-6 weeks Request for quote
STPMS-1ST65
STPMS-1ST65，Standard Telecentric Lens 1X, Max. sensor size 1/2"，Resolution 10 μm，Working Distance 65 mm 		4-6 weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Product specifications

Model STPMS-1.5ST110/1.5ST110-C STPMS-1.5ST230/1.5ST230-C
Magnification 1.5X 1.5X
Field of View 1/4" 2.1mmx1.6mm 2.1mmx1.6mm
1/3" 3.2mmx2.4mm 3.2mmx2.4mm
1/2.5" —— 3.8mmx2.9mm
1/2.3" —— 4.1mmX3.1mm
1/2" 4.3mmx3.2mm 4.3mmX3.2mm
1/1.8" 4.8mmX3.6mm 4.8mmX3.6mm
2/3" 5.9mmx4.4mm ——
Working Distance 110mm 230mm
Resolution(μm) 12.43μm 16.78μm
F.No. 27.8 37.5
TVDistortion 0.02% 0.02%
DOF 0.99mm 1.33mm
NA. 0.027 0.02
Max.Sensor Size 2/3" 1/1.8"
Mount C-Mount
lighting --/Coaxial —— --/Coaxial
Working Temperature -10℃~+50℃
