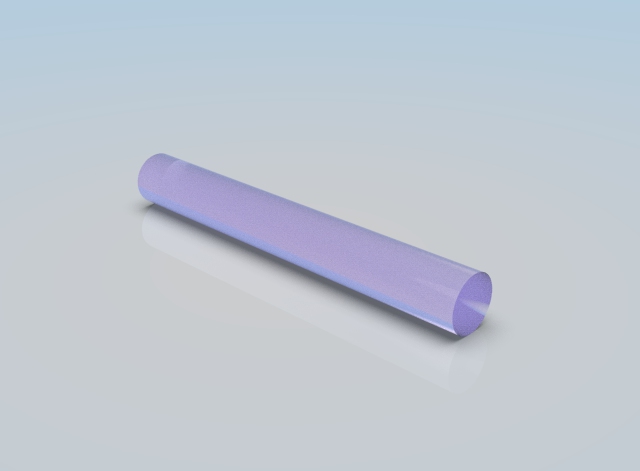

Cr:YAG
Overview Order Now!


Cr:YAG(Chromium Doped Ytterium Aluminium Garnet) is a non-linear optical material that is ideal for making passive Q-switching Nd:YAG and Yb or Nd doped lasers.. It has excellent optical, mechanical, thermal properties, chemical stability, UV resistance, and high damage threshold. It also can emit high power lasers in the 0.8-1.2µm range.


This allows it to be designed compactly and to be reliable laser sources. To note, its high damage threshold of 500-1000W/cm2. Some of the applications of Cr:YAG crystal includes passive q-switch lasers for laser rangefinders,LIDAR, LIBS system and laser systems where short pulses are desired.


General Specifications

Material

Cr:YAG

Dimension Tolerance(mm)

±0.1

Surface Quality

10/5

Flatness

<λ/6@633nm

Wavefront Distortion

λ/8

Parallelism(arcsec)

<20

Damage Threshold(pulsed)

500-1000MW/cm2



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Diameter (mm)


Search Reset
Compare Model Drawings & Specs Length (mm) Diameter (mm) Angular Tolerance (arcmin) Availability Reference Price
(USD)
Cr:YAG-NLC-3-110
Cr:YAG, Non-Linear Crystal, Ø=3mm, Length=110mm 		1103≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-4-110
Cr:YAG, Non-Linear Crystal, Ø=4mm, Length=110mm 		1104≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-5-110
Cr:YAG, Non-Linear Crystal, Ø=5mm, Length=110mm 		1105≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-6-110
Cr:YAG, Non-Linear Crystal, Ø=6mm, Length=110mm 		1106≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-7-110
Cr:YAG, Non-Linear Crystal, Ø=7mm, Length=110mm 		1107≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-8-110
Cr:YAG, Non-Linear Crystal, Ø=8mm, Length=110mm 		1108≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-9-110
Cr:YAG, Non-Linear Crystal, Ø=9mm, Length=110mm 		1109≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-10-110
Cr:YAG, Non-Linear Crystal, Ø=10mm, Length=110mm 		11010≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-3-120
Cr:YAG, Non-Linear Crystal, Ø=3mm, Length=120mm 		1203≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-4-120
Cr:YAG, Non-Linear Crystal, Ø=4mm, Length=120mm 		1204≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-5-120
Cr:YAG, Non-Linear Crystal, Ø=5mm, Length=120mm 		1205≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-6-120
Cr:YAG, Non-Linear Crystal, Ø=6mm, Length=120mm 		1206≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-7-120
Cr:YAG, Non-Linear Crystal, Ø=7mm, Length=120mm 		1207≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-8-120
Cr:YAG, Non-Linear Crystal, Ø=8mm, Length=120mm 		1208≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-9-120
Cr:YAG, Non-Linear Crystal, Ø=9mm, Length=120mm 		1209≤ 15 2-3 Weeks Request for quote
Cr:YAG-NLC-10-120
Cr:YAG, Non-Linear Crystal, Ø=10mm, Length=120mm 		12010≤ 15 2-3 Weeks Request for quote
