ZnGeP2
Overview Specification Order Now!

Screenshot 2021-01-28 100027.png

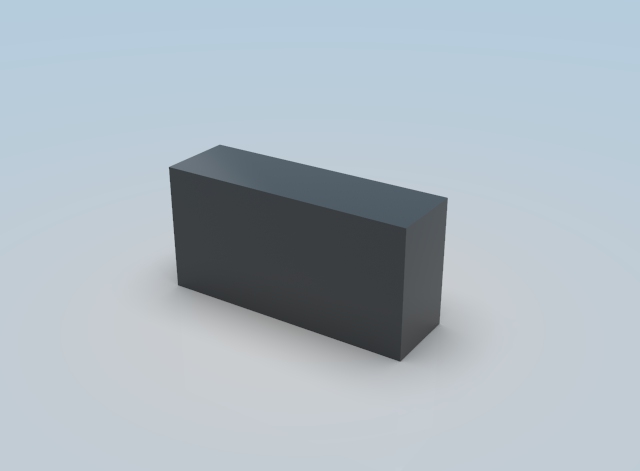

ZnGeP2(Zinc Germanium Phosphide) is a non-linear crystal that has large non-linear coefficient(75pm/V), wide infrared transparency range, high thermal conductivity and high laser damage threshold.


It is one of the best frequency conversion material suited for high power laser and tunable infrared laser generation due to its properties of 2th-4th harmonic generation of Co2 laser, OPG(Optical Parametric Generation) for 2.0um wavelength, OPO(Optical Parametric Oscillation and producing coherent radiation from 70um-1000um.


It allows the material to have applications in many fields, such as infrared counter measure, chemical monitoring, medical apparatus and remote sensing.


General Specifications

Material

ZnGeP2

Dimension Tolerance(mm)

±0.1

Surface Quality

10/5

Flatness

<λ/6@633nm

Wavefront Distortion

λ/8

Parallelism(arcsec)

<20

Mount

Unmounted





Physical Properties

Crystal symmetry

Tetragonal

Point group

42m

Lattice Constants, Å                                                      a

                                                                         c

5.465

10.771

Density

4.175

Optical Properties

Optical transmission, µm

0.74–12

Indices of Refraction at


1.06µm                                                                         no

                                                                         ne

3.2324

3.2786

5.3µm                                                                           no

                                                                         ne

3.1141

3.1524

10.6µm                                                                         no

                                                                         ne

3.0725

3.1119

Absorption Coefficient, cm-1 at


1.06µm

3.0

2.5µm

0.03

5.0µm

0.02

7.5µm

0.02

10.0µm

0.4

11.0µm

0.8

Nonlinear Optical Properties

Laser damage threshold, MW/cm²

60

at pulse duration, ns

100

at wavelength, µm

2.05

Nonlinearity, pm/V

111

Phase matching angle for Type 1 SHG at 10.6µm, deg

76

Walk-off angle at 5.3µm, deg

0.57

Thermal Properties

Melting point, °C

1298

Thermal Expansion Coefficient, 10-6/°K

17.5

9.1

||

1.59

||

8.08



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Thickness (mm)

Dimension (mm)


Search Reset
Compare Model Drawings & Specs Coating Dimension (mm) Thickness (mm) Orientation (Θ/φ) (°) Availability Reference Price
(USD)
ZnGeP2-NLC-54/0-7x5-15
ZnGeP2, Non-Linear Crystal, (Θ/φ)=54/0, Dimension=7x5mm, Thickness=15mm 		AR @ 2.1µm + BBAR@3.5-5µm7x515 2-3 Weeks Request for quote
ZnGeP2-NLC-58/0-5x3-10
ZnGeP2, Non-Linear Crystal, (Θ/φ)=58/0, Dimension=5x3mm, Thickness=10mm 		AR @ 2.1µm + BBAR@3.5-5µm5x312 2-3 Weeks Request for quote
ZnGeP2-NLC-58/0-5x3-12
ZnGeP2, Non-Linear Crystal, (Θ/φ)=58/0, Dimension=5x3mm, Thickness=12mm 		AR @ 2.1µm + BBAR@3.5-5µm5x312 2-3 Weeks Request for quote

ZnGeP2-NLC-58/0-5x3-12 - Parameter

Material
ZnGeP2

Coating
AR @ 2.1µm + BBAR@3.5-5µm

Thickness Tolerance (mm)
± 0.1

Surface Quality
10/5

Clear Aperture
>90%

Dimension (mm)
5x3

Thickness (mm)
12

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Mount
Unmounted

Orientation (Θ/φ) (°)

Dimension Tolerance(mm)
±0.1

ZnGeP2-NLC-58/0-5x3-10 - Parameter

Material
ZnGeP2

Coating
AR @ 2.1µm + BBAR@3.5-5µm

Thickness Tolerance (mm)
± 0.1

Surface Quality
10/5

Clear Aperture
>90%

Dimension (mm)
5x3

Thickness (mm)
12

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Mount
Unmounted

Orientation (Θ/φ) (°)

Dimension Tolerance(mm)
±0.1

ZnGeP2-NLC-54/0-7x5-15 - Parameter

Material
ZnGeP2

Coating
AR @ 2.1µm + BBAR@3.5-5µm

Thickness Tolerance (mm)
± 0.1

Surface Quality
10/5

Clear Aperture
>90%

Dimension (mm)
7x5

Thickness (mm)
15

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Mount
Unmounted

Orientation (Θ/φ) (°)

Dimension Tolerance(mm)
±0.1

ZnGeP2-NLC-58/0-5x3-12 - Download

ZnGeP2-NLC-58/0-5x3-10 - Download

ZnGeP2-NLC-54/0-7x5-15 - Download
