N-SF1 Broadband Polarizing Beamsplitter Cube | SIMTRUM Photonics Store

Products / Optics /Beamsplitters /Beamsplitter Cube /N-SF1 Broadband Polarizing Beamsplitter Cube /
N-SF1 Broadband Polarizing Beamsplitter Cube
Overview Coating Graph Order Now!

N-SF1 Broadband Polarizing Beamsplitter Cube, Broadband Polarizing Beamsplitter Cube www.simtrum.com

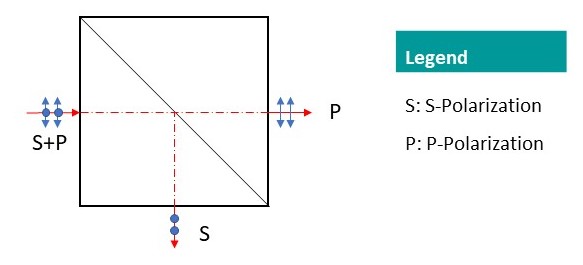

Broadband Polarizing Beamsplitter Cube is used to split or combine light spectrum in UV, VIS, or IR wavelengths. As it is a polarizing beamsplitter, the polarization of the outgoing beams remains the same when the incoming beam is a varied polarized light. Being partial-reflective coated mirrors, but often used with the incident of angle at 45°, cube beam splitters consist of a thin cube of optical glass with a different type of coatings.





General Specifications

Material

N-SF1

Type

Broadband Polarizing Beamsplitter Cube

Dimensional Tolerance(mm)

±0.2

Surface Quality

40/20

Clear Aperture

>90%

Surface Flatness

<λ/4@633nm

Angle of Incidence(degree)

0

Transmitted Beam Deviation (arcmin)

<3

Reflected Beam Deviation(arcmin)

<3

Extinction Ratio

Tp/Ts>1000:1

Split Ratio

Tp>90%, Ts<1%, Rs>99%, Rp<10%

Chamfer

0.5mmx45°

Damage Threshold(pulsed)

7.5J/cm²(10ns 10Hz)



N-SF1 Broadband Polarizing Beamsplitter Cube, Broadband Polarizing Beamsplitter Cube www.simtrum.com      N-SF1 Broadband Polarizing Beamsplitter Cube, Broadband Polarizing Beamsplitter Cube www.simtrum.com

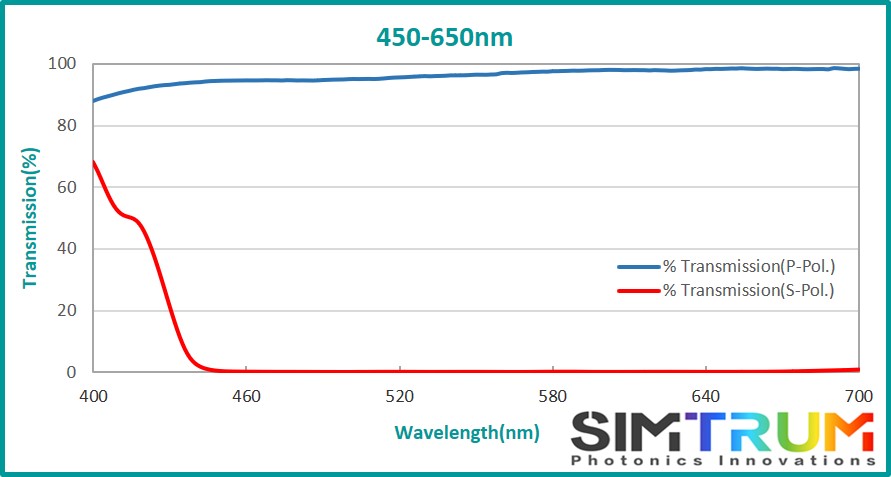

N-SF1 Broadband Polarizing Beamsplitter Cube@450-650nm

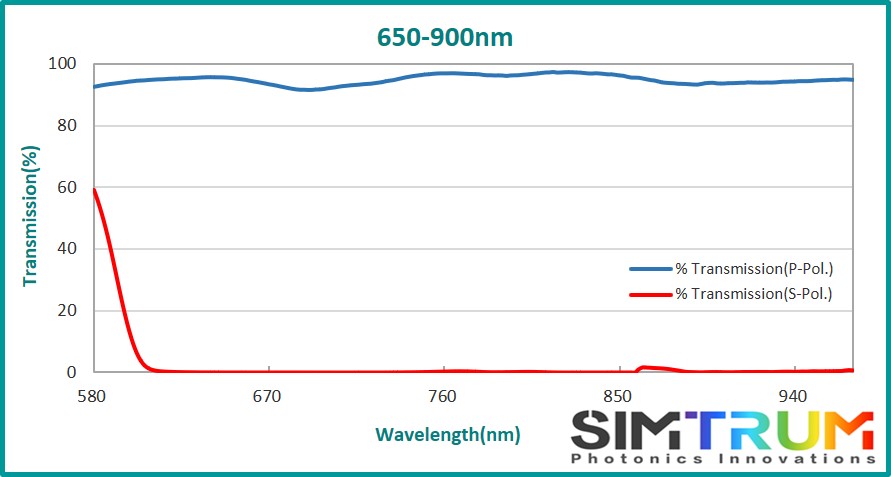

N-SF1 Broadband Polarizing Beamsplitter Cube@650-900nm


N-SF1 Broadband Polarizing Beamsplitter Cube, Broadband Polarizing Beamsplitter Cube www.simtrum.com      N-SF1 Broadband Polarizing Beamsplitter Cube, Broadband Polarizing Beamsplitter Cube www.simtrum.com

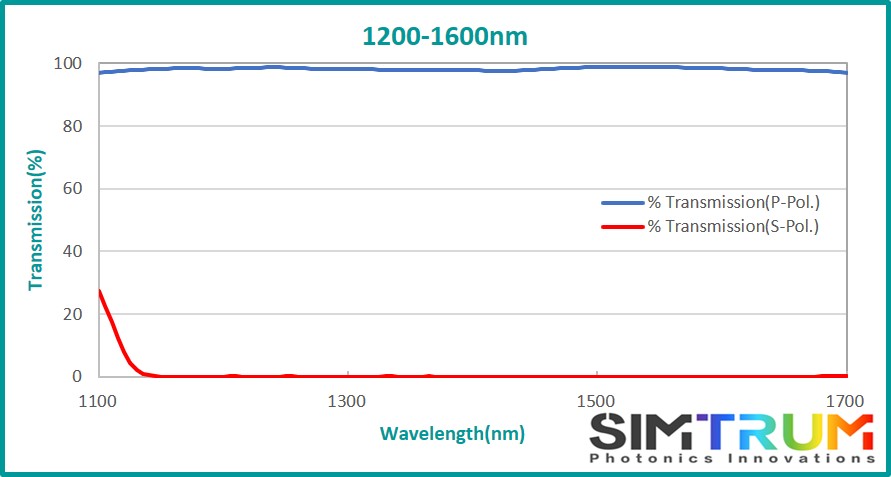

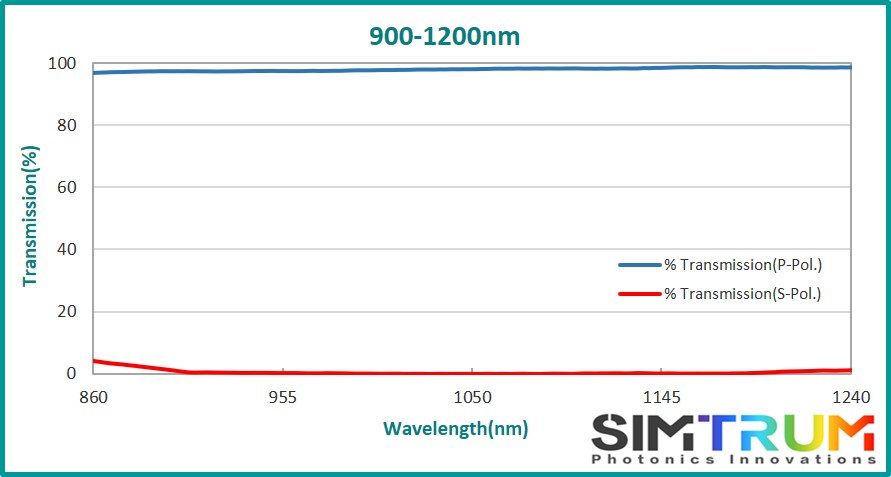

N-SF1 Broadband Polarizing Beamsplitter Cube@900-1200nmN-SF1 Broadband Polarizing Beamsplitter Cube@1200-1600nm



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Dimension (A=B=C) (mm)

Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Coating Wavelength (nm) Dimension (A=B=C) (mm) Split Ratio Availability Reference Price
(USD)
N-SF1-BPBSC-10-420-680
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=10mm, Coating: Ravg < 0.5% @420-680nm 		Ravg < 0.5% @420-680nm420-68010Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-10-620-1000
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=10mm, Coating: Ravg < 0.5% @620-1000nm 		Ravg < 0.5% @620-1000nm620-100010Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-10-900-1300
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=10mm, Coating: Ravg < 0.5% @900-1300nm 		Ravg < 0.5% @900-1300nm900-130010Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-10-1200-1600
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=10mm, Coating: Ravg < 0.5% @1200-1600nm 		Ravg < 0.5% @1200-1600nm1200-160010Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-12.7-420-680
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=12.7mm, Coating: Ravg < 0.5% @420-680nm 		Ravg < 0.5% @420-680nm420-68012.7Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-12.7-620-1000
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=12.7mm, Coating: Ravg < 0.5% @620-1000nm 		Ravg < 0.5% @620-1000nm620-100012.7Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-12.7-900-1300
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=12.7mm, Coating: Ravg < 0.5% @900-1300nm 		Ravg < 0.5% @900-1300nm900-130012.7Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-12.7-1200-1600
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=12.7mm, Coating: Ravg < 0.5% @1200-1600nm 		Ravg < 0.5% @1200-1600nm1200-160012.7Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-20-420-680
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=20mm, Coating: Ravg < 0.5% @420-680nm 		Ravg < 0.5% @420-680nm420-68020Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-20-620-1000
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=20mm, Coating: Ravg < 0.5% @620-1000nm 		Ravg < 0.5% @620-1000nm620-100020Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-20-900-1300
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=20mm, Coating: Ravg < 0.5% @900-1300nm 		Ravg < 0.5% @900-1300nm900-130020Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-20-1200-1600
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=20mm, Coating: Ravg < 0.5% @1200-1600nm 		Ravg < 0.5% @1200-1600nm1200-160020Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-25.4-420-680
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=25.4mm, Coating: Ravg < 0.5% @420-680nm 		Ravg < 0.5% @420-680nm420-68025.4Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-25.4-620-1000
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=25.4mm, Coating: Ravg < 0.5% @620-1000nm 		Ravg < 0.5% @620-1000nm620-100025.4Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-25.4-900-1300
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=25.4mm, Coating: Ravg < 0.5% @900-1300nm 		Ravg < 0.5% @900-1300nm900-130025.4Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote
N-SF1-BPBSC-25.4-1200-1600
N-SF1, Broadband Pol Beamsplitter Cube, Dimension=25.4mm, Coating: Ravg < 0.5% @1200-1600nm 		Ravg < 0.5% @1200-1600nm1200-160025.4Tp>90% Ts<1% Rs>99% Rp<10% 2-3 Weeks Request for quote

N-SF1-BPBSC-25.4-1200-1600 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @1200-1600nm

Wavelength (nm)
1200-1600

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-25.4-900-1300 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @900-1300nm

Wavelength (nm)
900-1300

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-25.4-620-1000 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @620-1000nm

Wavelength (nm)
620-1000

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-25.4-420-680 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @420-680nm

Wavelength (nm)
420-680

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-20-1200-1600 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @1200-1600nm

Wavelength (nm)
1200-1600

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-20-900-1300 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @900-1300nm

Wavelength (nm)
900-1300

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-20-620-1000 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @620-1000nm

Wavelength (nm)
620-1000

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-20-420-680 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @420-680nm

Wavelength (nm)
420-680

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
20

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-12.7-1200-1600 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @1200-1600nm

Wavelength (nm)
1200-1600

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-12.7-900-1300 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @900-1300nm

Wavelength (nm)
900-1300

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-12.7-620-1000 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @620-1000nm

Wavelength (nm)
620-1000

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-12.7-420-680 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @420-680nm

Wavelength (nm)
420-680

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-10-1200-1600 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @1200-1600nm

Wavelength (nm)
1200-1600

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-10-900-1300 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @900-1300nm

Wavelength (nm)
900-1300

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-10-620-1000 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @620-1000nm

Wavelength (nm)
620-1000

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-10-420-680 - Parameter

Type
Broadband Polarizing Beamsplitter Cube

Material
N-SF1

Coating
Ravg < 0.5% @420-680nm

Wavelength (nm)
420-680

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10 ns/10 Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
10

Split Ratio
Tp>90% Ts<1% Rs>99% Rp<10%

Reflected Beam Deviation (arcmin)
<3

N-SF1-BPBSC-25.4-1200-1600 - Download

Download

Download

Download

Download

N-SF1-BPBSC-25.4-900-1300 - Download

Download

Download

Download

Download

N-SF1-BPBSC-25.4-620-1000 - Download

Download

Download

Download

Download

N-SF1-BPBSC-25.4-420-680 - Download

Download

Download

Download

Download

N-SF1-BPBSC-20-1200-1600 - Download

Download

Download

Download

Download

N-SF1-BPBSC-20-900-1300 - Download

Download

Download

Download

Download

N-SF1-BPBSC-20-620-1000 - Download

Download

Download

Download

Download

N-SF1-BPBSC-20-420-680 - Download

Download

Download

Download

Download

N-SF1-BPBSC-12.7-1200-1600 - Download

Download

Download

Download

Download

N-SF1-BPBSC-12.7-900-1300 - Download

Download

Download

Download

Download

N-SF1-BPBSC-12.7-620-1000 - Download

Download

Download

Download

Download

N-SF1-BPBSC-12.7-420-680 - Download

Download

Download

Download

Download

N-SF1-BPBSC-10-1200-1600 - Download

Download

Download

Download

Download

N-SF1-BPBSC-10-900-1300 - Download

Download

Download

Download

Download

N-SF1-BPBSC-10-620-1000 - Download

Download

Download

Download

Download

N-SF1-BPBSC-10-420-680 - Download

Download

Download

Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
