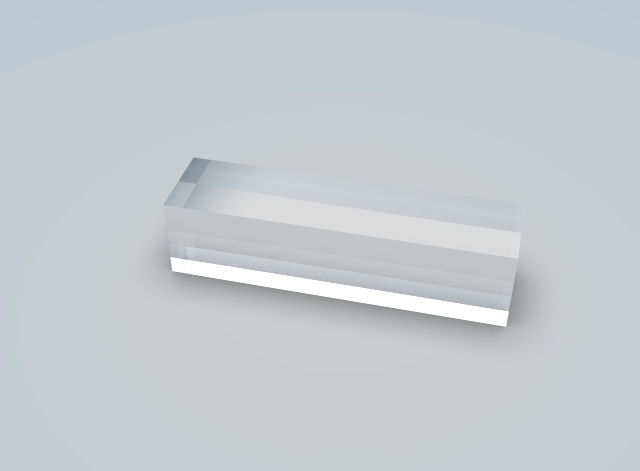

LBO
Overview Specification Order Now!

Lithium Tri-borate (LBO) crystal is one of the most excellent nonlinear crystal for Noncritical Phase Matched laser frequency doubling. Its relatively large conversion coefficient - 3x that of KDP, as well as its excellent physical properties have made it as an excellent nonlinear optical for second and third harmonic generation of YLF, YAG, YAP lasers.


This crystal has a broad optical transparency range from 160 to 2600nm. It excels in high power SHG with minimal thermal lensing as compared to KTP. Its large acceptance angle paired with small walk-off angle which reduces the beam quality requirement for source lasers.



General Specifications

Material

LBO

Dimension Tolerance(mm)

±0.1

Surface Quality

10/5

Flatness

λ/10

Wavefront Distortion

λ/8

Parallelism(arcsec)

20

Damage Threshold(pulsed)

>500MW/cm²

Mount

Unmounted

Typical Application

SHT@1064



Physical and Optical Properties

Chemical formula

LiB3O5

Crystal structure

orthorhombic, mm2

Optical symmetry

Negative biaxial

Space group

Pna21

Density

2.47 g/cm3

Mohs hardness

6

Optical homogeneity

∂n = 10-6 cm-1

Transparency region at “0” transmittance level

155 – 3200 nm

Linear absorption coefficient at 1064 nm

<0.01%cm-1

Refractive indices:

nx

ny

nz

            at 1064 nm

1.5656

1.5905

1.6055

            at 532 nm

1.5785

1.6065

1.6212

             at 355 nm

1.5971

1.6275

1.6430

Sellmeier equations (λ, µm)


Phase matching range Type 1 SHG

554 – 2600 nm

Phase matching range Type 2 SHG

790 – 2150 nm

NCPM SHG temperature dependence:

nx2 = 2.4542 + 0.01125 / (λ2 – 0.01135) – 0.01388 λ2

ny2 = 2.5390 + 0.01277 / (λ2 – 0.01189) – 0.01849 λ2 + 4.3025 × 10-5 λ4 – 2.9131 × 10-5 λ6

nz2 = 2.5865 + 0.0131 / (λ2 – 0.01223) – 0.01862 λ2 + 4.5778 × 10-5 λ4 – 3.2526 × 10-5 λ6

                 Type 1 range   950 – 1300 nm

T1 = - 1893.3λ4 + 8886.6λ3 – 13019.8λ2 + 5401.5λ + 863.9

                 Type 1 range   1300 – 1800 nm

T2 = 878.1λ4 – 6954.5λ3 + 20734.2λ2 – 26378λ + 12020

                 Type 2 range   1100 – 1500 nm

T3 = - 21630.6λ4 + 112251λ3 – 220460λ2 + 194153λ – 64614.5

NCPM SHG at 1064 nm Type 1 temperature

149 °C

NCPM SHG at 1319 nm Type 2 temperature

43 °C

Walk-off angle

7 mrad (Type 1 SHG 1064 nm)

Thermal acceptance

6.4 K×cm (Type 1 SHG 1064 nm)

Angular acceptance

6.5 mrad×cm (Type 1 SHG 1064 nm)

248 mrad×cm (Type 1 NCPM SHG 1064 nm

Nonlinearity coefficients

                          d31 = – (0.98±0.09) pm/V; d32 = (1.05±0.09) pm/V; d33 = (0.05±0.006) pm/V

Effective nonlinearity:


                        XY plane

dooe = d32 cosφ

                        YZ plane

doeo = deoo = d31 cosθ

Expansion coefficients

αx = 10.8 × 10-5 K-1; αy = – 8.8 × 10-5 K-1; αz = 3.4 × 10-5 K-1

Laser induced damage threshold (LIDT)

>5 J/cm2 (>500 MW/cm2), 1064 nm,   10 ns, 10 Hz



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Thickness (mm)

Dimension (mm)


Search Reset
Compare Model Drawings & Specs Coating Dimension (mm) Thickness (mm) Orientation (Θ/φ) (°) Availability Reference Price
(USD)
LBO-NLC-90/11.4-2-10-AR
LBO Nonlinear Crystal, 2x2, SHT@1064 		AR Coating @1064&532nm2x21090/11.4 In Stock Request for quote
LBO-NLC-90/11.4-3-10-AR
LBO Nonlinear Crystal, 3x3, SHT@1064 		AR Coating @1064&532nm3x31090/11.4 In Stock Request for quote
LBO-NLC-90/11.4-3-15-AR
LBO Nonlinear Crystal, 3x3, SHT@1064 		AR Coating @1064&532nm3x31590/11.4 In Stock Request for quote
LBO-NLC-90/11.4-4-10-AR
LBO Nonlinear Crystal, 4x4, SHT@1064 		AR Coating @1064&532nm4x41090/11.4 In Stock Request for quote
LBO-NLC-90/11.4-4-15-AR
LBO Nonlinear Crystal, 4x4, SHT@1064 		AR Coating @1064&532nm4x41590/11.4 In Stock Request for quote
LBO-NLC-90/11.4-4-20-AR
LBO Nonlinear Crystal, 4x4, SHT@1064 		AR Coating @1064&532nm4x42090/11.4 In Stock Request for quote
LBO-NLC-90/11.4-5-10-AR
LBO Nonlinear Crystal, 5x5, SHT@1064 		AR Coating @1064&532nm5x51090/11.4 In Stock Request for quote
LBO-NLC-90/11.4-5-15-AR
LBO Nonlinear Crystal, 5x5, SHT@1064 		AR Coating @1064&532nm5x51590/11.4 In Stock Request for quote
LBO-NLC-90/11.4-5-20-AR
LBO Nonlinear Crystal, 5x5, SHT@1064 		AR Coating @1064&532nm5x52090/11.4 In Stock Request for quote
LBO-NLC-44.3/90-3-10-AR
LBO Nonlinear Crystal, 3x3, SHT@1064 		S1:AR@1064&532nm, S2:B Cut3x31044.3/90 In Stock Request for quote
LBO-NLC-44.3/90-3-15-AR
LBO Nonlinear Crystal, 3x3, SHT@1064 		S1:AR@1064&532nm, S2:B Cut3x31544.3/90 In Stock Request for quote
LBO-NLC-44.3/90-3-20-AR
LBO Nonlinear Crystal, 3x3, SHT@1064 		S1:AR@1064&532nm, S2:B Cut3x32044.3/90 In Stock Request for quote
LBO-NLC-90/11.6-3-15
LBO, Non-Linear Crystal, (Θ/φ)=90/11.6, Dimension=3x3mm, Thickness=15mm 		AR/AR @ 1064 + 532 nm3x31590/11.6 In Stock Request for quote
LBO-NLC-90/11.6-4-10
LBO, Non-Linear Crystal, (Θ/φ)=90/11.6, Dimension=4x4mm, Thickness=10mm 		AR/AR @ 1064 + 532 nm4x41090/11.6 In Stock Request for quote
LBO-NLC-90/11.6-4-15
LBO, Non-Linear Crystal, (Θ/φ)=90/11.6, Dimension=4x4mm, Thickness=15mm 		AR/AR @ 1064 + 532 nm4x41590/11.6 In Stock Request for quote
LBO-NLC-90/11.6-4-20
LBO, Non-Linear Crystal, (Θ/φ)=90/11.6, Dimension=4x4mm, Thickness=20mm 		AR/AR @ 1064 + 532 nm4x42090/11.6 In Stock Request for quote
LBO-NLC-90/11.6-5-10
LBO, Non-Linear Crystal, (Θ/φ)=90/11.6, Dimension=5x5mm, Thickness=10mm 		AR/AR @ 1064 + 532 nm5x51090/11.6 In Stock Request for quote
LBO-NLC-90/11.6-5-15
LBO, Non-Linear Crystal, (Θ/φ)=90/11.6, Dimension=5x5mm, Thickness=15mm 		AR/AR @ 1064 + 532 nm5x51590/11.6 In Stock Request for quote
LBO-NLC-90/11.6-5-20
LBO, Non-Linear Crystal, (Θ/φ)=90/11.6, Dimension=5x5mm, Thickness=20mm 		AR/AR @ 1064 + 532 nm5x52090/11.6 In Stock Request for quote
LBO-NLC-42.2/90-3-10
LBO, Non-Linear Crystal, (Θ/φ)=42.2/90, Dimension=3x3mm, Thickness=10mm 		AR/AR @ 1064 + 532 nm3x31042.2/90 In Stock Request for quote
LBO-NLC-42.2/90-3-15
LBO, Non-Linear Crystal, (Θ/φ)=42.2/90, Dimension=3x3mm, Thickness=15mm 		AR/AR @ 1064 + 532 nm3x31542.2/90 In Stock Request for quote
LBO-NLC-42.2/90-4-10
LBO, Non-Linear Crystal, (Θ/φ)=42.2/90, Dimension=4x4mm, Thickness=10mm 		AR/AR @ 1064 + 532 nm4x41042.2/90 In Stock Request for quote
LBO-NLC-42.2/90-4-15
LBO, Non-Linear Crystal, (Θ/φ)=42.2/90, Dimension=4x4mm, Thickness=15mm 		AR/AR @ 1064 + 532 nm4x41542.2/90 In Stock Request for quote
LBO-NLC-42.2/90-4-20
LBO, Non-Linear Crystal, (Θ/φ)=42.2/90, Dimension=4x4mm, Thickness=20mm 		AR/AR @ 1064 + 532 nm4x42042.2/90 In Stock Request for quote
LBO-NLC-42.2/90-5-10
LBO, Non-Linear Crystal, (Θ/φ)=42.2/90, Dimension=5x5mm, Thickness=10mm 		AR/AR @ 1064 + 532 nm5x51042.2/90 In Stock Request for quote
LBO-NLC-42.2/90-5-15
LBO, Non-Linear Crystal, (Θ/φ)=42.2/90, Dimension=5x5mm, Thickness=15mm 		AR/AR @ 1064 + 532 nm5x51542.2/90 In Stock Request for quote
LBO-NLC-42.2/90-5-20
LBO, Non-Linear Crystal, (Θ/φ)=42.2/90, Dimension=5x5mm, Thickness=20mm 		AR/AR @ 1064 + 532 nm5x52042.2/90 In Stock Request for quote
LBO -NLC-90/0-6-30
LBO , Non-Linear Crystal, (Θ/φ)=90/0, Dimension=6x6mm, Thickness=30mm 		6x63090/0 In Stock Request for quote
LBO -NLC-90/0-3-25
LBO , Non-Linear Crystal, (Θ/φ)=90/0, Dimension=3x3mm, Thickness=25mm 		3x32590/0 In Stock Request for quote
LBO -NLC-90/0-3-20
LBO , Non-Linear Crystal, (Θ/φ)=90/0, Dimension=3x3mm, Thickness=20mm 		3x32090/0 In Stock Request for quote
LBO -NLC-90/9.6-4-12
LBO , Non-Linear Crystal, (Θ/φ)=90/9.6, Dimension=4x4mm, Thickness=12mm 		AR/AR @ 1064 + 532 nm4x412 In Stock Request for quote
LBO -NLC-90/10.4-4-15
LBO , Non-Linear Crystal, (Θ/φ)=90/10.4, Dimension=4x4mm, Thickness=15mm 		AR/AR @ 1064 + 532 nm4x415 In Stock Request for quote
LBO -NLC-90/10.6-3-20
LBO , Non-Linear Crystal, (Θ/φ)=90/10.6, Dimension=3x3mm, Thickness=20mm 		AR/AR @ 1064 + 532 nm3x320 2-3 Weeks Request for quote
LBO -NLC-90/12.7-6-10
LBO , Non-Linear Crystal, (Θ/φ)=90/12.7, Dimension=6x6mm, Thickness=10mm 		6x610 2-3 Weeks Request for quote
LBO -NLC-90/13.7-6-7
LBO , Non-Linear Crystal, (Θ/φ)=90/13.7, Dimension=6x6mm, Thickness=7mm 		AR/AR @ 1064 + 532 nm6x67 2-3 Weeks Request for quote
LBO -NLC-84.8/0-3-15
LBO , Non-Linear Crystal, (Θ/φ)=84.8/0, Dimension=3x3mm, Thickness=15mm 		3x315 2-3 Weeks Request for quote
LBO -NLC-90/8-3-12
LBO , Non-Linear Crystal, (Θ/φ)=90/8, Dimension=3x3mm, Thickness=12mm 		3x312 2-3 Weeks Request for quote
LBO -NLC-90/11.3-3-4
LBO , Non-Linear Crystal, (Θ/φ)=90/11.3, Dimension=3x3mm, Thickness=4mm 		AR/AR @ 1064 + 532 nm3x34 2-3 Weeks Request for quote
LBO -NLC-90/11.3-3-5
LBO , Non-Linear Crystal, (Θ/φ)=90/11.3, Dimension=3x3mm, Thickness=5mm 		AR/AR @ 1064 + 532 nm3x35 2-3 Weeks Request for quote
LBO -NLC--6-30
LBO , Non-Linear Crystal, Dimension=6x6mm, Thickness=30mm 		AR/AR @ 1064 + 532/355 nm6x630 2-3 Weeks Request for quote
LBO -NLC--3-25
LBO , Non-Linear Crystal, Dimension=3x3mm, Thickness=25mm 		AR/AR @ 1064 + 532/355 nm3x325 2-3 Weeks Request for quote
LBO -NLC--3-20
LBO , Non-Linear Crystal, Dimension=3x3mm, Thickness=20mm 		AR/AR @ 1064 + 532/355 nm3x320 2-3 Weeks Request for quote
LBO -NLC--4-12
LBO , Non-Linear Crystal, Dimension=4x4mm, Thickness=12mm 		AR/AR @ 1064 + 532/355 nm4x412 2-3 Weeks Request for quote
LBO -NLC--4-15
LBO , Non-Linear Crystal, Dimension=4x4mm, Thickness=15mm 		AR/AR @ 1064 + 532/355 nm4x415 2-3 Weeks Request for quote
LBO -NLC--3-20
LBO , Non-Linear Crystal, Dimension=3x3mm, Thickness=20mm 		AR/AR @ 1064 + 532/355 nm3x320 2-3 Weeks Request for quote
LBO -NLC-51.9/90-6-10
LBO , Non-Linear Crystal, (Θ/φ)=51.9/90, Dimension=6x6mm, Thickness=10mm 		6x610 2-3 Weeks Request for quote
LBO -NLC--6-7
LBO , Non-Linear Crystal, Dimension=6x6mm, Thickness=7mm 		AR/AR @ 1064 + 532/355 nm6x67 2-3 Weeks Request for quote
LBO -NLC-43.3/90-3-15
LBO , Non-Linear Crystal, (Θ/φ)=43.3/90, Dimension=3x3mm, Thickness=15mm 		AR/AR @ 1064 + 532/355 nm3x315 2-3 Weeks Request for quote
LBO -NLC--3-12
LBO , Non-Linear Crystal, Dimension=3x3mm, Thickness=12mm 		AR/AR @ 1064 + 532/355 nm3x312 2-3 Weeks Request for quote
LBO -NLC--3-4
LBO , Non-Linear Crystal, Dimension=3x3mm, Thickness=4mm 		AR/AR @ 1064 + 532/355 nm3x34 2-3 Weeks Request for quote
LBO -NLC--3-5
LBO , Non-Linear Crystal, Dimension=3x3mm, Thickness=5mm 		AR/AR @ 1064 + 532/355 nm3x35 2-3 Weeks Request for quote
LBO-NLC-90/11.6-3-10
LBO, Non-Linear Crystal, (Θ/φ)=90/11.6, Dimension=3x3mm, Thickness=10mm 		AR/AR @ 1064 + 532 nm3x31090/11.6 2-3 Weeks Request for quote
